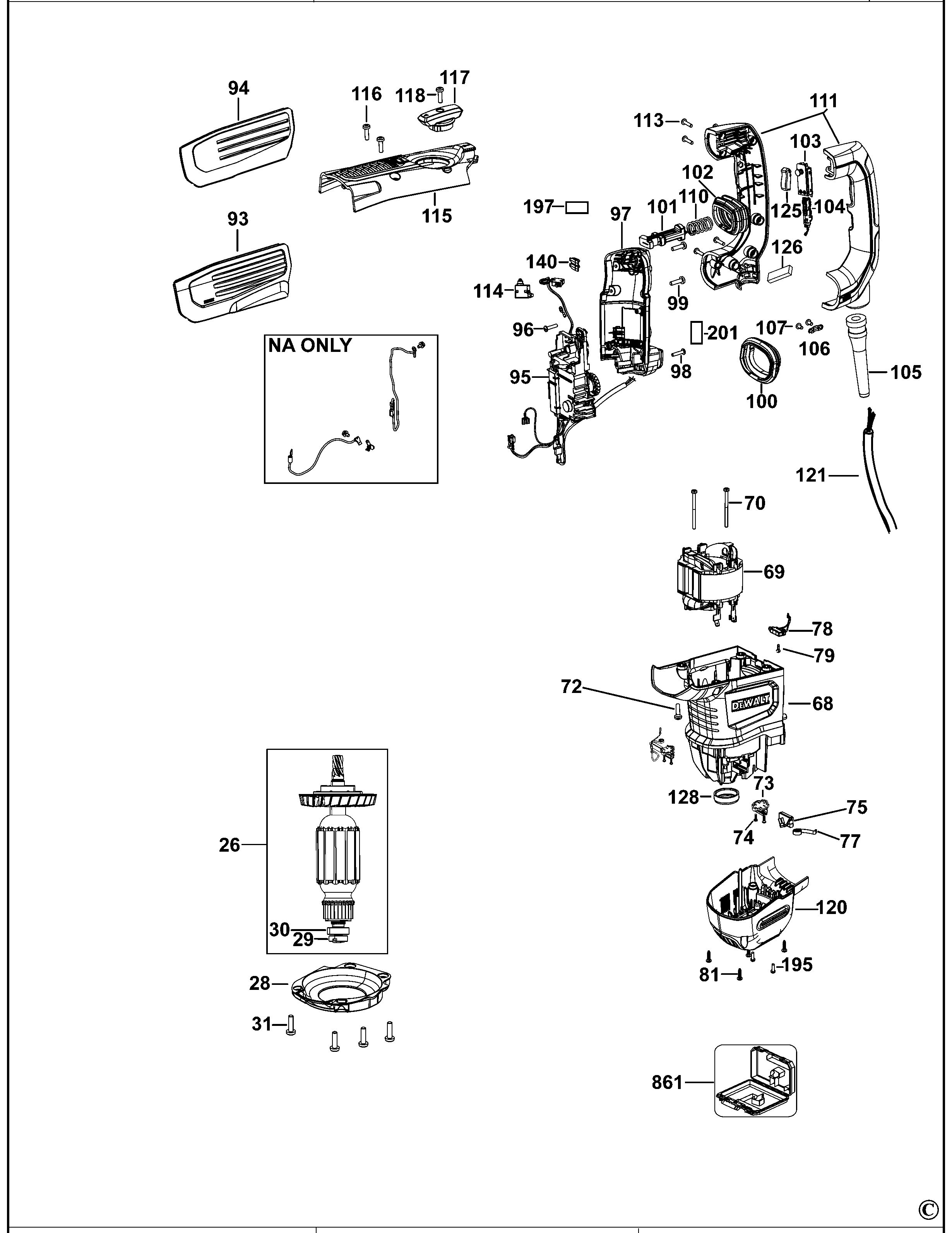

DEWALT ROTARY HAMMER DRILL (Type 1)
SKU Produs: D25614 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N770433 | 1 | HOUSING SA | 289,04 Lei | |
| 2 | N447147 | 1 | SEAL | 6,23 Lei | |
| 3 | N773361 | 1 | CLUTCH SA | 375,31 Lei | |
| 4 | N773364 | 1 | CRANKSHAFT | 145,09 Lei | |
| 5 | 605040-32 | 1 | BEARING | 25,54 Lei | |
| 6 | N526266 | 1 | D | 4,57 Lei | |
| 8 | N773365 | 1 | Gear | 120,82 Lei | |
| 9 | 323711-26 | 1 | O RING, 5X1.2 | 4,57 Lei | |
| 10 | N110358 | 1 | BEARING | 17,02 Lei | |
| 11 | N537938 | 1 | SLIDER | 6,23 Lei | |
| 12 | N540705 | 1 | CONNECTOR | 4,57 Lei | |
| 13 | N520791 | 2 | SPRING | 4,57 Lei | |
| 14 | N515556 | 1 | O RING | 7,37 Lei | |
| 15 | N539769 | 1 | ECCENTRIC | 4,57 Lei | |
| 16 | N538422 | 1 | SEAL | 7,37 Lei | |
| 17 | N537843 | 1 | COVER | 12,71 Lei | |
| 18 | N583061 | 1 | FELT | 4,57 Lei | |
| 19 | N520790 | 1 | DETENT | 4,57 Lei | |
| 20 | 324007-11 | 4 | SCREW, PAN HEAD M5X18 | 5,21 Lei | |
| 21 | 327575-00 | 1 | SLEEVE | 5,21 Lei | |
| 22 | N495599 | 1 | SEAL | 17,02 Lei | |
| 23 | 577745-01 | 1 | BEARING, BALL 6001 | 30,87 Lei | |
| 24 | 488147-01 | 1 | CIRCLIP, INTERNAL 28MM | 4,57 Lei | |
| 25 | N773366 | 1 | HOUSING SA | 145,09 Lei | |
| 26 | N773367 | 1 | ARMATURE SA | 307,21 Lei | |
| 27 | 324007-11 | 6 | SCREW, PAN HEAD M5X18 | 5,21 Lei | |
| 28 | N628759 | 1 | BAFFLE FAN | 10,29 Lei | |
| 29 | N466979 | 1 | MAGNET | 21,85 Lei | |
| 30 | 330003-60 | 1 | BEARING BALL | 17,02 Lei | |
| 31 | 324007-11 | 4 | SCREW, PAN HEAD M5X18 | 5,21 Lei | |
| 33 | N528347 | 1 | CON ROD | 13,85 Lei | |
| 33 | N528457 | 1 | RATING PLATE | 4,57 Lei | |
| 33 | N528458 | 1 | RATING PLATE | 4,57 Lei | |
| 34 | N526045 | 1 | PISTON | 41,93 Lei | |
| 35 | N550706 | 1 | PIN | 4,57 Lei | |
| 36 | N550147 | 1 | PISTON RING | 4,57 Lei | |
| 37 | N550196 | 1 | O RING | 12,71 Lei | |
| 38 | N773624 | 1 | RAM SA | 80,04 Lei | |
| 39 | N550196 | 1 | O RING | 12,71 Lei | |
| 40 | N773631 | 1 | CYLINDER SA | 157,92 Lei | |
| 41 | N773632 | 1 | PISTON SA | 70,39 Lei | |
| 42 | 577744-00 | 2 | O RING, 26 X 2 HNBR | 12,71 Lei | |
| 43 | N528300 | 1 | FORK | 5,21 Lei | |
| 44 | N773634 | 1 | BEVEL GEAR | 195,02 Lei | |
| 45 | N773642 | 1 | SLEEVE | 70,39 Lei | |
| 46 | N533753 | 1 | SPRING | 6,23 Lei | |
| 47 | N549690 | 1 | BUSH | 7,37 Lei | |
| 48 | N549912 | 1 | O RING | 7,37 Lei | |
| 49 | N529936 | 1 | BUSH | 13,85 Lei | |
| 50 | N529844 | 1 | DAMPER | 30,87 Lei | |
| 51 | N715616 | 1 | SLEEVE | 25,54 Lei | |
| 52 | N529841 | 1 | WASHER | 19,95 Lei | |
| 53 | N537701 | 1 | SEAL | 30,87 Lei | |
| 54 | N446544 | 1 | O RING | 19,95 Lei | |
| 55 | N773643 | 1 | BEAT PIECE | 120,82 Lei | |
| 56 | N773644 | 1 | SPINDLE | 613,14 Lei | |
| 57 | N536519 | 1 | SLEEVE | 8,64 Lei | |
| 58 | N535959 | 1 | DAMPER | 17,02 Lei | |
| 59 | N440708 | 1 | WASHER | 6,23 Lei | |
| 60 | N538127 | 1 | BEARING | 25,54 Lei | |
| 62 | N534851 | 1 | SPINDLE LOCK | 7,37 Lei | |
| 63 | N526258 | 1 | GASKET | 7,37 Lei | |
| 64 | N538669 | 1 | SEAL | 25,54 Lei | |
| 65 | N538725 | 1 | CIRCLIP | 7,37 Lei | |
| 66 | N773646 | 1 | HOUSING SA | 213,19 Lei | |
| 67 | 918825-02 | 4 | SCREW, CYL M6 40 / 12..9 | 4,57 Lei | |
| 68 | N655414 | 1 | HOUSING MOTOR | 57,81 Lei | |
| 69 | N773647 | 1 | FIELD SA 230V | 200,99 Lei | |
| 70 | 330065-12 | 2 | SCREW | 4,57 Lei | |
| 71 | 324007-11 | 2 | SCREW, PAN HEAD M5X18 | 5,21 Lei | |
| 72 | N605427 | 2 | SCREW | 4,57 Lei | |
| 73 | N765202 | 2 | BRUSHBOX | 12,71 Lei | |
| 74 | N086775 | 4 | SCREW | 4,57 Lei | |
| 75 | N773649 | 1 | BRUSH PAIR 230V | 96,56 Lei | |
| 77 | N444425 | 2 | BRUSH SPRING | 4,57 Lei | |
| 78 | N448156 | 1 | COIL | 52,22 Lei | |
| 79 | N086775 | 1 | SCREW | 4,57 Lei | |
| 81 | 330065-08 | 4 | SCREW M4X18 | 4,57 Lei | |
| 82 | N550186 | 1 | COVER | 25,54 Lei | |
| 84 | N465749 | 1 | WASHER | 7,37 Lei | |
| 85 | 487118-00 | 1 | SPRING, CONICAL | 7,37 Lei | |
| 86 | 323395-06 | 1 | SPRING.CPRSN 2.2/47 | 4,57 Lei | |
| 87 | N464690 | 1 | GUIDE | 4,57 Lei | |
| 88 | N468172 | 2 | LOCKING PIN | 6,23 Lei | |
| 89 | 325878-00 | 2 | ROLLER, 8 X 20 | 8,64 Lei | |
| 90 | N464913 | 1 | SLEEVE | 41,93 Lei | |
| 91 | 326575-01 | 1 | SLEEVE, SDS, YELLOW (SUBC) | 21,85 Lei | |
| 92 | N465586 | 1 | LIP SEAL | 52,22 Lei | |
| 93 | N653043 | 1 | SIDE LH | 13,85 Lei | |
| 94 | N653057 | 1 | SIDE RH | 12,71 Lei | |
| 95 | N777542 | 1 | CONTROL MODULE SA | 472,24 Lei | |
| 96 | 330065-08 | 2 | SCREW M4X18 | 4,57 Lei | |
| 97 | N655552 | 1 | HOUSING | 37,73 Lei | |
| 98 | 330065-08 | 2 | SCREW M4X18 | 4,57 Lei | |
| 99 | 324007-11 | 4 | SCREW, PAN HEAD M5X18 | 5,21 Lei | |
| 100 | N662827 | 1 | BELLOWS | 15,12 Lei | |
| 101 | N152623 | 1 | LIMIT STOP | 25,54 Lei | |
| 102 | N497943 | 1 | BELLOWS | 8,64 Lei | |
| 103 | N862131 | 1 | SWITCH | 57,81 Lei | |
| 104 | N518647 | 1 | SA LOCK ON MICROSWITCH | 173,3 Lei | |
| 105 | 323091-01 | 1 | CORD PROTECTOR | 7,37 Lei | |
| 106 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 107 | 330065-08 | 2 | SCREW M4X18 | 4,57 Lei | |
| 108 | N015311 | 1 | GROUND CONNECTOR | 5,21 Lei | |
| 109 | 326619-00 | 1 | SCREW, M4 X 8 DIN6900 | 4,57 Lei | |
| 110 | N106188 | 1 | SPRING, AV 4KG HANDLE | 6,23 Lei | |
| 111 | N659370 | 1 | HANDLE SA | 41,93 Lei | |
| 113 | 330065-08 | 7 | SCREW M4X18 | 4,57 Lei | |
| 114 | N516505 | 1 | MODE CHANGE MICROSWITCH | 57,81 Lei | |
| 115 | N550188 | 1 | COVER-TOP | 19,95 Lei | |
| 116 | 324007-11 | 2 | SCREW, PAN HEAD M5X18 | 5,21 Lei | |
| 117 | N550235 | 1 | SELECTOR | 7,37 Lei | |
| 118 | 330065-08 | 1 | SCREW M4X18 | 4,57 Lei | |
| 120 | N655550 | 1 | END CAP | 52,22 Lei | |
| 121 | 1005752-00 | 1 | CORDSET (EURO) | 57,81 Lei | |
| 125 | 587114-01 | 1 | SWITCH TRIGGER | 6,23 Lei | |
| 126 | N738161 | 1 | FOAM | 4,57 Lei | |
| 128 | N449094 | 1 | COVER BEARING | 4,57 Lei | |
| 130 | N609696 | 1 | HANDLE SIDE SA | 130,35 Lei | |
| 131 | N552104 | 1 | BOLT | 7,37 Lei | |
| 132 | N609796 | 1 | CLAMP | 34,05 Lei | |
| 133 | N610193 | 1 | WASHER CLAMP | 4,57 Lei | |
| 134 | N609760 | 1 | CLAMP | 34,05 Lei | |
| 135 | N499183 | 1 | HANDLE SA | 57,81 Lei | |
| 140 | N633441 | 1 | LENS | 4,57 Lei | |
| 195 | 90611830 | 2 | SCREW | 4,57 Lei | |
| 197 | N208653 | 1 | LABEL PERFORM PROTECT 61X22MM | 4,57 Lei | |
| 201 | NA049714 | 1 | RATING LABEL | 6,23 Lei | |
| 300 | N773655 | 1 | SERVICE KIT 230V | 200,99 Lei | |
| 800 | 578970-06 | 1 | GLK FLUID 249 PLUS NLGI 00 | 181,55 Lei | |
| 801 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 837 | 1003981-99 | 1 | S.T.PULLER | 233,9 Lei | |
| 838 | 1003972-99 | 1 | S.T.SEAL FITTING TOOL | 111,8 Lei | |
| 838 | 1003982-99 | 1 | S.T.SEAL FITTING TOOL | 111,8 Lei | |
| 839 | 1003984-99 | 1 | S.T.SEAL FITTING TOOL | 49,17 Lei | |
| 861 | N657876 | 1 | KITBOX | 289,04 Lei |
