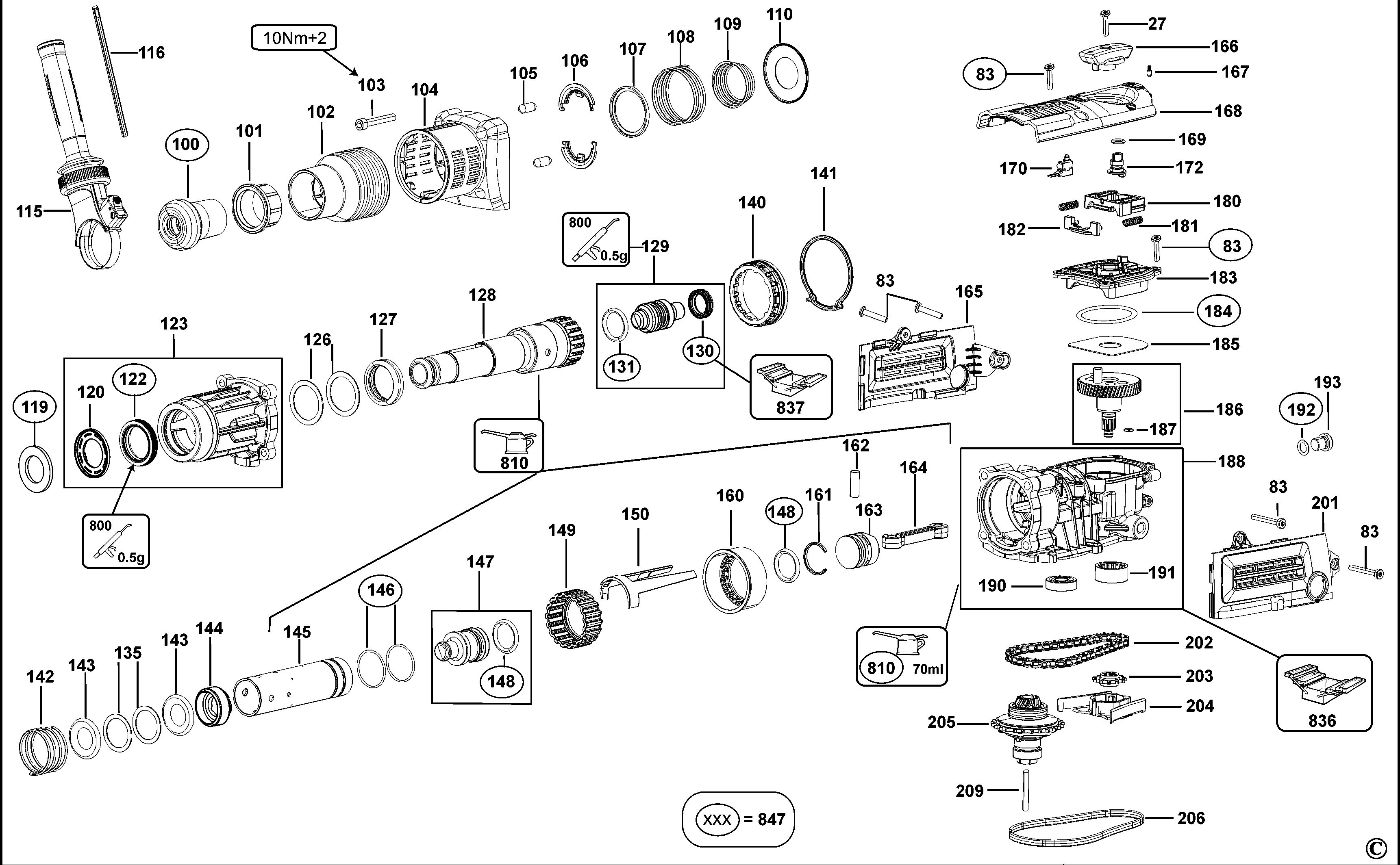

DEWALT ROTARY HAMMER (Type 1)
SKU Produs: D25603K /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N046420 | 1 | SA ARMATURE NEW MSH 230V MPP (SERV) | 443,3 Lei | |
| 2 | N041827 | 1 | SA FIELD WTERMINALS 230V HPP (SERVICE) | 314,3 Lei | |
| 3 | N041825 | 1 | SA COMBI HOUSING FULLY FEATD (SERVICE) | 185,8 Lei | |
| 4 | 330003-39 | 1 | BEARING, BALL | 17,4 Lei | |
| 5 | 327141-03 | 1 | RING, SEALING 24 7 14 | 59,2 Lei | |
| 6 | 586403-00 | 1 | SEAL 12X6X4 | 7,5 Lei | |
| 7 | 577746-00 | 1 | RING, EXPANSION | 6,4 Lei | |
| 9 | 330065-21 | 2 | SCREW, PLASTIC THREAD FORM M4*50 | 4,7 Lei | |
| 11 | 1007970-00 | 2 | TAB, DOUBLE | 5,3 Lei | |
| 12 | N020117 | 1 | LC FILTER CABLE | 5,3 Lei | |
| 20 | 330003-60 | 1 | BEARING BALL | 17,4 Lei | |
| 21 | 1007732-00 | 1 | COVER, BEARING | 4,7 Lei | |
| 22 | 1007798-00 | 1 | BRUSH BRIDGE (MOULD) | 31,6 Lei | |
| 23 | N047446 | 1 | SA BRUSH CARD 230V (SERVICE) | 42,9 Lei | |
| 24 | N047424 | 1 | SA BRUSH SENSOR 230V (SERVICE) | 72 Lei | |
| 25 | N047444 | 2 | SA BRUSH CARD 230V SENSOR (SERVICE) | 90,6 Lei | |
| 26 | 1007799-00 | 1 | BAFFLE FAN | 20,4 Lei | |
| 27 | 330065-08 | 35 | SCREW M4X18 | 4,7 Lei | |
| 28 | 1006592-01 | 1 | SA FAN (WITH MAGNET) | 59,2 Lei | |
| 29 | 324119-02 | 1 | SCREW, M5 X 12 | 6,4 Lei | |
| 40 | 1006577-00 | 1 | END CAP - FULL-FEATD - 5KG (MOULD) | 34,8 Lei | |
| 41 | 1006576-00 | 1 | MOTOR COVER - COMBI - 5 KG (MOULD) | 36,8 Lei | |
| 42 | N041744 | 1 | SA MODULE KIT D25603K 230V (SERVICE) | 1712,1 Lei | |
| 43 | 1006589-00 | 1 | LEVER, ACTIVATION | 13 Lei | |
| 45 | 1006588-00 | 1 | LEVER, ACTIVATION (PIN) | 4,7 Lei | |
| 49 | 1005672-00 | 1 | AP SCREW M5X60 | 7,5 Lei | |
| 50 | 1006578-00 | 1 | HANDLE PLATE -FULL-FEATD - 5KG | 36,8 Lei | |
| 60 | 1007569-00 | 1 | SPRING, ANTIVIB 5KG | 5,3 Lei | |
| 61 | 1007567-00 | 1 | SLIDING BUSH 5 KG | 7,5 Lei | |
| 62 | 1007566-00 | 1 | LIMIT STOP - 5KG | 31,6 Lei | |
| 63 | 1007565-00 | 1 | FOLD BELOW-UPPER, 5KG | 13 Lei | |
| 64 | 1006579-00 | 1 | HANDLE HOUSING -FULL-FEATD 5KG (MOULD) | 31,6 Lei | |
| 65 | 587114-01 | 1 | SWITCH TRIGGER | 6,4 Lei | |
| 66 | 587274-00 | 1 | SWITCH, MSH | 109,5 Lei | |
| 67 | 1006580-00 | 1 | SA HANDLE COVER 5KG OVERMOULD (MOULD) | 53,4 Lei | |
| 68 | N019514 | 1 | SA LOCK ON NEWMSH | 90,6 Lei | |
| 69 | N041833 | 1 | SA OVERMOULD FULL FEAT 230V (SERVICE) | 72 Lei | |
| 72 | 582319-41 | 1 | CORDSET QS 5000 0 (NEW) | 109,5 Lei | |
| 80 | 1008678-00 | 1 | FOLD BELOW-LOWER, 5KG | 14,2 Lei | |
| 81 | N038214 | 2 | HANDLE BUSH (PURCH) | 4,7 Lei | |
| 82 | N062047 | 1 | PIN HANDLE | 5,3 Lei | |
| 83 | 324007-11 | 19 | SCREW, PAN HEAD M5X18 | 5,3 Lei | |
| 85 | 821070 | 1 | CLAMP, CORD | 4,7 Lei | |
| 86 | 323091-01 | 1 | CORD PROTECTOR | 7,5 Lei | |
| 88 | 1008391-00 | 1 | CORDSET COVER 5KG (MOULD) | 14,2 Lei | |
| 90 | 1007896-00 | 1 | LIGHT GUIDE 5KG (MOULD) | 8,8 Lei | |
| 100 | 329816-00 | 1 | SEAL, LIP | 20,4 Lei | |
| 101 | 326575-01 | 1 | SLEEVE, SDS, YELLOW (SUBC) | 22,4 Lei | |
| 102 | 479247-00 | 1 | SLIDING TUBE INCL. WASHER | 31,6 Lei | |
| 103 | 918825-02 | 4 | SCREW, CYL M6 40 / 12..9 | 4,7 Lei | |
| 104 | 1006572-00 | 1 | FRONT COVER 5KG (MOULD) | 31,6 Lei | |
| 105 | 325878-00 | 2 | ROLLER, 8 X 20 | 8,8 Lei | |
| 106 | 325929-00 | 2 | HOLDER, PIN | 6,4 Lei | |
| 107 | 327208-00 | 1 | GUIDE | 4,7 Lei | |
| 108 | 323395-06 | 1 | SPRING.CPRSN 2.2/47 | 4,7 Lei | |
| 109 | 487118-00 | 1 | SPRING, CONICAL | 6,4 Lei | |
| 110 | N313860 | 1 | GUIDE,CONICAL FLAT | 20,4 Lei | |
| 115 | N501145 | 1 | SA SIDE HANDLE MSH DTV KIT (SERVICE) | 133,4 Lei | |
| 116 | N040996 | 1 | DEPTH STOP | 26,1 Lei | |
| 119 | N038151 | 1 | FELT 31X52 | 7,5 Lei | |
| 120 | N045793 | 1 | BUSH FELT | 7,5 Lei | |
| 122 | 1007828-00 | 1 | SEAL SPINDLE 32X42X7/9 | 42,9 Lei | |
| 123 | N041835 | 1 | SA FRONT HOUSING 5KG (SERVICE) | 205,7 Lei | |
| 126 | 1005982-00 | 2 | WASHER DAMPER 5KG | 4,7 Lei | |
| 127 | 496191-00 | 1 | DAMPER SPINDLE 5KG | 8,8 Lei | |
| 128 | N041834 | 1 | f7-6 | 384 Lei | |
| 129 | N455684 | 1 | SERVICE BEAT PIECE 5KG | 199,6 Lei | |
| 130 | 577484-00 | 1 | SEAL, BEATPIECE, MSH | 161,6 Lei | |
| 131 | 323711-10 | 1 | O RING 19 X 3.5 | 8,8 Lei | |
| 135 | N064329 | 2 | WASHER 18.5 | 4,7 Lei | |
| 140 | 494857-00 | 1 | RING, SPINDLE LOCK | 13 Lei | |
| 141 | 1006283-00 | 1 | GASKET, MAIN HOUSING/FROT HOUSING | 14,2 Lei | |
| 142 | 1005748-00 | 1 | SPRING 2X40.2 | 7,5 Lei | |
| 143 | N210233 | 2 | O-RING,16X6 HNBR 80 | 7,5 Lei | |
| 144 | 1006778-00 | 1 | BUSH, CYLINDER (USE EXISTING MSH) | 7,5 Lei | |
| 145 | N041846 | 1 | CYLINDER 31X35 (SERVICE) | 161,6 Lei | |
| 146 | 577744-00 | 2 | O RING, 26 X 2 HNBR | 13 Lei | |
| 147 | N041845 | 1 | RAM 5KG (SERVICE) | 161,6 Lei | |
| 148 | 576232-01 | 2 | O RING, FPM 23 X 4 | 22,4 Lei | |
| 149 | N041844 | 1 | SLEEVE SHIFTING 5KG (SERVICE) | 72 Lei | |
| 150 | 1005749-00 | 1 | FORK SHIFTING 5KG | 7,5 Lei | |
| 160 | N551764 | 1 | GEAR BEVEL 5KG (FORE) | 123,6 Lei | |
| 161 | 325905-00 | 1 | RING, PISTON D=25.6 | 7,5 Lei | |
| 162 | 330041-22 | 1 | NEEDLE, PIN 8 X 24 | 7,5 Lei | |
| 163 | N041843 | 1 | PISTON (SERVICE) | 90,6 Lei | |
| 164 | 494724-00 | 1 | CONNECT. ROD (DIFFERENT BORE DIA) | 20,4 Lei | |
| 165 | 1006721-00 | 1 | SIDE COVER AL, RIGHT - 5KG | 38,6 Lei | |
| 166 | 1006786-00 | 1 | KNOB MODE CHANGE 5KG | 8,8 Lei | |
| 167 | 326467-00 | 1 | DETENT | 4,7 Lei | |
| 168 | 1006575-00 | 1 | TOP COVER - COMBI - 5KG (MOULD) | 26,1 Lei | |
| 169 | 323711-57 | 1 | O-RING 8X2.2 | 4,7 Lei | |
| 170 | N019533 | 1 | SWITCH MICRO MQ 10580358 | 53,4 Lei | |
| 172 | 496856-00 | 1 | ECCENTRIC 5KG | 4,7 Lei | |
| 180 | 1006784-00 | 1 | SLIDER SPRING 5KG | 20,4 Lei | |
| 181 | 323395-32 | 2 | SPRING, PRESSURE | 4,7 Lei | |
| 182 | 1006783-00 | 1 | CONNECTOR 5KG | 4,7 Lei | |
| 183 | 496857-00 | 1 | COVER CRANK 5KG | 17,4 Lei | |
| 184 | 323711-59 | 1 | RING,O 65X3.5 | 4,7 Lei | |
| 185 | 1006785-00 | 1 | PLATE, CRANK | 8,8 Lei | |
| 186 | N041841 | 1 | SA CRANK SHAFT 5KG (SERVICE) | 283,3 Lei | |
| 187 | 323711-26 | 1 | O RING, 5X1.2 | 4,7 Lei | |
| 188 | N041840 | 1 | SA MAIN HOUSING 5KG (SERVICE) | 357,2 Lei | |
| 190 | 577745-01 | 1 | BEARING, BALL 6001 | 31,6 Lei | |
| 191 | 586301-00 | 1 | BEARING, NEEDLE 22X30X13 | 22,4 Lei | |
| 192 | 323711-57 | 1 | O-RING 8X2.2 | 4,7 Lei | |
| 193 | 1008427-00 | 1 | PLUG, SCREW | 8,8 Lei | |
| 201 | 1006720-00 | 1 | SIDE COVER AL, LEFT - 5KG | 42,9 Lei | |
| 202 | N041839 | 1 | CHAIN P8X40 (SERVICE) | 34,8 Lei | |
| 203 | N041837 | 1 | GEAR CHAIN 11 (SERVICE) | 20,4 Lei | |
| 204 | 1006280-00 | 1 | GUIDE CHAIN | 10,5 Lei | |
| 205 | N551767 | 1 | SERVICE KIT SA CLUTCH 2 STEP 5KG (FORE) | 627,4 Lei | |
| 206 | 1006282-00 | 1 | GASKET, MAIN HOUSING/GEAR HOUSING | 17,4 Lei | |
| 209 | 586392-00 | 1 | PIN, PRESSURE | 10,5 Lei | |
| 300 | N454223 | 1 | MSH BRUSH COVER | 14,2 Lei | |
| 800 | 870889-03 | 1 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 31,6 Lei | |
| 810 | N040237 | 1 | OIL BOTTLE 90ml | 109,5 Lei | |
| 816 | N064908 | 1 | LABEL BRAND NEW MSH | 4,7 Lei | |
| 817 | 487395-01 | 1 | NOISE LABEL 105dB | 5,3 Lei | |
| 821 | N190151 | 1 | RATING LABEL D25603K-QS01 | 10 Lei | |
| 836 | 1003938-99 | 1 | SERVICE TOOL | 365,3 Lei | |
| 837 | 559645-99 | 1 | SERVICE TOOL | 144,3 Lei | |
| 847 | N081427 | 1 | SA 1ST SERVICE KIT D25501 ETC. (SERVICE) | 258,4 Lei | |
| 847 | N095940 | 1 | SCE KIT 230V SDS MAX W.SB MOD (SERVICE) | 462,3 Lei | |
| 861 | 574931-22 | 1 | SA KITBOX MSH W HANDLE | 357,2 Lei |
