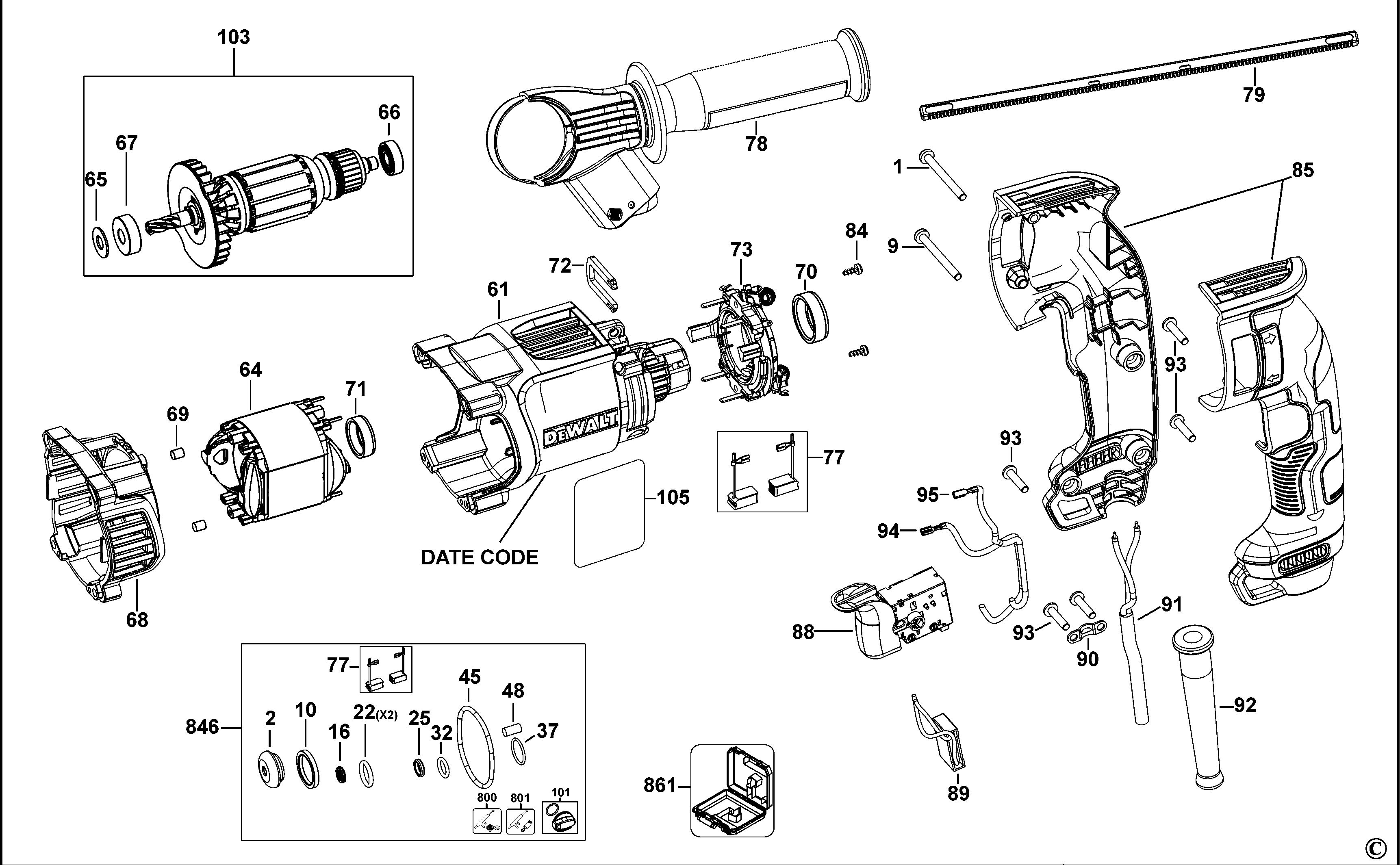

DEWALT ROTARY HAMMER (Type 1)
SKU Produs: D25153 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N325879 | 1 | SCREW PLASTC THD FORM M4.06X42 | 4,57 Lei | |
| 2 | 323489-00 | 1 | CAP | 4,57 Lei | |
| 3 | 579212-00 | 1 | RING SNAP 21 | 5,21 Lei | |
| 4 | N850185 | 1 | SLIDING TUBE | 20,4 Lei | |
| 5 | 583890-00 | 1 | BALL 7.0 | 5,21 Lei | |
| 6 | 578387-00 | 1 | SDS BALL PLATE (WASHER SDS 1.4MM) | 7,37 Lei | |
| 7 | 871690 | 1 | SPRING BEVEL | 4,57 Lei | |
| 9 | 330065-16 | 1 | SCREW | 4,57 Lei | |
| 10 | 577812-00 | 1 | RING SEAL | 10,29 Lei | |
| 11 | 577813-00 | 1 | BEARING NEEDLE-1 | 21,85 Lei | |
| 13 | 577814-00 | 1 | WASHER SPINDLE | 12,71 Lei | |
| 15 | 584423-00 | 1 | SA BEARING, BEATPIECE NQCC PACKED | 80,04 Lei | |
| 16 | 577139-00 | 1 | SEAL | 7,37 Lei | |
| 17 | 577814-00 | 1 | WASHER SPINDLE | 12,71 Lei | |
| 18 | N322087 | 1 | SPRING CLUTCH HPP | 21,85 Lei | |
| 19 | N417736 | 1 | LOCKING RING | 34,05 Lei | |
| 20 | N417740 | 1 | Gear | 57,81 Lei | |
| 21 | 581836-00 | 1 | RING,SNAP 29.5 | 4,57 Lei | |
| 22 | 577135-00 | 2 | O-RING 19.5X3.5 | 7,37 Lei | |
| 23 | 577130-00 | 1 | BUSH DAMPER | 21,85 Lei | |
| 24 | N082142 | 1 | BEAT PIECE | 52,22 Lei | |
| 25 | 580990-00 | 1 | RING RAMCATCHER | 8,64 Lei | |
| 26 | N401306 | 1 | CATCHER RAM DTV | 21,85 Lei | |
| 27 | N361759 | 1 | RING, SNAP | 4,57 Lei | |
| 28 | N059509 | 1 | RING WASHER | 5,21 Lei | |
| 29 | N417747 | 1 | BEARING | 52,22 Lei | |
| 32 | 579699-00 | 1 | O-RING 16X3 | 7,37 Lei | |
| 33 | N417751 | 1 | PISTON | 52,22 Lei | |
| 34 | N325040 | 1 | WASHER HPP | 4,57 Lei | |
| 35 | N325041 | 1 | CROSS BOLT | 12,71 Lei | |
| 36 | N495867 | 1 | HOUSING BEARING | 80,04 Lei | |
| 37 | N264673 | 1 | O RING 22X2 | 4,57 Lei | |
| 38 | N418018 | 1 | INTERSHAFT SA | 120,82 Lei | |
| 44 | 1005844-00 | 1 | WASHER INTERSHAFT FRONT | 4,57 Lei | |
| 45 | N264672 | 1 | O RING 68X4 | 5,21 Lei | |
| 47 | N417860 | 1 | Gear | 37,73 Lei | |
| 48 | 1005812-00 | 1 | FELT | 4,57 Lei | |
| 49 | N445171 | 2 | SCREW TAPTITE M4X10 ANU LOCK | 4,57 Lei | |
| 50 | 324006-15 | 3 | SCREW ,TAPTITE M4X20 ANU LOCK | 4,57 Lei | |
| 51 | N323101 | 1 | PLATE SWITCH HPP | 13,85 Lei | |
| 52 | 1005795-00 | 1 | SPRING | 4,57 Lei | |
| 53 | N389438 | 4 | SCREW PLSTC THD FORM | 4,57 Lei | |
| 55 | N091381-00 | 1 | O RING | 4,57 Lei | |
| 61 | N481043 | 1 | HOUSING MOTOR | 34,05 Lei | |
| 65 | N245239 | 1 | SLAG WASHER | 5,3 Lei | |
| 66 | 1005895-00 | 1 | CE BEARING | 12,71 Lei | |
| 67 | 330003-60 | 1 | BEARING BALL | 17,02 Lei | |
| 68 | N346919 | 1 | CONNECTION FLANGE DTV 44MM | 25,54 Lei | |
| 69 | N476768 | 2 | RUBBER PAD | 4,57 Lei | |
| 70 | N442577 | 1 | RUBBER RING | 4,5 Lei | |
| 71 | N442578 | 1 | BEARING COVER | 4,57 Lei | |
| 72 | 1005894-00 | 1 | CLIP COMM BEARING | 4,57 Lei | |
| 78 | 1008956-00 | 1 | SA SIDE HANDLE FIXED | 88,55 Lei | |
| 79 | 798846-02 | 1 | DEPTH STOP | 7,37 Lei | |
| 84 | N475466 | 2 | SCREW PLSTC THD FORM M3.12 X 16 | 4,57 Lei | |
| 90 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 92 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 93 | 330065-08 | 5 | SCREW M4X18 | 4,57 Lei | |
| 94 | 1005879-00 | 1 | LEAD WIRE BLUE PISTOL | 5,21 Lei | |
| 95 | 1005879-01 | 1 | LEAD WIRE RED PISTOL | 4,57 Lei | |
| 100 | N418052 | 1 | SPINDLE SA | 200,99 Lei | |
| 101 | N417861 | 1 | SELECTOR SA | 30,87 Lei | |
| 102 | N418036 | 1 | RAM SA | 41,93 Lei | |
| 104 | N417853 | 1 | COLLAR | 13,85 Lei | |
| 118 | N417734 | 1 | HOUSING SA | 80,04 Lei | |
| 800 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 801 | 487130-04 | 1 | GREASE,GLK FLUID, 10G SACHET - SERVICE | 25,54 Lei | |
| 836 | 1003924-99 | 1 | S.T.CIRCLIP REMOVER | 219,42 Lei | |
| 836 | 1003925-99 | 1 | T.CIRCLIP INSERTER | 333,38 Lei | |
| 836 | 596005-99 | 1 | SERVICE TOOLING KIT | 526,5 Lei |
