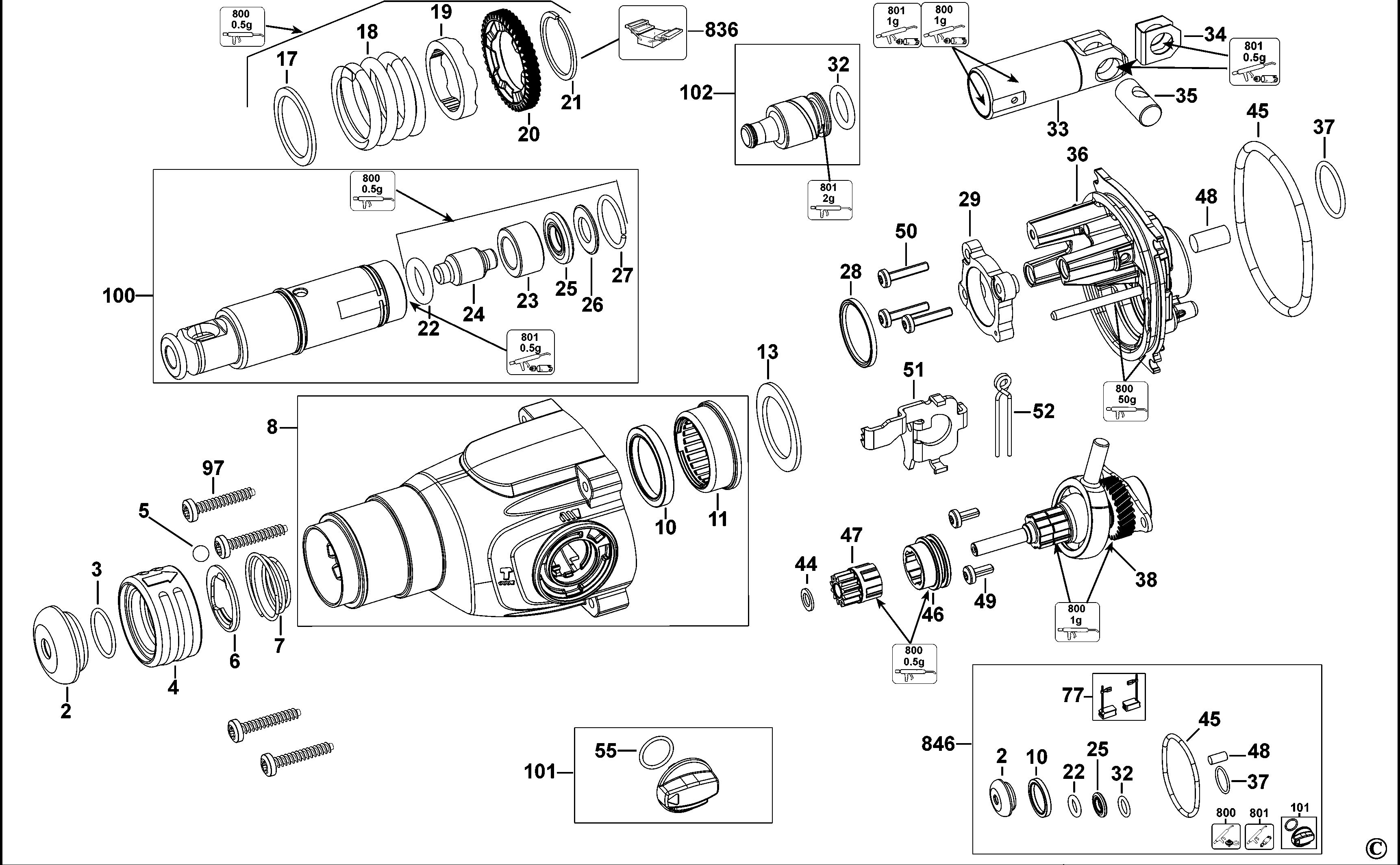

DEWALT ROTARY HAMMER (Type 10)
SKU Produs: D25032 /Type: 10
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N325879 | 1 | SCREW PLASTC THD FORM M4.06X42 | 4,57 Lei | |
| 2 | 323489-00 | 1 | CAP | 4,57 Lei | |
| 3 | 579212-00 | 1 | RING SNAP 21 | 5,21 Lei | |
| 4 | N720573 | 1 | SA SLIDING TUBE | 15,12 Lei | |
| 5 | 583890-00 | 1 | BALL 7.0 | 5,21 Lei | |
| 6 | 578387-00 | 1 | SDS BALL PLATE (WASHER SDS 1.4MM) | 7,37 Lei | |
| 7 | 871690 | 1 | SPRING BEVEL | 4,57 Lei | |
| 8 | N417729 | 1 | HOUSING FRONT | 98,8 Lei | |
| 9 | 330065-16 | 1 | SCREW | 4,57 Lei | |
| 10 | 327141-06 | 1 | RING SEALING DIA 28 | 13,85 Lei | |
| 11 | N020023 | 1 | NEEDLE BEARING | 25,54 Lei | |
| 13 | 1005788-00 | 1 | WASHER,NEEDLE BEARING | 6,23 Lei | |
| 17 | 589350-00 | 1 | WASHER CLUTCH | 7,37 Lei | |
| 18 | N264677 | 1 | SPRING | 10,29 Lei | |
| 19 | N417735 | 1 | LOCKING RING | 41,93 Lei | |
| 20 | N417737 | 1 | Wheel Gear with Packaging DTV Hammer | 30,87 Lei | |
| 21 | N406151 | 1 | C-CLIP 28 | 4,57 Lei | |
| 22 | N394276 | 1 | O-RING 13X4 | 6,23 Lei | |
| 23 | N470388 | 1 | GUIDE BEAT PIECE | 13,85 Lei | |
| 24 | N417744 | 1 | BEAT PIECE | 42,9 Lei | |
| 25 | 1005808-00 | 1 | CATCH RING | 10,29 Lei | |
| 25 | 580990-00 | 1 | RING RAMCATCHER | 8,64 Lei | |
| 26 | 327087-00 | 1 | WASHER CATCH | 12,71 Lei | |
| 26 | N531681 | 1 | RAM CATCHER OPP/MPP | 15,12 Lei | |
| 27 | N294259 | 1 | RING SNAP 22.5 | 4,57 Lei | |
| 28 | N267565 | 1 | RING | 6,23 Lei | |
| 29 | N417745 | 1 | BEARING | 19,95 Lei | |
| 32 | N264642 | 1 | O RING 14X3 | 8,64 Lei | |
| 33 | N417749 | 1 | PISTON | 70,39 Lei | |
| 34 | 1005842-00 | 1 | WASHER U SHAPE | 4,57 Lei | |
| 35 | N325041 | 1 | CROSS BOLT | 12,71 Lei | |
| 36 | N495931 | 1 | HOUSING BR OPP/MPP WITH PACK FOR SERVICE | 70,39 Lei | |
| 37 | N264673 | 1 | O RING 22X2 | 4,57 Lei | |
| 38 | N418019 | 1 | INTERSHAFT SA | 145,09 Lei | |
| 44 | 1005844-00 | 1 | WASHER INTERSHAFT FRONT | 4,57 Lei | |
| 45 | N264672 | 1 | O RING 68X4 | 5,21 Lei | |
| 46 | N417853 | 1 | COLLAR | 13,85 Lei | |
| 47 | N417859 | 1 | Gear | 34,05 Lei | |
| 48 | 1005812-00 | 1 | FELT | 4,57 Lei | |
| 49 | N445171 | 2 | SCREW TAPTITE M4X10 ANU LOCK | 4,57 Lei | |
| 50 | 324006-15 | 3 | SCREW ,TAPTITE M4X20 ANU LOCK | 4,57 Lei | |
| 51 | N493869 | 1 | PLATE SWITCH OPP/MPP | 13,85 Lei | |
| 52 | 1005795-00 | 1 | SPRING | 4,57 Lei | |
| 55 | N091381-00 | 1 | O RING | 4,57 Lei | |
| 61 | N271819 | 1 | HOUSING MOTOR | 36,8 Lei | |
| 61 | N481043 | 1 | HOUSING MOTOR | 34,05 Lei | |
| 64 | N484763 | 1 | FIELD 230V | 106,98 Lei | |
| 64 | N489764 | 1 | SERVICE KIT 230V | 130,35 Lei | |
| 65 | N245239 | 1 | SLAG WASHER | 5,3 Lei | |
| 66 | 605040-02 | 1 | BEARING | 12,71 Lei | |
| 67 | 330003-60 | 1 | BEARING BALL | 17,02 Lei | |
| 68 | N356759 | 1 | BAFFLE DTV 35MM | 8,64 Lei | |
| 69 | N476768 | 1 | RUBBER PAD | 4,57 Lei | |
| 70 | 1005856-00 | 1 | RING RUBBER | 4,57 Lei | |
| 70 | N442577 | 1 | RUBBER RING | 4,5 Lei | |
| 71 | 1005865-00 | 1 | BEARING COVER 1 | 4,57 Lei | |
| 71 | N442578 | 1 | BEARING COVER | 4,57 Lei | |
| 72 | 1005894-00 | 1 | CLIP COMM BEARING | 4,57 Lei | |
| 73 | N418033 | 1 | BRUSH HOLDER SA | 80,04 Lei | |
| 77 | N418039 | 1 | BRUSH PAIR 230V | 25,54 Lei | |
| 84 | N086775 | 2 | SCREW | 4,57 Lei | |
| 85 | N417867 | 1 | HANDLE SA | 59,2 Lei | |
| 88 | N364920 | 1 | SWITCH DGQ HV W/O LOCK ON (SERVICE) | 88,55 Lei | |
| 89 | 320842-19 | 1 | CAPACITOR, 0.22uF | 7,37 Lei | |
| 90 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 91 | 582319-31 | 1 | CORDSET QS | 70,39 Lei | |
| 92 | 403395-00 | 1 | CORD PROTECTOR | 13,85 Lei | |
| 93 | 330065-08 | 5 | SCREW M4X18 | 4,57 Lei | |
| 94 | N425379 | 1 | LEAD WIRE, BLUE PISTOL | 5,21 Lei | |
| 95 | 1005879-01 | 1 | LEAD WIRE RED PISTOL | 4,57 Lei | |
| 97 | 330065-28 | 4 | SCREW PLSTC THD FORM M4X30 T20 | 4,57 Lei | |
| 98 | 1005896-00 | 1 | SA SIDE HANDLE | 30,87 Lei | |
| 99 | 798846-02 | 1 | DEPTH STOP | 7,37 Lei | |
| 100 | NA015421 | 1 | SPINDLE SA | 199,6 Lei | |
| 101 | N417861 | 1 | SELECTOR SA | 30,87 Lei | |
| 102 | N418035 | 1 | RAM SA | 41,93 Lei | |
| 103 | N566908 | 1 | ARMATURE 230V | 169,36 Lei | |
| 105 | N435424 | 1 | LABEL RATING D25032-QS TY10 | 7,5 Lei | |
| 800 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 801 | 487130-04 | 1 | GREASE,GLK FLUID, 10G SACHET - SERVICE | 25,54 Lei | |
| 836 | 1003959-99 | 1 | S.T.CIRCLIP REMOVER | 263,25 Lei | |
| 836 | 1003960-99 | 1 | S.T.CIRCLIP REMOVER | 465 Lei | |
| 836 | 596005-99 | 1 | SERVICE TOOLING KIT | 526,5 Lei | |
| 846 | N418448 | 1 | SERVICE KIT 230V | 157,92 Lei | |
| 861 | N440493 | 1 | KITBOX | 145,09 Lei |
