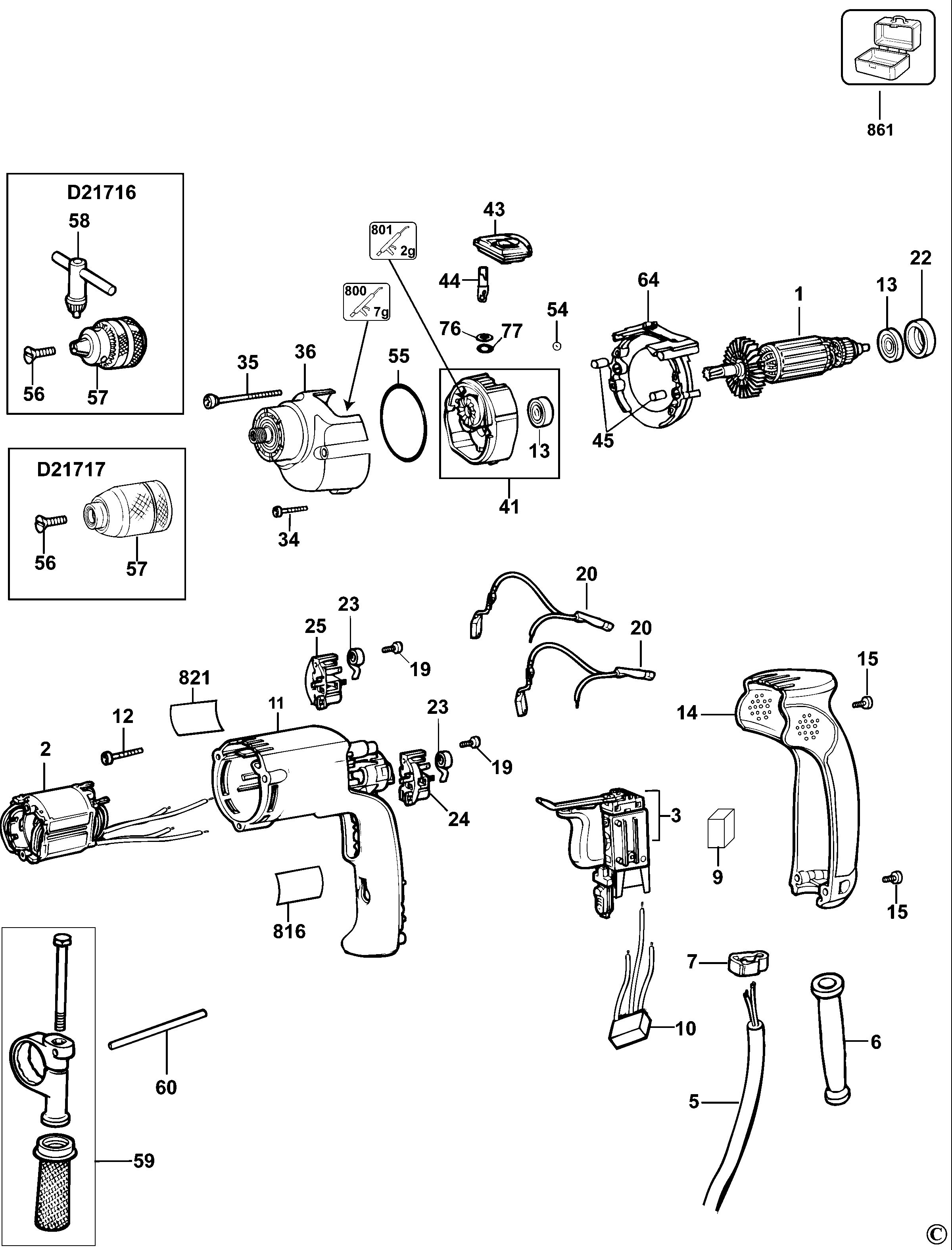

DEWALT DRILL (Type 10)
SKU Produs: D21716K /Type: 10
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1007787-00 | 1 | SA ARMATURE 230V (SERVICE) | 208,1 Lei | |
| 2 | N803540 | 1 | FIELD SA | 181,55 Lei | |
| 3 | 1006250-00 | 1 | SWITCH, VSR MARQUARDT 250V | 106,98 Lei | |
| 6 | 330120-86 | 1 | CORD, PWR SPLY EURO | 70,39 Lei | |
| 6 | 401751-00 | 1 | CORD PROTECTOR | 12,71 Lei | |
| 7 | 402648-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 9 | 930026-01 | 1 | BUMPER SPONGE | 4,57 Lei | |
| 10 | 585292-03 | 1 | CAPACITOR, XY, 0.22 uF | 30,87 Lei | |
| 12 | 390198-00 | 2 | SCREW | 4,57 Lei | |
| 13 | 605040-06 | 2 | BEARING,BALL | 13,85 Lei | |
| 14 | 176816-03 | 1 | COVER, HANDLE HOLE 35 | 40,9 Lei | |
| 15 | 330019-13 | 3 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 19 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 20 | 403108-14 | 2 | BRUSH WITH CONNECTOR | 34,05 Lei | |
| 22 | 389824-00 | 1 | RUBBER BOOT | 4,57 Lei | |
| 23 | 402759-00 | 2 | SPRING, BRUSH | 4,57 Lei | |
| 24 | 401877-01 | 1 | SA BRUSH HOLDER | 17,02 Lei | |
| 25 | 401878-01 | 1 | SA BRUSH HOLDER | 17,4 Lei | |
| 34 | 330019-14 | 1 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 35 | 330019-17 | 2 | SCREW | 4,57 Lei | |
| 36 | 590106-00 | 1 | HOUSING SA | 109,5 Lei | |
| 45 | 949638-02 | 2 | SMALL RUBBER | 4,57 Lei | |
| 54 | 000903-00 | 1 | BALL | 37,73 Lei | |
| 55 | 401847-00 | 1 | RING, OR | 4,7 Lei | |
| 56 | 490910-00 | 1 | CHUCK, SCREW 1/4 LH | 4,57 Lei | |
| 57 | 5140071-68 | 1 | CHUCK AND KEY | 52,22 Lei | |
| 58 | N022653 | 1 | CHUCK, KEY | 7,37 Lei | |
| 59 | 939794-02 | 1 | HANDLE SIDE | 52,22 Lei | |
| 60 | 940357-00 | 1 | DEPTH STOP | 6,23 Lei | |
| 64 | 585994-00 | 1 | BAFFLE FAN (MOULD) | 8,8 Lei | |
| 76 | 050050-00 | 1 | O RING DW831 | 4,57 Lei | |
| 77 | 176659-00 | 1 | WASHER DW505 TYPE 2 | 4,7 Lei | |
| 801 | 870889-03 | 1 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 30,87 Lei | |
| 816 | 395047-00 | 1 | LABEL, IDENTITY DEWALT 34*48 | 4,57 Lei | |
| 861 | N383875 | 1 | SA KITBOX NO.3A DeWALT (MOULD) | 130,35 Lei |
