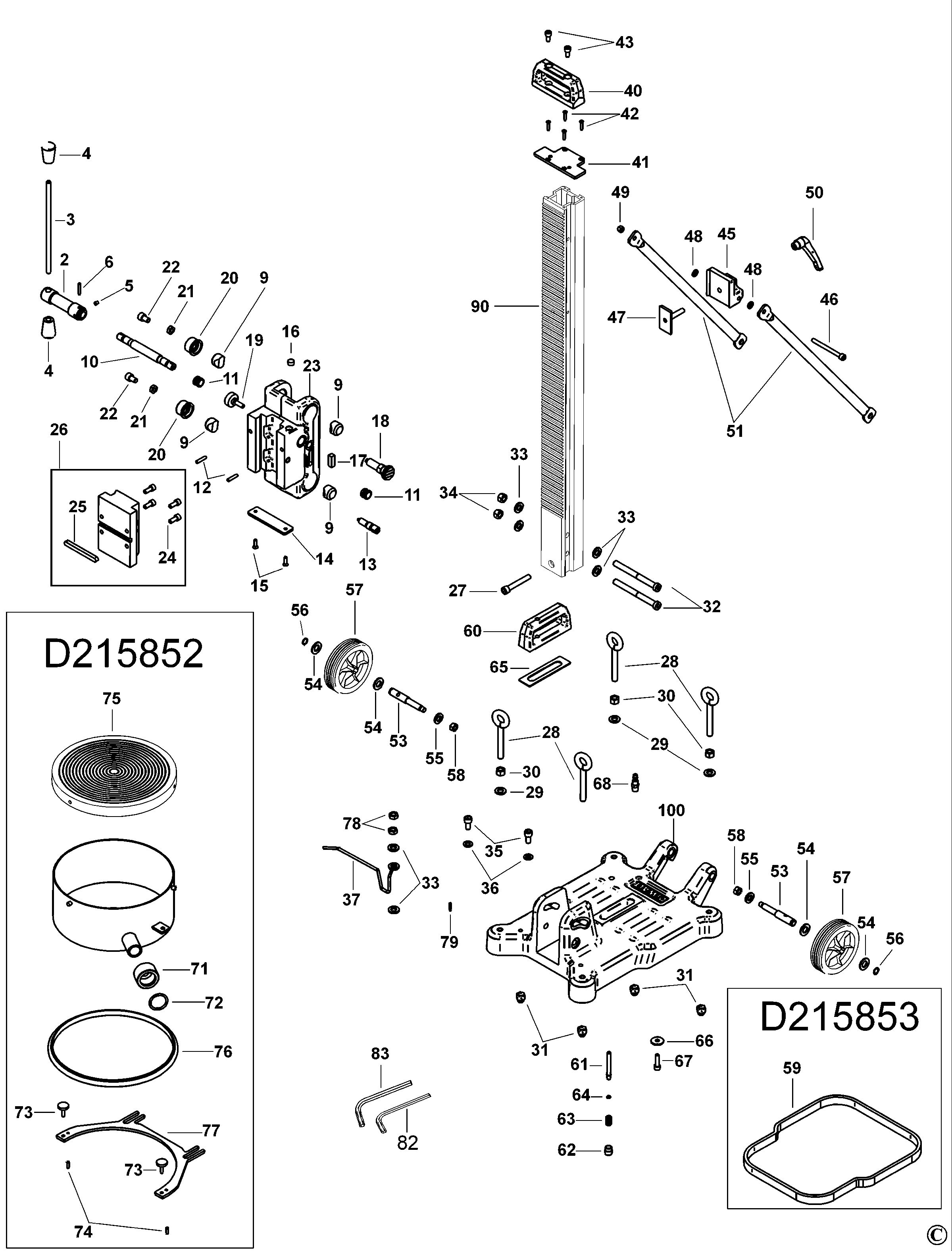

DEWALT DRILL STAND (Type 1)
SKU Produs: D215851 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 1002936-00 | 1 | HANDLE | 120,82 Lei | |
| 3 | 1002937-00 | 1 | LEVER | 80,04 Lei | |
| 4 | 1002935-00 | 2 | CONE | 80,04 Lei | |
| 5 | 1002933-00 | 1 | CLIP | 25,54 Lei | |
| 6 | 1002927-00 | 1 | PIN | 13,85 Lei | |
| 9 | 1002938-00 | 4 | THRUST PLATE | 52,22 Lei | |
| 10 | 1003036-00 | 1 | PINION | 472,24 Lei | |
| 11 | 1002939-00 | 2 | BEARING BUSH | 70,39 Lei | |
| 12 | 1003014-00 | 2 | GRUB SCREW | 21,85 Lei | |
| 13 | 1003043-00 | 1 | LOCK SCREW | 130,35 Lei | |
| 14 | 1003045-00 | 1 | PLATE | 120,82 Lei | |
| 15 | 1003019-00 | 2 | SCREW | 13,85 Lei | |
| 16 | 1002932-00 | 1 | LEVEL | 70,39 Lei | |
| 17 | 1002931-00 | 1 | LEVEL | 57,81 Lei | |
| 18 | 1003028-00 | 1 | LOCK SCREW | 300,47 Lei | |
| 19 | 1003027-00 | 1 | LOCK SCREW | 52,22 Lei | |
| 20 | 1002979-00 | 2 | CAP | 41,93 Lei | |
| 21 | 1002961-00 | 2 | NUT | 13,85 Lei | |
| 22 | 1002964-00 | 2 | SCREW | 15,12 Lei | |
| 23 | 1003042-00 | 1 | SLIDER | 3011,72 Lei | |
| 24 | 1003018-00 | 4 | SCREW | 13,85 Lei | |
| 25 | 1003012-00 | 1 | KEY | 30,87 Lei | |
| 26 | 1003044-00 | 1 | ADAPTOR SA | 2055,16 Lei | |
| 27 | 1003022-00 | 1 | BOLT | 13,85 Lei | |
| 28 | 1002929-00 | 4 | BOLT | 41,93 Lei | |
| 29 | 1002930-00 | 3 | WASHER | 13,85 Lei | |
| 30 | 1002928-00 | 3 | NUT | 13,85 Lei | |
| 31 | 1002959-00 | 4 | STOP NUT | 25,54 Lei | |
| 32 | 1003017-00 | 2 | BOLT | 25,54 Lei | |
| 33 | 1003024-00 | 6 | WASHER | 13,85 Lei | |
| 34 | 1003015-00 | 2 | NUT | 17,02 Lei | |
| 35 | 1002963-00 | 2 | SCREW | 13,85 Lei | |
| 36 | 1002969-00 | 2 | WASHER | 13,85 Lei | |
| 37 | 1003037-00 | 1 | POINTER | 195,02 Lei | |
| 40 | 1003038-00 | 1 | HANDLE | 169,36 Lei | |
| 41 | 1003047-00 | 1 | PLATE | 80,04 Lei | |
| 42 | 1003021-00 | 4 | SCREW | 17,02 Lei | |
| 43 | 1003020-00 | 2 | SCREW | 13,85 Lei | |
| 45 | 1003046-00 | 1 | HOLDER | 169,36 Lei | |
| 46 | 1003023-00 | 1 | BOLT | 13,85 Lei | |
| 47 | 1003048-00 | 1 | PLATE | 106,98 Lei | |
| 48 | 1002989-00 | 2 | WASHER | 13,85 Lei | |
| 49 | 1002965-00 | 1 | NUT | 13,85 Lei | |
| 50 | 1003026-00 | 1 | HANDLE | 130,35 Lei | |
| 51 | 1002981-00 | 2 | TUBE SUPPORT | 120,82 Lei | |
| 54 | 1002967-00 | 4 | WASHER | 13,85 Lei | |
| 55 | 1003024-00 | 4 | WASHER | 13,85 Lei | |
| 56 | 1002966-00 | 2 | SPRING CLIP | 13,85 Lei | |
| 57 | 1002977-00 | 2 | WHEEL | 157,92 Lei | |
| 58 | 1002960-00 | 4 | NUT | 13,85 Lei | |
| 59 | 1003041-00 | 1 | SEAL | 349,13 Lei | |
| 60 | 1002980-00 | 1 | HANDLE | 276,84 Lei | |
| 61 | 1002983-00 | 1 | VALVE | 225,26 Lei | |
| 62 | 1002984-00 | 1 | PLUG | 120,82 Lei | |
| 63 | 1002976-00 | 1 | SPRING COMPRESSION | 30,87 Lei | |
| 64 | 1002974-00 | 1 | RING | 8,64 Lei | |
| 65 | 1002973-00 | 1 | SEAL | 30,87 Lei | |
| 66 | 1002968-00 | 1 | WASHER | 13,85 Lei | |
| 67 | 1002962-00 | 1 | SCREW | 13,85 Lei | |
| 68 | 1002975-00 | 1 | NIPPLE | 106,98 Lei | |
| 71 | 1002673-00 | 1 | ADAPTOR | 331,47 Lei | |
| 72 | 1002971-00 | 1 | RING | 13,85 Lei | |
| 73 | 1002934-00 | 2 | LOCKING SCREW | 70,39 Lei | |
| 74 | 1002958-00 | 2 | PIN | 13,85 Lei | |
| 76 | 1002972-25 | 1 | SEAL | 307,21 Lei | |
| 78 | 1003016-00 | 2 | NUT | 13,85 Lei | |
| 79 | 1003013-00 | 1 | PIN | 13,85 Lei | |
| 82 | 1003202-00 | 1 | HEX KEY 6 MM | 15,12 Lei | |
| 83 | 1003203-00 | 1 | HEX KEY 8 MM | 15,12 Lei | |
| 90 | 1003774-00 | 1 | COLUMN | 3011,72 Lei | |
| 100 | 1003040-00 | 1 | BASE SA | 3326,42 Lei |
