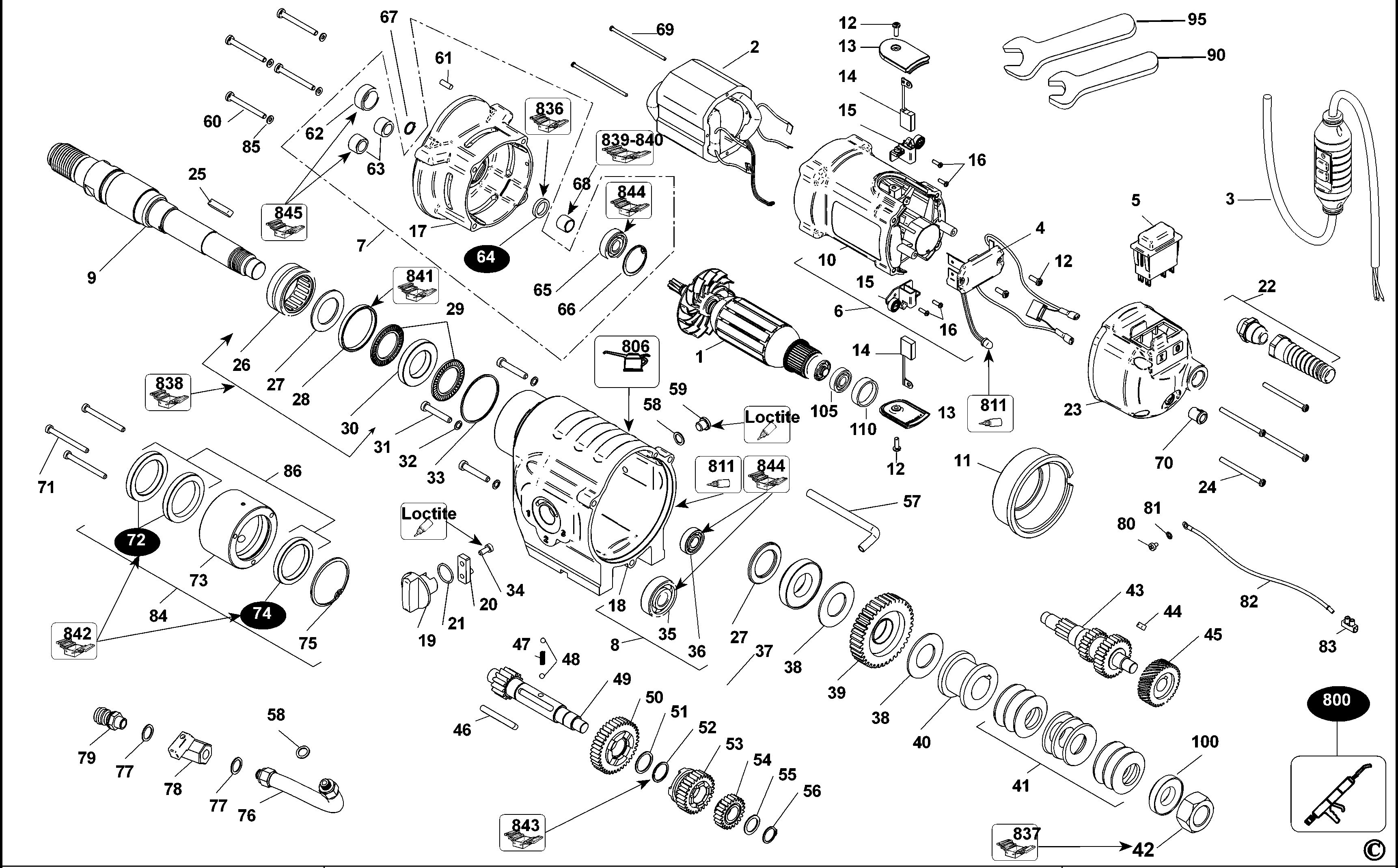

DEWALT DIAMOND DRILL (Type 1)
SKU Produs: D21585 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1002677-00 | 1 | ROTOR | 1850,48 Lei | |
| 2 | 1002679-00 | 1 | STATOR 230V | 1786,07 Lei | |
| 3 | 493658-00 | 1 | CORDSET QS | 1087,42 Lei | |
| 4 | 1002681-00 | 1 | PCB | 980,83 Lei | |
| 5 | 1002683-00 | 1 | SWITCH | 289,04 Lei | |
| 6 | 1002577-00 | 1 | MOTOR HOUSING SA | 713,77 Lei | |
| 7 | 1002684-00 | 1 | GEARCASE COVER | 1850,48 Lei | |
| 8 | 1002685-00 | 1 | HOUSING GEARBOX | 2166,84 Lei | |
| 9 | 1004442-00 | 1 | CLUTCH KIT | 1673,25 Lei | |
| 10 | 492277-00 | 1 | HOUSING MOTOR | 307,21 Lei | |
| 11 | 1002687-00 | 1 | BAFFLE | 252,58 Lei | |
| 12 | 330065-06 | 4 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 13 | 492282-00 | 1 | BRUSH COVER | 8,64 Lei | |
| 14 | 1002581-00 | 2 | BRUSH AND LEAD | 57,81 Lei | |
| 15 | 1002582-00 | 2 | BRUSH HOLDER | 106,98 Lei | |
| 16 | 330065-25 | 4 | SCREW PLSTC THD FORM M3X9 T10 | 4,57 Lei | |
| 17 | 492556-00 | 1 | GEARCASE COVER | 1472,26 Lei | |
| 18 | 492555-00 | 1 | HOUSING GEARBOX | 1850,48 Lei | |
| 19 | 1002688-00 | 1 | ACTUATOR | 145,09 Lei | |
| 20 | 1002689-00 | 1 | LEVER | 157,92 Lei | |
| 21 | 1002585-00 | 1 | O RING | 7,37 Lei | |
| 23 | 492554-00 | 1 | END CAP | 57,81 Lei | |
| 24 | 330019-19 | 4 | SCREW, PLASTITE | 5,21 Lei | |
| 25 | 1002691-00 | 1 | KEY | 21,85 Lei | |
| 26 | 1002692-00 | 1 | BEARING NEEDLE | 472,24 Lei | |
| 27 | 1002693-00 | 2 | WASHER | 96,56 Lei | |
| 28 | 1002694-00 | 1 | RING | 70,39 Lei | |
| 29 | 1002695-00 | 2 | BEARING NEEDLE | 88,55 Lei | |
| 30 | 1002696-00 | 1 | DISC | 252,58 Lei | |
| 31 | 493897-00 | 3 | SCREW | 8,64 Lei | |
| 32 | 1002697-00 | 3 | WASHER LOCK | 8,64 Lei | |
| 33 | 1002698-00 | 1 | RING | 15,12 Lei | |
| 34 | 1002654-00 | 1 | SCREW | 8,64 Lei | |
| 35 | 1002699-00 | 1 | BEARING | 181,55 Lei | |
| 36 | 1002700-00 | 1 | BEARING | 98,8 Lei | |
| 37 | 1002701-00 | 1 | DISC | 225,26 Lei | |
| 38 | 1002702-00 | 2 | BRAKE | 34,05 Lei | |
| 39 | 1002703-00 | 1 | WHEEL | 850,09 Lei | |
| 40 | 1002704-00 | 1 | SLEEVE | 451,79 Lei | |
| 41 | 1002705-00 | 9 | WASHER BOW | 57,81 Lei | |
| 42 | 1002706-00 | 1 | NUT | 4,57 Lei | |
| 42 | 1004443-00 | 1 | NUT | 52,22 Lei | |
| 43 | 1002707-00 | 1 | SPINDLE AND GEAR | 613,14 Lei | |
| 44 | 1002708-00 | 1 | KEY | 8,64 Lei | |
| 45 | 1002709-00 | 1 | Gear | 433,24 Lei | |
| 46 | 1002710-00 | 1 | KEY | 25,54 Lei | |
| 47 | 1002711-00 | 1 | SPRING | 17,02 Lei | |
| 48 | 1002712-00 | 2 | BALL | 7,37 Lei | |
| 49 | 1002713-00 | 1 | GEAR AND PINION | 980,83 Lei | |
| 50 | 1002714-00 | 1 | Gear | 613,14 Lei | |
| 51 | 1002715-00 | 1 | DISC | 17,02 Lei | |
| 52 | 1002716-00 | 1 | CIRCLIP | 17,02 Lei | |
| 53 | 1002717-00 | 1 | Gear | 850,09 Lei | |
| 54 | 1002718-00 | 1 | Gear | 980,83 Lei | |
| 55 | 1002719-00 | 1 | RING | 8,64 Lei | |
| 56 | 1002720-00 | 1 | CIRCLIP | 7,37 Lei | |
| 57 | 1002721-00 | 1 | TUBE OIL | 181,55 Lei | |
| 58 | 1002630-00 | 1 | SEAL | 7,37 Lei | |
| 59 | 1002655-00 | 1 | SCREW | 25,54 Lei | |
| 60 | 1002722-00 | 4 | SCREW | 17,4 Lei | |
| 61 | 1002723-00 | 1 | PIN | 8,64 Lei | |
| 62 | 1002724-01 | 1 | BEARING | 120,82 Lei | |
| 63 | 1002725-01 | 2 | BEARING | 106,98 Lei | |
| 64 | 1002623-10 | 1 | SEAL | 37,73 Lei | |
| 65 | 1002726-00 | 1 | BEARING | 145,09 Lei | |
| 66 | 1002727-00 | 1 | CIRCLIP | 7,5 Lei | |
| 67 | 1002728-00 | 1 | CIRCLIP | 7,5 Lei | |
| 68 | 1002729-00 | 1 | BUSH | 120,82 Lei | |
| 69 | 1002730-00 | 2 | SCREW | 21,85 Lei | |
| 70 | 1002624-00 | 1 | HOLDER | 15,12 Lei | |
| 71 | 493898-00 | 3 | SCREW | 8,8 Lei | |
| 72 | 1002731-00 | 1 | SEAL | 165,3 Lei | |
| 73 | 1002732-00 | 1 | RING | 195,02 Lei | |
| 74 | 1002733-00 | 1 | SEAL | 169,36 Lei | |
| 75 | 1002640-00 | 1 | CIRCLIP | 15,12 Lei | |
| 76 | 1002629-00 | 1 | HOSE SA | 106,98 Lei | |
| 77 | 1002626-00 | 2 | SEAL | 7,37 Lei | |
| 78 | 1002734-00 | 1 | VALVE | 181,55 Lei | |
| 79 | 1002628-00 | 1 | CONNECTOR | 41,93 Lei | |
| 80 | 1002735-00 | 1 | SCREW | 7,37 Lei | |
| 81 | 1002594-00 | 1 | WASHER LOCK | 7,37 Lei | |
| 82 | 1002736-00 | 1 | LEAD EARTH | 21,85 Lei | |
| 83 | 1002737-00 | 1 | TERMINAL BLOCK | 7,37 Lei | |
| 84 | 1002738-00 | 1 | COLLAR SA | 980,83 Lei | |
| 85 | 1002750-00 | 4 | SEAL | 8,64 Lei | |
| 86 | 1003197-00 | 1 | SEAL SA | 497,78 Lei | |
| 90 | 1004303-00 | 1 | SPANNER 32mm | 70,39 Lei | |
| 95 | 1004304-00 | 1 | SPANNER 41mm | 157,92 Lei | |
| 100 | 1004444-00 | 1 | SPACER | 41,93 Lei | |
| 105 | 1003777-00 | 1 | BEARING,BALL | 57,81 Lei | |
| 110 | 1003776-00 | 1 | SLEEVE INSULATING | 21,85 Lei | |
| 800 | 1003362-00 | 1 | GREASE | 123,6 Lei | |
| 806 | 1003363-00 | 1 | OIL | 389,28 Lei | |
| 811 | 1004773-44 | 1 | TUBE SILICONE | 819,98 Lei | |
| 836 | 559673-99 | 1 | SERVICE TOOL | 33,16 Lei | |
| 837 | 559676-99 | 1 | SERVICE TOOL | 130,99 Lei | |
| 838 | 559679-99 | 1 | SERVICE TOOL | 73,18 Lei | |
| 842 | 559685-99 | 1 | SERVICE TOOL | 50,69 Lei | |
| 844 | 559689-99 | 1 | SERVICE TOOL | 115,87 Lei | |
| 845 | 559690-99 | 1 | SERVICE TOOL | 45,36 Lei |
