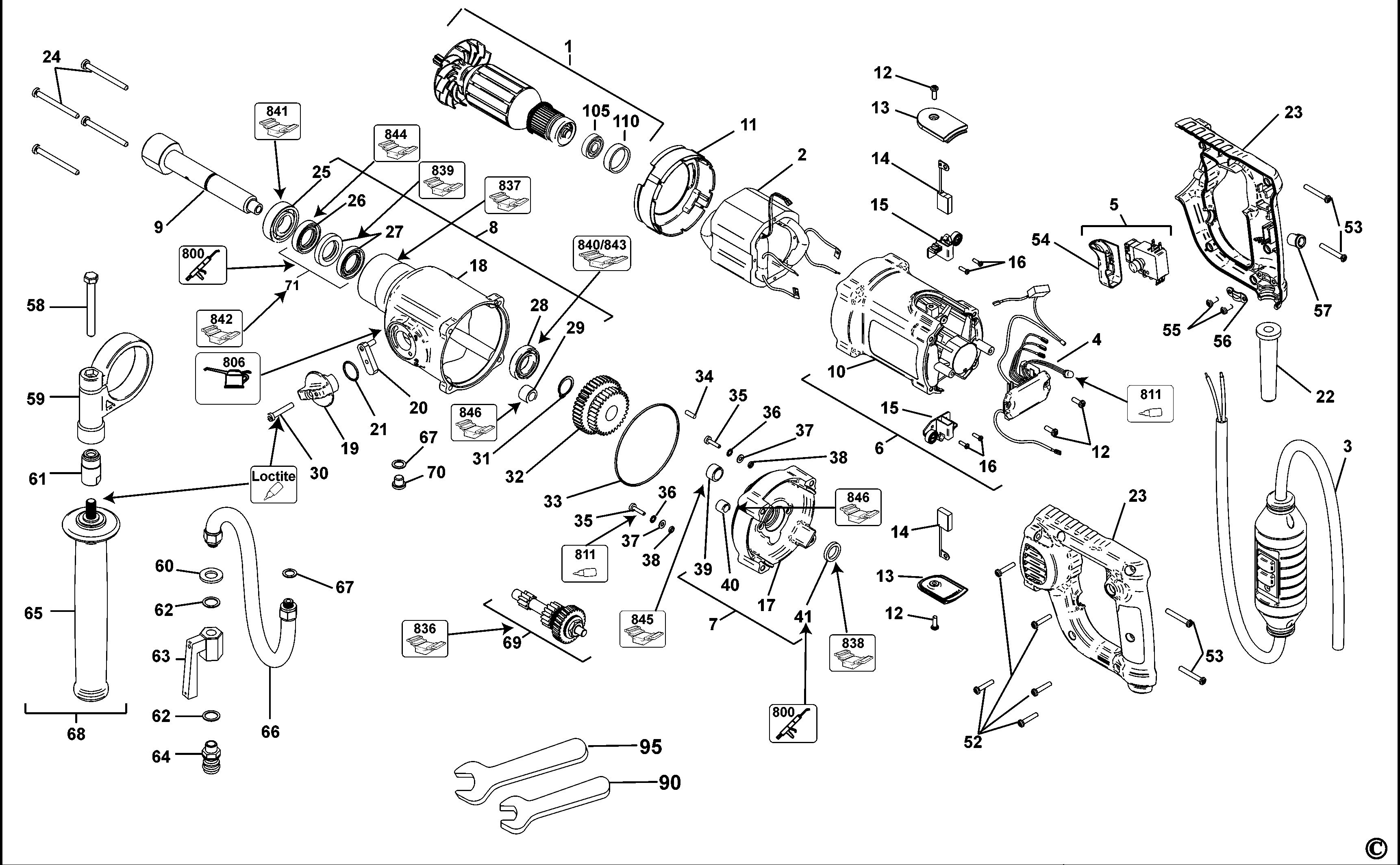

DEWALT DIAMOND DRILL (Type 1)
SKU Produs: D21582K /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1002571-00 | 1 | ROTOR | 1378,75 Lei | |
| 2 | 1002575-00 | 1 | STATOR 230V | 570,96 Lei | |
| 3 | 1002741-00 | 1 | CORDSET QS | 1087,42 Lei | |
| 4 | 1002617-00 | 1 | PCB - GB/QS | 776,53 Lei | |
| 5 | 492301-00 | 1 | SWITCH | 157,92 Lei | |
| 6 | 1002577-00 | 1 | MOTOR HOUSING SA | 713,77 Lei | |
| 7 | 1002578-00 | 1 | GEARCASE COVER | 1158,31 Lei | |
| 8 | 1002620-00 | 1 | HOUSING GEARBOX | 2410,27 Lei | |
| 9 | 1002621-00 | 1 | SPINDLE | 570,96 Lei | |
| 10 | 492277-00 | 1 | HOUSING MOTOR | 307,21 Lei | |
| 11 | 492283-00 | 1 | GUIDE | 57,81 Lei | |
| 12 | 330065-06 | 4 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 13 | 492282-00 | 1 | BRUSH COVER | 8,64 Lei | |
| 14 | 1002581-00 | 2 | BRUSH AND LEAD | 57,81 Lei | |
| 15 | 1002582-00 | 2 | BRUSH HOLDER | 106,98 Lei | |
| 16 | 330065-25 | 4 | SCREW PLSTC THD FORM M3X9 T10 | 4,57 Lei | |
| 17 | 492281-00 | 1 | GEARCASE COVER | 819,98 Lei | |
| 18 | 1002739-00 | 1 | HOUSING GEARBOX | 1087,42 Lei | |
| 19 | 1002583-00 | 1 | SELECTOR | 213,19 Lei | |
| 20 | 1002584-00 | 1 | LEVER | 157,92 Lei | |
| 21 | 1002585-00 | 1 | O RING | 7,37 Lei | |
| 22 | 1002586-00 | 1 | CORD PROTECTOR | 30,87 Lei | |
| 23 | 492273-00 | 1 | HOUSING HANDLE | 96,56 Lei | |
| 24 | 330019-19 | 4 | SCREW, PLASTITE | 5,21 Lei | |
| 25 | 1002587-00 | 1 | BEARING | 169,36 Lei | |
| 26 | 1002588-00 | 1 | SEAL | 264,01 Lei | |
| 27 | 1002622-00 | 2 | SEAL | 145,09 Lei | |
| 28 | 1002590-00 | 1 | BEARING | 213,19 Lei | |
| 29 | 1002589-00 | 1 | BEARING NEEDLE | 145,09 Lei | |
| 30 | 493899-00 | 1 | SCREW | 7,37 Lei | |
| 31 | 1002591-00 | 1 | CIRCLIP | 8,64 Lei | |
| 32 | 1002592-00 | 1 | Gear | 472,24 Lei | |
| 33 | 1002597-00 | 1 | RING | 25,54 Lei | |
| 34 | 1002598-00 | 1 | PIN | 8,64 Lei | |
| 35 | 1002593-00 | 2 | SCREW | 7,37 Lei | |
| 36 | 1002594-00 | 2 | WASHER LOCK | 7,37 Lei | |
| 37 | 1002595-00 | 2 | DISC | 7,37 Lei | |
| 38 | 1002596-00 | 2 | RING | 7,37 Lei | |
| 39 | 1002599-00 | 1 | BEARING NEEDLE | 88,55 Lei | |
| 40 | 1002600-00 | 1 | BEARING NEEDLE | 96,56 Lei | |
| 41 | 1002623-10 | 1 | SEAL | 37,73 Lei | |
| 52 | 330065-09 | 4 | SCREW PLSTC THD FORM M4X25 T20 | 4,57 Lei | |
| 53 | 330019-15 | 4 | SCREW, PLASTIC THREAD FORM M4 X 32 T20 | 4,57 Lei | |
| 54 | 492302-00 | 1 | TRIGGER | 17,02 Lei | |
| 55 | 330065-05 | 2 | SCEW PLSTC THD FORM M4X10 T20 | 4,57 Lei | |
| 56 | 1002613-00 | 1 | CORD CLAMP | 15,12 Lei | |
| 57 | 1002624-00 | 1 | HOLDER | 15,12 Lei | |
| 58 | 1002614-00 | 1 | SCREW | 17,02 Lei | |
| 59 | 492326-00 | 1 | COLLAR | 200,99 Lei | |
| 60 | 1002625-00 | 1 | DISC | 8,64 Lei | |
| 61 | 492548-00 | 1 | ADAPTOR | 195,02 Lei | |
| 62 | 1002626-00 | 2 | SEAL | 7,37 Lei | |
| 63 | 1002627-00 | 1 | VALVE | 276,84 Lei | |
| 64 | 1002628-00 | 1 | CONNECTOR | 41,93 Lei | |
| 65 | N021120 | 1 | SA HANDLE WEINMEYER OVERMOULD (MOULD) | 56,4 Lei | |
| 66 | 1002629-00 | 1 | HOSE SA | 106,98 Lei | |
| 67 | 1002630-00 | 2 | SEAL | 7,37 Lei | |
| 68 | 1002615-00 | 1 | HANDLE SIDE SA | 451,79 Lei | |
| 69 | 1002616-00 | 1 | CLUTCH SA | 1158,31 Lei | |
| 70 | 1002655-00 | 1 | SCREW | 25,54 Lei | |
| 71 | 1003199-00 | 1 | SEAL SA | 331,47 Lei | |
| 90 | 1004303-00 | 1 | SPANNER 32mm | 70,39 Lei | |
| 95 | 868111-00 | 1 | KEY SE 22 DIN 894 | 19,95 Lei | |
| 105 | 1003777-00 | 1 | BEARING,BALL | 57,81 Lei | |
| 110 | 1003776-00 | 1 | SLEEVE INSULATING | 21,85 Lei | |
| 800 | 1003362-00 | 1 | GREASE | 123,6 Lei | |
| 806 | 1003363-00 | 1 | OIL | 389,28 Lei | |
| 811 | 1004773-44 | 1 | TUBE SILICONE | 819,98 Lei | |
| 836 | 559671-99 | 1 | SERVICE TOOL | 187,65 Lei | |
| 837 | 559672-99 | 1 | SERVICE TOOL | 202,77 Lei | |
| 838 | 559673-99 | 1 | SERVICE TOOL | 33,16 Lei | |
| 839 | 559674-99 | 1 | SERVICE TOOL | 60,35 Lei | |
| 840 | 559675-99 | 1 | SERVICE TOOL | 32,65 Lei | |
| 841 | 559676-99 | 1 | SERVICE TOOL | 130,99 Lei | |
| 842 | 559677-99 | 1 | SERVICE TOOL | 74,45 Lei | |
| 843 | 559678-99 | 1 | SERVICE TOOL | 44,47 Lei | |
| 845 | 559690-99 | 1 | SERVICE TOOL | 45,36 Lei | |
| 846 | 559692-99 | 1 | SERVICE TOOL | 50,18 Lei |
