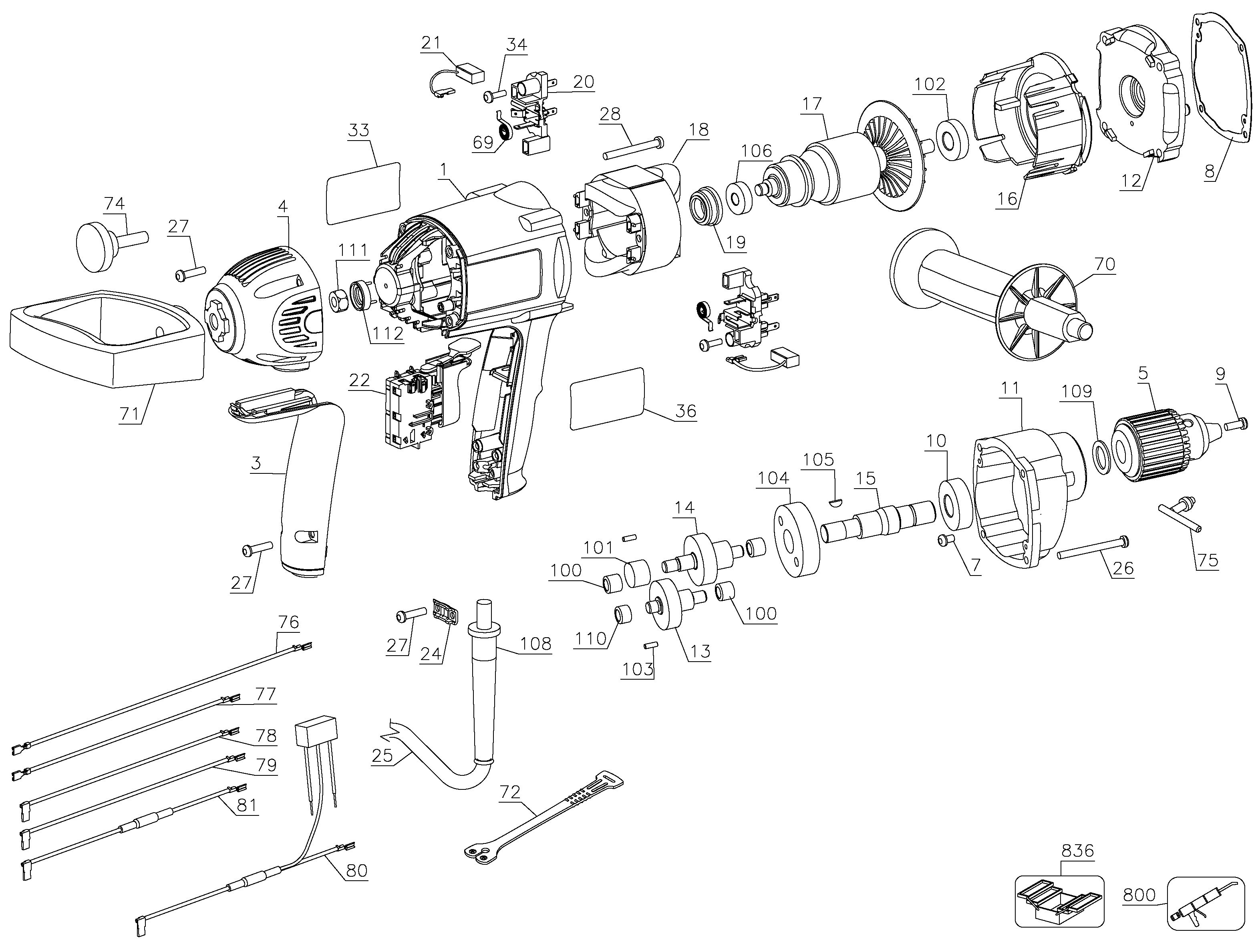

DEWALT MUD MIXER Type 2
SKU Produs: D21520
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 616828-06 | 1 | FIELDCASE | 157,92 Lei | |
| 3 | 624114-00 | 1 | HANDLE COVER | 30,87 Lei | |
| 4 | 622397-01 | 1 | END CAP | 21,85 Lei | |
| 5 | 5140204-44 | 1 | CHUCK AND KEY | 80,04 Lei | |
| 7 | 052819-00 | 4 | SCREW | 4,57 Lei | |
| 8 | 450485-00 | 1 | GASKET DW130 TYPE 2 | 4,57 Lei | |
| 9 | 447735-02 | 1 | SCREW DW130 TYPE 2 | 5,21 Lei | |
| 10 | 605040-25 | 1 | BEARING, BALL CW MFG | 17,02 Lei | |
| 12 | 623442-00 | 1 | GEARCASE COVER SA | 252,58 Lei | |
| 13 | 449486-00SV | 1 | GEAR AND PINION | 375,31 Lei | |
| 15 | 147195-00 | 1 | SPINDLE DW130 TYPE 2 | 106,98 Lei | |
| 16 | 655537-00 | 1 | BAFFLE FAN | 10,29 Lei | |
| 17 | 658752-01SV | 1 | ARMATURE 230V | 225,26 Lei | |
| 18 | 624841-01SV | 1 | FIELD 230V | 130,35 Lei | |
| 20 | 616857-00 | 2 | BRUSH HOLDER | 21,85 Lei | |
| 21 | 617848-03 | 2 | BRUSH 230V SA | 19,95 Lei | |
| 22 | 625228-00 | 1 | SWITCH SA | 120,82 Lei | |
| 24 | 450877-00 | 1 | CORD CLAMP | 4,57 Lei | |
| 25 | 330120-39 | 1 | CORDSET (M/PLUG) QS | 96,56 Lei | |
| 26 | 330019-30 | 4 | SCREW, PLASTIC THREAD FORM, M4 * 57 T20 | 4,57 Lei | |
| 27 | 330019-13 | 8 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 28 | 330019-17 | 2 | SCREW | 4,57 Lei | |
| 33 | 605523-00 | 1 | IDENTITY LABEL | 5,21 Lei | |
| 34 | 176951-00 | 2 | SCREW | 4,57 Lei | |
| 69 | 383387-00 | 2 | BRUSH SPRING DW309K | 12,71 Lei | |
| 70 | 625712-00 | 1 | SIDE HANDLE | 34,05 Lei | |
| 71 | 628037-00 | 1 | HANDLE | 70,39 Lei | |
| 72 | 065288-01 | 1 | HOLDER CHUCK KEY | 6,23 Lei | |
| 74 | 382531-00 | 1 | KNOB | 57,81 Lei | |
| 75 | 330034-16 | 1 | CHUCK KEY | 7,37 Lei | |
| 78 | 616852-05 | 1 | LEAD RED | 8,64 Lei | |
| 79 | 616852-04 | 1 | LEAD | 8,64 Lei | |
| 80 | N038758 | 1 | CHOKE LEAD SA | 88,55 Lei | |
| 81 | 616853-01 | 1 | CHOKE LEAD RED | 34,05 Lei | |
| 100 | 330004-02 | 3 | BEARING, NEEDLE | 8,64 Lei | |
| 101 | 135937-00 | 1 | BEARING | 15,12 Lei | |
| 102 | 605040-20 | 1 | Ball Brg | 17,02 Lei | |
| 104 | 400147-00 | 1 | GEAR DW130 TYPE 2 | 37,73 Lei | |
| 105 | 007027-00 | 1 | KEY | 5,21 Lei | |
| 106 | 605040-06 | 1 | BEARING,BALL | 13,85 Lei | |
| 108 | N918736 | 1 | CORD PROTECTOR | 5,21 Lei | |
| 109 | 147196-00 | 1 | WASHER DW130 TYPE 2 | 12,71 Lei | |
| 110 | 330004-27 | 1 | BEARING, NEEDLE | 7,37 Lei | |
| 111 | 99371-06 | 1 | NUT DW130 | 4,57 Lei | |
| 112 | 623785-00 | 1 | CAP | 6,23 Lei | |
| 800 | 429698-00 | 1 | GREASE | 819,98 Lei |
