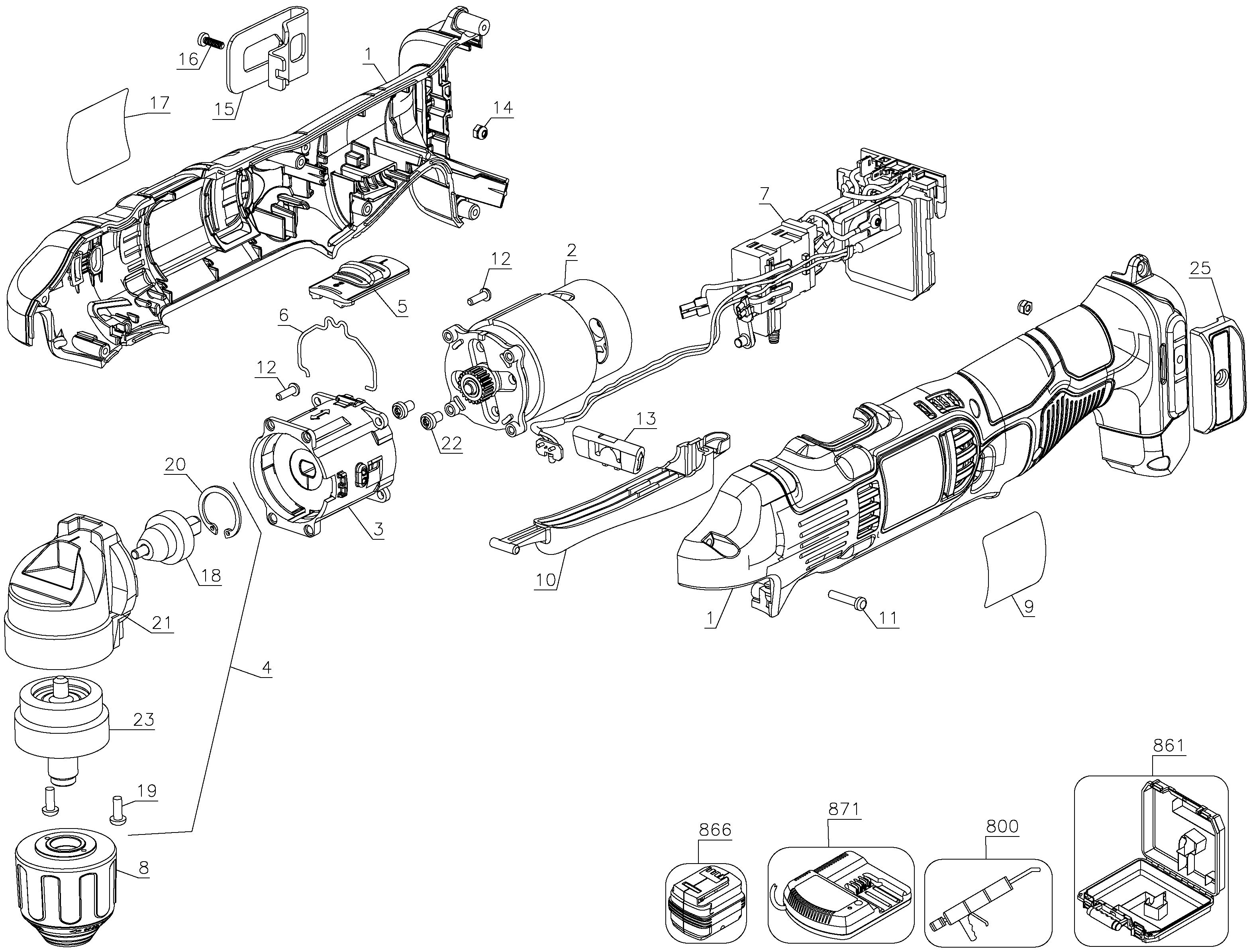

RIGHT ANGLE DRILL
SKU Produs: DCD740N
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA065800 | 1 | CLAMSHELL SET | 157,92 Lei | |
| 2 | N071094SV | 1 | MOTOR SA | 145,09 Lei | |
| 3 | N039577SV | 1 | TRANSMISSION SA | 200,99 Lei | |
| 4 | N045437SV | 1 | GEARBOX SA | 299,8 Lei | |
| 5 | N056872 | 1 | SELECTOR SA | 13,85 Lei | |
| 6 | 383184-00 | 1 | SPRING | 8,64 Lei | |
| 7 | N090345 | 1 | SWITCH SA | 389,28 Lei | |
| 8 | N090210 | 1 | CHUCK KEYLESS | 70,39 Lei | |
| 9 | N092877 | 1 | BRAND LABEL | 13,85 Lei | |
| 10 | N079593 | 1 | TRIGGER | 8,64 Lei | |
| 11 | 330019-00 | 6 | SCREW, PLASTIC THREAD FORM M3 * 16 T10 | 4,57 Lei | |
| 12 | 098091-10 | 8 | SCREW | 4,57 Lei | |
| 13 | N079834 | 1 | ACTUATOR FWD/REV | 10,29 Lei | |
| 14 | 330021-11 | 1 | NUT STOP ELASTIC M3 X 0.5 | 4,57 Lei | |
| 15 | N268241 | 1 | HOOK SA | 13,85 Lei | |
| 16 | N042665 | 1 | BELT HOOK SCREW M3 | 4,57 Lei | |
| 18 | N039570SV | 1 | SSA Pinion and Bearing | 127,2 Lei | |
| 20 | N039710 | 1 | RETAINER | 4,57 Lei | |
| 22 | 156179-01 | 2 | SCREW, TAPTITE | 4,57 Lei | |
| 23 | N075466SV | 1 | SPINDLE AND GEAR SA | 190,3 Lei | |
| 25 | N095778 | 1 | MAGNET HOLDER | 25,54 Lei | |
| 800 | N017298 | 1 | GREASE | 213,19 Lei | |
| 861 | N067906 | 1 | KITBOX | 246 Lei |
