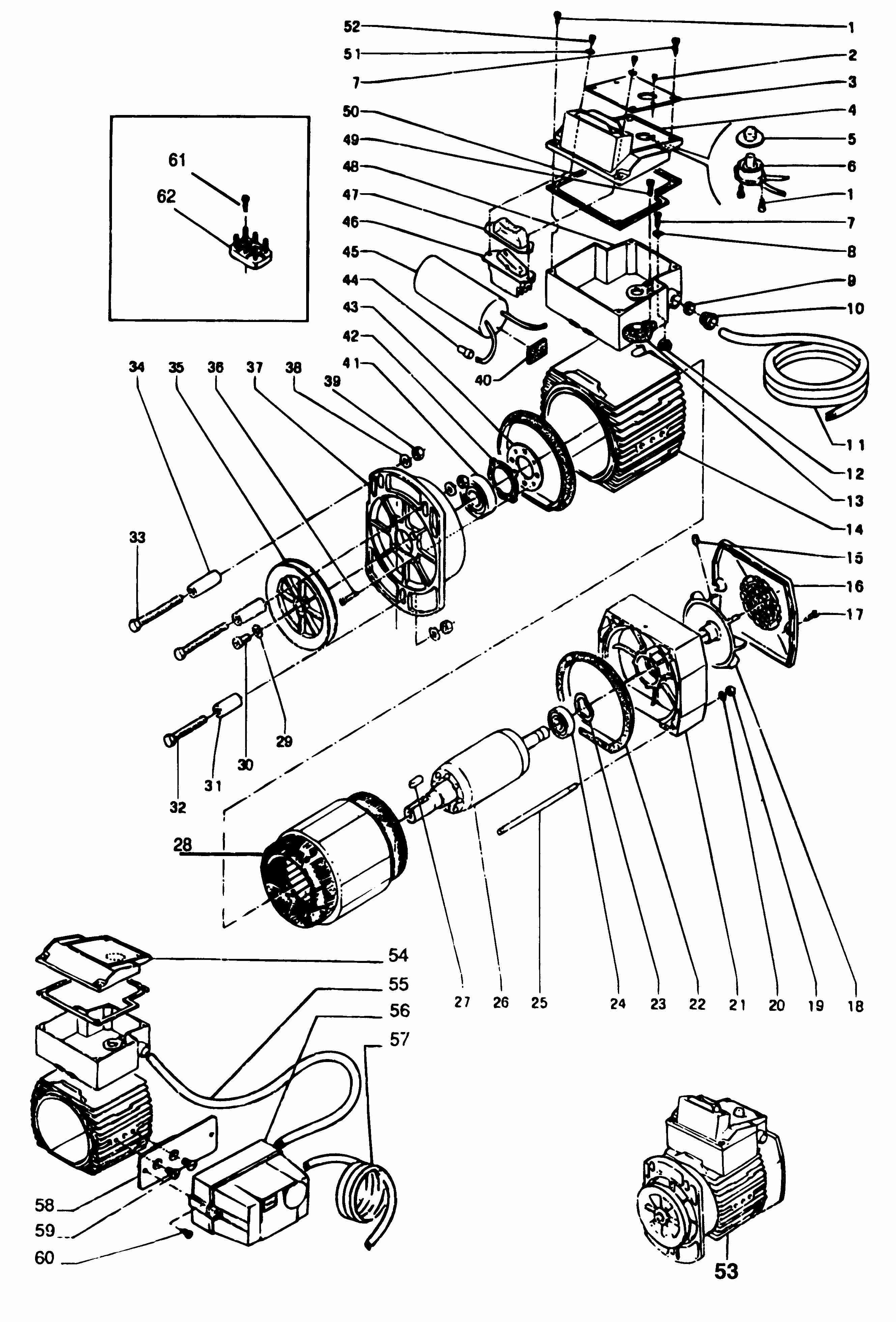

PLANER THICKNESSER
SKU Produs: DW1150----A /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 860094-05 | 1 | SCREW,PAN PH/TT M.4X12UNI8112 | 4,7 Lei | |
| 7 | 860094-01 | 2 | SCREW,PAN PH/TT M.4X16UNI8112 | 4,7 Lei | |
| 8 | 944650-00 | 1 | CLAMP,WIRE ZINC PLATED | 4,7 Lei | |
| 10 | 949747-07 | 1 | JAM NUT FOR CABLE INLET 3/8 | 8,8 Lei | |
| 12 | 944653-00 | 1 | GASKET,EARTH SCREW | 90,6 Lei | |
| 13 | 944652-00 | 1 | GASKET FOR CABLE DW 1150 | 123,6 Lei | |
| 15 | 860088-25 | 1 | SCREW,SET M.5X10 UNI 5929 | 4,7 Lei | |
| 17 | 860094-05 | 2 | SCREW,PAN PH/TT M.4X12UNI8112 | 4,7 Lei | |
| 19 | 860083-02 | 2 | NUT,HEX THICK M.5 UNI 5587 | 4,7 Lei | |
| 20 | 860073-01 | 2 | WASHER,FLAT 5.3X10 UNI 6592 | 4,7 Lei | |
| 22 | 860718-00 | 1 | GASKET FOR MOTOR BELL DW1150 | 22,4 Lei | |
| 23 | 860080-02 | 1 | RING,AXIAL LOAD 34.5X28X0.5 | 4,7 Lei | |
| 24 | 861721-01 | 1 | BEARING 6202 2RS HRB | 17,4 Lei | |
| 25 | 860446-01 | 1 | ROD,THREADED HEX M.5X135 | 5,3 Lei | |
| 27 | 860539-01 | 1 | KEY,FEATHER A-5X5X16 UNI 6604 | 4,7 Lei | |
| 29 | 860073-14 | 1 | WASHER,FLAT 6.6X18X2 UNI6593 | 4,7 Lei | |
| 30 | 860093-15 | 1 | SCREW,SOCKET M.6X14 UNI 5931 | 4,7 Lei | |
| 32 | 942043-00 | 1 | SCREW | 4,7 Lei | |
| 33 | 949702-19 | 2 | HEXAGONAL HEAD SCREW | 6,4 Lei | |
| 36 | 860538-00 | 2 | SCREW,FLAT HD M.4X25 UNI 6109 | 4,7 Lei | |
| 38 | 860073-03 | 2 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 39 | 860083-04 | 2 | NUT,HEX THICK M.8 UNI 5587 | 4,7 Lei | |
| 41 | 868768-10 | 1 | BEARING,BALL ISO 6204-2RSL | 59,2 Lei | |
| 42 | 863878-00 | 1 | GASKET FOR INTERNAL MOTOR FLAN | 81,9 Lei | |
| 49 | 860094-00 | 1 | SCREW,PAN PH/TT M.5X16UNI8112 | 4,7 Lei | |
| 51 | 860073-00 | 1 | WASHER,FLAT 4.3X9 UNI 6592 | 4,7 Lei | |
| 52 | 860089-25 | 1 | SCREW,FIL.HD M.4X10 UNI6107 Z | 4,5 Lei |
