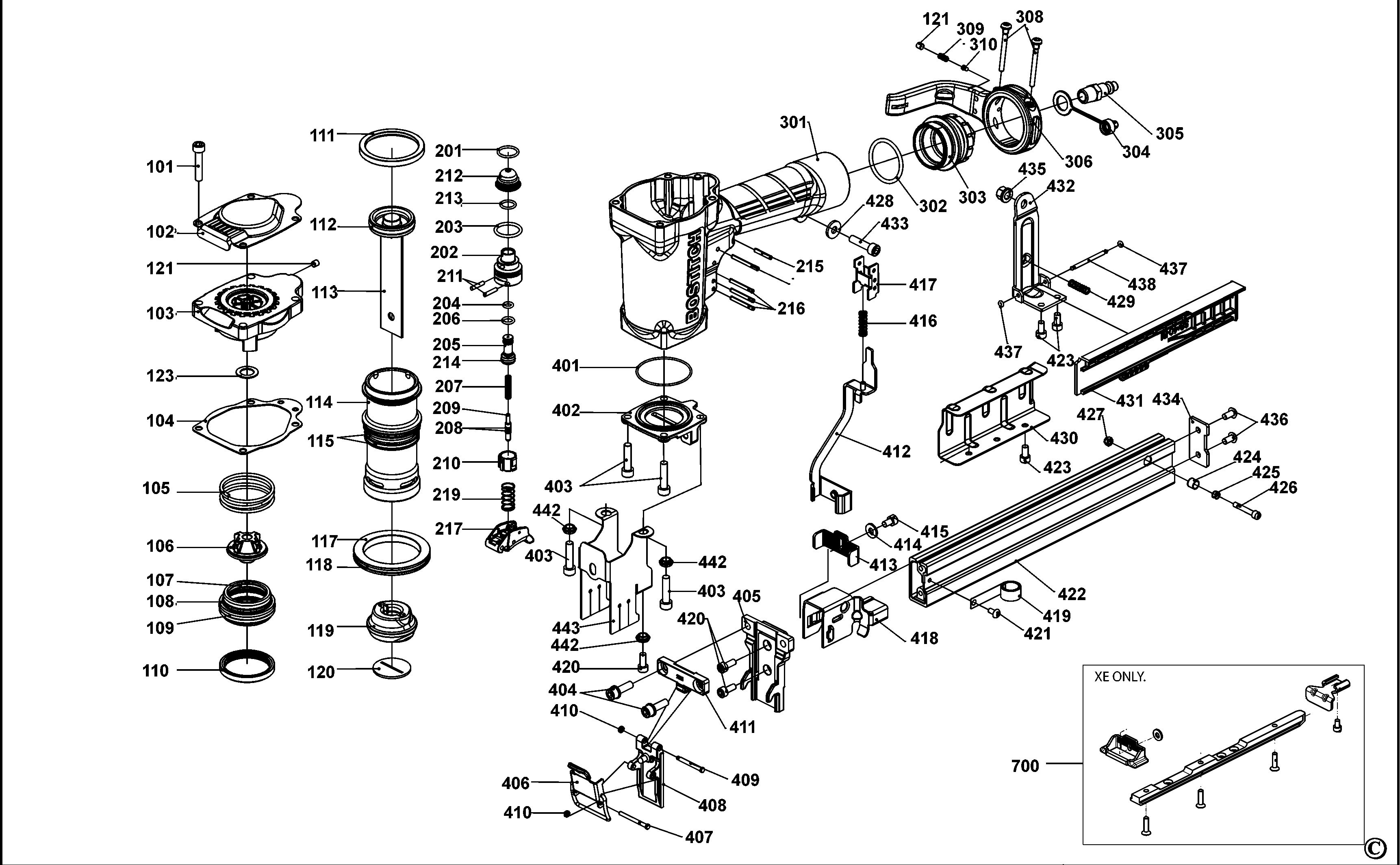

STAPLER
SKU Produs: S2638-2-E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 101 | 2040101-04110 | 1 | HEX.SOC.HD.BOLT | 3,78 Lei | |
| 102 | 9R189903 | 1 | DEFLECTOR | 47,78 Lei | |
| 103 | 11369-0824301 | 1 | CAP | 248,33 Lei | |
| 104 | 9R189905 | 1 | SEAL | 31,19 Lei | |
| 105 | 9R189872 | 1 | SPRING COMPRESSION | 8,51 Lei | |
| 106 | 9R189871 | 1 | SEAL | 21,11 Lei | |
| 107 | 9R189906 | 1 | O RING | 6,09 Lei | |
| 108 | 9R189870 | 1 | PISTON | 99,86 Lei | |
| 109 | 9R189907 | 1 | O RING | 8,51 Lei | |
| 110 | 9R189908 | 1 | COLLAR | 12,5 Lei | |
| 111 | 9R189909 | 1 | RING | 21,11 Lei | |
| 112 | 2041104-04081 | 1 | O RING | 4,31 Lei | |
| 113 | 11204-0100011 | 1 | DRIVER | 248,33 Lei | |
| 114 | 11320-0820001 | 1 | CYLINDER | 186,17 Lei | |
| 115 | 9R189911 | 1 | O RING | 6,09 Lei | |
| 117 | 9R189912 | 1 | SPACER | 47,78 Lei | |
| 118 | 9R189913 | 1 | O RING | 7,14 Lei | |
| 119 | 11327-1744701 | 1 | BUMPER | 73,19 Lei | |
| 120 | 11388-1744701 | 1 | GUIDE | 10,5 Lei | |
| 121 | 2040104-03010 | 1 | HEX.SOC.HD.SCREW | 5,15 Lei | |
| 123 | 11381-0100001 | 1 | WASHER | 10,5 Lei | |
| 201 | 2041104-02060 | 1 | O RING | 4,31 Lei | |
| 202 | 11374-0860001 | 1 | CAP | 58,17 Lei | |
| 203 | 2041100-02050 | 1 | O RING | 5,15 Lei | |
| 204 | 2041100-01070 | 1 | O-RING | 3,78 Lei | |
| 205 | 1133S-0860001 | 1 | PLUNGER | 18,06 Lei | |
| 206 | 2041100-01050 | 1 | O-RING | 5,15 Lei | |
| 207 | 11376-0860001 | 1 | SPRING | 4,31 Lei | |
| 208 | 2041108-01020 | 1 | O RING | 3,78 Lei | |
| 209 | 11375-0860002 | 1 | PLUNGER | 18,06 Lei | |
| 210 | 11373-0860001 | 1 | HEAD | 14,07 Lei | |
| 211 | 11329-0860001 | 1 | PIN | 6,09 Lei | |
| 212 | 1137A-0860001 | 1 | COVER | 6,09 Lei | |
| 213 | 2041104-02070 | 1 | O RING | 4,31 Lei | |
| 214 | 2041100-01030 | 1 | O-RING | 3,78 Lei | |
| 215 | 2040401-05100 | 1 | PIN | 4,31 Lei | |
| 216 | 2040401-05150 | 1 | SPIROL PIN | 12,5 Lei | |
| 217 | 11224-0074701 | 1 | TRIGGER - CONTACT | 25,52 Lei | |
| 217 | 11224-1113701 | 1 | TRIGGER | 130,35 Lei | |
| 218 | 2040401-05160 | 1 | SPIROL PIN | 3,78 Lei | |
| 219 | 11376-0370001 | 1 | SPRING | 3,78 Lei | |
| 301 | 11230-0828001 | 1 | BODY | 677,67 Lei | |
| 302 | 2041101-04020 | 1 | O-RING | 5,15 Lei | |
| 303 | 11346-007A401 | 1 | CAP | 66,15 Lei | |
| 304 | 1132L-0014701 | 1 | COVER | 4,31 Lei | |
| 305 | 9R196808 | 1 | PLUG | 21,11 Lei | |
| 306 | 11285-0074701 | 1 | RETAINER | 47,78 Lei | |
| 308 | 1138L-0374702 | 1 | SCREW | 4,31 Lei | |
| 309 | 1137T-0070001 | 1 | SPRING | 3,78 Lei | |
| 310 | 1136C-1314701 | 1 | AXIS | 4,31 Lei | |
| 401 | 9R189926 | 1 | O RING | 5,15 Lei | |
| 402 | 11326-1744701 | 1 | BASE | 186,17 Lei | |
| 403 | 2040101-04090 | 1 | HEX.SOC.HD.BOLT | 4,31 Lei | |
| 404 | 2040100-04010 | 1 | BOLT | 4,31 Lei | |
| 405 | 11303-0104705 | 1 | GUIDE | 341,25 Lei | |
| 406 | 11244-1744701 | 1 | HANDLE | 34,65 Lei | |
| 407 | 1131K-1744701 | 1 | PIN | 21,11 Lei | |
| 408 | 11352-0104703 | 1 | COVER | 139,97 Lei | |
| 409 | 11324-0104701 | 1 | PIN | 14,07 Lei | |
| 410 | 9R189935 | 1 | RETAINER | 5,15 Lei | |
| 411 | 11353-1744701 | 1 | COVER | 107,73 Lei | |
| 412 | 11256-0104701 | 1 | MAGAZINE | 88,41 Lei | |
| 413 | 11331-1744701 | 1 | BRACKET | 25,52 Lei | |
| 414 | 2040202-03010 | 1 | WASHER | 4,31 Lei | |
| 415 | 2040101-03030 | 1 | BOLT | 3,78 Lei | |
| 416 | 11337-1740001 | 1 | SPRING | 3,78 Lei | |
| 417 | 11338-0074702 | 1 | GUIDE | 21,11 Lei | |
| 418 | 11363-1744701 | 1 | PUSHER | 73,19 Lei | |
| 419 | 9R189867 | 1 | SPRING | 21,11 Lei | |
| 420 | 2040101-03050 | 1 | HEX.SOC.HD.BOLT | 4,31 Lei | |
| 421 | 2040102-02010 | 1 | BOLT | 3,78 Lei | |
| 422 | 11389-0104703 | 1 | MAGAZINE | 288,54 Lei | |
| 423 | 2040101-03040 | 1 | BOLT | 3,78 Lei | |
| 424 | 1132N-1740001 | 1 | SOCKET | 16,49 Lei | |
| 425 | 11311-0074701 | 1 | LATCH SPRING | 3,78 Lei | |
| 426 | 11310-1744701 | 1 | LATCH | 21,11 Lei | |
| 427 | 2040500-02020 | 1 | NUT | 3,78 Lei | |
| 428 | 2040202-04010 | 1 | FLAT WASHER | 5,15 Lei | |
| 429 | 11311-0104701 | 1 | SPRING | 3,78 Lei | |
| 430 | 11314-0104702 | 1 | BRACKET | 73,19 Lei | |
| 431 | 11348-0104701 | 1 | BRACKET | 73,19 Lei | |
| 432 | 11323-0104704 | 1 | BRACKET | 99,86 Lei | |
| 433 | 2040101-04091 | 1 | BOLT | 4,31 Lei | |
| 434 | 11397-0104701 | 1 | COVER | 21,11 Lei | |
| 435 | 2040501-04010 | 1 | BOLT CAP | 5,15 Lei | |
| 436 | 2040102-03020 | 1 | BOLT | 4,31 Lei | |
| 438 | 9R189948 | 1 | PIN | 10,5 Lei | |
| 442 | 113BF-0074701 | 1 | RING | 12,5 Lei | |
| 443 | 11383-0100001 | 1 | RING | 25,52 Lei |
