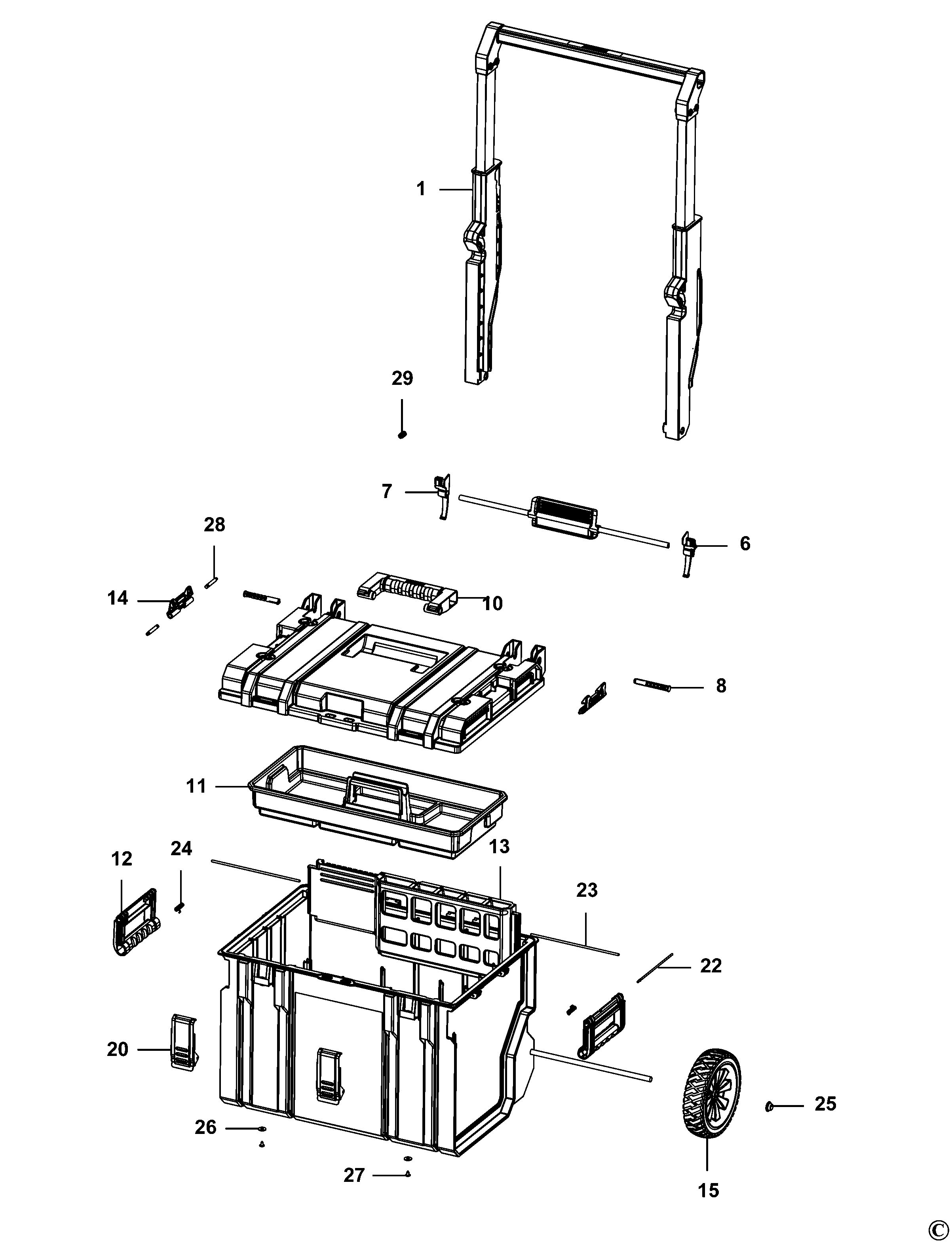

WORKBOX
SKU Produs: FMST1-75798 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 6 | H2300063008 | 1 | SPRING LH | 6,23 Lei | |
| 7 | H2300071008 | 1 | SPRING RH | 4,57 Lei | |
| 8 | H2300057008 | 2 | PIN | 4,57 Lei | |
| 10 | H1400197150 | 1 | HANDLE | 14,2 Lei | |
| 11 | H1300111REC | 1 | TRAY | 40,9 Lei | |
| 12 | H1400195150 | 2 | SIDE HANDLE | 14,2 Lei | |
| 13 | H1300113150 | 1 | INSERT | 68,7 Lei | |
| 14 | N409477 | 1 | LATCH | 8,64 Lei | |
| 15 | H2000047032 | 2 | WHEEL | 41,93 Lei | |
| 20 | P910701 | 2 | LATCH | 21,85 Lei | |
| 22 | P910773 | 2 | HINGE | 4,57 Lei | |
| 23 | P910507 | 2 | HINGE | 4,5 Lei | |
| 24 | P910515 | 2 | SPRING | 4,57 Lei | |
| 25 | P005916 | 2 | WASHER LOCK 072231-01 | 30,87 Lei | |
| 26 | P910781 | 2 | WASHER M5 | 4,57 Lei | |
| 27 | P910485 | 3 | SCREW | 4,57 Lei | |
| 28 | P910758 | 4 | PIN | 4,57 Lei | |
| 29 | P910784 | 1 | SPRING COMPRESSION | 4,57 Lei |
