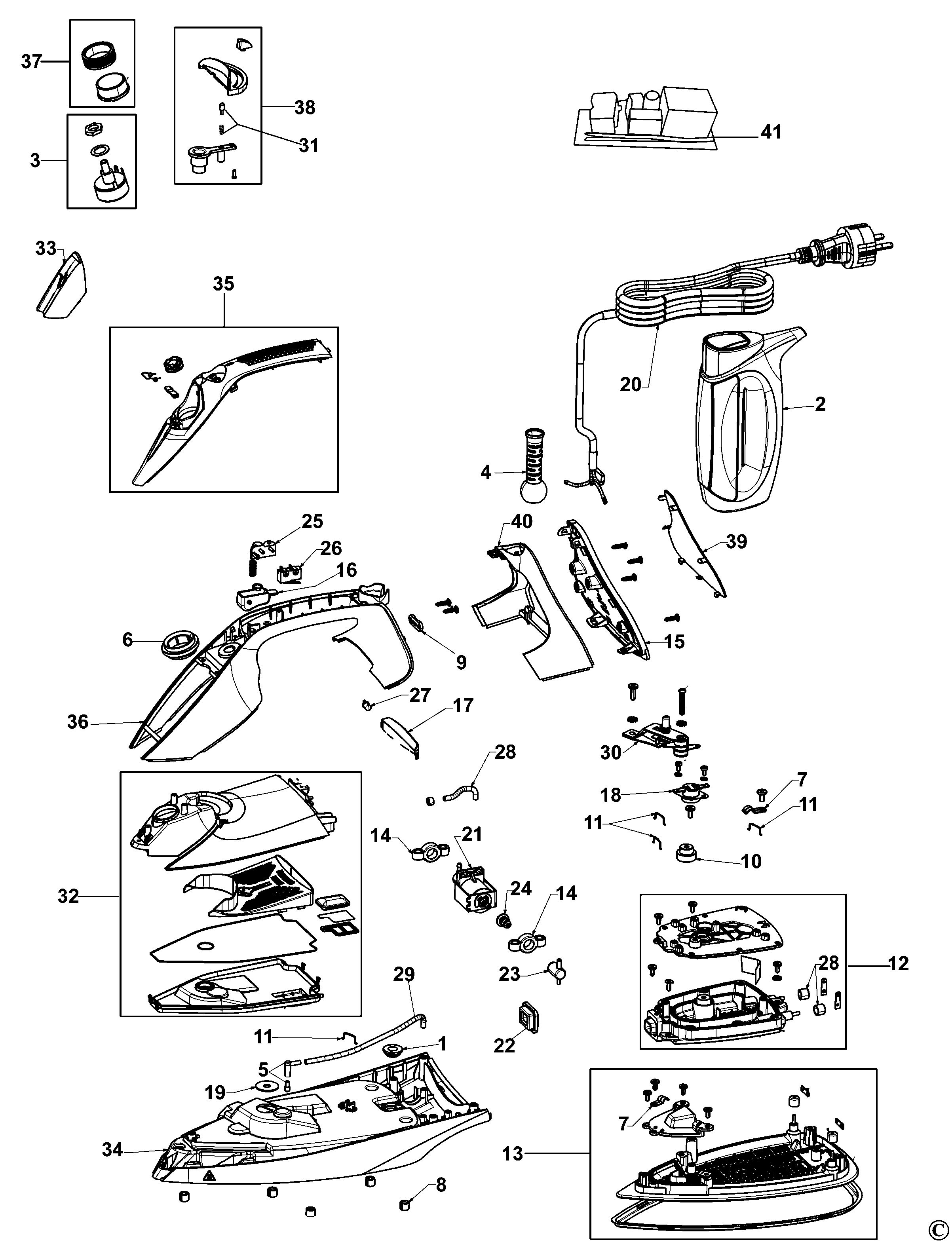

IRON
SKU Produs: BXIR2401E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004776-09 | 1 | GROMMET | 19,95 Lei | |
| 2 | 1004776-10 | 1 | JUG | 30,87 Lei | |
| 3 | 1004776-11 | 1 | POTENTIOMETER SA | 195,02 Lei | |
| 4 | 1004776-12 | 1 | CORD PROTECTOR | 30,87 Lei | |
| 5 | 1004776-13 | 1 | COUPLING SA | 30,87 Lei | |
| 6 | 1004776-14 | 1 | INLET | 21,85 Lei | |
| 7 | 1004776-15 | 1 | FLANGE | 25,54 Lei | |
| 8 | 1004776-16 | 1 | GROMMET | 19,95 Lei | |
| 9 | 1004776-17 | 1 | CORD CLAMP | 17,02 Lei | |
| 10 | 1004776-18 | 1 | INLET | 25,54 Lei | |
| 11 | 1004776-19 | 1 | CLIP | 17,02 Lei | |
| 12 | 1004776-20 | 1 | HOUSING SA | 80,04 Lei | |
| 13 | 1004776-21 | 1 | SOLE PLATE SA | 120,82 Lei | |
| 14 | 1004776-22 | 1 | CLAMP | 19,95 Lei | |
| 15 | 1004776-23 | 1 | COVER | 37,73 Lei | |
| 16 | 1004776-24 | 1 | TRIGGER | 10,29 Lei | |
| 17 | 1004776-25 | 1 | COVER | 12,71 Lei | |
| 18 | 1004776-26 | 1 | THERMOSTAT | 17,02 Lei | |
| 19 | 1004776-27 | 1 | WASHER | 8,64 Lei | |
| 20 | 1004776-28 | 1 | CORDSET | 37,73 Lei | |
| 21 | 1004776-29 | 1 | PUMP SA | 120,82 Lei | |
| 22 | 1004776-30 | 1 | GASKET | 25,54 Lei | |
| 23 | 1004776-31 | 1 | COUPLING | 19,95 Lei | |
| 24 | 1004776-32 | 1 | SEAL | 19,95 Lei | |
| 25 | 1004776-33 | 1 | SUPPORT | 19,95 Lei | |
| 26 | 1004776-34 | 1 | MICRO SWITCH | 13,85 Lei | |
| 27 | 1004776-35 | 1 | LAMP | 21,85 Lei | |
| 28 | 1004776-36 | 1 | TUBE | 30,87 Lei | |
| 29 | 1004776-37 | 1 | TUBE | 30,87 Lei | |
| 30 | 1004776-38 | 1 | THERMOSTAT | 17,02 Lei | |
| 31 | 1004776-39 | 1 | SPRING SA | 25,54 Lei | |
| 32 | 1004776-40 | 1 | TANK | 57,81 Lei | |
| 33 | 1004776-41 | 1 | CAP | 10,29 Lei | |
| 34 | 1004776-42 | 1 | SKIRT | 30,87 Lei | |
| 35 | 1004776-43 | 1 | HOUSING SA | 30,87 Lei | |
| 36 | 1004776-44 | 1 | COVER | 25,54 Lei | |
| 37 | 1004776-45 | 1 | REGULATOR | 13,85 Lei | |
| 38 | 1004776-46 | 1 | REGULATOR | 13,85 Lei | |
| 39 | 1004776-47 | 1 | COVER | 34,05 Lei | |
| 40 | 1004776-48 | 1 | COVER | 34,05 Lei | |
| 41 | 1004776-49 | 1 | PCB | 130,35 Lei |
