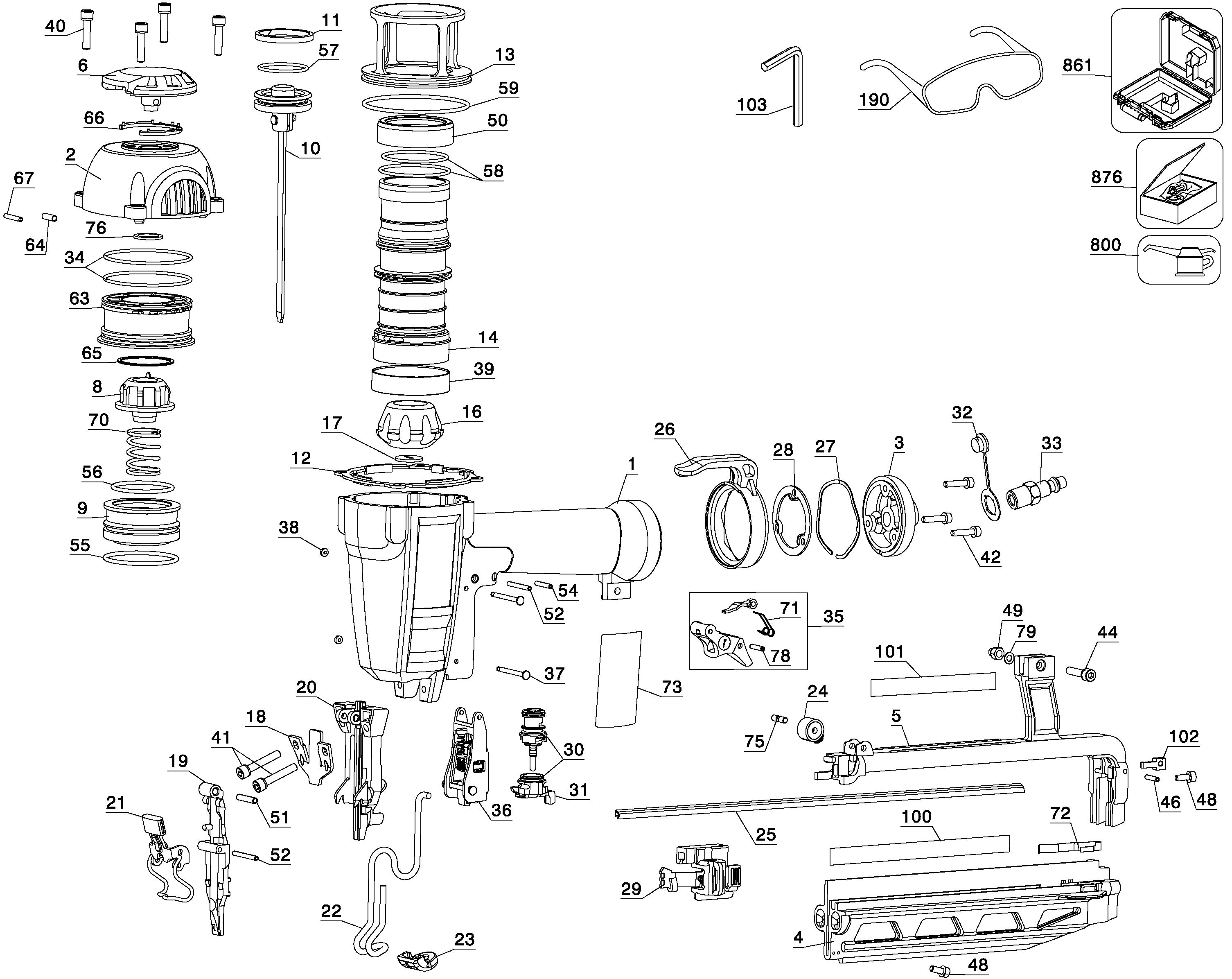

complete set
SKU Produs: D51257K
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 645891-00 | 1 | FRAME | 276,84 Lei | |
| 2 | 646079-00 | 1 | CAP | 96,56 Lei | |
| 3 | 647648-00 | 1 | END CAP | 25,54 Lei | |
| 4 | N004644 | 1 | MAGAZINE SA | 96,56 Lei | |
| 6 | 646416-00 | 1 | DEFLECTOR | 19,95 Lei | |
| 8 | 651874-00 | 1 | BUMPER | 17,02 Lei | |
| 9 | N006892 | 1 | VALVE | 30,87 Lei | |
| 10 | 647649-00-K | 1 | SA DRIVER BLADE | 96,56 Lei | |
| 11 | N925911 | 1 | SEAL | 17,02 Lei | |
| 12 | 647954-00 | 1 | GASKET | 8,64 Lei | |
| 13 | 652466-00 | 1 | INSERT | 15,12 Lei | |
| 14 | 646281-00 | 1 | CYLINDER | 25,54 Lei | |
| 16 | 652499-00 | 1 | BUMPER | 25,54 Lei | |
| 17 | N929768 | 1 | PLATE | 6,23 Lei | |
| 18 | 647065-00 | 1 | DOOR | 7,37 Lei | |
| 19 | 647073-00 | 1 | DOOR | 52,22 Lei | |
| 20 | N030812 | 1 | NOSE | 145,09 Lei | |
| 21 | 653129-00 | 1 | LATCH | 25,54 Lei | |
| 22 | 644274-00 | 1 | CONTACT | 13,85 Lei | |
| 23 | 619944-00 | 1 | PAD | 4,57 Lei | |
| 24 | 647605-00 | 1 | SPRING | 17,02 Lei | |
| 25 | 645872-00 | 1 | LINER | 41,93 Lei | |
| 26 | 647607-00 | 1 | HOOK | 15,12 Lei | |
| 27 | 647608-00 | 1 | SPRING | 5,21 Lei | |
| 28 | N043700 | 1 | GASKET | 6,4 Lei | |
| 29 | 647946-00 | 1 | SLIDER | 30,87 Lei | |
| 30 | N566148 | 1 | TRIGGER VALVE ASSY | 34,05 Lei | |
| 31 | N566148 | 1 | TRIGGER VALVE ASSY | 34,05 Lei | |
| 33 | 44245 | 1 | WASHER, THRUST | 3326,42 Lei | |
| 33 | S112218410 | 1 | AIR FITTING | 8,4 Lei | |
| 34 | 647850-00 | 2 | O RING | 4,57 Lei | |
| 35 | 641209-00 | 1 | TRIGGER | 19,95 Lei | |
| 36 | N108466 | 1 | ADJUSTER | 57,81 Lei | |
| 37 | 395091-00 | 2 | PIN | 12,71 Lei | |
| 38 | 391814-00 | 3 | GROMMET | 4,57 Lei | |
| 39 | N000558 | 1 | RING | 17,02 Lei | |
| 40 | 608174-00 | 4 | SCREW | 4,57 Lei | |
| 41 | 608175-00 | 2 | SCREW | 4,57 Lei | |
| 42 | 608178-00 | 3 | SCREW | 4,57 Lei | |
| 44 | N077883 | 1 | SCREW | 4,57 Lei | |
| 46 | 330036-11 | 1 | ROLL PIN | 4,57 Lei | |
| 48 | 608179-00 | 3 | SCREW | 4,57 Lei | |
| 49 | 607156-00 | 1 | NUT | 4,57 Lei | |
| 50 | 649695-00 | 1 | SEAL | 7,37 Lei | |
| 51 | 330036-03 | 1 | ROLL PIN | 4,57 Lei | |
| 52 | 650156-00 | 2 | SPIROL PIN | 4,57 Lei | |
| 54 | 650155-00 | 1 | SPIROL PIN | 4,57 Lei | |
| 55 | 651606-00 | 1 | O RING | 4,57 Lei | |
| 56 | 651607-00 | 1 | O RING | 4,57 Lei | |
| 57 | 647951-00 | 1 | O RING | 4,57 Lei | |
| 58 | 652467-00 | 2 | O RING | 5,21 Lei | |
| 59 | 398166-00 | 1 | O RING | 7,37 Lei | |
| 63 | N021192 | 1 | SLEEVE | 25,54 Lei | |
| 64 | 651982-00 | 1 | SLEEVE | 4,57 Lei | |
| 65 | 651703-00 | 1 | RING | 5,21 Lei | |
| 66 | 632495-00 | 1 | O RING | 7,37 Lei | |
| 67 | 632492-00 | 1 | PIN | 4,57 Lei | |
| 70 | 395379-00 | 1 | SPRING | 5,21 Lei | |
| 71 | 391813-00 | 1 | SPRING | 5,21 Lei | |
| 72 | 649650-00 | 1 | RETAINER | 4,57 Lei | |
| 73 | 647941-00 | 2 | BRAND LABEL | 4,57 Lei | |
| 75 | N004643 | 1 | PIN | 4,57 Lei | |
| 76 | 632239-00 | 1 | WASHER | 4,57 Lei | |
| 78 | 603394-00 | 1 | PIN | 4,57 Lei | |
| 79 | 330016-01 | 1 | WASHER | 4,57 Lei | |
| 102 | 645873-00 | 1 | LATCH | 25,54 Lei | |
| 103 | 497570-02 | 1 | KEY kc1440 | 4,57 Lei | |
| 876 | N001065 | 1 | O RING KIT | 106,98 Lei | |
| 876 | N001079 | 1 | BUMPER | 70,39 Lei | |
| 876 | N001085 | 1 | DRIVER | 195,02 Lei | |
| 876 | N003390 | 1 | TRIGGER | 98,8 Lei | |
| 876 | N003391 | 1 | TRIGGER | 81,9 Lei | |
| 876 | N003392 | 1 | VALVE | 96,56 Lei |
