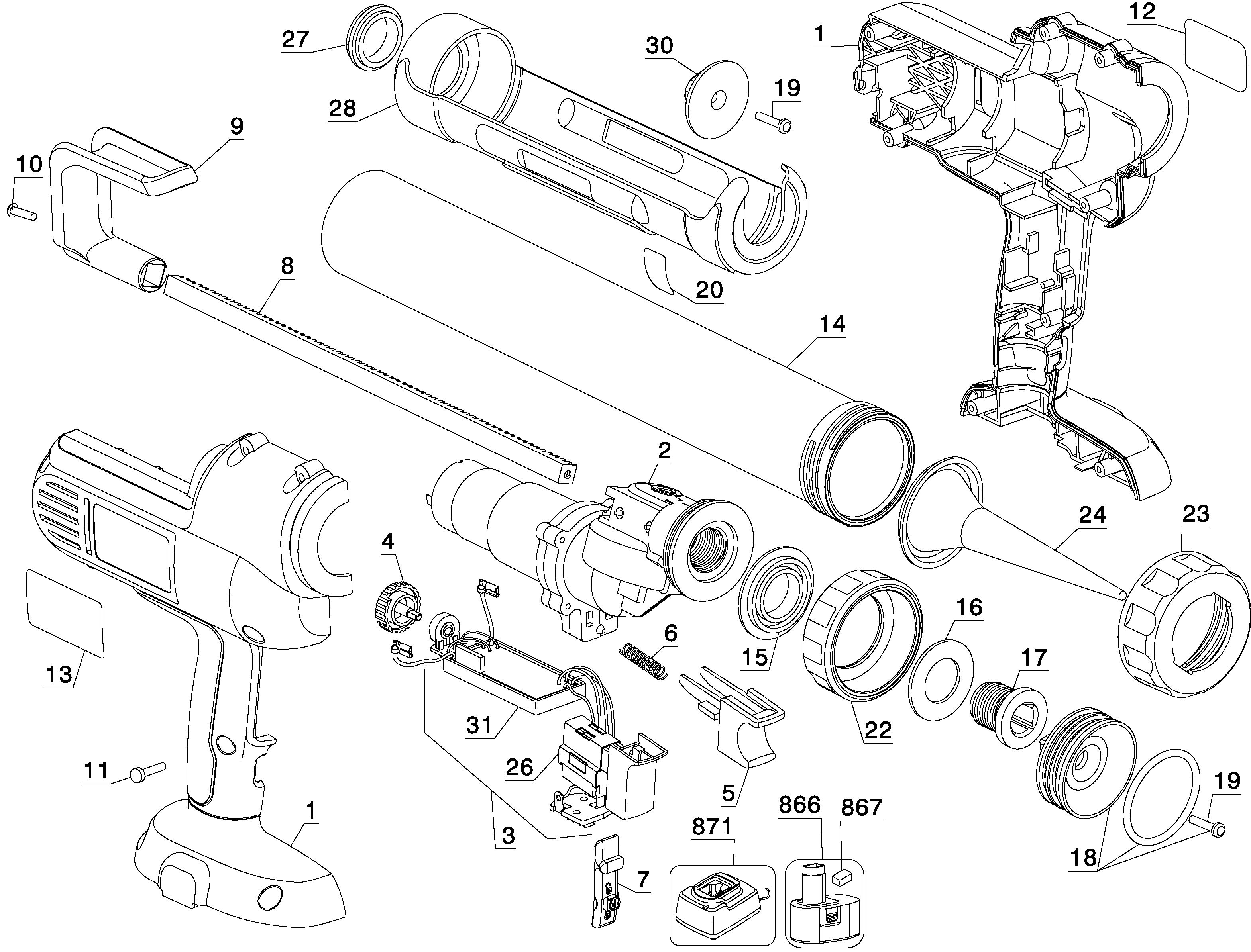

CAULK GUN
SKU Produs: DC547
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N080442 | 1 | CLAMSHELL SET | 154,1 Lei | |
| 2 | 639717-00 | 1 | MOTOR AND GEARCASE | 1158,31 Lei | |
| 3 | N082217 | 1 | SWITCH SA | 627,4 Lei | |
| 4 | 639011-00 | 1 | SPEED REGULATOR | 8,4 Lei | |
| 6 | 642413-00 | 1 | SPRING | 4,57 Lei | |
| 7 | N044600 | 1 | BUTTON LOCK-OFF | 7,2 Lei | |
| 8 | 642408-00 | 1 | ROD, LONG PLUNGER | 145,09 Lei | |
| 8 | 642410-00 | 1 | ROD, SHORT PLUNGER | 200,99 Lei | |
| 9 | 639061-00 | 1 | HANDLE | 21,85 Lei | |
| 10 | 642474-00 | 1 | SCREW, 10-24 UNC X 1.25 INCH , PH | 4,57 Lei | |
| 11 | 330019-04 | 8 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 12 | 642732-00 | 1 | LABEL ID, CAULK GUN | 5,1 Lei | |
| 13 | N082368 | 1 | RATING LABEL DC547 TYPE 11 (PRINT) | 7,2 Lei | |
| 15 | 640340-00 | 1 | SPACER, CAP, BACK, SAUSAGE | 5,21 Lei | |
| 18 | 659569-00 | 1 | SA SERVICE KIT - PLUNGER | 52,22 Lei | |
| 19 | 642414-00 | 1 | SCREW, 10-24 X 3/4 in.,FLAT HEAD PHILLI | 4,57 Lei | |
| 20 | 648980-00 | 1 | WARNING LABEL | 6,23 Lei | |
| 24 | 1007832-00 | 1 | NOZZLE, ADHESIVE TOOL | 5,21 Lei | |
| 26 | N044601 | 1 | SWITCH | 86,4 Lei | |
| 30 | 639729-00 | 1 | PLUNGER, 10 oz | 13,85 Lei | |
| 31 | N082217 | 1 | SWITCH SA | 627,4 Lei | |
| 867 | 645221-00 | 1 | CAP | 4,57 Lei | |
| 999 | 5140202-54 | 1 | LEVER KIT | 25,54 Lei |
