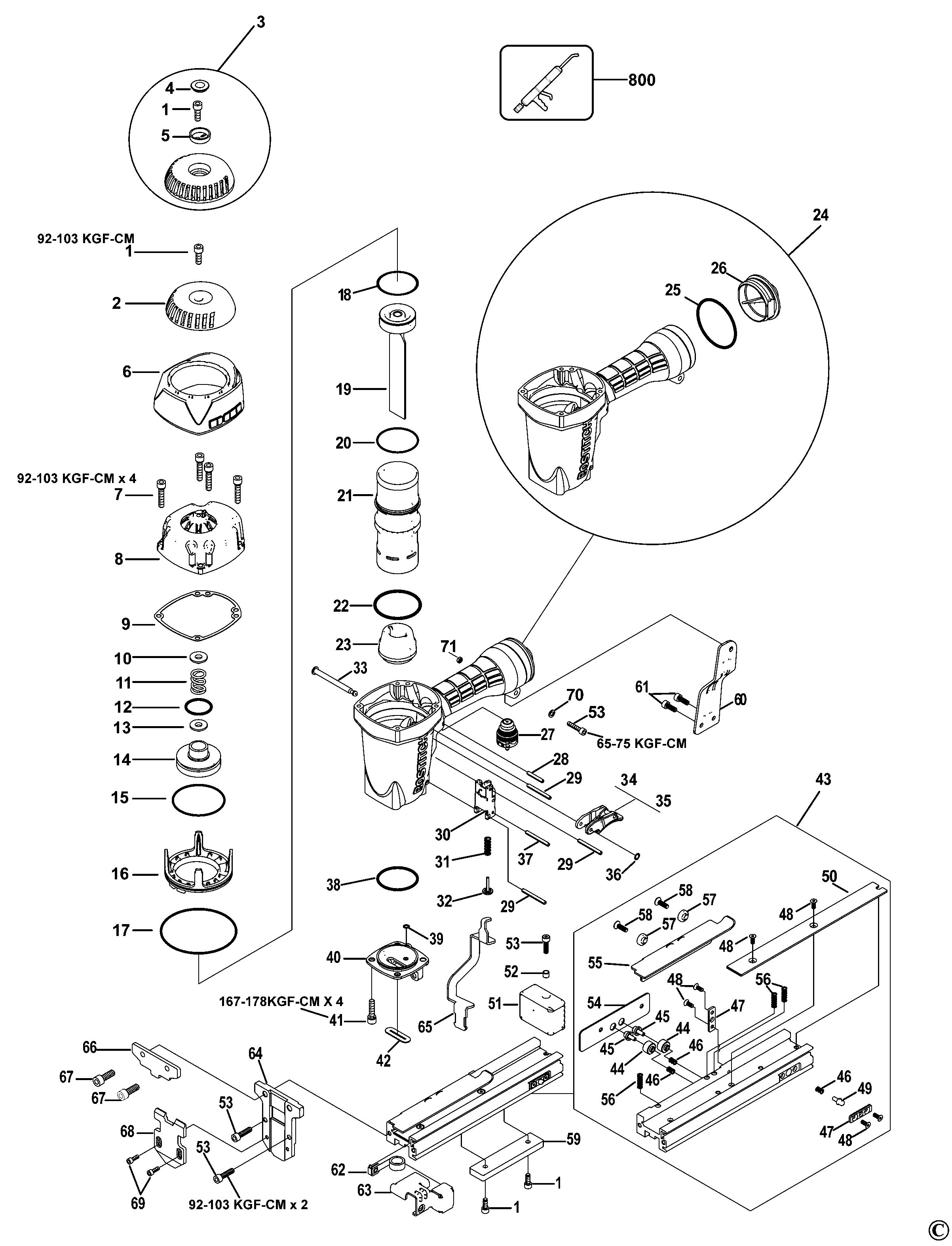

BOSTITCH CORRUGATED FASTENER TOOL (Type Rev C)
SKU Produs: CF15-1-E /Type: REV C
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 9R199720 | 2 | SCREW | 4,31 Lei | |
| 2 | 9R202077 | 1 | COVER | 7,14 Lei | |
| 3 | P3040000400 | 1 | EXHAUST COVER UNIT (PLASTIC) | 7,14 Lei | |
| 4 | 188575 | 1 | PLUG, EXHAUST COVER | 5,15 Lei | |
| 5 | P2845203162 | 1 | SPACER | 5,15 Lei | |
| 6 | P2900002266 | 1 | DEFLECTOR COVER | 5,15 Lei | |
| 7 | S2710525102 | 4 | HEX.SOC.HD.BOLT | 5,15 Lei | |
| 8 | P2900002300 | 1 | DEFLECTOR UNIT | 43,16 Lei | |
| 9 | 174050 | 1 | PACKING | 28,14 Lei | |
| 10 | 174049 | 1 | SEAL, DEFLECTOR | 5,15 Lei | |
| 11 | 174051 | 1 | SPRING, COMPRESSION | 5,15 Lei | |
| 12 | 174053 | 1 | O-RING, 20.8MMX2.4MM | 5,15 Lei | |
| 13 | 174052 | 1 | WASHER, SPECIAL | 5,15 Lei | |
| 14 | 174054 | 1 | PISTON, HEAD VALVE | 11,45 Lei | |
| 15 | 174055 | 1 | O-RING, 44.7MMX3.5MM | 5,15 Lei | |
| 16 | 175556 | 1 | COLLAR,CYLINDER SLEEVE,N755 | 11,45 Lei | |
| 17 | 174056 | 1 | O-RING, 66.5MMX2.0MM | 5,15 Lei | |
| 18 | 174060 | 1 | O-RING, 36.0 MM X 4.0 MM | 5,15 Lei | |
| 19 | G0215800 | 1 | DRIVER UNIT | 506,73 Lei | |
| 20 | 174058 | 1 | O-RING, 45.5MMX2.0MM | 5,15 Lei | |
| 21 | P2902000700 | 1 | CYLINDER | 119,91 Lei | |
| 22 | S06P004800 | 1 | O-RING | 5,15 Lei | |
| 23 | P2900000400 | 1 | BUMPER | 18,06 Lei | |
| 24 | P2840004300 | 1 | ASSEMBLY, FRAME UNIT ALUMI N66C-2-E and | 228,8 Lei | |
| 25 | 174067 | 1 | O-RING,45.7MMX2.62MM N66C | 3,78 Lei | |
| 26 | 9R195677 | 1 | END CAP | 18,06 Lei | |
| 27 | TVA6 | 1 | TRIGGER VALVE ASSEMBLY | 208,74 Lei | |
| 28 | 174070 | 1 | PIN | 5,15 Lei | |
| 29 | 100298 | 2 | PIN,SPRING,M3X30MM | 5,15 Lei | |
| 30 | P3040000166 | 1 | SAFETY GUIDE | 5,15 Lei | |
| 31 | P2325202662 | 1 | SPRING | 5,15 Lei | |
| 32 | P2845203062 | 1 | SPRING HOLDER | 10,5 Lei | |
| 33 | 174062 | 1 | STEPPED PIN | 5,15 Lei | |
| 34 | SEQ4 | 1 | KIT, SEQUENTIAL TRIP CONVERSION | 31,19 Lei | |
| 35 | CNTK1 | 1 | KIT, CONTACT TRIP CONVERSION | 34,65 Lei | |
| 36 | 174073 | 1 | O RING | 5,15 Lei | |
| 37 | 180475 | 1 | PIN | 5,15 Lei | |
| 38 | 851483-S | 1 | O-RING,1.739X.070 | 5,15 Lei | |
| 39 | S06S000500 | 1 | O-RING | 5,15 Lei | |
| 40 | P2900000265 | 1 | BASE, NOSE | 198,66 Lei | |
| 41 | 9R195545 | 1 | SCREW | 3,78 Lei | |
| 42 | P2905201262 | 1 | JOINT GUIDE | 5,15 Lei | |
| 43 | G2609500 | 1 | MAGAZINE UNIT | 438,59 Lei | |
| 44 | P3215203462 | 2 | APS ORDER ONLY (BUSHING) | 5,15 Lei | |
| 45 | P3215203362 | 2 | LOCATIONAL BAR | 5,15 Lei | |
| 46 | 9R199452 | 2 | SPRING | 4,57 Lei | |
| 47 | P3216303565 | 2 | MAGAZINE PLATE | 5,15 Lei | |
| 48 | 174041 | 1 | SCREW,SFHCS,M40X0.7X10 CF15 | 3,78 Lei | |
| 49 | P3215203762 | 1 | LOCATIONAL BAR | 5,15 Lei | |
| 50 | P3215202962 | 1 | STEEL CHANNEL | 12,5 Lei | |
| 51 | P3210002066 | 1 | END COVER | 5,15 Lei | |
| 52 | P2842003400 | 1 | BUSHING | 5,15 Lei | |
| 53 | 174064 | 1 | SCREW,SHCS,M5X0.8X18 | 5,15 Lei | |
| 54 | P3215203662 | 1 | PLATE, BUSHING | 8,51 Lei | |
| 55 | P3216303165 | 1 | MAGAZINE COVER | 11,45 Lei | |
| 56 | P2855200562 | 3 | SPRING | 5,15 Lei | |
| 57 | P3215203062 | 2 | BUSHING | 5,15 Lei | |
| 58 | S0310516100 | 2 | HEX.SOC.FT.HD.SCREW | 5,15 Lei | |
| 59 | P3216302165 | 1 | PLATE BALANCE | 14,07 Lei | |
| 60 | P3046300365 | 1 | TAIL HANGER | 6,09 Lei | |
| 61 | 188625 | 2 | SCREW, SHCS, M5X0.80X14 | 5,15 Lei | |
| 62 | 9R199445 | 1 | SPRING | 21,85 Lei | |
| 63 | P3216302865 | 1 | PUSHER | 11,45 Lei | |
| 64 | P3210000265 | 1 | DRIVER GUIDE | 150,05 Lei | |
| 65 | 186019 | 1 | CONTACT ARM,CF15 | 28,14 Lei | |
| 66 | P3216301165 | 1 | DRIVER GUIDE COVER B | 10,5 Lei | |
| 67 | S0110622100 | 2 | HEX.SOC.HD.BOLT | 5,15 Lei | |
| 68 | P3216301265 | 1 | DRIVER GUIDE COVER A | 25,52 Lei | |
| 69 | MSC4070-10 | 2 | SCREW | 5,15 Lei | |
| 70 | 180569 | 1 | WASHER | 5,15 Lei | |
| 800 | 100679 | 1 | LUBE ( 1LB.CAN)** WAS 86524 ** | 330,12 Lei |
