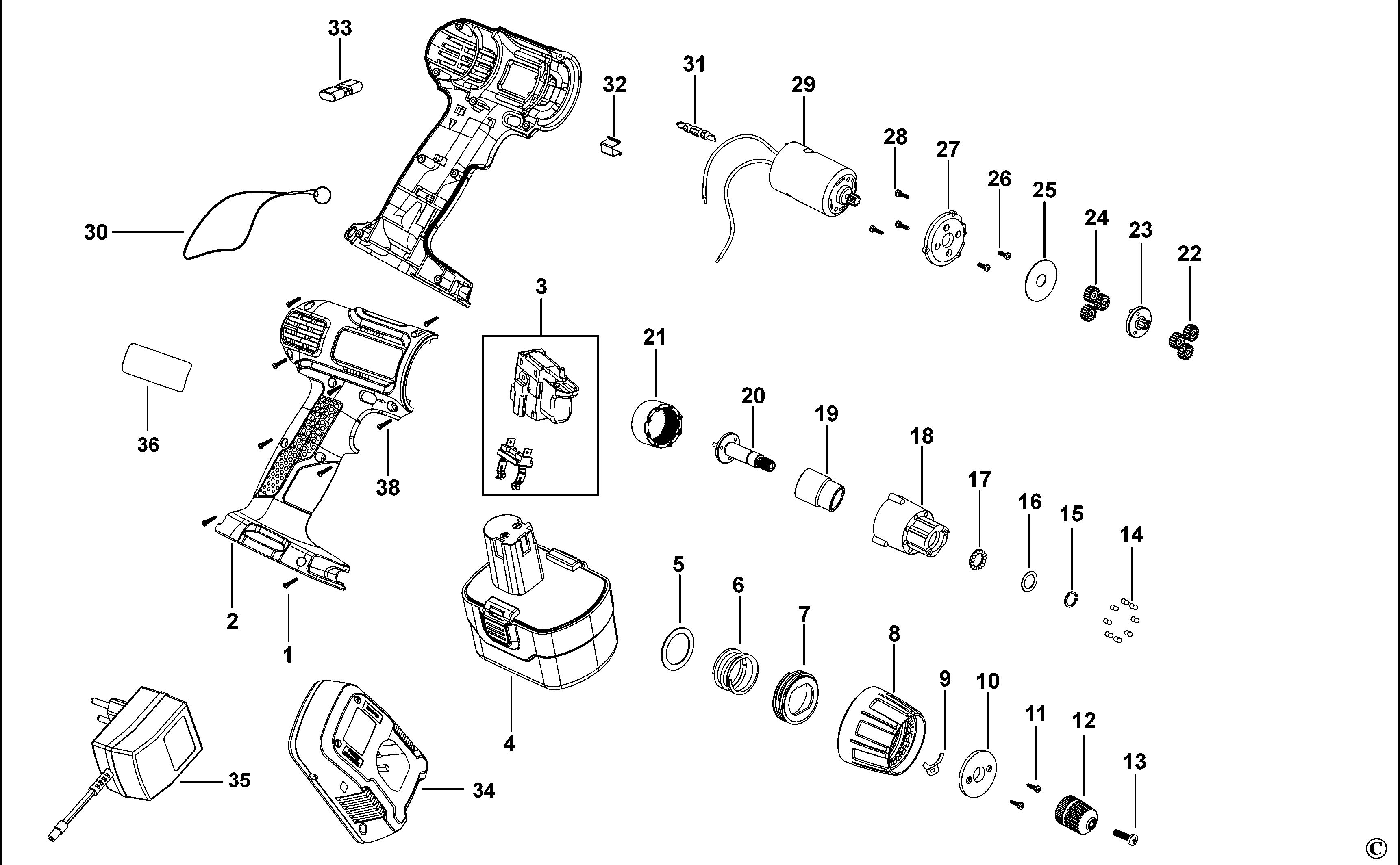

BLACK+DECKER CORDLESS DRILL (Type H1)
SKU Produs: CD961 /Type: H1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 5140056-39 | 7 | SCREW | 4,57 Lei | |
| 2 | 5140111-93 | 1 | HOUSING SA | 30,87 Lei | |
| 3 | 5140111-94 | 1 | SWITCH SA | 57,81 Lei | |
| 5 | 5140024-83 | 1 | RING | 4,57 Lei | |
| 6 | 5140024-84 | 1 | SPRING | 4,57 Lei | |
| 7 | 5140111-96 | 1 | RING | 4,57 Lei | |
| 8 | 5140111-97 | 1 | COLLAR | 12,71 Lei | |
| 9 | 5140024-87 | 1 | SPRING | 4,57 Lei | |
| 10 | 5140024-88 | 1 | HOLDER | 4,57 Lei | |
| 11 | 5140024-89 | 2 | SCREW | 4,57 Lei | |
| 12 | 5140024-90 | 1 | CHUCK | 52,22 Lei | |
| 13 | 5140024-91 | 1 | SCREW | 4,57 Lei | |
| 14 | 5140024-92 | 16 | BALL | 4,57 Lei | |
| 15 | 5140024-93 | 1 | RING | 4,57 Lei | |
| 16 | 5140024-94 | 2 | RING | 4,57 Lei | |
| 17 | 5140024-95 | 15 | BALL | 4,57 Lei | |
| 18 | 5140024-96 | 1 | GOVERNOR SA | 12,71 Lei | |
| 19 | 5140024-97 | 1 | SLEEVE | 5,21 Lei | |
| 20 | 5140024-98 | 1 | SHAFT | 19,95 Lei | |
| 21 | 5140024-99 | 1 | RING | 17,02 Lei | |
| 22 | 5140025-73 | 3 | Gear | 5,21 Lei | |
| 23 | 5140025-74 | 1 | BRACKET | 7,37 Lei | |
| 24 | 5140025-75 | 3 | Gear | 5,21 Lei | |
| 25 | 5140025-76 | 1 | WASHER | 4,57 Lei | |
| 26 | 5140025-77 | 2 | SCREW | 4,57 Lei | |
| 27 | 5140025-78 | 1 | FLANGE | 5,21 Lei | |
| 28 | 5140025-79 | 3 | SCREW | 4,57 Lei | |
| 29 | 5140025-93 | 1 | MOTOR SA 9.6V | 70,39 Lei | |
| 30 | 5140111-98 | 1 | STRAP | 21,85 Lei | |
| 31 | 5140025-82 | 1 | BIT SCREWDRIVER | 4,57 Lei | |
| 32 | 5140025-83 | 1 | CLIP | 4,57 Lei | |
| 33 | 5140111-99 | 1 | BUTTON | 4,57 Lei | |
| 34 | 5140112-00 | 1 | BATTERY CHARGER | 34,05 Lei | |
| 38 | 5140058-80 | 2 | SCREW | 4,57 Lei |
