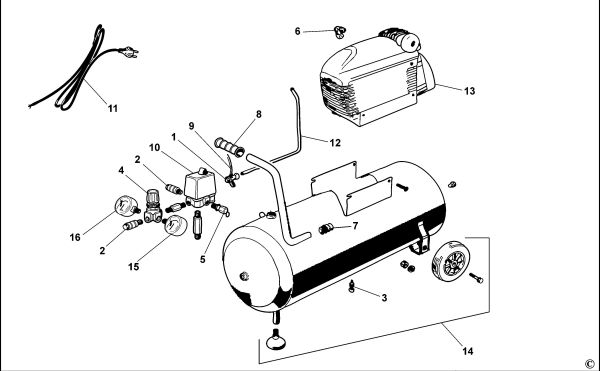

BOSTITCH COMPRESSOR (Type REV A)
SKU Produs: C50 /Type: REV A
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 4 | 9051143 | 1 | REGULATOR | 73,19 Lei | |
| 5 | P020382 | 1 | VALVE | 130,35 Lei | |
| 15 | 9052070 | 1 | GAUGE 63 1/4 S 0-16 RAD 10B SX (left) | 58,17 Lei | |
| 16 | 9052069 | 1 | GAUGE 63 1/4 S 0-16 RAD 10B DX (right) | 58,17 Lei | |
| 20 | AB-9411005 | 1 | CRANKCASE | 218,19 Lei | |
| 24 | AB-9416400 | 1 | CRANKCASE COVER | 73,19 Lei | |
| 25 | AB-9434A29 | 1 | VALVE PLATE ASSEMBLY | 99,86 Lei | |
| 26 | AB-9411011 | 1 | CONNECTING ROD | 34,65 Lei | |
| 27 | AB-9411014 | 1 | PISTON | 88,41 Lei | |
| 28 | AB-9411023 | 1 | PISTON PIN | 8,51 Lei | |
| 29 | AB-9411067 | 2 | RETAINER | 5,15 Lei | |
| 30 | AB-9411019 | 2 | SEAL | 14,07 Lei | |
| 31 | AB-9411020 | 1 | OIL RING | 12,5 Lei | |
| 33 | AB-9411063 | 1 | BALL BEARING | 34,65 Lei | |
| 34 | AB-9411064 | 1 | BALL BEARING | 25,52 Lei | |
| 36 | AB-9411062 | 1 | OIL SEAL | 6,09 Lei | |
| 38 | AB-9411066 | 1 | RETAINING RING | 5,15 Lei | |
| 46 | AB-9411058 | 1 | GASKET | 11,45 Lei |
