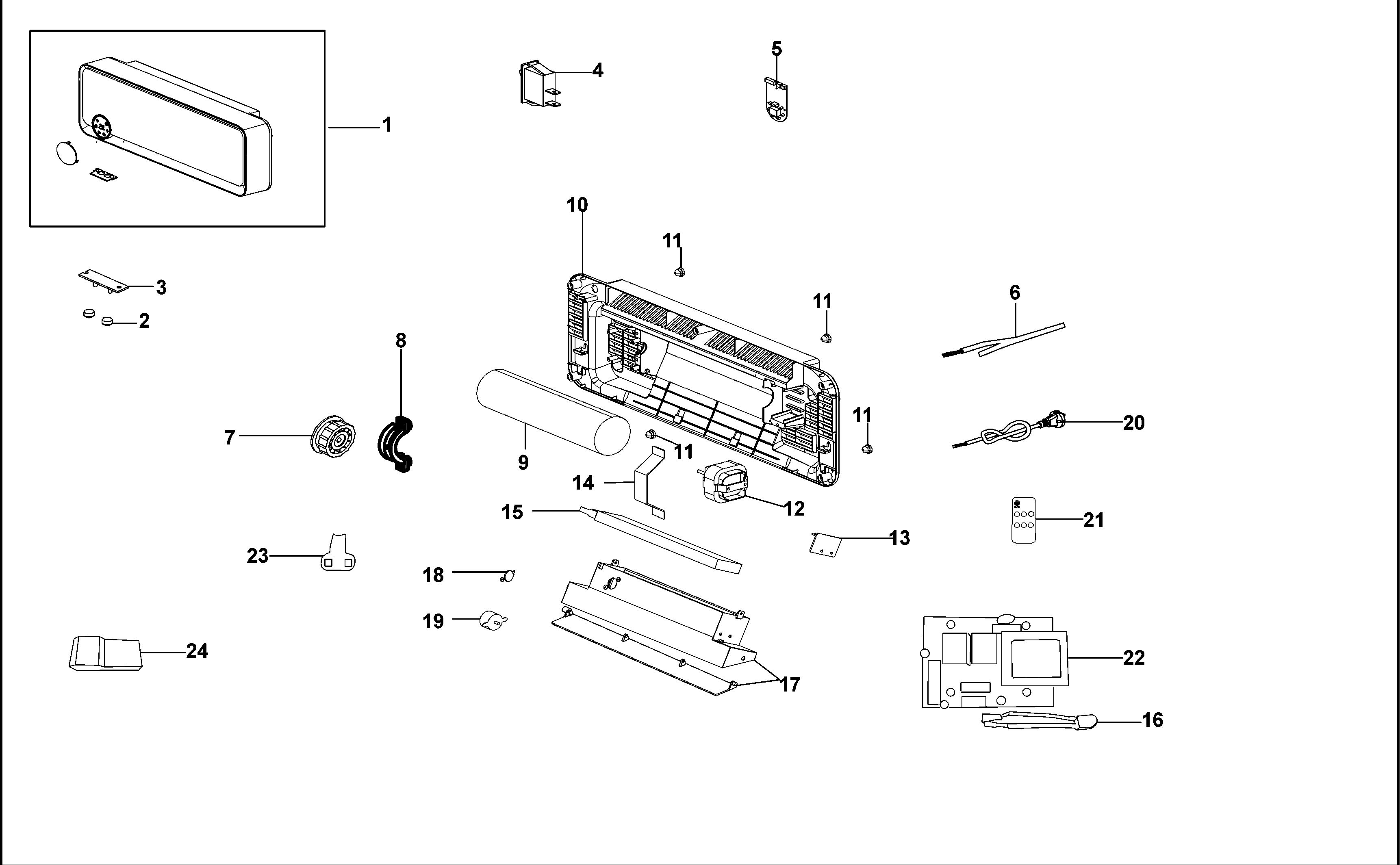

BLACK+DECKER HEATER (Type 1)
SKU Produs: BXWSH2000E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004768-15 | 1 | BODY | 130,35 Lei | |
| 2 | 1004768-16 | 1 | BUTTON SA | 6,23 Lei | |
| 3 | 1004768-17 | 1 | BOARD | 13,85 Lei | |
| 4 | 1004768-18 | 1 | SWITCH | 13,85 Lei | |
| 5 | 1004768-19 | 1 | PCB | 130,35 Lei | |
| 6 | 1004768-20 | 1 | THERMOSTAT | 19,95 Lei | |
| 7 | 1004768-21 | 1 | COVER | 25,54 Lei | |
| 8 | 1004768-22 | 1 | SUPPORT | 6,4 Lei | |
| 9 | 1004768-23 | 1 | FAN SA | 34,05 Lei | |
| 10 | 1004768-24 | 1 | HOUSING REAR | 52,22 Lei | |
| 11 | 1004768-25 | 1 | FOOT | 10,29 Lei | |
| 12 | 1004768-26 | 1 | MOTOR SA | 225,26 Lei | |
| 13 | 1004768-27 | 1 | SUPPORT | 12,71 Lei | |
| 14 | 1004768-28 | 1 | BRACKET | 12,71 Lei | |
| 15 | 1004768-29 | 1 | ELEMENT SA | 88,55 Lei | |
| 16 | 1004768-30 | 1 | RESISTOR | 21,85 Lei | |
| 17 | 1004768-31 | 1 | SUPPORT | 57,81 Lei | |
| 18 | 1004768-32 | 1 | THERMOSTAT | 12,71 Lei | |
| 19 | 1004768-33 | 1 | MOTOR SA | 30,87 Lei | |
| 20 | 1004768-34 | 1 | CORDSET | 52,22 Lei | |
| 21 | 1004768-35 | 1 | REMOTE CONTROL | 34,05 Lei | |
| 22 | 1004768-36 | 1 | PCB | 225,26 Lei | |
| 23 | 1004768-37 | 1 | CORD CLAMP | 6,23 Lei | |
| 24 | 1004768-38 | 1 | FLANGE | 6,23 Lei |
