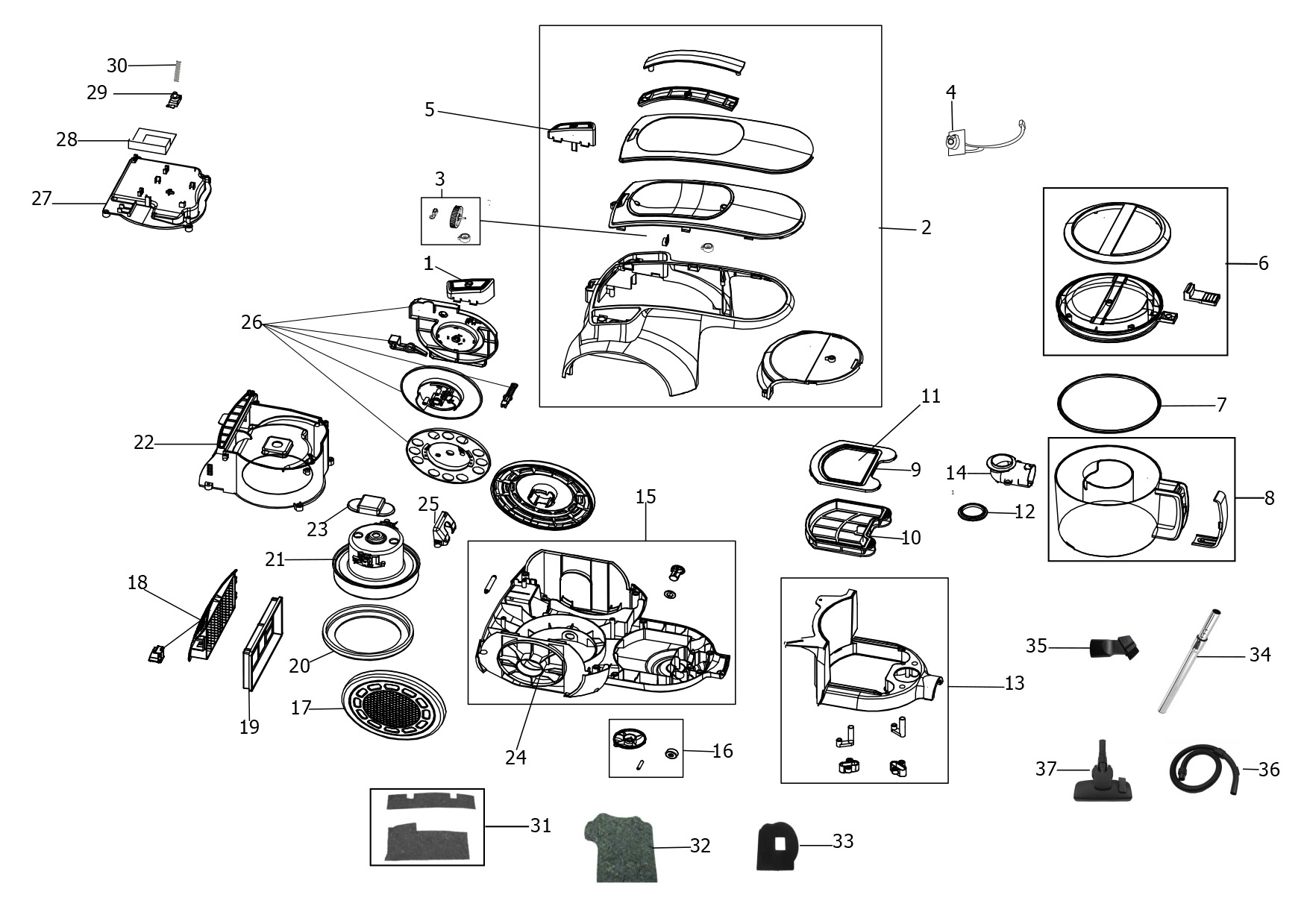

BLACK+DECKER VACUUM CLEANER (Type 1)
SKU Produs: BXVML700E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004782-06 | 1 | BUTTON | 8,64 Lei | |
| 2 | 1004782-07 | 1 | HOUSING AND COVER | 96,56 Lei | |
| 3 | 1004782-08 | 1 | SUPPORT SA | 10,29 Lei | |
| 4 | 1004782-09 | 1 | LED LIGHT | 15,12 Lei | |
| 5 | 1004782-10 | 1 | BUTTON | 10,29 Lei | |
| 6 | 1004782-11 | 1 | COVER | 34,05 Lei | |
| 7 | 1004782-12 | 1 | GASKET | 6,23 Lei | |
| 8 | 1004782-13 | 1 | TANK | 70,39 Lei | |
| 9 | 1004782-14 | 1 | FRAME | 15,12 Lei | |
| 10 | 1004782-15 | 1 | FRAME SA | 19,95 Lei | |
| 11 | 1004782-16 | 1 | SUPPORT | 12,71 Lei | |
| 12 | 1004782-17 | 1 | SEAL SA | 7,37 Lei | |
| 13 | 1004782-18 | 1 | SUPPORT | 30,87 Lei | |
| 14 | 1004782-19 | 1 | PIPE | 17,02 Lei | |
| 15 | 1004782-20 | 1 | BASE SA | 57,81 Lei | |
| 16 | 1004782-21 | 1 | WHEEL | 13,85 Lei | |
| 17 | 1004782-22 | 1 | WHEEL | 21,85 Lei | |
| 18 | 1004782-23 | 1 | GRILLE | 15,12 Lei | |
| 19 | 1004782-24 | 1 | FIELD SA | 25,54 Lei | |
| 20 | 1004782-25 | 1 | GASKET | 17,02 Lei | |
| 21 | 1004782-26 | 1 | MOTOR SA | 318,26 Lei | |
| 22 | 1004782-27 | 1 | BODY | 25,54 Lei | |
| 23 | 1004782-28 | 1 | SEAL | 10,29 Lei | |
| 24 | 1004782-29 | 1 | SUPPORT | 12,71 Lei | |
| 25 | 1004782-30 | 1 | PROTECTOR | 7,37 Lei | |
| 26 | 1004782-31 | 1 | ROLLER | 145,09 Lei | |
| 27 | 1004782-32 | 1 | COVER | 25,54 Lei | |
| 28 | 1004782-33 | 1 | PCB | 41,93 Lei | |
| 29 | 1004782-34 | 1 | SWITCH | 12,71 Lei | |
| 30 | 1004782-35 | 1 | SPRING | 6,23 Lei | |
| 31 | 1004782-36 | 1 | INSULATOR | 8,64 Lei | |
| 32 | 1004782-37 | 1 | INSULATOR | 8,64 Lei | |
| 33 | 1004782-38 | 1 | FOAM | 12,71 Lei | |
| 34 | 1004782-39 | 1 | TUBE SA | 41,93 Lei | |
| 35 | 1004782-40 | 1 | NOZZLE | 12,71 Lei | |
| 36 | 1004782-41 | 1 | PIPE SA | 70,39 Lei | |
| 37 | 1004782-42 | 1 | HEAD SA | 96,56 Lei |
