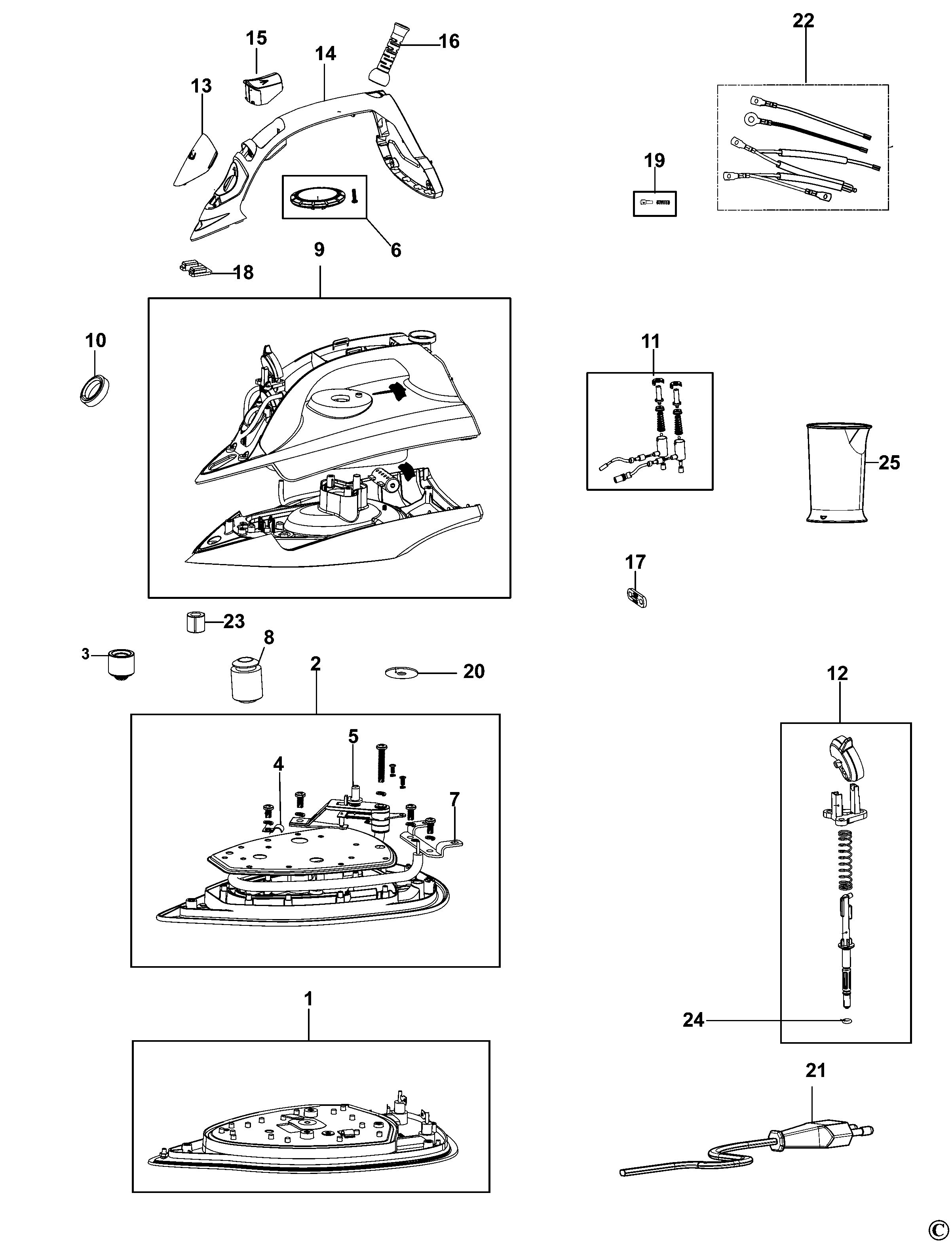

BLACK+DECKER STEAM IRON (Type 1)
SKU Produs: BXIR2200E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004755-09 | 1 | PLATE SA | 57,81 Lei | |
| 2 | 1004755-10 | 1 | PLATE SA | 120,82 Lei | |
| 3 | 1004755-11 | 1 | GASKET | 6,23 Lei | |
| 4 | 1004755-12 | 1 | FLANGE | 240,38 Lei | |
| 5 | 1004755-13 | 1 | THERMOSTAT | 157,92 Lei | |
| 6 | 1004755-14 | 1 | DIAL PLATE | 7,37 Lei | |
| 7 | 1004755-15 | 1 | SUPPORT | 7,37 Lei | |
| 8 | 1004755-16 | 1 | GASKET | 130,35 Lei | |
| 9 | 1004755-17 | 1 | TANK | 41,93 Lei | |
| 10 | 1004755-18 | 1 | RING | 6,23 Lei | |
| 11 | 1004755-19 | 1 | PUMP SA | 10,29 Lei | |
| 12 | 1004755-20 | 1 | AXIS | 10,29 Lei | |
| 13 | 1004755-21 | 1 | COVER | 6,23 Lei | |
| 14 | 1004755-22 | 1 | HANDLE | 7,37 Lei | |
| 15 | 1004755-23 | 1 | BUTTON | 12,71 Lei | |
| 16 | 1004755-24 | 1 | CORD PROTECTOR | 6,23 Lei | |
| 17 | 1004755-25 | 1 | CORD CLAMP | 6,23 Lei | |
| 18 | 1004755-26 | 1 | COVER | 6,23 Lei | |
| 19 | 1004755-27 | 1 | PIN SA | 6,23 Lei | |
| 20 | 1004755-28 | 1 | WASHER | 6,23 Lei | |
| 21 | 1004755-29 | 1 | CORDSET | 52,22 Lei | |
| 22 | 1004755-30 | 1 | WIRE HARNESS | 10,29 Lei | |
| 23 | 1004755-31 | 1 | BLOCK | 6,23 Lei | |
| 24 | 1004755-32 | 1 | WASHER | 6,23 Lei | |
| 25 | 1004755-33 | 1 | BEAKER | 6,23 Lei |
