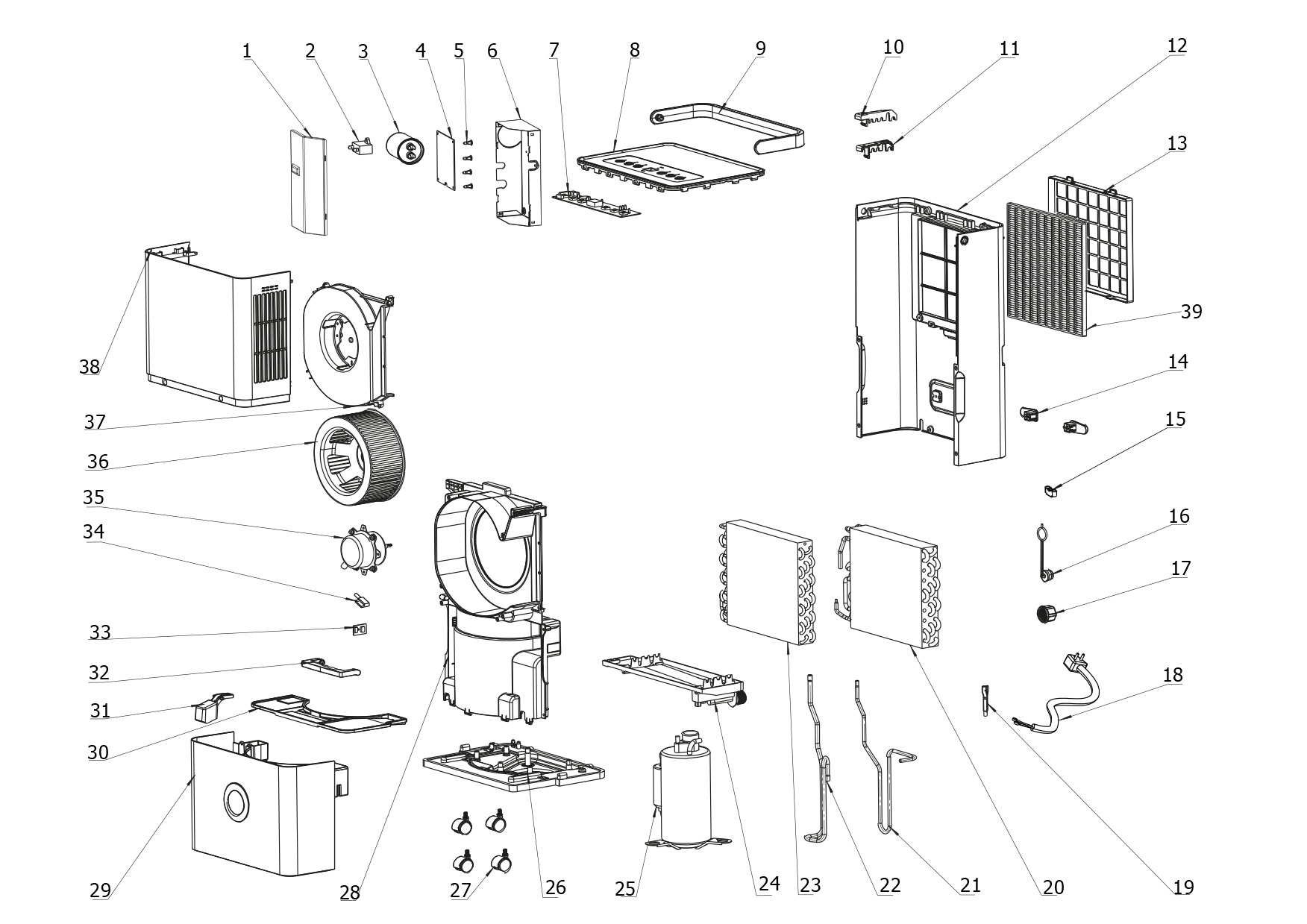

BLACK+DECKER DEHUMIDIFIER (Type 1)
SKU Produs: BXDH20E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004777-54 | 1 | COVER | 30,87 Lei | |
| 2 | 1004777-55 | 1 | CONDENSOR | 25,54 Lei | |
| 3 | 1004777-56 | 1 | CONDENSOR | 25,54 Lei | |
| 4 | 1004777-57 | 1 | PCB SA | 145,09 Lei | |
| 6 | 1004777-58 | 1 | COVER HOUSING | 34,05 Lei | |
| 7 | 1004777-59 | 1 | DISPLAY | 96,56 Lei | |
| 8 | 1004777-60 | 1 | PANEL | 37,73 Lei | |
| 9 | 1004777-61 | 1 | HANDLE | 34,05 Lei | |
| 10 | 1004777-62 | 1 | SUPPORT BRACKET | 19,95 Lei | |
| 11 | 1004777-63 | 1 | SUPPORT BRACKET | 19,95 Lei | |
| 12 | 1004777-64 | 1 | COVER REAR | 88,55 Lei | |
| 13 | 1004777-65 | 1 | PANEL FRONT | 80,04 Lei | |
| 14 | 1004777-66 | 2 | SUPPORT BRACKET | 25,54 Lei | |
| 15 | 1004777-67 | 1 | FLANGE | 25,54 Lei | |
| 16 | 1004777-68 | 1 | CAP | 19,95 Lei | |
| 17 | 1004777-69 | 1 | END CAP | 30,87 Lei | |
| 18 | 1004777-70 | 1 | CORDSET | 30,87 Lei | |
| 19 | 1004777-71 | 1 | FILTER | 106,98 Lei | |
| 20 | 1004777-72 | 1 | ELEMENT SA | 145,09 Lei | |
| 21 | 1004777-73 | 1 | TUBE | 70,39 Lei | |
| 22 | 1004777-74 | 1 | TUBE | 70,39 Lei | |
| 23 | 1004777-75 | 1 | CONDENSOR | 145,09 Lei | |
| 24 | 1004777-76 | 1 | BASE SA | 57,81 Lei | |
| 25 | 1004777-77 | 1 | CYLINDER SA | 850,09 Lei | |
| 26 | 1004777-78 | 1 | COVER SA | 130,35 Lei | |
| 27 | 1004777-79 | 4 | WHEEL | 34,05 Lei | |
| 28 | 1004777-80 | 1 | FRAME SA | 106,98 Lei | |
| 29 | 1004777-81 | 1 | TANK | 157,92 Lei | |
| 30 | 1004777-82 | 1 | COVER | 52,22 Lei | |
| 31 | 1004777-83 | 1 | FLOAT | 34,05 Lei | |
| 32 | 1004777-84 | 1 | HANDLE SA | 30,87 Lei | |
| 33 | 1004777-85 | 1 | SENSOR | 57,81 Lei | |
| 34 | 1004777-86 | 1 | SWITCH | 30,87 Lei | |
| 35 | 1004777-87 | 1 | MOTOR SA | 157,92 Lei | |
| 36 | 1004777-88 | 1 | FAN SA | 57,81 Lei | |
| 37 | 1004777-89 | 1 | DUCT | 57,81 Lei | |
| 38 | 1004777-90 | 1 | COVER SA | 145,09 Lei | |
| 39 | 1004777-91 | 1 | FILTER | 80,04 Lei |
