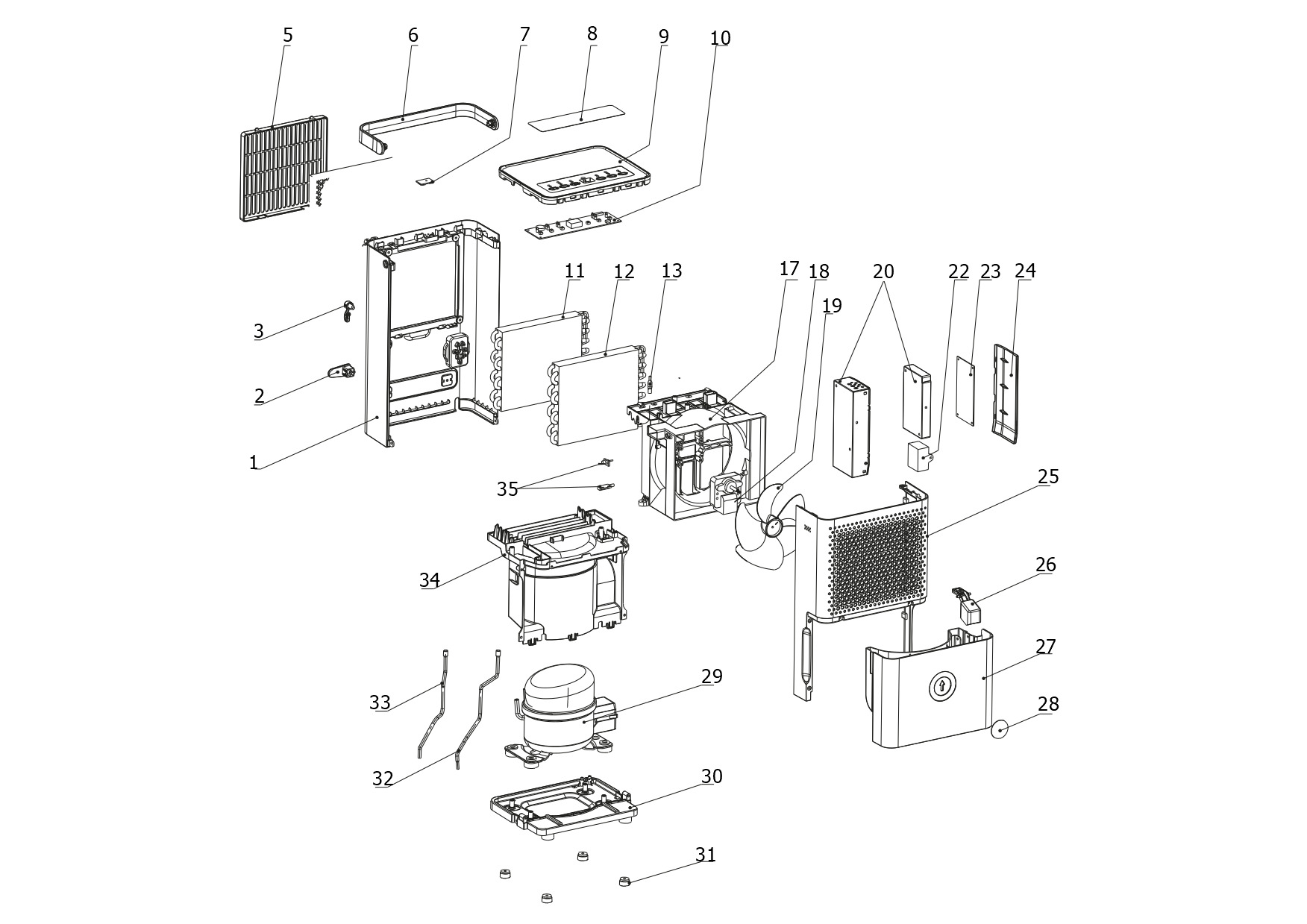

BLACK+DECKER DEHUMIDIFIER (Type 1)
SKU Produs: BXDH12E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004781-47 | 4 | COVER HOUSING | 70,39 Lei | |
| 2 | 1004781-48 | 1 | BRACKET | 19,95 Lei | |
| 3 | 1004781-49 | 1 | GLAND | 19,95 Lei | |
| 5 | 1004781-50 | 1 | COVER | 19,95 Lei | |
| 6 | 1004781-51 | 1 | HANDLE | 25,54 Lei | |
| 7 | 1004781-52 | 2 | SENSOR | 19,95 Lei | |
| 8 | 1004781-53 | 1 | COVER | 25,54 Lei | |
| 9 | 1004781-54 | 1 | COVER | 30,87 Lei | |
| 10 | 1004781-55 | 1 | BOARD | 80,04 Lei | |
| 11 | 1004781-56 | 1 | CONDENSOR | 106,98 Lei | |
| 13 | 1004781-58 | 1 | FILTER | 34,05 Lei | |
| 17 | 1004781-59 | 1 | DUCT | 41,93 Lei | |
| 18 | 1004781-60 | 1 | MOTOR SA | 88,55 Lei | |
| 19 | 1004781-61 | 1 | FAN SA | 88,55 Lei | |
| 20 | 1004781-62 | 1 | BOX | 57,81 Lei | |
| 22 | 1004781-63 | 1 | CAPACITOR | 25,54 Lei | |
| 23 | 1004781-64 | 1 | PANEL | 30,87 Lei | |
| 24 | 1004781-65 | 1 | PCB | 145,09 Lei | |
| 25 | 1004781-66 | 1 | COVER | 12,71 Lei | |
| 26 | 1004781-67 | 1 | COVER | 88,55 Lei | |
| 27 | 1004781-68 | 1 | FLOAT | 19,95 Lei | |
| 28 | 1004781-69 | 1 | TANK | 70,39 Lei | |
| 29 | 1004781-70 | 1 | CONDENSOR | 570,96 Lei | |
| 30 | 1004781-71 | 1 | BASE | 34,05 Lei | |
| 31 | 1004781-72 | 4 | FEET | 10,29 Lei | |
| 32 | 1004781-73 | 1 | TUBE | 70,39 Lei | |
| 33 | 1004781-74 | 1 | TUBE | 70,39 Lei | |
| 34 | 1004781-75 | 1 | BODY | 30,87 Lei | |
| 35 | 1004781-76 | 1 | SWITCH | 25,54 Lei |
