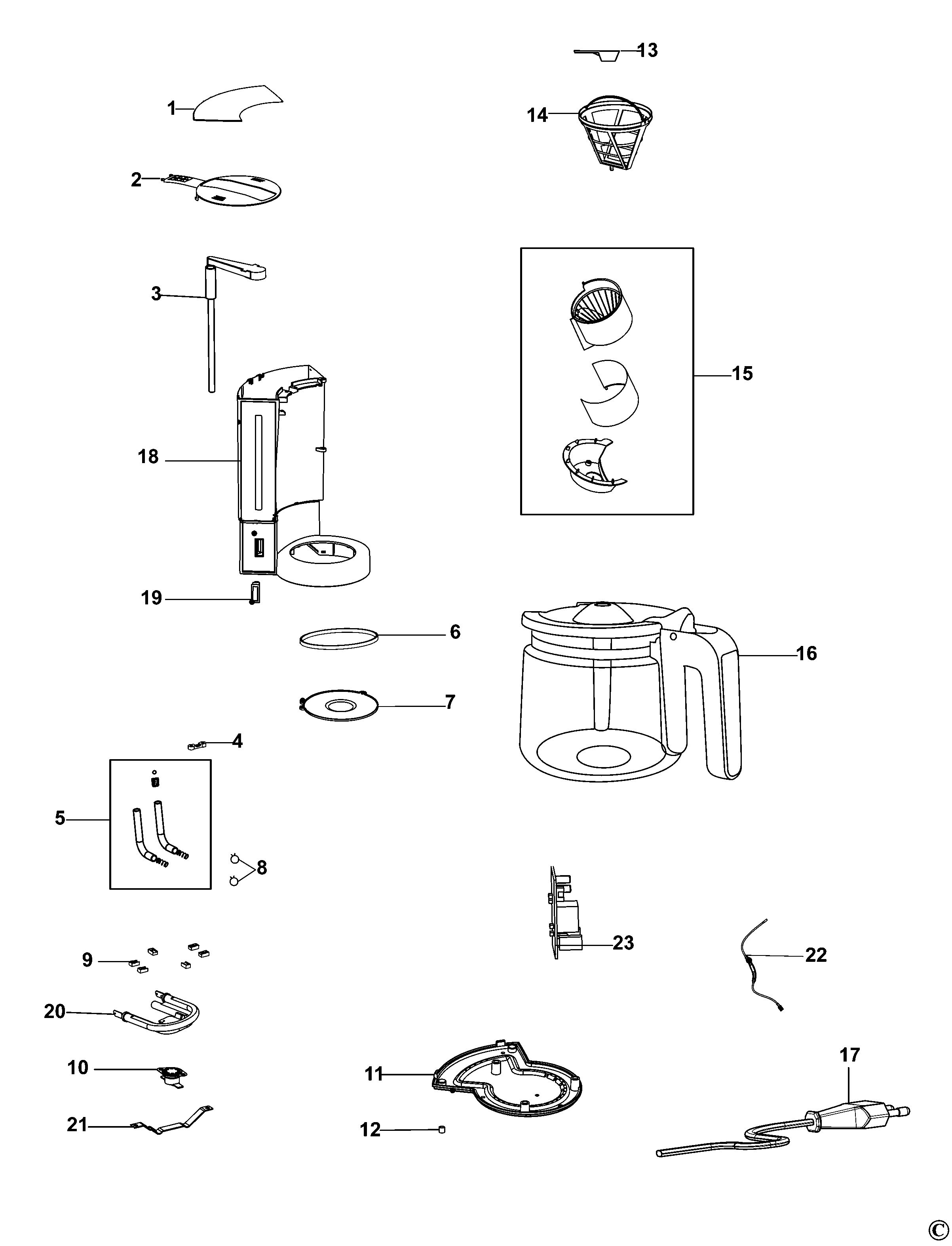

BLACK+DECKER COFFEEMAKER (Type 1)
SKU Produs: BXCO870E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004761-52 | 1 | COVER-TOP | 12,71 Lei | |
| 2 | 1004761-53 | 1 | COVER | 17,02 Lei | |
| 3 | 1004761-54 | 1 | TUBE | 8,64 Lei | |
| 4 | 1004761-60 | 1 | CLAMP | 6,23 Lei | |
| 5 | 1004761-61 | 1 | TUBE SA | 25,54 Lei | |
| 6 | 1004761-62 | 1 | GASKET | 8,64 Lei | |
| 7 | 1004761-63 | 1 | PLATE | 12,71 Lei | |
| 8 | 1004761-64 | 1 | CLAMP | 6,23 Lei | |
| 9 | 1004761-65 | 1 | SUPPORT | 7,37 Lei | |
| 10 | 1004761-67 | 1 | THERMOSTAT | 12,71 Lei | |
| 11 | 1004761-69 | 1 | BASE | 6,23 Lei | |
| 12 | 1004761-70 | 1 | FOOT | 6,23 Lei | |
| 13 | 1004761-71 | 1 | SPOON | 6,23 Lei | |
| 14 | 1004761-72 | 1 | FILTER | 17,02 Lei | |
| 15 | 1004761-73 | 1 | HOUSING | 70,39 Lei | |
| 16 | 1004761-74 | 1 | JUG | 130,35 Lei | |
| 17 | 1004761-75 | 1 | CORDSET | 34,05 Lei | |
| 18 | 1004761-77 | 1 | BASE | 96,56 Lei | |
| 19 | 1004761-78 | 1 | SWITCH | 41,93 Lei | |
| 20 | 1004761-79 | 1 | RESISTOR | 21,85 Lei | |
| 21 | 1004761-80 | 1 | SUPPORT | 6,23 Lei | |
| 22 | 1004761-81 | 1 | FUSE | 12,71 Lei | |
| 23 | 1004761-82 | 1 | PCB | 37,73 Lei |
