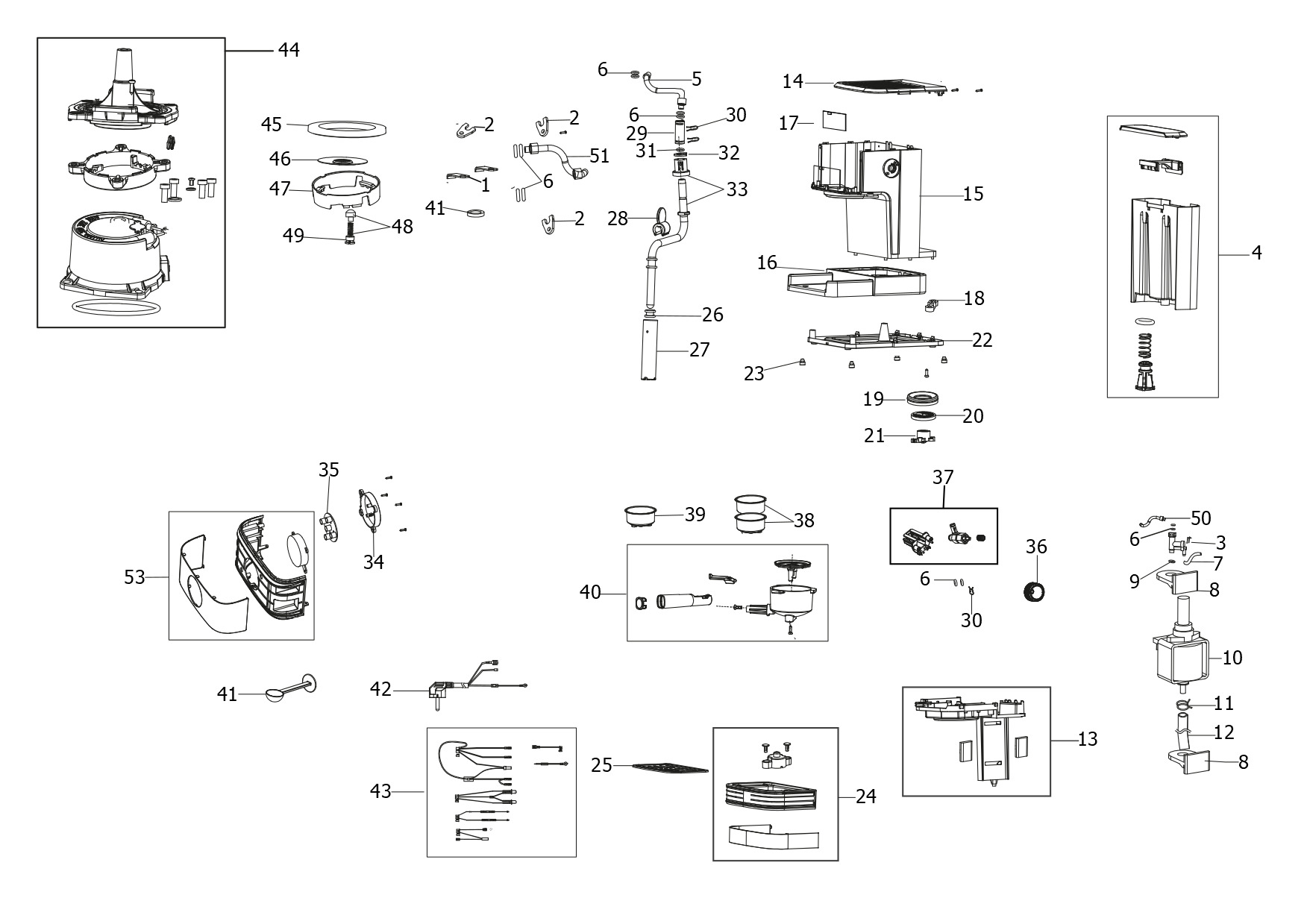

BLACK+DECKER COFFEEMAKER (Type 1)
SKU Produs: BXCO850E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | ES0201170B | 1 | FLANGE | 6,23 Lei | |
| 2 | ES0201180B | 1 | CABLE GUIDE | 17,02 Lei | |
| 3 | ES0201190B | 1 | CLIP | 30,87 Lei | |
| 4 | ES0201200B | 1 | TANK | 52,22 Lei | |
| 5 | ES0201210B | 1 | TUBE | 52,22 Lei | |
| 6 | ES0201220B | 1 | BUSHING | 17,02 Lei | |
| 7 | ES0201230B | 1 | PIPE | 25,54 Lei | |
| 8 | ES0201240B | 1 | BRACKET | 25,54 Lei | |
| 9 | ES0201250B | 1 | CLIP | 6,23 Lei | |
| 10 | ES0201260B | 1 | PUMP SA | 225,26 Lei | |
| 11 | ES0201270B | 1 | CLIP | 19,95 Lei | |
| 12 | ES0201280B | 1 | CABLE | 10,29 Lei | |
| 13 | ES0201290B | 1 | SUPPORT | 15,12 Lei | |
| 14 | ES0201300B | 1 | COVER-TOP | 80,04 Lei | |
| 15 | ES0201310B | 1 | BODY | 120,82 Lei | |
| 16 | ES0201320B | 1 | TRAY | 52,22 Lei | |
| 17 | ES0201330B | 1 | COVER | 37,73 Lei | |
| 18 | ES0201340B | 1 | FOOT | 25,54 Lei | |
| 19 | ES0201350B | 1 | GASKET | 10,29 Lei | |
| 20 | ES0201360B | 1 | FILTER | 12,71 Lei | |
| 21 | ES0201370B | 1 | BUSHING | 10,29 Lei | |
| 22 | ES0201380B | 1 | COVER | 19,95 Lei | |
| 23 | ES0201390B | 1 | FOOT | 17,02 Lei | |
| 24 | ES0201400B | 1 | TRAY | 37,73 Lei | |
| 25 | ES0201410B | 1 | TRAY DRIP | 52,22 Lei | |
| 26 | ES0201420B | 1 | GASKET | 17,02 Lei | |
| 27 | ES0201430B | 1 | BOILER | 30,87 Lei | |
| 28 | ES0201440B | 1 | HANDLE | 19,95 Lei | |
| 29 | ES0201450B | 1 | SUPPORT | 25,54 Lei | |
| 30 | ES0201460B | 1 | PIN | 17,02 Lei | |
| 31 | ES0201470B | 1 | GASKET | 17,02 Lei | |
| 32 | ES0201480B | 1 | CLIP | 7,37 Lei | |
| 33 | ES0201490B | 1 | TUBE SA | 37,73 Lei | |
| 34 | ES0201500B | 1 | BOX | 25,54 Lei | |
| 35 | ES0201510B | 1 | BUTTON SA | 34,05 Lei | |
| 36 | ES0201520B | 1 | CONTROL SA | 13,85 Lei | |
| 37 | ES0201530B | 1 | VALVE | 15,12 Lei | |
| 38 | ES0201540B | 1 | CUP | 37,73 Lei | |
| 39 | ES0201550B | 1 | CUP | 57,81 Lei | |
| 40 | ES0201560B | 1 | TANK | 52,22 Lei | |
| 41 | ES0201570B | 1 | SPOON | 30,87 Lei | |
| 42 | ES0201580B | 1 | CORDSET | 80,04 Lei | |
| 43 | ES0201590B | 1 | LEADWIRE | 52,22 Lei | |
| 44 | ES0201600B | 1 | BOILER SA | 195,02 Lei | |
| 45 | ES0201610B | 1 | GASKET | 37,73 Lei | |
| 46 | ES0201620B | 1 | FILTER | 12,71 Lei | |
| 47 | ES0201630B | 1 | SUPPORT | 12,71 Lei | |
| 48 | ES0201640B | 1 | SPRING | 37,73 Lei | |
| 49 | ES0201650B | 1 | SCREW | 10,29 Lei | |
| 50 | ES0201660B | 1 | TUBE | 57,81 Lei | |
| 51 | ES0201670B | 1 | TUBE | 21,85 Lei | |
| 53 | ES0201690B | 1 | CONTROL PANEL | 34,05 Lei |
