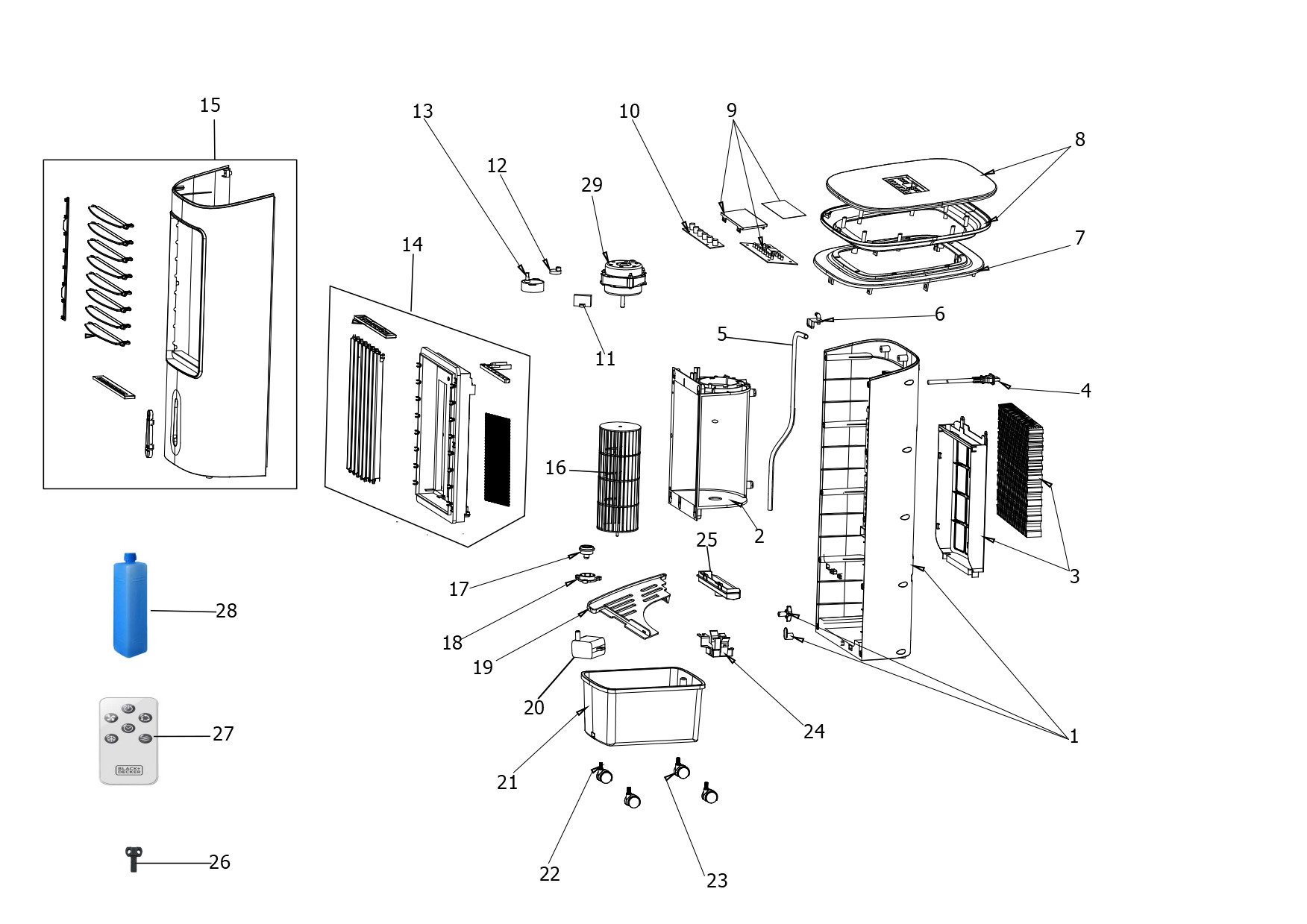

BLACK+DECKER COOLER / HEATER (Type 1)
SKU Produs: BXAC7E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004780-00 | 1 | COVER SA | 195,02 Lei | |
| 2 | 1004780-01 | 1 | CYLINDER | 41,93 Lei | |
| 3 | 1004780-02 | 1 | FILTER SA | 73,19 Lei | |
| 4 | 1004780-03 | 1 | CORDSET | 25,52 Lei | |
| 5 | 1004780-04 | 1 | TUBE | 8,64 Lei | |
| 6 | 1004780-05 | 1 | CONNECTOR | 6,23 Lei | |
| 7 | 1004780-06 | 1 | COVER SA | 30,87 Lei | |
| 8 | 1004780-07 | 4 | COVER SA | 80,04 Lei | |
| 9 | 1004780-08 | 1 | PCB | 228,8 Lei | |
| 10 | 1004780-09 | 1 | PCB | 19,95 Lei | |
| 11 | 1004780-10 | 1 | CONDENSOR | 14,07 Lei | |
| 12 | 1004780-11 | 1 | PULLEY | 5,15 Lei | |
| 13 | 1004780-12 | 1 | COUPLING | 31,19 Lei | |
| 14 | 1004780-13 | 1 | GRILLE | 330,12 Lei | |
| 15 | 1004780-14 | 1 | HOUSING | 99,86 Lei | |
| 16 | 1004780-15 | 1 | FAN SA | 43,16 Lei | |
| 17 | 1004780-16 | 1 | NUT | 5,15 Lei | |
| 18 | 1004780-17 | 1 | SUPPORT | 5,15 Lei | |
| 19 | 1004780-18 | 1 | PLATE | 7,14 Lei | |
| 20 | 1004780-19 | 1 | PUMP SA | 96,56 Lei | |
| 21 | 1004780-20 | 1 | TANK | 52,22 Lei | |
| 22 | 1004780-21 | 1 | WHEEL | 41,93 Lei | |
| 23 | 1004780-22 | 1 | WHEEL | 34,05 Lei | |
| 24 | 1004780-23 | 1 | BRACKET | 8,64 Lei | |
| 25 | 1004780-24 | 1 | TRAY | 12,71 Lei | |
| 26 | 1004780-25 | 1 | FLANGE | 5,21 Lei | |
| 27 | 1004780-26 | 1 | REMOTE CONTROL | 30,87 Lei | |
| 28 | 1004780-27 | 1 | BOTTLE | 10,29 Lei | |
| 29 | 1004780-28 | 1 | MOTOR SA | 331,47 Lei |
