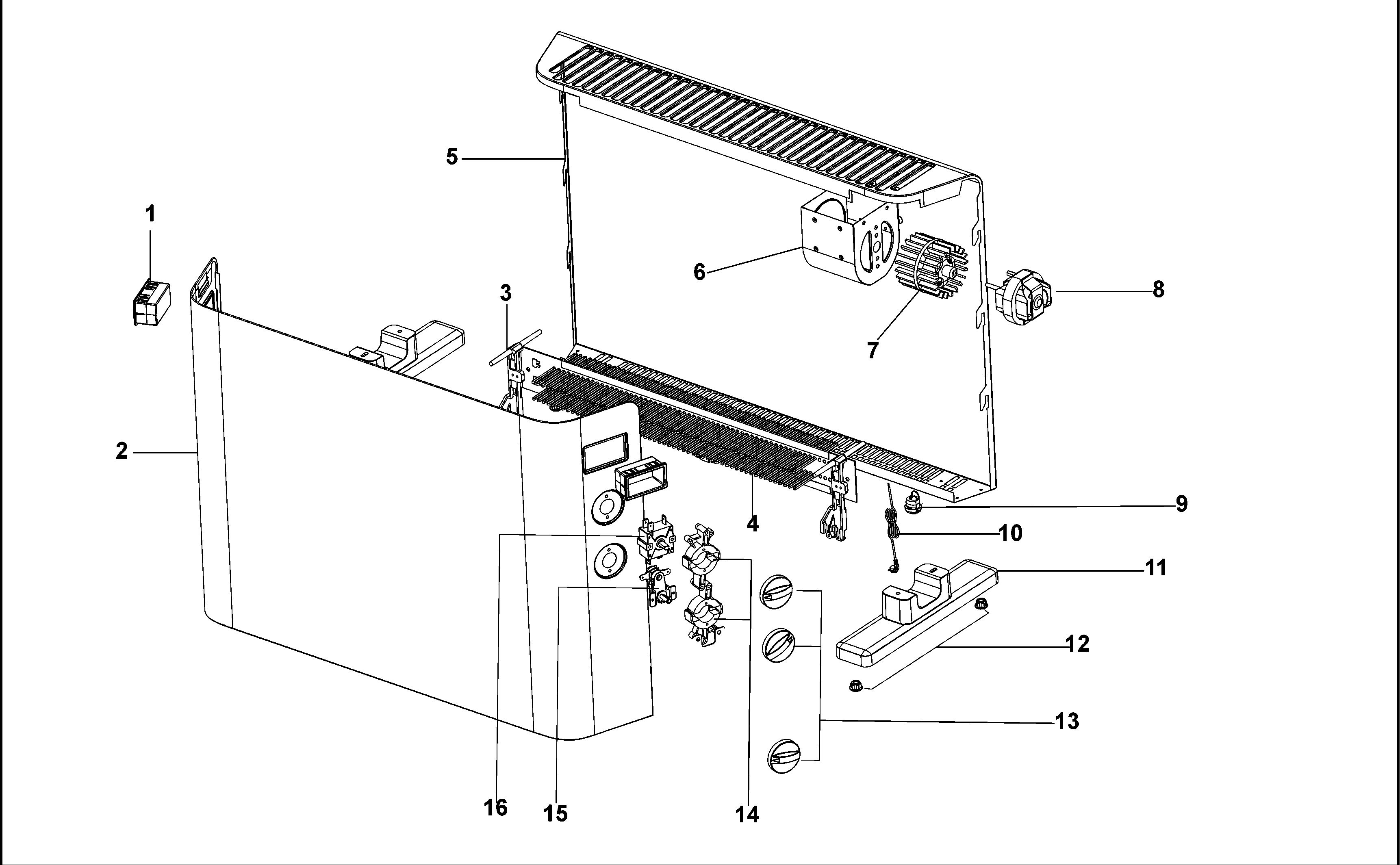

HEATER
SKU Produs: BXCSH2000E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004768-38 | 1 | FLANGE | 6,4 Lei | |
| 2 | 1004769-70 | 1 | COVER | 81,9 Lei | |
| 3 | 1004769-71 | 1 | BRACKET | 8,8 Lei | |
| 4 | 1004769-72 | 1 | ELEMENT | 53,4 Lei | |
| 5 | 1004769-73 | 1 | COVER REAR | 81,9 Lei | |
| 6 | 1004769-74 | 1 | MOTOR HOUSING SA | 26,1 Lei | |
| 7 | 1004769-75 | 1 | FAN | 10,5 Lei | |
| 8 | 1004769-76 | 1 | MOTOR SA | 53,4 Lei | |
| 9 | 1004769-77 | 1 | PLUG | 8,8 Lei | |
| 10 | 1004769-78 | 1 | CORDSET | 31,6 Lei | |
| 11 | 1004769-79 | 1 | FOOT | 13 Lei | |
| 12 | 1004769-80 | 1 | PLUG | 6,4 Lei | |
| 13 | 1004769-81 | 1 | KNOB | 6,4 Lei | |
| 14 | 1004769-82 | 1 | THERMOSTAT | 6,4 Lei | |
| 15 | 1004769-83 | 1 | REGULATOR | 14,2 Lei | |
| 16 | 1004769-84 | 1 | SWITCH | 13 Lei |
