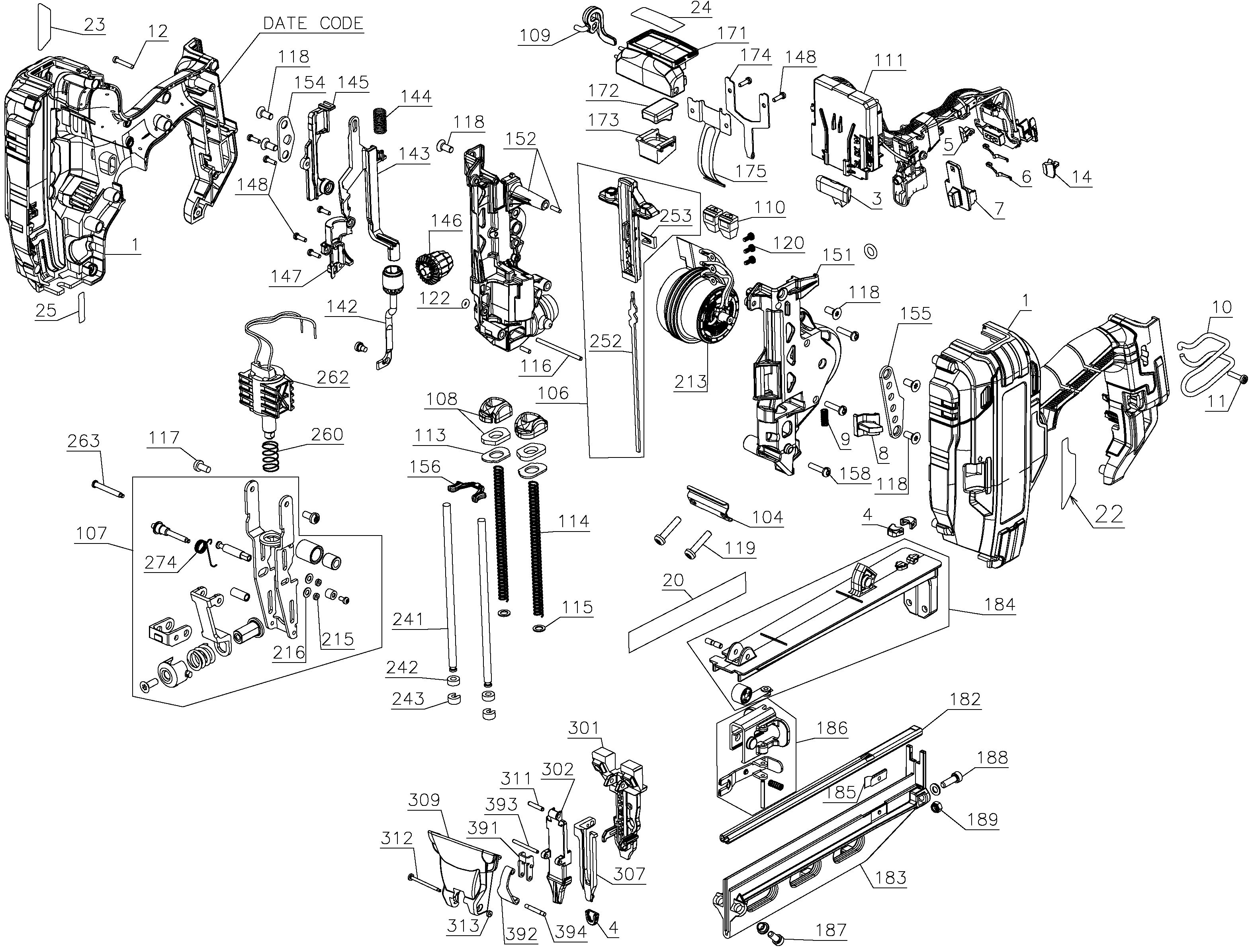

BOSTITCH BRAD NAILER Type 1
SKU Produs: BTCN120
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N606151 | 1 | CLAMSHELL SET | 218,19 Lei | |
| 3 | N468738 | 1 | BUTTON LOCK-OFF | 7,37 Lei | |
| 4 | N490008 | 1 | NO MAR TIP | 7,37 Lei | |
| 5 | N471571 | 1 | LIGHT LENS RIGHT | 12,71 Lei | |
| 6 | N388602 | 2 | DETENT SPRING | 6,23 Lei | |
| 7 | N466948 | 1 | SELECTOR | 15,12 Lei | |
| 8 | N393495 | 1 | SA STALL RELEASE BUTTON (MOULD) | 21,85 Lei | |
| 9 | N411486 | 1 | SPRING | 4,57 Lei | |
| 10 | N410943 | 1 | HOOK | 17,02 Lei | |
| 11 | 330019-52 | 1 | SCREW | 4,57 Lei | |
| 12 | 330019-24 | 10 | SCREW, PLSTC THD FORM, M3*19, T10 | 4,57 Lei | |
| 14 | N468840 | 1 | LIGHT LENS LEFT | 12,71 Lei | |
| 20 | N557132 | 1 | RATING PLATE | 14,07 Lei | |
| 22 | N530964 | 1 | LABEL | 3,78 Lei | |
| 23 | N530965 | 1 | LABEL | 3,78 Lei | |
| 24 | N531189 | 1 | LABEL | 3,78 Lei | |
| 25 | N519265 | 1 | LABEL DEPTH ADJUST | 3,78 Lei | |
| 104 | N465881 | 1 | PLATE | 4,57 Lei | |
| 106 | N606148 | 1 | DRIVER | 166,11 Lei | |
| 107 | N568372 | 1 | CARRIAGE SA | 307,21 Lei | |
| 108 | N446577 | 1 | SA PACKED BUMPER PARTS DCN66# (SERVICE) | 52,22 Lei | |
| 109 | N532613 | 1 | ACTUATOR | 10,29 Lei | |
| 110 | 650974-00 | 2 | WIRE NUT HIGH TECH | 5,21 Lei | |
| 111 | N517617 | 1 | CONTROL MODULE SA | 506,73 Lei | |
| 113 | N376891 | 2 | BUMPER PLATE | 4,57 Lei | |
| 114 | N446578 | 1 | SA PACKED SPRINGS FOR DCN66# (SERVICE) | 96,56 Lei | |
| 115 | N383361 | 2 | RETURN RAIL WASHER | 4,57 Lei | |
| 116 | N410969 | 1 | DOWELL PIN 3MM | 4,57 Lei | |
| 117 | N491757 | 2 | SCREW | 4,57 Lei | |
| 118 | N386788 | 6 | SCREW, FLAT HEAD, MAGFORM | 4,57 Lei | |
| 119 | N383360 | 2 | SCREW, MAGFORM | 4,57 Lei | |
| 120 | N403241 | 3 | SCREW M3 SEMS | 4,57 Lei | |
| 122 | N439188 | 1 | O-RING ID 2.0MM | 4,57 Lei | |
| 142 | N561939 | 1 | TRIP SA | 106,98 Lei | |
| 143 | N587377 | 1 | REAR CONTACT TRIP 16GA (MOULD) | 13,85 Lei | |
| 144 | N378115 | 1 | COMPRESSION SPRING | 4,57 Lei | |
| 145 | N378116 | 1 | SA REAR CONTACT TRIP COVER (MOULD) | 12,71 Lei | |
| 146 | N367663 | 1 | SA DEPTH ADJUST KNOB (MOULD) | 19,95 Lei | |
| 147 | N367666 | 1 | SA DEPTH ADJUST COVER (MOULD) | 17,02 Lei | |
| 148 | N379045 | 7 | SCREW M3 MAGFORM | 4,57 Lei | |
| 151 | N377231 | 1 | LEFT FRAME PACKED | 181,55 Lei | |
| 152 | NA093070 | 1 | FRAME RH | 145,09 Lei | |
| 154 | N378063 | 1 | MOTOR LOCATOR RIGHT FRAME | 5,21 Lei | |
| 155 | N377923 | 1 | MOTOR LOCATOR LEFT FRAME | 8,64 Lei | |
| 156 | N376266 | 1 | SA RAIL RETAINER (MOULD) | 5,3 Lei | |
| 158 | 613619-00 | 3 | SCREW, FORM | 4,57 Lei | |
| 171 | N515988 | 1 | SUPPORT | 79,8 Lei | |
| 172 | N528907 | 1 | BUMPER | 30,87 Lei | |
| 173 | N528908 | 1 | RETAINER | 8,64 Lei | |
| 174 | N367683 | 1 | SKID PAD | 6,23 Lei | |
| 175 | N455371 | 1 | PROFILE LIFTER SPRING | 34,05 Lei | |
| 182 | N511709 | 1 | LINER | 18,06 Lei | |
| 183 | 181916 | 1 | MAGAZINE, BOTTOM | 28,14 Lei | |
| 184 | N513949 | 1 | MAGAZINE SA | 317,1 Lei | |
| 185 | 180564 | 1 | STOP | 5,15 Lei | |
| 186 | 9R205613 | 1 | PUSHER | 18,06 Lei | |
| 187 | 9R199720 | 2 | SCREW | 4,31 Lei | |
| 188 | MSC5080-16 | 2 | SCREW | 5,15 Lei | |
| 189 | MHE5080-100 | 2 | LOCK-NUT | 5,15 Lei | |
| 213 | N590300 | 1 | MOTOR SA | 570,96 Lei | |
| 215 | 391814-00 | 3 | GROMMET | 4,57 Lei | |
| 216 | 330016-26 | 2 | WASHER | 4,57 Lei | |
| 241 | N439725 | 2 | 16GA RETURN RAIL | 19,95 Lei | |
| 242 | N378014 | 2 | SPRING BUMPER | 4,57 Lei | |
| 243 | N402150 | 2 | SA SPRING RAIL CLIP | 4,57 Lei | |
| 252 | N517610 | 1 | DRIVER BLADE | 73,19 Lei | |
| 253 | 392206-00 | 2 | CLIP | 4,57 Lei | |
| 260 | N415948 | 1 | SOLENOID COMPRESSION SPRING | 4,57 Lei | |
| 262 | N446579 | 1 | SA PACKED SOLENOID DCN66# (SERVICE) | 88,55 Lei | |
| 263 | 633207-00 | 1 | PIN | 7,37 Lei | |
| 274 | N377077 | 1 | 16GA PTO TORSION SPRING | 5,21 Lei | |
| 301 | N507108 | 1 | NOSE | 119,91 Lei | |
| 302 | N507587 | 1 | DOOR | 58,17 Lei | |
| 307 | N638501 | 1 | LOWER CONTACT TRIP | 358,05 Lei | |
| 309 | N501170 | 1 | COVER | 11,45 Lei | |
| 311 | 181920 | 1 | PIN | 3,78 Lei | |
| 312 | N469099 | 1 | PIN | 5,21 Lei | |
| 313 | N469155 | 1 | GROMMET | 5,21 Lei | |
| 391 | 180553 | 1 | BRACKET | 6,23 Lei | |
| 392 | 9R196740 | 1 | SPRING | 13,85 Lei | |
| 393 | 195327 | 1 | SPIROL PIN | 3,78 Lei | |
| 394 | 9R205606 | 1 | PIN | 10,29 Lei |
