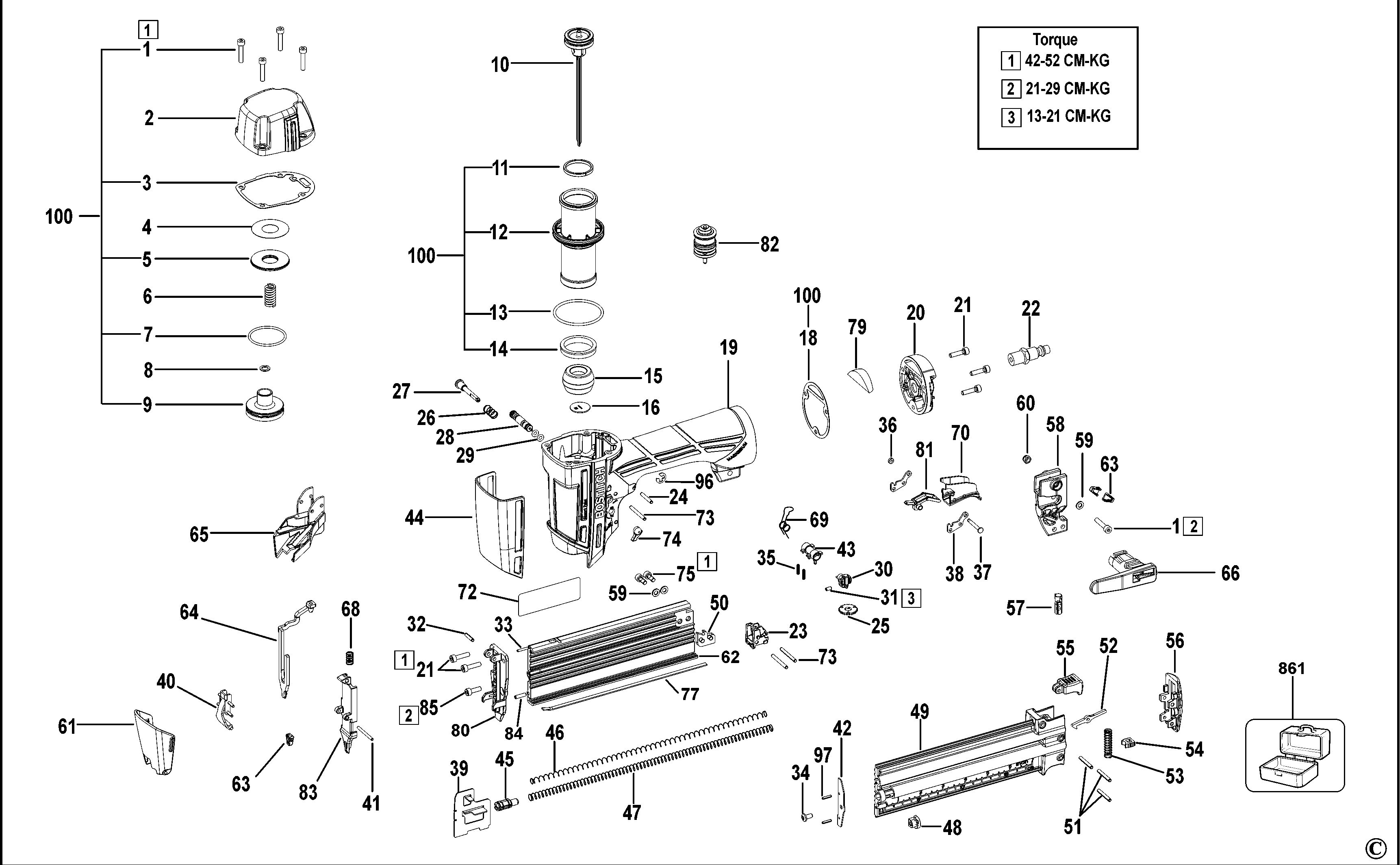

BOSTITCH NAILER (Type Rev 1)
SKU Produs: BT1855SP /Type: REV 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 182237 | 1 | SCREW | 5,15 Lei | |
| 2 | 9R196714 | 1 | CAP | 58,17 Lei | |
| 3 | 9R196715 | 1 | GASKET | 7,14 Lei | |
| 5 | 180446 | 1 | SEAL | 5,15 Lei | |
| 6 | 180447 | 1 | SPRING | 5,15 Lei | |
| 7 | 180448 | 1 | O RING | 5,15 Lei | |
| 8 | 180449 | 1 | WASHER | 5,15 Lei | |
| 9 | 180450-S | 1 | BODY, HEAD VALVE (NEW 05/AP/2011) | 5,15 Lei | |
| 10 | 180451 | 1 | PISTON SA | 99,86 Lei | |
| 12 | 180458 | 1 | CYLINDER | 7,14 Lei | |
| 13 | 180459 | 1 | O RING | 5,15 Lei | |
| 14 | 180460 | 1 | SEAL | 5,15 Lei | |
| 15 | 180461 | 1 | BUMPER | 5,15 Lei | |
| 16 | N906034 | 1 | GUIDE | 3,78 Lei | |
| 18 | 180463 | 1 | GASKET | 5,15 Lei | |
| 19 | 9R196723 | 1 | FRAME | 253,89 Lei | |
| 20 | 180465 | 1 | CAP | 16,49 Lei | |
| 21 | MSC4070-16 | 1 | SCREW | 16,49 Lei | |
| 22 | 159977 | 1 | ADAPTOR | 8,51 Lei | |
| 22 | 9R213377 | 1 | CONNECTOR | 7,14 Lei | |
| 23 | 9R198774 | 1 | GUIDE | 3,78 Lei | |
| 24 | 180475 | 1 | PIN | 5,15 Lei | |
| 25 | 9R198779 | 1 | WHEEL ADJUSTER | 3,78 Lei | |
| 26 | 180481 | 1 | SPRING | 5,15 Lei | |
| 27 | 9R205605 | 1 | PIN | 15,12 Lei | |
| 29 | 9R196690 | 1 | O RING | 3,78 Lei | |
| 30 | 9R195254 | 1 | BUTTON | 4,31 Lei | |
| 31 | 9R198788 | 1 | GRUB SCREW | 3,78 Lei | |
| 32 | 192046 | 1 | ROLLPIN | 3,78 Lei | |
| 33 | 180490 | 1 | PIN | 5,15 Lei | |
| 34 | 9R196691 | 1 | SCREW | 3,78 Lei | |
| 35 | 9R201809 | 1 | SPRING | 3,78 Lei | |
| 36 | 391814-00 | 1 | GROMMET | 4,57 Lei | |
| 37 | 9R196682 | 1 | PIN | 3,78 Lei | |
| 38 | 9R201812 | 1 | BRACKET | 4,31 Lei | |
| 39 | 9R196677 | 1 | PUSHER | 10,5 Lei | |
| 40 | 9R196742 | 1 | LATCH | 34,65 Lei | |
| 41 | 195327 | 1 | SPIROL PIN | 3,78 Lei | |
| 42 | 9R196737 | 1 | PLATE | 4,31 Lei | |
| 43 | 9R201813 | 1 | PAWL | 16,49 Lei | |
| 44 | 9R196718 | 1 | COVER | 6,09 Lei | |
| 45 | 180499 | 1 | ROLLER, PUSHER | 21,11 Lei | |
| 46 | 180496 | 1 | SPRING | 5,15 Lei | |
| 47 | 180495 | 1 | SPRING | 5,15 Lei | |
| 48 | 180238 | 1 | NUT | 5,15 Lei | |
| 50 | 180500 | 1 | BACKPLATE | 5,15 Lei | |
| 51 | 180503 | 1 | PIN | 5,15 Lei | |
| 52 | 180501 | 1 | LATCH | 5,15 Lei | |
| 53 | 180502 | 1 | SPRING | 5,15 Lei | |
| 54 | 180319 | 1 | SUPPORT | 5,15 Lei | |
| 55 | 175666 | 1 | COVER, LATCH | 5,15 Lei | |
| 56 | 175665 | 1 | END CAP | 5,15 Lei | |
| 57 | 9R201814 | 1 | CONTACT SA | 25,52 Lei | |
| 58 | 9R196726 | 1 | BRACKET | 11,45 Lei | |
| 60 | MHE4070-100 | 1 | NUT | 5,15 Lei | |
| 61 | 9R196736 | 1 | COVER | 6,09 Lei | |
| 62 | 9R196743 | 1 | MAGAZINE | 79,8 Lei | |
| 63 | 9R196744 | 1 | FOOT | 3,78 Lei | |
| 64 | 9R196686 | 1 | TRIP SA | 21,11 Lei | |
| 65 | 9R196681 | 1 | COVER | 5,15 Lei | |
| 66 | 180515 | 1 | ASSY,BELT HOOK SX1838 | 18,06 Lei | |
| 68 | 9R207509 | 1 | SPRING | 3,78 Lei | |
| 69 | 9R205607 | 1 | SPRING | 3,78 Lei | |
| 70 | 9R205611 | 1 | TRIGGER | 25,52 Lei | |
| 72 | 9R205592 | 1 | LABEL | 3,78 Lei | |
| 73 | 174345 | 1 | PIN | 5,15 Lei | |
| 74 | 184518 | 1 | BUTTON, TRIGGER LOCK | 5,15 Lei | |
| 75 | MSC4070-10 | 1 | SCREW | 5,15 Lei | |
| 77 | 180497 | 1 | GUIDE | 5,15 Lei | |
| 79 | 180577 | 1 | MUFFLER | 5,15 Lei | |
| 80 | 9R196719 | 1 | NOSE | 79,8 Lei | |
| 81 | 9R205614 | 1 | ROCKER | 34,65 Lei | |
| 82 | TVA18 | 1 | PILOT VALVE KIT | 47,78 Lei | |
| 83 | 9R196725 | 1 | DOOR | 66,15 Lei | |
| 84 | MPG030012 | 1 | PIN-M4x12 | 5,15 Lei | |
| 85 | MSC4070-12 | 1 | SCREW | 5,15 Lei | |
| 96 | 9R200515 | 1 | CIRCLIP | 3,78 Lei | |
| 97 | 110071 | 1 | PIN | 5,15 Lei | |
| 100 | BT55/SX38-RK | 1 | BT1855/SX1838 REBUILD KIT | 73,19 Lei | |
| 861 | 180583 | 1 | CARRY CASE FOR SX1838-BT1855-FN1650 | 66,15 Lei |
