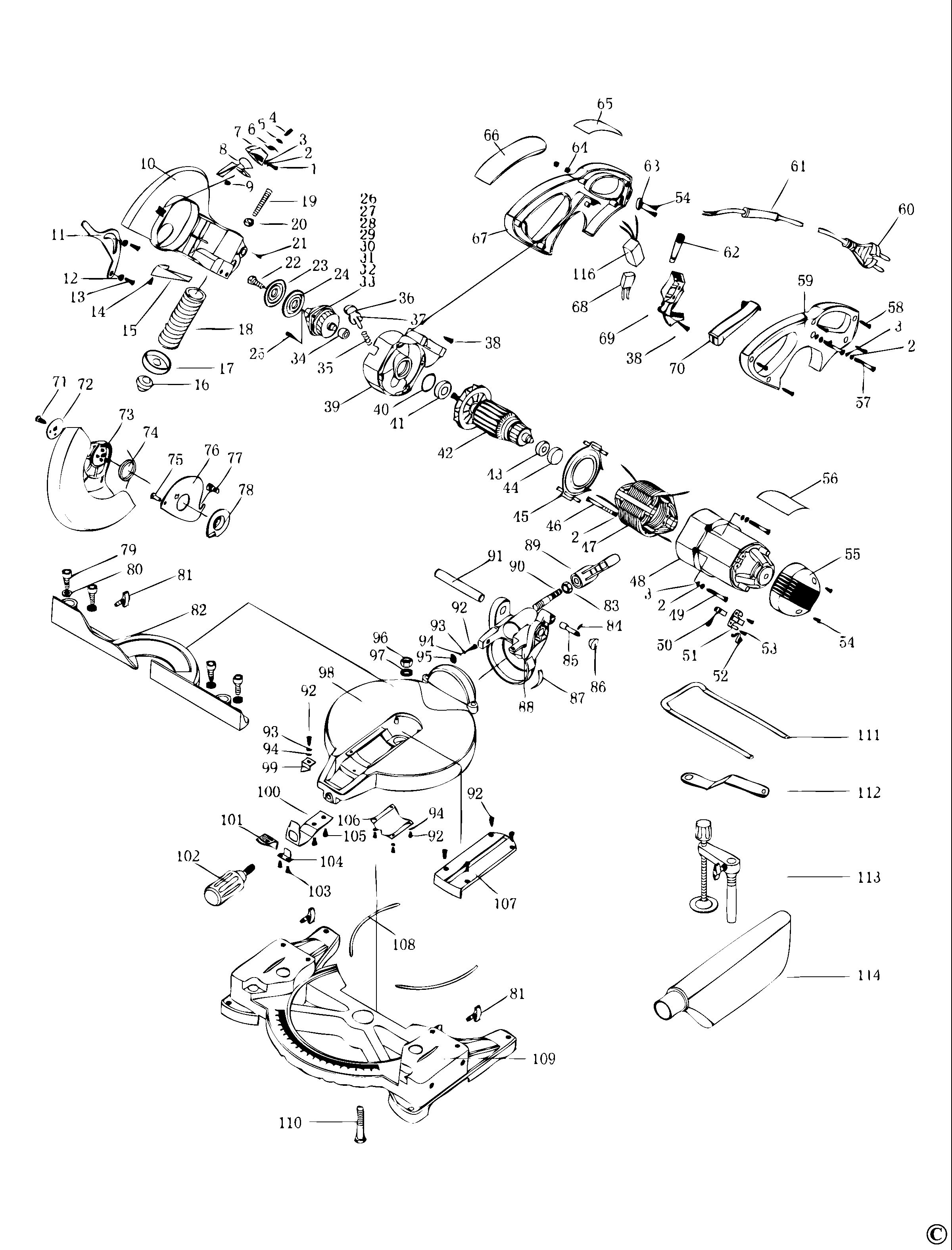

BLACK+DECKER MITRE SAW (Type 1)
SKU Produs: BT1400 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 5140015-01 | 1 | SCREW | 5,3 Lei | |
| 2 | 5140015-02 | 1 | WASHER,SPRING | 4,7 Lei | |
| 3 | 5140015-03 | 1 | WASHER, not stocked | 5,3 Lei | |
| 4 | 5140015-04 | 1 | SCREW | 4,7 Lei | |
| 5 | 5140015-05 | 1 | WASHER | 4,7 Lei | |
| 6 | 5140015-06 | 1 | SPRING TORSION | 4,7 Lei | |
| 7 | 5140015-07 | 1 | SHIELD | 7,5 Lei | |
| 8 | 5140015-08 | 1 | SHIELD | 7,5 Lei | |
| 9 | 5140015-09 | 1 | NUT | 4,7 Lei | |
| 10 | 5140015-10 | 1 | SHIELD, not stocked | 185,8 Lei | |
| 11 | 5140015-11 | 1 | SHIELD, not stocked | 17,4 Lei | |
| 17 | 5140015-17 | 1 | SPRING PLATE,not stocked | 7,5 Lei | |
| 18 | 5140015-18 | 1 | SPRING,not stocked | 26,1 Lei | |
| 33 | 5140015-33 | 1 | BEARING,not stocked | 22,4 Lei | |
| 36 | 5140015-36 | 1 | BUTTON,not stocked | 6,4 Lei | |
| 42 | 5140012-94 | 1 | ARMATURE (230v) | 173,3 Lei | |
| 90 | 5140015-90 | 1 | STUD,not stocked | 4,7 Lei | |
| 91 | 5140015-91 | 1 | PIVOT SHAFT,not stocked | 13 Lei | |
| 94 | 5140015-94 | 1 | WASHER,not stocked | 4,7 Lei | |
| 98 | 5140015-98 | 1 | TABLE,not stocked | 283,3 Lei | |
| 100 | 5140016-00 | 1 | DETENT SPRING,not stocke d | 13 Lei | |
| 103 | 5140016-03 | 1 | SCREW,not stocked | 4,7 Lei | |
| 104 | 5140016-04 | 1 | CLAMP PLATE,not stocked | 4,7 Lei | |
| 106 | 5140016-06 | 1 | DETENT PLATE,not stocked | 15,5 Lei | |
| 107 | 5140016-07 | 1 | KERF PLATE,not stocked | 20,4 Lei | |
| 109 | 5140016-09 | 1 | BASE,not stocked | 258,4 Lei | |
| 111 | 5140016-11 | 1 | BRACKET,Material support | 31,6 Lei | |
| 112 | 5140016-12 | 1 | WRENCH,not stocked | 6,4 Lei |
