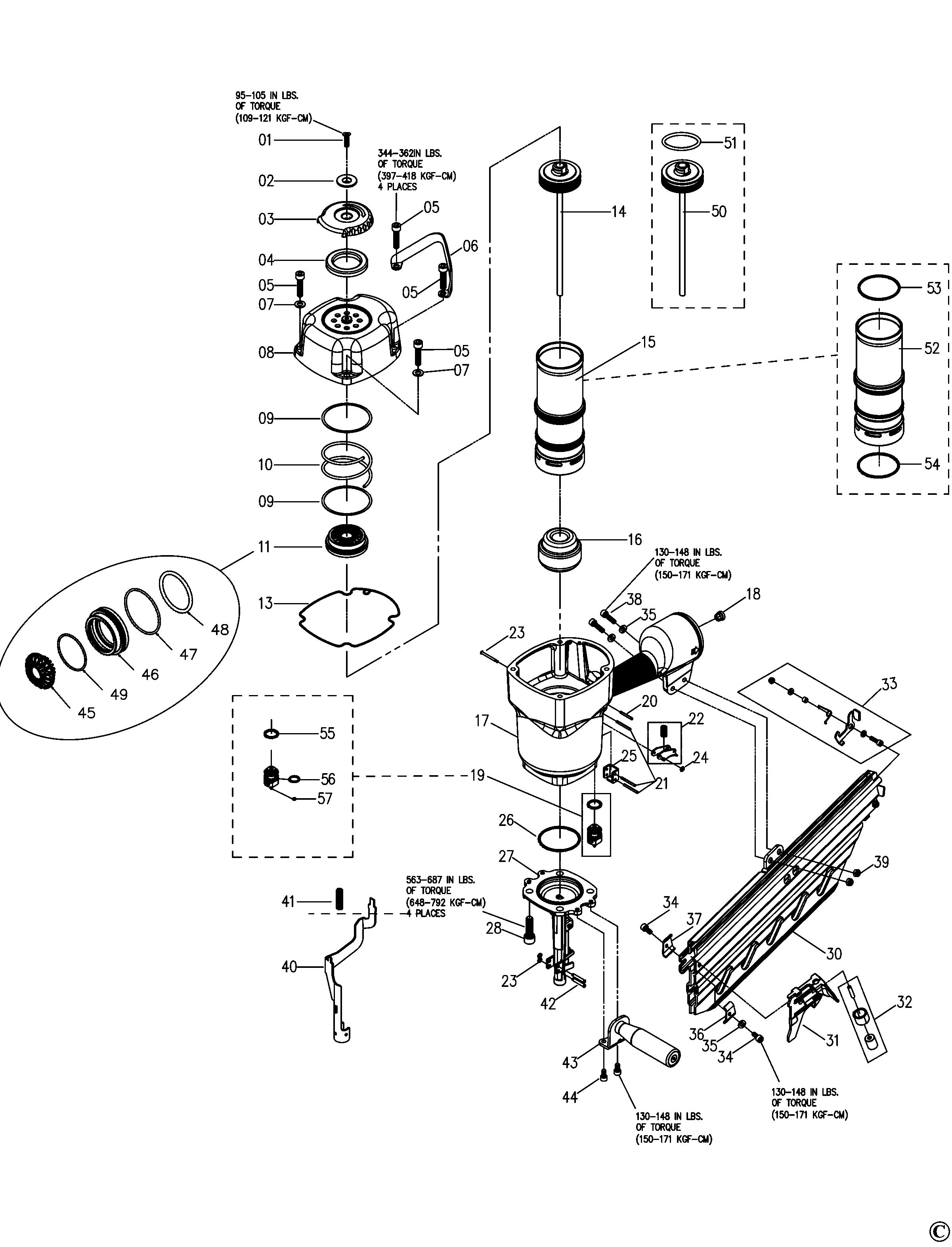

BOSTITCH NAILER (Type REV A - D)
SKU Produs: BRT130-E /Type: REV A - D
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | MSF8125-25 | 1 | SCREW, SFHCS M8 X 1.25X25 | 5,15 Lei | |
| 2 | 188681 | 1 | BUSH | 10,5 Lei | |
| 3 | P2070000266 | 1 | Exhaust Cover | 8,51 Lei | |
| 4 | P2740001200 | 1 | MUFFLER | 18,06 Lei | |
| 5 | S0110835100 | 4 | HEX.SOC.HD.BOLT (M8*35) | 5,15 Lei | |
| 6 | P2966102057 | 1 | HANGER | 10,5 Lei | |
| 7 | S05108161500 | 2 | FLAT WASHER (O8*16) | 5,15 Lei | |
| 8 | 9R199778 | 1 | DEFLECTOR | 150,05 Lei | |
| 9 | P2965203262 | 2 | O-RING | 11,45 Lei | |
| 10 | P2960002500 | 1 | SPRING | 5,15 Lei | |
| 11 | 9R199760 | 1 | HD.VALVEPISTONASSE | 79,8 Lei | |
| 13 | P2960004100 | 1 | PACKING | 5,15 Lei | |
| 14 | G0315300 | 1 | DRIVER ASSEMBLY | 150,05 Lei | |
| 15 | G0505200 | 1 | CYLINDER ASSEMBLY | 150,05 Lei | |
| 16 | P2960000800 | 1 | BUMPER | 47,78 Lei | |
| 17 | G4221302 | 1 | GUN BODY UNIT | 589,89 Lei | |
| 18 | P2960002100 | 1 | MUFFLER | 5,15 Lei | |
| 19 | B296402004 | 1 | TRIGGER VALVE KIT | 58,17 Lei | |
| 20 | S0803026000 | 1 | SPRING PIN | 5,15 Lei | |
| 21 | 100298 | 3 | PIN,SPRING,M3X30MM | 5,15 Lei | |
| 22 | B296402002 | 1 | TRIGGER KIT | 43,16 Lei | |
| 23 | 174062 | 1 | STEPPED PIN | 5,15 Lei | |
| 24 | 174073 | 3 | O RING | 5,15 Lei | |
| 25 | P2966302265 | 1 | SAFETY GUIDER | 5,15 Lei | |
| 26 | S06S007100 | 1 | O-RING | 5,15 Lei | |
| 27 | 9R195343 | 1 | NOSE SA | 589,89 Lei | |
| 28 | S2711035101 | 4 | HEX.SOC.HD.BOLT (M10*35+S) | 5,15 Lei | |
| 29 | 9R195343 | 1 | NOSE SA | 589,89 Lei | |
| 30 | B296402007 | 1 | MAGAZINE ASSEMBLY | 390,29 Lei | |
| 31 | P2960003762 | 1 | PUSHER | 58,17 Lei | |
| 32 | B296402003 | 1 | PUSHER SPRING ASSEMBLY | 18,06 Lei | |
| 33 | B296402006 | 1 | LATCH ASSEMBLY | 10,5 Lei | |
| 34 | MSC6100-16 | 2 | SCREW,SHCS,M6X1.00X16 | 16,49 Lei | |
| 35 | S05106121500 | 3 | FLAT WASHER (O6*12.5) | 5,15 Lei | |
| 36 | P2960004762 | 1 | PROTECTION PLATE, LEFT | 5,15 Lei | |
| 37 | P2960004662 | 1 | PROTECTION PLATE, RIGHT | 5,15 Lei | |
| 38 | 9R199475 | 2 | BOLT | 3,78 Lei | |
| 39 | 1G106 | 2 | LOCK NUT | 5,15 Lei | |
| 40 | P2960004565 | 1 | SAFETY | 16,49 Lei | |
| 41 | P1925201562 | 1 | SPRING | 5,15 Lei | |
| 42 | P2960004362 | 2 | PIN | 5,15 Lei | |
| 43 | P2960003400 | 1 | AUXILIARY GRIP UNIT | 58,17 Lei | |
| 44 | 9R199442 | 2 | SCREW | 4,57 Lei | |
| 45 | 9R199761 | 1 | SEAL | 12,5 Lei | |
| 46 | 9R199762 | 1 | HEADVALVEPISTON | 66,15 Lei | |
| 47 | 9R199763 | 1 | O-RING | 5,15 Lei | |
| 48 | 9R199764 | 1 | O-RING | 6,09 Lei | |
| 49 | 9R199765 | 1 | O RING | 3,78 Lei | |
| 50 | G0215400 | 1 | DRIVER SA | 263,03 Lei | |
| 51 | S06P005600 | 1 | O RING | 11,45 Lei | |
| 52 | P2962000700 | 1 | CYLINDER | 218,19 Lei | |
| 53 | S06A015000 | 1 | O RING | 5,15 Lei | |
| 54 | S06Z006200 | 1 | O RING | 6,09 Lei | |
| 55 | 88998 | 1 | O-RING,.674X.103 | 10,5 Lei | |
| 56 | 180468 | 1 | O RING | 3,78 Lei | |
| 57 | 9R195625 | 1 | O-RING | 3,78 Lei |
