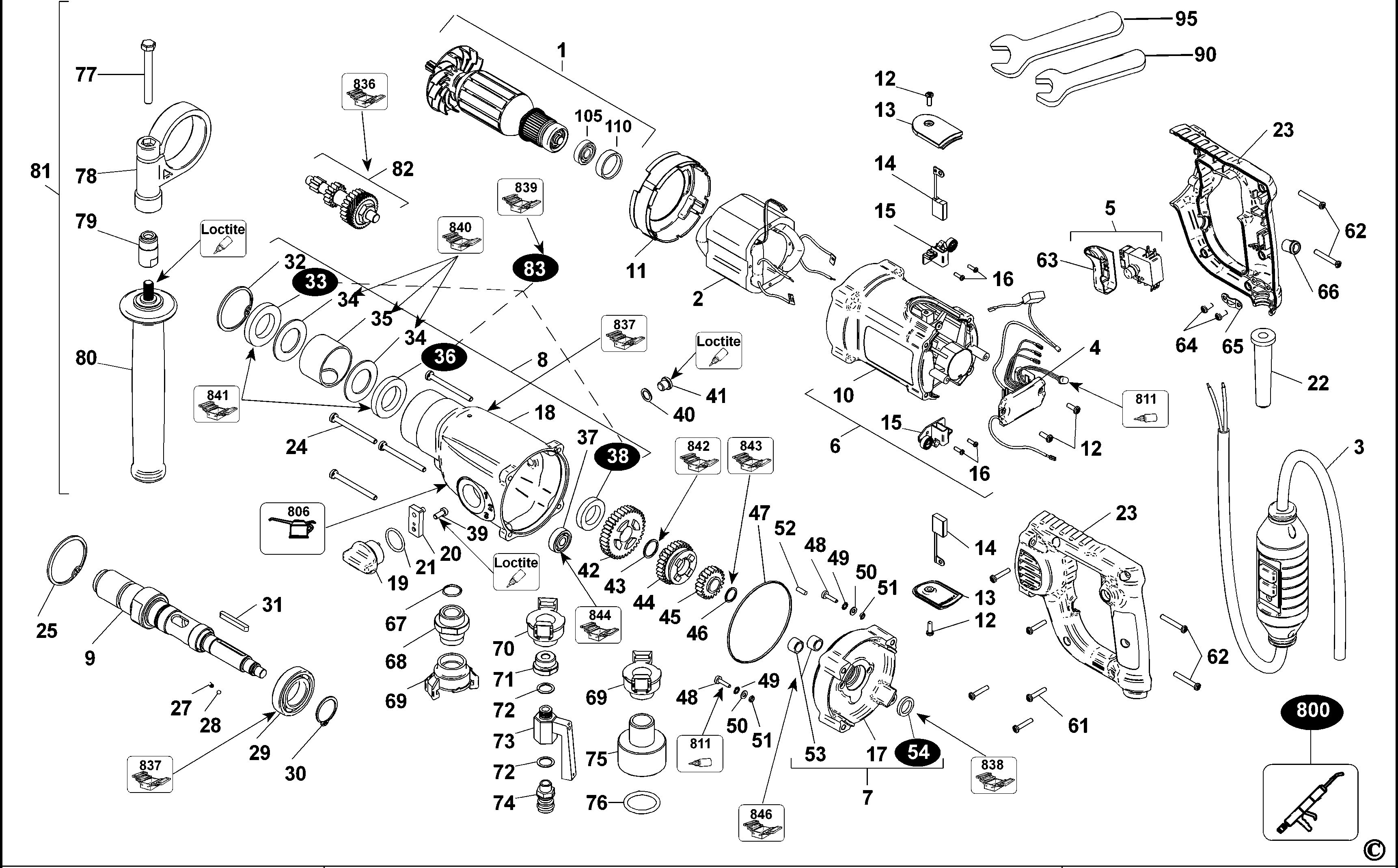

DIAMOND DRILL
SKU Produs: D21583K /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1002632-00 | 1 | ROTOR | 1472,26 Lei | |
| 2 | 1002575-00 | 1 | STATOR 230V | 570,96 Lei | |
| 3 | 1002741-00 | 1 | CORDSET QS | 1087,42 Lei | |
| 4 | 1002617-00 | 1 | PCB - GB/QS | 776,53 Lei | |
| 5 | 492301-00 | 1 | SWITCH | 157,92 Lei | |
| 6 | 1002577-00 | 1 | MOTOR HOUSING SA | 713,77 Lei | |
| 7 | 1002634-00 | 1 | GEARCASE COVER | 1087,42 Lei | |
| 8 | 1002635-00 | 1 | HOUSING GEARBOX | 1262,37 Lei | |
| 9 | 1002636-00 | 1 | SPINDLE | 776,53 Lei | |
| 10 | 492277-00 | 1 | HOUSING MOTOR | 307,21 Lei | |
| 11 | 492283-00 | 1 | GUIDE | 57,81 Lei | |
| 12 | 330065-06 | 4 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 13 | 492282-00 | 1 | BRUSH COVER | 8,64 Lei | |
| 14 | 1002581-00 | 2 | BRUSH AND LEAD | 57,81 Lei | |
| 15 | 1002582-00 | 2 | BRUSH HOLDER | 106,98 Lei | |
| 16 | 330065-25 | 4 | SCREW PLSTC THD FORM M3X9 T10 | 4,57 Lei | |
| 17 | 492281-01 | 1 | GEARCASE COVER | 776,53 Lei | |
| 18 | 492546-00 | 1 | HOUSING GEARBOX | 1158,31 Lei | |
| 19 | 1002637-00 | 1 | BUTTON | 169,36 Lei | |
| 20 | 1002638-00 | 1 | LEVER | 169,36 Lei | |
| 21 | 1002639-00 | 1 | RING | 7,37 Lei | |
| 22 | 1002586-00 | 1 | CORD PROTECTOR | 30,87 Lei | |
| 23 | 492273-00 | 1 | HOUSING HANDLE | 96,56 Lei | |
| 24 | 330019-19 | 4 | SCREW, PLASTITE | 5,21 Lei | |
| 25 | 1002640-00 | 1 | CIRCLIP | 15,12 Lei | |
| 27 | 1002642-00 | 1 | SPRING | 15,12 Lei | |
| 28 | 1002643-00 | 1 | BALL | 7,37 Lei | |
| 29 | 1002644-00 | 1 | BEARING,BALL | 240,38 Lei | |
| 30 | 1002645-00 | 1 | CIRCLIP | 7,37 Lei | |
| 31 | 1002646-00 | 1 | KEY | 25,54 Lei | |
| 32 | 1002647-00 | 1 | CIRCLIP | 8,64 Lei | |
| 33 | 1002648-00 | 1 | SEAL | 120,82 Lei | |
| 34 | 1002649-00 | 2 | RING | 52,22 Lei | |
| 35 | 1002650-00 | 1 | SPACER | 80,04 Lei | |
| 36 | 1002651-00 | 1 | SEAL | 130,35 Lei | |
| 37 | 1002652-00 | 1 | BEARING | 70,39 Lei | |
| 38 | 1002653-00 | 1 | SEAL | 80,04 Lei | |
| 39 | 1002654-00 | 1 | SCREW | 8,64 Lei | |
| 40 | 1002630-00 | 1 | SEAL | 7,37 Lei | |
| 41 | 1002655-00 | 1 | SCREW | 25,54 Lei | |
| 42 | 1002656-00 | 1 | WHEEL | 713,77 Lei | |
| 43 | 1002657-00 | 1 | CIRCLIP | 8,64 Lei | |
| 44 | 1002658-00 | 1 | WHEEL | 530,69 Lei | |
| 45 | 1002659-00 | 1 | WHEEL | 451,79 Lei | |
| 46 | 1002660-00 | 1 | CIRCLIP | 7,37 Lei | |
| 47 | 1002597-00 | 1 | RING | 25,54 Lei | |
| 48 | 1002593-00 | 2 | SCREW | 7,37 Lei | |
| 49 | 1002594-00 | 2 | WASHER LOCK | 7,37 Lei | |
| 50 | 1002595-00 | 2 | DISC | 7,37 Lei | |
| 51 | 1002596-00 | 2 | RING | 7,37 Lei | |
| 52 | 1002598-00 | 1 | PIN | 8,64 Lei | |
| 53 | 1002661-00 | 2 | BEARING,NEEDLE | 57,81 Lei | |
| 54 | 1002623-10 | 1 | SEAL | 37,73 Lei | |
| 61 | 330065-09 | 4 | SCREW PLSTC THD FORM M4X25 T20 | 4,57 Lei | |
| 62 | 330019-15 | 4 | SCREW, PLASTIC THREAD FORM M4 X 32 T20 | 4,57 Lei | |
| 63 | 492302-00 | 1 | TRIGGER | 17,02 Lei | |
| 64 | 330065-05 | 2 | SCEW PLSTC THD FORM M4X10 T20 | 4,57 Lei | |
| 65 | 1002613-00 | 1 | CORD CLAMP | 15,12 Lei | |
| 66 | 1002624-00 | 1 | HOLDER | 15,12 Lei | |
| 67 | 1002667-00 | 1 | SEAL | 7,37 Lei | |
| 68 | 1002668-00 | 1 | NIPPLE | 181,55 Lei | |
| 69 | 1002669-00 | 2 | CONNECTOR | 70,39 Lei | |
| 70 | 1002670-00 | 1 | CONNECTOR | 57,81 Lei | |
| 71 | 1002671-00 | 1 | NIPPLE | 41,93 Lei | |
| 72 | 1002626-00 | 2 | SEAL | 7,37 Lei | |
| 73 | 1002672-00 | 1 | VALVE | 120,82 Lei | |
| 74 | 1002628-00 | 1 | CONNECTOR | 41,93 Lei | |
| 75 | 1002673-00 | 1 | ADAPTOR | 331,47 Lei | |
| 76 | 1002674-00 | 1 | RING | 7,37 Lei | |
| 77 | 1002614-00 | 1 | SCREW | 17,02 Lei | |
| 78 | 492549-00 | 1 | CLAMP | 195,02 Lei | |
| 79 | 492548-00 | 1 | ADAPTOR | 195,02 Lei | |
| 80 | N021120 | 1 | SA HANDLE WEINMEYER OVERMOULD (MOULD) | 56,4 Lei | |
| 81 | 1002675-00 | 1 | HANDLE SIDE SA | 276,84 Lei | |
| 82 | 1002676-00 | 1 | CLUTCH SA | 1262,37 Lei | |
| 83 | 1003198-00 | 1 | SEAL SA | 530,69 Lei | |
| 90 | 1004303-00 | 1 | SPANNER 32mm | 70,39 Lei | |
| 95 | 1004304-00 | 1 | SPANNER 41mm | 157,92 Lei | |
| 105 | 1003777-00 | 1 | BEARING,BALL | 57,81 Lei | |
| 110 | 1003776-00 | 1 | SLEEVE INSULATING | 21,85 Lei | |
| 800 | 1003362-00 | 1 | GREASE | 123,6 Lei | |
| 806 | 1003363-00 | 1 | OIL | 389,28 Lei | |
| 811 | 1004773-44 | 1 | TUBE SILICONE | 819,98 Lei | |
| 836 | 559671-99 | 1 | SERVICE TOOL | 187,65 Lei | |
| 837 | 559672-99 | 1 | SERVICE TOOL | 202,77 Lei | |
| 838 | 559673-99 | 1 | SERVICE TOOL | 33,16 Lei | |
| 839 | 559674-99 | 1 | SERVICE TOOL | 60,35 Lei | |
| 840 | 559677-99 | 1 | SERVICE TOOL | 74,45 Lei | |
| 841 | 559681-99 | 1 | SERVICE TOOL | 62,25 Lei | |
| 842 | 559686-99 | 1 | SERVICE TOOL | 56,54 Lei | |
| 843 | 559687-99 | 1 | SERVICE TOOL | 69,37 Lei | |
| 844 | 559689-99 | 1 | SERVICE TOOL | 115,87 Lei | |
| 846 | 559693-99 | 1 | SERVICE TOOL | 48,28 Lei |
