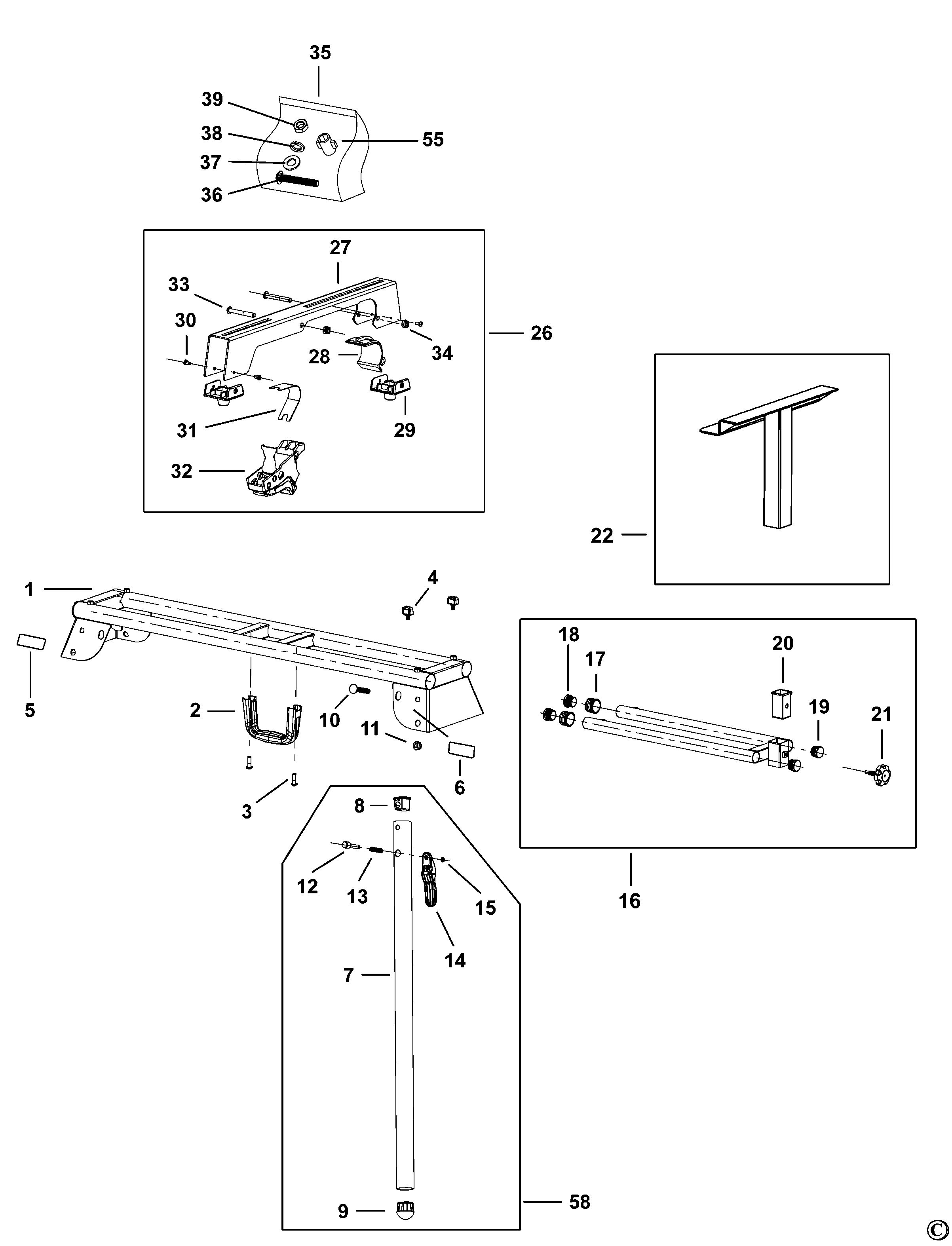

BLACK+DECKER MITRE SAW (Type 1)
SKU Produs: BEZ100 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004769-26 | 1 | BODY | 451,79 Lei | |
| 2 | 1004704-68 | 1 | HANDLE | 19,95 Lei | |
| 3 | 1004704-67 | 2 | SCREW | 4,57 Lei | |
| 4 | 1004704-83 | 4 | LOCK KNOB | 7,37 Lei | |
| 5 | N732517 | 1 | BRAND LABEL | 6,23 Lei | |
| 6 | N732516 | 1 | RATING PLATE | 6,23 Lei | |
| 7 | 1004769-24 | 4 | LEG | 88,55 Lei | |
| 8 | 1004704-60 | 4 | CAP | 5,21 Lei | |
| 9 | 1004704-66 | 4 | FOOT | 5,21 Lei | |
| 10 | 1004704-88 | 4 | SCREW | 8,64 Lei | |
| 11 | 1004704-89 | 4 | NUT | 8,64 Lei | |
| 12 | 1004704-61 | 4 | LOCK PIN | 13,85 Lei | |
| 13 | 1004704-62 | 4 | SPRING | 4,57 Lei | |
| 14 | 1004704-63 | 4 | LEVER LOCK | 8,64 Lei | |
| 15 | 1004704-64 | 4 | CIRCLIP | 4,57 Lei | |
| 16 | 1004769-28 | 2 | TABLE INNER | 130,35 Lei | |
| 17 | 1004704-58 | 4 | CAP | 5,21 Lei | |
| 18 | 1004704-57 | 4 | CAP | 5,21 Lei | |
| 19 | 1004704-59 | 4 | CAP | 5,21 Lei | |
| 21 | 1004704-82 | 4 | LOCK KNOB | 7,37 Lei | |
| 22 | 1004769-30 | 2 | BRACKET | 130,35 Lei | |
| 26 | 1004704-53 | 2 | BRACKET SA | 181,55 Lei | |
| 28 | 1004704-77 | 2 | CLIP | 4,57 Lei | |
| 29 | 1004704-75 | 4 | FOOT | 7,37 Lei | |
| 30 | 1004704-76 | 8 | SCREW | 4,57 Lei | |
| 31 | 1004704-78 | 2 | SPRING COMPRESSION | 7,37 Lei | |
| 32 | 1004704-81 | 2 | LEVER RELEASE | 25,54 Lei | |
| 33 | 1004704-79 | 4 | BOLT | 4,57 Lei | |
| 34 | 1004704-80 | 4 | NUT | 4,57 Lei | |
| 35 | 1004769-31 | 1 | BAG | 37,73 Lei | |
| 37 | 1004704-69 | 4 | BOLT | 7,37 Lei | |
| 38 | 1004704-71 | 4 | WASHER SPRING | 4,57 Lei | |
| 39 | 1004704-72 | 4 | NUT | 4,57 Lei | |
| 55 | 1004769-25 | 1 | SOCKET | 5,21 Lei | |
| 58 | 1004769-27 | 4 | LEG | 106,98 Lei |
