BLACK+DECKER TABLE SAW (Type 1)
SKU Produs: BES720 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004766-55 | 1 | SWITCHBOX | 19,95 Lei | |
| 2 | 1004766-56 | 1 | SCREW | 4,57 Lei | |
| 4 | 1004766-58 | 4 | SCREW | 4,57 Lei | |
| 5 | 1004766-59 | 1 | INDUCTOR | 7,37 Lei | |
| 6 | 1004740-64 | 1 | CAPACITOR | 7,37 Lei | |
| 7 | 1004766-60 | 1 | SPRING | 4,57 Lei | |
| 8 | 1004766-61 | 1 | PIN | 4,57 Lei | |
| 9 | 1004766-62 | 1 | SWITCH | 169,36 Lei | |
| 10 | 1004766-63 | 1 | LEVER | 4,57 Lei | |
| 11 | 1004740-62 | 1 | SWITCH | 12,71 Lei | |
| 12 | 1004766-64 | 1 | PANEL | 34,05 Lei | |
| 13 | 5140147-69 | 2 | ANGLE | 4,57 Lei | |
| 14 | 1004766-65 | 2 | SCREW | 4,57 Lei | |
| 15 | 5140147-72 | 1 | RACK | 3,78 Lei | |
| 16 | 1004766-66 | 3 | SCREW | 4,57 Lei | |
| 17 | 1004766-67 | 1 | INDICATOR | 4,57 Lei | |
| 18 | 1004766-68 | 9 | SCREW | 4,57 Lei | |
| 19 | 5170036-09 | 2 | LOCK NUT | 4,57 Lei | |
| 20 | 5140147-64 | 1 | WHEEL | 18,06 Lei | |
| 21 | 1004766-69 | 1 | WASHER | 4,57 Lei | |
| 22 | 5140147-65 | 1 | HANDLE | 4,31 Lei | |
| 23 | 1004766-70 | 1 | WASHER | 4,57 Lei | |
| 24 | 5140147-67 | 1 | SCREW | 6,09 Lei | |
| 25 | 5170035-46 | 11 | SCREW | 4,57 Lei | |
| 26 | 5140147-74 | 1 | POINTER | 3,78 Lei | |
| 27 | 1004766-71 | 1 | PANEL | 37,73 Lei | |
| 28 | 1004766-72 | 1 | SCREW | 4,57 Lei | |
| 29 | 1004766-73 | 1 | GUIDE BLOCK | 19,95 Lei | |
| 30 | 1004766-74 | 2 | SPANNER | 19,95 Lei | |
| 31 | 1004766-75 | 1 | KNOB | 4,57 Lei | |
| 32 | 1004766-76 | 1 | PUSHER | 15,12 Lei | |
| 33 | 1004766-77 | 1 | STAND | 157,92 Lei | |
| 34 | 1004766-78 | 12 | SCREW | 5,21 Lei | |
| 35 | 1004766-79 | 20 | WASHER | 4,57 Lei | |
| 36 | 1004766-80 | 4 | WASHER | 4,57 Lei | |
| 37 | 1004766-81 | 1 | FLANGE | 5,21 Lei | |
| 38 | 5140147-56 | 2 | BOARD | 3,78 Lei | |
| 39 | 1004766-82 | 11 | SCREW | 4,57 Lei | |
| 40 | 1004766-83 | 2 | INSULATOR | 4,57 Lei | |
| 41 | 1004766-84 | 1 | PANEL | 34,05 Lei | |
| 42 | 1004766-85 | 1 | CORDSET | 57,81 Lei | |
| 43 | 5170036-35 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 44 | 5140147-84 | 1 | SPRING TORSION | 3,78 Lei | |
| 46 | 1004766-88 | 1 | SHAFT | 7,37 Lei | |
| 47 | 1004766-89 | 1 | SCREW | 4,57 Lei | |
| 48 | 1004766-90 | 1 | HANDLE | 5,21 Lei | |
| 49 | 5140147-89 | 1 | RING | 3,78 Lei | |
| 50 | 1004766-91 | 1 | SCREW | 4,57 Lei | |
| 51 | 5140147-91 | 1 | SCREW | 3,78 Lei | |
| 52 | 5140147-92 | 1 | SLEEVE | 3,78 Lei | |
| 53 | 5140147-94 | 1 | SLEEVE | 3,78 Lei | |
| 54 | 5140147-93 | 1 | BLOCK | 12,5 Lei | |
| 55 | 1004766-92 | 10 | SCREW | 4,57 Lei | |
| 56 | 5140147-97 | 2 | Gear | 4,31 Lei | |
| 57 | 1004766-93 | 2 | SCREW | 4,57 Lei | |
| 58 | 1004766-94 | 1 | SEAT | 4,57 Lei | |
| 59 | 1004766-95 | 9 | SCREW | 4,57 Lei | |
| 60 | 1004766-96 | 2 | WASHER | 4,57 Lei | |
| 61 | 5140146-24 | 2 | LOCK NUT | 3,78 Lei | |
| 62 | 1004766-97 | 11 | WASHER | 4,57 Lei | |
| 63 | 5140148-02 | 2 | BLOCK | 5,15 Lei | |
| 64 | 5140148-01 | 1 | BAR | 7,14 Lei | |
| 65 | 1004766-98 | 5 | SCREW | 4,57 Lei | |
| 66 | 5140148-00 | 1 | SUPPORT | 11,45 Lei | |
| 67 | 1004767-00 | 3 | NUT | 5,21 Lei | |
| 68 | 1004767-01 | 7 | SCREW | 4,57 Lei | |
| 69 | 1004767-02 | 12 | WASHER | 4,57 Lei | |
| 70 | 1004767-03 | 6 | SCREW | 4,57 Lei | |
| 71 | 5140148-05 | 1 | BAR | 99,86 Lei | |
| 72 | 5140148-10 | 1 | SUPPORT | 6,09 Lei | |
| 73 | 5140151-48 | 1 | BAR | 7,14 Lei | |
| 74 | 5140148-12 | 1 | BLOCK | 14,07 Lei | |
| 75 | 1004740-54 | 1 | SCREW | 4,57 Lei | |
| 76 | 1004767-04 | 1 | FASTENER | 19,95 Lei | |
| 77 | 5140148-09 | 2 | WASHER | 3,78 Lei | |
| 78 | 5140148-08 | 2 | BOARD | 18,06 Lei | |
| 80 | 1004740-76 | 1 | GUARD | 17,02 Lei | |
| 81 | 5140148-57 | 18 | SCREW | 4,57 Lei | |
| 82 | 1004767-06 | 1 | GUARD | 34,05 Lei | |
| 83 | 5170014-34 | 1 | BOLT | 4,57 Lei | |
| 84 | 5140148-16 | 1 | BLOCK | 4,31 Lei | |
| 85 | 5140148-17 | 1 | COVER | 3,78 Lei | |
| 86 | 1004767-07 | 1 | NUT | 4,57 Lei | |
| 87 | 1004767-08 | 1 | OUTER FLANGE | 5,21 Lei | |
| 89 | 5140147-81 | 1 | BLOCK | 3,78 Lei | |
| 90 | 1004767-10 | 1 | Inner Flange | 13,85 Lei | |
| 91 | 1004767-11 | 3 | SCREW | 4,57 Lei | |
| 99 | 5140148-28 | 1 | BEARING,NEEDLE | 6,23 Lei | |
| 100 | 5140148-29 | 1 | COVER | 106,98 Lei | |
| 101 | 1004767-14 | 1 | LOCK NUT | 4,57 Lei | |
| 102 | 1004767-15 | 3 | WASHER | 4,57 Lei | |
| 103 | 1004767-16 | 1 | BEARING | 17,02 Lei | |
| 104 | 5140148-32 | 1 | BAR | 14,07 Lei | |
| 106 | 1004767-18 | 1 | BEARING | 13,85 Lei | |
| 107 | 1004767-19 | 2 | SCREW | 4,57 Lei | |
| 108 | 1004767-20 | 1 | FIELD | 195,02 Lei | |
| 109 | 5140148-37 | 1 | SHROUD | 3,78 Lei | |
| 110 | 1004767-21 | 1 | HOUSING MOTOR | 34,05 Lei | |
| 111 | 5140148-39 | 1 | BRUSH HOLDER 230V | 21,85 Lei | |
| 112 | 5140147-54 | 1 | BRUSH 230V | 17,02 Lei | |
| 113 | 1004767-22 | 2 | CAP | 4,57 Lei | |
| 114 | 1004767-23 | 1 | COVER REAR | 7,37 Lei | |
| 115 | 1004767-24 | 1 | CONNECTING WIRE | 13,85 Lei | |
| 116 | 5140148-42 | 3 | SCREW | 3,78 Lei | |
| 117 | 1004767-25 | 1 | WASHER | 4,57 Lei | |
| 118 | 1004767-26 | 11 | WASHER | 4,57 Lei | |
| 119 | 1004767-27 | 1 | POINTER | 4,57 Lei | |
| 120 | 1004740-81 | 1 | PLATE | 17,02 Lei | |
| 121 | 1004740-82 | 1 | WASHER | 4,57 Lei | |
| 122 | 1004767-28 | 1 | SCREW | 4,57 Lei | |
| 123 | 1004740-77 | 1 | LABEL - SCALE | 4,57 Lei | |
| 124 | 1004740-78 | 1 | BOARD | 17,02 Lei | |
| 125 | 5140148-45 | 1 | WASHER | 3,78 Lei | |
| 126 | 1004740-79 | 1 | HANDLE | 5,21 Lei | |
| 127 | 1004741-62 | 1 | NUT | 5,21 Lei | |
| 128 | 1004741-59 | 1 | SCREW | 4,57 Lei | |
| 129 | 1004741-61 | 1 | FENCE | 19,95 Lei | |
| 130 | 1004741-60 | 1 | COVER | 4,57 Lei | |
| 131 | 1004767-29 | 1 | SCREW | 4,57 Lei | |
| 132 | 1004767-30 | 1 | GUARD | 40,9 Lei | |
| 134 | 1004767-32 | 1 | RIVING KNIFE | 21,3 Lei | |
| 140 | 1004767-34 | 1 | HANDLE | 17,02 Lei | |
| 141 | 1004767-35 | 2 | PIN | 4,57 Lei | |
| 142 | 1004767-36 | 1 | LINK | 4,57 Lei | |
| 143 | 1004767-37 | 1 | LINK | 4,57 Lei | |
| 144 | 1004767-38 | 1 | PIN | 4,57 Lei | |
| 145 | 1004767-39 | 1 | FASTENER | 4,57 Lei | |
| 146 | 1004767-40 | 1 | PIN | 4,57 Lei | |
| 147 | 1004767-41 | 1 | PIN | 4,57 Lei | |
| 148 | 1004767-42 | 1 | FENCE | 21,85 Lei | |
| 149 | 1004767-43 | 1 | POINTER | 4,57 Lei | |
| 150 | 1004740-98 | 2 | SCREW | 4,57 Lei | |
| 151 | 1004767-44 | 1 | FASTENER | 4,57 Lei | |
| 152 | 1004767-45 | 2 | FASTENER | 4,57 Lei | |
| 153 | 1004767-46 | 1 | SCREW | 4,57 Lei | |
| 154 | 1004767-47 | 1 | COVER | 4,57 Lei | |
| 155 | 1004767-48 | 1 | SCREW | 4,57 Lei | |
| 156 | 1004741-02 | 2 | WASHER | 4,57 Lei | |
| 157 | 1004767-49 | 1 | ROD | 7,37 Lei | |
| 158 | 1004767-50 | 1 | FENCE | 88,55 Lei | |
| 159 | 1004767-51 | 1 | PIN | 4,57 Lei | |
| 160 | 1004767-52 | 1 | BLOCK | 4,57 Lei | |
| 161 | 1004767-53 | 1 | BIT | 4,57 Lei | |
| 162 | 1004767-54 | 1 | SPRING | 4,57 Lei | |
| 163 | 1004767-55 | 1 | FASTENER | 4,57 Lei | |
| 164 | 1004741-09 | 1 | SPRING | 4,57 Lei | |
| 165 | 1004767-56 | 1 | COVER | 4,57 Lei | |
| 166 | 1004767-57 | 1 | INSERT | 34,05 Lei | |
| 167 | 1004741-16 | 4 | SCREW | 4,57 Lei | |
| 168 | 1004741-68 | 1 | WASHER | 4,57 Lei | |
| 169 | 1004767-58 | 1 | COVER | 4,57 Lei | |
| 170 | 1004767-59 | 1 | EXTENSION | 37,73 Lei | |
| 171 | 1004767-60 | 4 | SCREW | 4,57 Lei | |
| 172 | 1004741-17 | 2 | GUIDE BLOCK | 4,57 Lei | |
| 173 | 1004741-63 | 2 | SCREW | 4,57 Lei | |
| 174 | 1004767-61 | 2 | RAIL | 13,85 Lei | |
| 175 | 1004767-62 | 2 | RAIL | 4,57 Lei | |
| 176 | 1004767-63 | 1 | TABLE | 497,78 Lei | |
| 177 | 1004741-32 | 2 | COVER | 4,57 Lei | |
| 178 | 1004767-64 | 1 | EXTENSION | 57,81 Lei | |
| 179 | 1004767-65 | 1 | SCALE | 7,37 Lei | |
| 180 | 1004767-66 | 1 | BOARD | 15,12 Lei | |
| 181 | 1004767-67 | 1 | EXTENDER | 88,55 Lei | |
| 182 | 1004767-68 | 1 | NUT | 4,57 Lei | |
| 183 | 1004767-69 | 1 | PAD | 6,23 Lei | |
| 184 | 1004741-33 | 4 | SCREW | 4,57 Lei | |
| 185 | 1004767-70 | 2 | FASTENER | 5,21 Lei | |
| 186 | 1004741-38 | 1 | RING | 4,57 Lei | |
| 187 | 1004741-39 | 1 | SPRING | 4,57 Lei | |
| 188 | 1004767-71 | 1 | ROD | 8,64 Lei | |
| 189 | 1004741-40 | 1 | NUT | 4,57 Lei | |
| 190 | 1004741-41 | 1 | NUT | 4,57 Lei | |
| 191 | 1004767-72 | 1 | NUT | 4,57 Lei | |
| 192 | 1004767-73 | 1 | ADJUSTER | 4,57 Lei | |
| 193 | 1004767-74 | 1 | ADJUSTER | 4,57 Lei | |
| 194 | 1004767-75 | 1 | LOCK | 5,21 Lei | |
| 195 | 1004741-45 | 1 | RIVET | 4,57 Lei | |
| 196 | 1004741-46 | 1 | BLOCK | 4,57 Lei | |
| 197 | 1004741-47 | 1 | PIN | 4,57 Lei | |
| 198 | 1004767-76 | 1 | LOCK | 5,21 Lei | |
| 199 | 1004767-77 | 2 | SPRING | 4,57 Lei | |
| 200 | 1004741-51 | 2 | BAR | 7,37 Lei | |
| 201 | 1004741-52 | 1 | WASHER | 4,57 Lei | |
| 202 | 1004767-78 | 1 | FASTENER | 7,37 Lei | |
| 203 | 1004741-55 | 1 | PLATE | 19,95 Lei | |
| 204 | 1004741-57 | 2 | SPRING TORSION | 4,57 Lei | |
| 205 | 1004741-56 | 2 | PAD | 4,57 Lei | |
| 206 | 1004741-58 | 1 | ROLLER | 4,57 Lei | |
| 207 | 1004767-79 | 1 | PROTECTOR | 5,21 Lei | |
| 208 | 1004767-80 | 1 | BOARD | 41,93 Lei | |
| 209 | 1004767-81 | 1 | PROTECTOR | 7,37 Lei | |
| 210 | 1004767-82 | 1 | DUSTBAG | 34,05 Lei | |
| 212 | 1004767-84 | 1 | COVER | 4,57 Lei | |
| 213 | 1004767-85 | 1 | BOARD | 13,85 Lei | |
| 214 | 1004741-65 | 2 | SPRING | 4,57 Lei | |
| 215 | 1004741-66 | 1 | PIN | 4,57 Lei | |
| 216 | 1004741-67 | 1 | FLAP | 10,29 Lei | |
| 217 | 1004741-04 | 1 | RAIL | 30,87 Lei | |
| 218 | 1004767-86 | 2 | BOLT | 4,57 Lei | |
| 219 | 1004767-87 | 2 | NUT | 4,57 Lei | |
| 220 | 1004767-88 | 1 | INSULATOR | 4,57 Lei | |
| 221 | 1004767-89 | 1 | WASHER | 4,57 Lei | |
| 222 | 1004767-90 | 1 | SCREW | 4,57 Lei | |
| 223 | 1004767-91 | 1 | SPRING | 4,57 Lei | |
| 224 | 1004767-92 | 1 | WASHER | 4,57 Lei | |
| 226 | 1004767-94 | 1 | GUIDE BLOCK | 57,81 Lei | |
| 228 | 1004767-96 | 1 | SPINDLE SA | 70,39 Lei | |
| 229 | 1004767-97 | 1 | FENCE SA | 130,35 Lei | |
| 230 | 1004767-98 | 1 | ARMATURE SA | 213,19 Lei | |
| 232 | 1004768-01 | 1 | SWITCH SA | 213,19 Lei | |

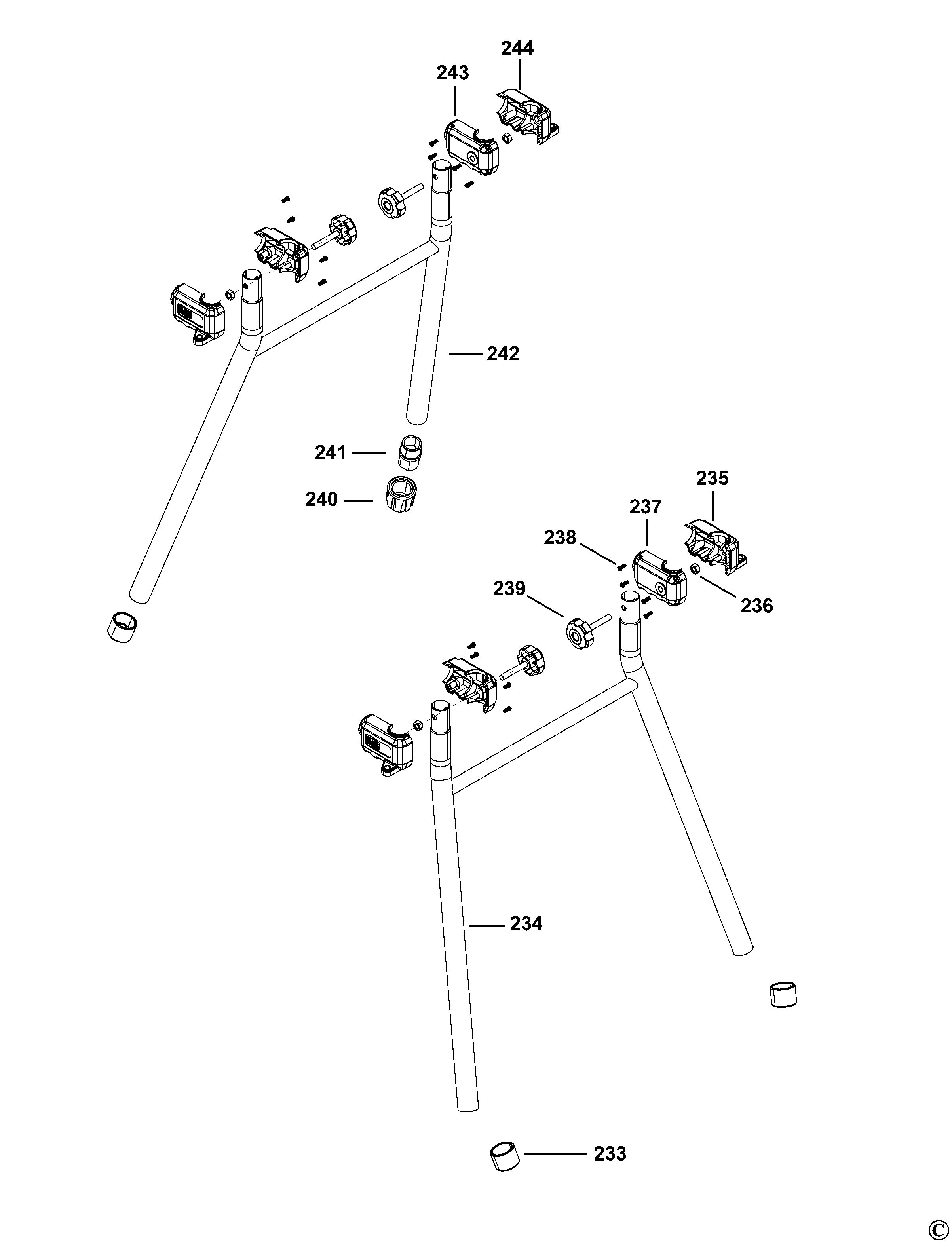

| 233 | 1004740-50 | 3 | FOOT | 4,57 Lei | |
| 234 | 1004768-02 | 1 | LEG RIGHT HAND | 80,04 Lei | |
| 235 | 1004768-03 | 2 | COVER | 15,12 Lei | |
| 236 | 1004768-04 | 4 | NUT | 4,57 Lei | |
| 237 | 1004768-05 | 2 | COVER | 17,02 Lei | |
| 238 | 1004768-06 | 16 | SCREW | 4,57 Lei | |
| 239 | 1004768-07 | 4 | KNOB | 25,54 Lei | |
| 240 | 1004768-08 | 1 | FOOT | 7,37 Lei | |
| 241 | 1004768-09 | 1 | INSERT | 5,21 Lei | |
| 242 | 1004768-10 | 1 | LEG LEFT HAND | 80,04 Lei | |
| 243 | 1004768-11 | 2 | COVER | 15,12 Lei | |
| 244 | 1004768-12 | 2 | COVER | 17,02 Lei | |
| 245 | 1004770-86 | 1 | HANDLE SA | 21,85 Lei | |
| 412 | 5140147-63 | 2 | LOCK NUT | 3,78 Lei | |
| 429 | 1004742-03 | 1 | RIVING KNIFE | 145,09 Lei | |
| 429 | 5170037-94 | 1 | GUARD SA | 99,86 Lei | |
| 434 | 5170037-79 | 1 | RIVING KNIFE | 99,86 Lei | |
| 435 | 5140148-76 | 1 | BOARD | 11,45 Lei | |
| 436 | 5140148-77 | 1 | BOARD | 5,15 Lei | |
| 437 | 5140148-78 | 1 | SCREW | 5,15 Lei | |
| 438 | 5140146-38 | 1 | PIN | 3,78 Lei | |
| 439 | 5140148-79 | 1 | KNOB SA | 3,78 Lei | |
| 463 | 5140148-13 | 4 | WASHER SPRING | 3,78 Lei | |
| 469 | 5140147-79 | 8 | SCREW | 4,31 Lei | |
| 528 | 1004742-03 | 1 | RIVING KNIFE | 145,09 Lei | |
| 528 | 5170037-94 | 1 | GUARD SA | 99,86 Lei | |
| 549 | 5170037-97 | 7 | SCREW | 3,78 Lei | |
| 550 | 5170037-98 | 1 | BRACKET LH | 18,06 Lei | |
| 551 | 5170037-99 | 1 | BRACKET RH | 18,06 Lei | |
| 552 | 5170038-01 | 1 | SCREW | 3,78 Lei | |
| 553 | 5170038-02 | 1 | COVER LH | 3,78 Lei | |
| 554 | 5170038-03 | 1 | COVER RH | 3,78 Lei | |
| 555 | 5170038-04 | 1 | SCREW | 3,78 Lei | |
| 556 | 5170038-05 | 2 | SPRING | 3,78 Lei | |
| 557 | 5170038-06 | 1 | SPRING | 3,78 Lei | |
| 558 | 5140147-80 | 4 | WASHER | 3,78 Lei | |
| 800 | 5170044-53 | 1 | SERVICE KIT | 252,58 Lei |
