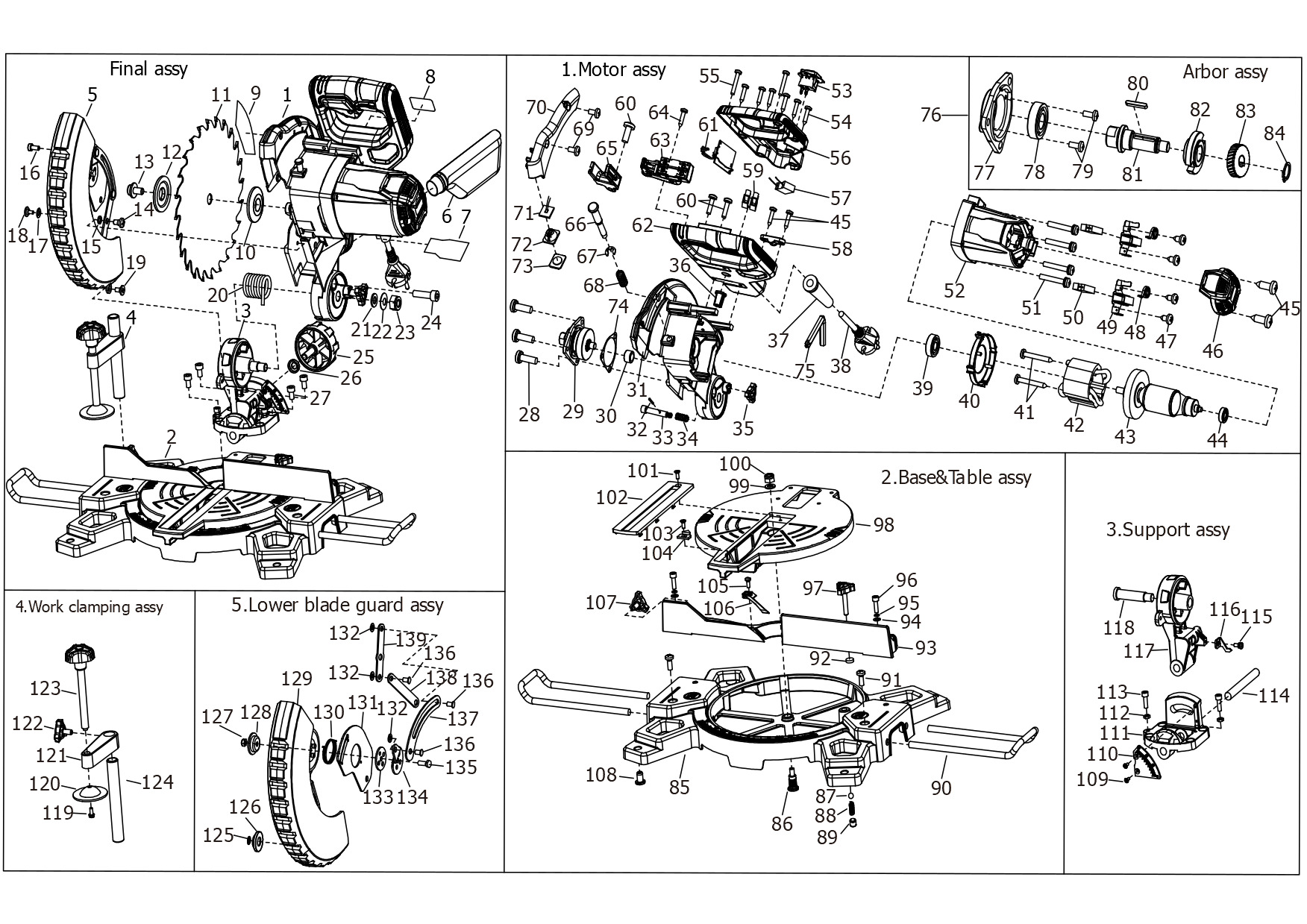

BLACK+DECKER MITRE SAW (Type 1)
SKU Produs: BES702 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 5170059-80 | 1 | MOTOR SA | 1,48 Lei | |
| 2 | 5170059-81 | 1 | TABLE SA | 390,29 Lei | |
| 3 | 5170059-82 | 1 | SUPPORT SA | 107,73 Lei | |
| 4 | 5170059-83 | 1 | CLAMP SA | 47,78 Lei | |
| 5 | 5170059-84 | 1 | GUARD LOWER | 107,73 Lei | |
| 6 | 5170050-85 | 1 | BAG | 37,73 Lei | |
| 7 | 5170059-85 | 1 | LABEL | 5,15 Lei | |
| 8 | 5170050-87 | 1 | LABEL | 4,57 Lei | |
| 9 | 5170059-86 | 1 | LABEL | 6,09 Lei | |
| 10 | 5170050-89 | 1 | FLANGE | 17,02 Lei | |
| 11 | 5170050-90 | 1 | BLADE | 169,36 Lei | |
| 12 | 5170050-91 | 1 | FLANGE | 15,12 Lei | |
| 13 | 5170059-87 | 1 | SCREW | 11,45 Lei | |
| 14 | 5170059-88 | 1 | SCREW | 3,78 Lei | |
| 15 | 5170059-89 | 1 | WASHER | 3,78 Lei | |
| 16 | 5170059-90 | 1 | SCREW | 3,78 Lei | |
| 17 | 5170050-95 | 1 | WASHER | 4,57 Lei | |
| 18 | 5170059-91 | 1 | SCREW | 3,78 Lei | |
| 19 | 5170059-92 | 1 | SCREW | 3,78 Lei | |
| 20 | 5170059-93 | 1 | SPRING | 21,11 Lei | |
| 21 | 5170059-94 | 1 | WASHER | 3,78 Lei | |
| 22 | 5170059-95 | 1 | SPRING | 3,78 Lei | |
| 23 | 5170059-96 | 1 | NUT | 3,78 Lei | |
| 24 | 5170059-97 | 1 | SCREW | 3,78 Lei | |
| 25 | 5170059-98 | 1 | KNOB | 16,49 Lei | |
| 26 | 5170059-99 | 1 | WASHER | 3,78 Lei | |
| 27 | 5170060-00 | 4 | SCREW | 3,78 Lei | |
| 28 | 5170050-06 | 3 | SCREW | 4,57 Lei | |
| 29 | 5170050-07 | 1 | PLATE | 130,35 Lei | |
| 30 | 1004765-90 | 1 | BEARING NEEDLE | 15,12 Lei | |
| 31 | 5170060-01 | 1 | GUARD UPPER | 150,05 Lei | |
| 32 | 5170060-02 | 1 | PIN | 3,78 Lei | |
| 33 | 5170060-03 | 1 | LOCKING PIN | 7,14 Lei | |
| 34 | 5170060-04 | 1 | SPRING | 3,78 Lei | |
| 35 | 5170060-05 | 1 | CAP | 4,31 Lei | |
| 36 | 1004763-91 | 1 | PROTECTOR | 6,23 Lei | |
| 37 | 5170060-06 | 1 | SHEATH | 4,31 Lei | |
| 38 | 5170050-12 | 1 | CORD | 57,81 Lei | |
| 39 | 1004764-16 | 1 | BEARING | 19,95 Lei | |
| 40 | 5170050-13 | 1 | BAFFLE | 8,64 Lei | |
| 41 | 1004765-72 | 2 | SCREW | 4,57 Lei | |
| 42 | 5170060-07 | 1 | STATOR SA | 150,05 Lei | |
| 43 | 5170050-15 | 1 | ARMATURE | 252,58 Lei | |
| 44 | 5170050-16 | 1 | BEARING | 17,02 Lei | |
| 45 | 1004763-96 | 4 | SCREW | 4,57 Lei | |
| 46 | 5170050-17 | 1 | CAP | 13,85 Lei | |
| 47 | 1004764-08 | 4 | SCREW | 4,57 Lei | |
| 48 | 5170050-18 | 2 | SPRING | 4,57 Lei | |
| 49 | 5170050-19 | 2 | HOLDER | 7,37 Lei | |
| 50 | 5170050-20 | 2 | BRUSH | 34,05 Lei | |
| 51 | 1004765-63 | 4 | SCREW | 4,57 Lei | |
| 52 | 5170050-21 | 1 | MOTOR HOUSING SA | 37,73 Lei | |
| 53 | 1004763-98 | 1 | SWITCH | 21,85 Lei | |
| 54 | 1004750-26 | 6 | SCREW | 4,31 Lei | |
| 55 | 1004750-25 | 2 | SCREW | 4,31 Lei | |
| 56 | 1004763-86 | 1 | HANDLE UPPER | 52,22 Lei | |
| 57 | 5170050-22 | 1 | CAPACITOR | 7,37 Lei | |
| 58 | 1004763-95 | 1 | CLAMP | 4,57 Lei | |
| 59 | 1004763-88 | 1 | CONNECTOR | 7,37 Lei | |
| 60 | 1004763-93 | 3 | SCREW | 4,57 Lei | |
| 61 | 1004763-87 | 1 | PCB | 120,82 Lei | |
| 62 | 1004763-90 | 1 | SWITCH | 120,82 Lei | |
| 63 | 5170060-08 | 1 | SWITCH | 130,52 Lei | |
| 64 | 5170050-23 | 1 | SCREW | 4,57 Lei | |
| 65 | 5170050-24 | 1 | COVER | 5,21 Lei | |
| 66 | 5170050-25 | 1 | LOCK PIN | 15,12 Lei | |
| 67 | 1004764-26 | 1 | CIRCLIP | 4,57 Lei | |
| 68 | 1004764-25 | 1 | SPRING | 4,57 Lei | |
| 69 | 5170050-26 | 2 | SCREW | 4,57 Lei | |
| 70 | 5170050-27 | 1 | COVER | 6,23 Lei | |
| 71 | 5170050-28 | 1 | LAMP | 17,02 Lei | |
| 72 | 5170050-29 | 1 | COVER | 4,57 Lei | |
| 73 | 5170050-30 | 1 | COVER | 4,57 Lei | |
| 74 | 5170050-31 | 1 | RING | 6,23 Lei | |
| 75 | 1004765-29 | 1 | KEY | 12,71 Lei | |
| 76 | 5170060-09 | 1 | ARBOR SA | 107,73 Lei | |
| 77 | 5170050-32 | 1 | COVER | 13,85 Lei | |
| 78 | 5170050-33 | 1 | BEARING | 21,85 Lei | |
| 79 | 1004765-88 | 2 | SCREW | 4,57 Lei | |
| 80 | 5170050-34 | 1 | KEY | 4,57 Lei | |
| 81 | 5170050-35 | 1 | ARBOR | 41,93 Lei | |
| 82 | 5170050-36 | 1 | PLATE LOCK | 19,95 Lei | |
| 83 | 5170050-37 | 1 | Gear | 34,05 Lei | |
| 84 | 1004765-82 | 1 | CIRCLIP | 4,57 Lei | |
| 85 | 5170060-10 | 1 | BASE | 176,19 Lei | |
| 86 | 5170060-11 | 1 | PIN | 4,31 Lei | |
| 87 | 5170060-12 | 1 | BALL | 3,78 Lei | |
| 88 | 5170060-13 | 1 | SPRING | 3,78 Lei | |
| 89 | 5170060-14 | 1 | SCREW | 3,78 Lei | |
| 90 | 5170060-15 | 2 | POLE PIECE | 21,11 Lei | |
| 91 | 5170060-16 | 2 | SCREW | 3,78 Lei | |
| 92 | 5170060-17 | 1 | PAD | 3,78 Lei | |
| 93 | 5170060-18 | 1 | FENCE | 58,17 Lei | |
| 94 | 5170060-19 | 2 | WASHER | 3,78 Lei | |
| 95 | 5170060-20 | 2 | WASHER | 3,78 Lei | |
| 96 | 5170060-21 | 2 | SCREW | 3,78 Lei | |
| 97 | 5170060-22 | 1 | KNOB | 5,15 Lei | |
| 98 | 5170060-23 | 1 | TABLE TURN | 119,91 Lei | |
| 99 | 5170060-24 | 1 | WASHER | 3,78 Lei | |
| 100 | 5170060-25 | 1 | NUT | 3,78 Lei | |
| 101 | 5170060-26 | 1 | SCREW | 3,78 Lei | |
| 102 | 5170060-27 | 1 | INSERT | 6,09 Lei | |
| 103 | 5170060-28 | 1 | SCREW | 3,78 Lei | |
| 104 | 5170060-29 | 1 | POINTER | 3,78 Lei | |
| 105 | 5170060-30 | 1 | SCREW | 3,78 Lei | |
| 106 | 5170060-31 | 1 | TIP | 3,78 Lei | |
| 107 | 5170060-32 | 1 | KNOB | 4,31 Lei | |
| 108 | 5170050-38 | 4 | FOOT | 4,57 Lei | |
| 109 | 5170060-33 | 2 | SCREW | 3,78 Lei | |
| 110 | 5170060-34 | 1 | PLATE | 6,09 Lei | |
| 111 | 5170060-35 | 1 | BLOCK | 28,14 Lei | |
| 112 | 5170060-36 | 2 | NUT | 3,78 Lei | |
| 113 | 5170060-37 | 2 | SCREW | 3,78 Lei | |
| 114 | 5170060-38 | 1 | PIVOT | 6,09 Lei | |
| 115 | 5170060-39 | 1 | SCREW | 3,78 Lei | |
| 116 | 5170060-40 | 1 | POINTER | 3,78 Lei | |
| 117 | 5170060-41 | 1 | BLOCK | 47,78 Lei | |
| 118 | 5170060-42 | 1 | SHAFT | 11,45 Lei | |
| 119 | 5170060-43 | 1 | SCREW | 3,78 Lei | |
| 120 | 5170060-44 | 1 | PLATE | 5,15 Lei | |
| 121 | 5170060-45 | 1 | ARM | 14,07 Lei | |
| 122 | 5170060-46 | 1 | KNOB | 6,09 Lei | |
| 123 | 5170060-47 | 1 | KNOB | 14,07 Lei | |
| 124 | 5170060-48 | 1 | POLE PIECE | 21,11 Lei | |
| 125 | 5170060-49 | 2 | WASHER | 3,78 Lei | |
| 126 | 5170060-50 | 1 | WHEEL | 5,15 Lei | |
| 127 | 5170060-51 | 1 | LOCK NUT | 3,78 Lei | |
| 128 | 5170060-52 | 1 | PLATE | 11,45 Lei | |
| 129 | 5170060-53 | 1 | GUARD LOWER | 47,78 Lei | |
| 130 | 5170060-54 | 1 | SPRING | 4,31 Lei | |
| 131 | 5170060-55 | 1 | SUPPORT | 14,07 Lei | |
| 132 | 5170060-56 | 3 | WASHER | 3,78 Lei | |
| 133 | 5170060-57 | 1 | PLATE | 5,15 Lei | |
| 135 | 5170060-59 | 1 | BOLT | 3,78 Lei | |
| 136 | 5170060-60 | 1 | RIVET | 3,78 Lei | |
| 140 | 5170065-78 | 1 | CORD | 31,19 Lei |
