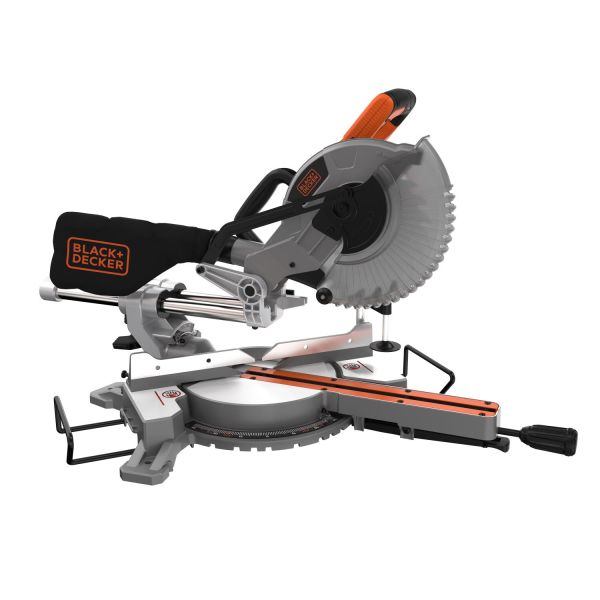

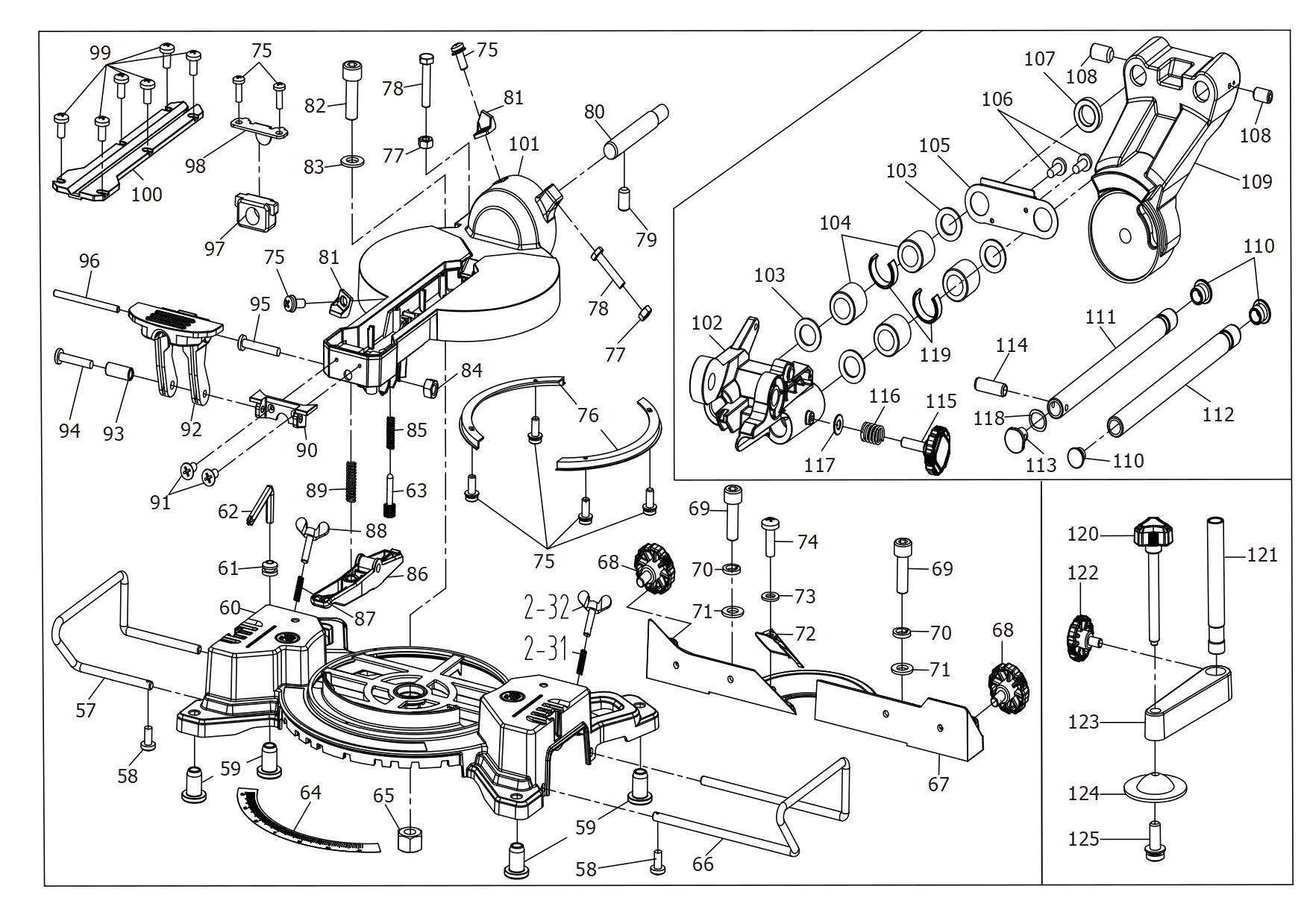

BLACK+DECKER MITRE SAW (Type 1)
SKU Produs: BES701 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|

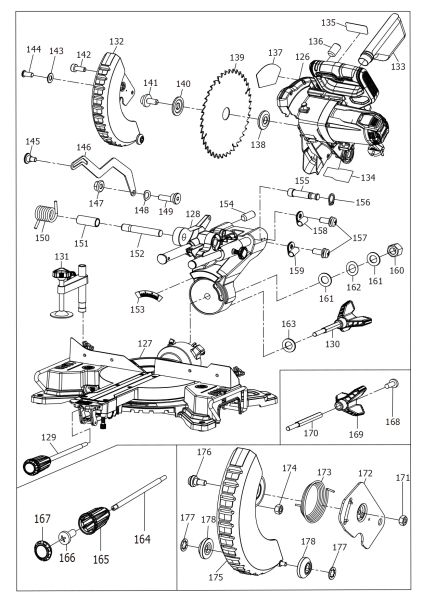

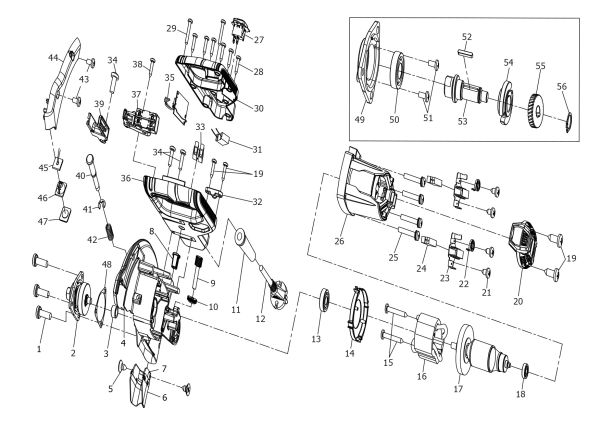

| 1 | 5170050-06 | 3 | SCREW | 4,57 Lei | |
| 2 | 5170050-07 | 1 | PLATE | 130,35 Lei | |
| 3 | 1004765-90 | 1 | BEARING NEEDLE | 15,12 Lei | |
| 4 | 5170050-08 | 1 | GUARD | 307,21 Lei | |
| 5 | 5170050-09 | 2 | SCREW | 4,57 Lei | |
| 6 | 5170050-10 | 1 | DEFLECTOR | 7,37 Lei | |
| 7 | 5170050-11 | 1 | CHUTE | 5,21 Lei | |
| 8 | 1004763-91 | 1 | PROTECTOR | 6,23 Lei | |
| 9 | 1004764-21 | 1 | ADJUSTER DEPTH | 5,21 Lei | |
| 10 | 1004764-20 | 1 | NUT | 4,57 Lei | |
| 11 | 1004763-94 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 12 | 5170050-12 | 1 | CORD | 57,81 Lei | |
| 13 | 1004765-74 | 1 | BEARING | 15,12 Lei | |
| 14 | 5170050-13 | 1 | BAFFLE | 8,64 Lei | |
| 15 | 1004765-72 | 2 | SCREW | 4,57 Lei | |
| 16 | 5170050-14 | 1 | FIELD | 240,38 Lei | |
| 17 | 5170050-15 | 1 | ARMATURE | 252,58 Lei | |
| 18 | 5170050-16 | 1 | BEARING | 17,02 Lei | |
| 19 | 1004763-96 | 2 | SCREW | 4,57 Lei | |
| 20 | 5170050-17 | 1 | CAP | 13,85 Lei | |
| 21 | 1004764-08 | 4 | SCREW | 4,57 Lei | |
| 22 | 5170050-18 | 1 | SPRING | 4,57 Lei | |
| 23 | 5170050-19 | 2 | HOLDER | 7,37 Lei | |
| 24 | 5170050-20 | 2 | BRUSH | 34,05 Lei | |
| 25 | 1004765-63 | 4 | SCREW | 4,57 Lei | |
| 26 | 5170050-21 | 1 | MOTOR HOUSING SA | 37,73 Lei | |
| 27 | 1004763-98 | 1 | SWITCH | 21,85 Lei | |
| 30 | 1004763-86 | 1 | HANDLE UPPER | 52,22 Lei | |
| 31 | 5170050-22 | 1 | CAPACITOR | 7,37 Lei | |
| 32 | 1004763-95 | 1 | CLAMP | 4,57 Lei | |
| 33 | 1004763-88 | 1 | CONNECTOR | 7,37 Lei | |
| 34 | 1004763-93 | 3 | SCREW | 4,57 Lei | |
| 35 | 1004763-87 | 1 | PCB | 120,82 Lei | |
| 36 | 1004763-92 | 1 | HANDLE | 52,22 Lei | |
| 37 | 1004763-90 | 1 | SWITCH | 120,82 Lei | |
| 38 | 5170050-23 | 1 | SCREW | 4,57 Lei | |
| 39 | 5170050-24 | 1 | COVER | 5,21 Lei | |
| 40 | 5170050-25 | 1 | LOCK PIN | 15,12 Lei | |
| 41 | 1004764-26 | 1 | CIRCLIP | 4,57 Lei | |
| 42 | 1004764-25 | 1 | SPRING | 4,57 Lei | |
| 43 | 5170050-26 | 2 | SCREW | 4,57 Lei | |
| 44 | 5170050-27 | 1 | COVER | 6,23 Lei | |
| 45 | 5170050-28 | 1 | LAMP | 17,02 Lei | |
| 46 | 5170050-29 | 1 | COVER | 4,57 Lei | |
| 47 | 5170050-30 | 1 | COVER | 4,57 Lei | |
| 48 | 5170050-31 | 1 | RING | 6,23 Lei | |
| 49 | 5170050-32 | 1 | COVER | 13,85 Lei | |
| 50 | 5170050-33 | 1 | BEARING | 21,85 Lei | |
| 51 | 1004765-88 | 2 | SCREW | 4,57 Lei | |
| 52 | 5170050-34 | 1 | KEY | 4,57 Lei | |
| 53 | 5170050-35 | 1 | ARBOR | 41,93 Lei | |
| 54 | 5170050-36 | 1 | PLATE LOCK | 19,95 Lei | |
| 55 | 5170050-37 | 1 | Gear | 34,05 Lei | |
| 56 | 1004765-82 | 1 | CIRCLIP | 4,57 Lei | |
| 57 | 1004765-02 | 1 | RAIL LH | 37,73 Lei | |
| 58 | 1004764-55 | 2 | SCREW | 4,57 Lei | |
| 59 | 5170050-38 | 4 | FOOT | 4,57 Lei | |
| 60 | 5170050-39 | 1 | BASE | 399,45 Lei | |
| 61 | 1004765-30 | 1 | HOLDER | 4,57 Lei | |
| 62 | 1004765-29 | 1 | KEY | 12,71 Lei | |
| 63 | 1004764-21 | 1 | ADJUSTER DEPTH | 5,21 Lei | |
| 64 | 5170050-40 | 1 | LABEL | 4,57 Lei | |
| 65 | 1004765-48 | 1 | LOCK NUT | 4,57 Lei | |
| 66 | 1004764-87 | 1 | RAIL RH | 37,73 Lei | |
| 67 | 5170050-41 | 1 | FENCE | 157,92 Lei | |
| 68 | 1004765-43 | 2 | KNOB | 6,23 Lei | |
| 69 | 5170050-42 | 2 | SCREW | 4,57 Lei | |
| 70 | 1004765-38 | 2 | WASHER | 4,57 Lei | |
| 71 | 1004765-37 | 2 | WASHER | 4,57 Lei | |
| 72 | 5170050-43 | 1 | GUARD | 4,57 Lei | |
| 73 | 5170050-44 | 1 | WASHER | 4,57 Lei | |
| 74 | 5170050-45 | 1 | SCREW | 4,57 Lei | |
| 75 | 1004764-97 | 4 | SCREW | 4,57 Lei | |
| 76 | 5170050-46 | 2 | SLEEVE | 6,23 Lei | |
| 77 | 5170050-47 | 2 | NUT | 4,57 Lei | |
| 78 | 5170050-48 | 2 | SCREW | 4,57 Lei | |
| 79 | 1004764-68 | 1 | SCREW | 4,57 Lei | |
| 80 | 5170050-49 | 1 | SHAFT | 25,54 Lei | |
| 81 | 1004765-13 | 2 | INDICATOR | 5,21 Lei | |
| 82 | 5170050-50 | 1 | SCREW | 4,57 Lei | |
| 83 | 1004765-15 | 2 | WASHER | 7,37 Lei | |
| 84 | 1004765-48 | 1 | LOCK NUT | 4,57 Lei | |
| 85 | 1004765-26 | 1 | SPRING | 4,57 Lei | |
| 86 | 5170050-51 | 1 | LEVER | 10,29 Lei | |
| 87 | 1004765-27 | 1 | SPRING | 4,57 Lei | |
| 88 | 5170050-52 | 2 | SCREW | 4,57 Lei | |
| 89 | 1004765-26 | 1 | SPRING | 4,57 Lei | |
| 90 | 5170050-53 | 1 | BASE | 5,21 Lei | |
| 91 | 5170050-54 | 2 | SCREW | 4,57 Lei | |
| 92 | 5170050-55 | 1 | LOCK BUTTON | 10,29 Lei | |
| 93 | 5170050-56 | 1 | SLEEVE | 4,57 Lei | |
| 94 | 5170050-57 | 1 | SCREW | 4,57 Lei | |
| 95 | 5170050-58 | 1 | SCREW | 4,57 Lei | |
| 96 | 5170050-59 | 1 | PIN | 5,21 Lei | |
| 97 | 1004765-17 | 1 | BIT | 6,23 Lei | |
| 98 | 1004765-16 | 1 | PLATE LOCK | 6,23 Lei | |
| 99 | 1004764-17 | 2 | SCREW | 4,57 Lei | |
| 100 | 5170050-60 | 1 | PLATE | 13,85 Lei | |
| 101 | 5170050-61 | 1 | TABLE | 331,47 Lei | |
| 102 | 5170050-62 | 1 | BRACKET | 169,36 Lei | |
| 103 | 5170050-63 | 4 | WASHER | 7,37 Lei | |
| 104 | 5170050-64 | 4 | BEARING | 41,93 Lei | |
| 105 | 5170050-65 | 1 | COVER | 15,12 Lei | |
| 106 | 5170050-66 | 2 | SCREW | 4,57 Lei | |
| 107 | 5170050-67 | 1 | RING | 4,57 Lei | |
| 108 | 1004764-68 | 1 | SCREW | 4,57 Lei | |
| 109 | 5170050-68 | 1 | ARM | 240,38 Lei | |
| 110 | 5170050-69 | 1 | COVER | 4,57 Lei | |
| 111 | 5170050-70 | 1 | GUIDE ROD | 70,39 Lei | |
| 112 | 5170050-71 | 1 | GUIDE ROD | 70,39 Lei | |
| 113 | 5170050-72 | 1 | CAP | 8,64 Lei | |
| 114 | 5170050-73 | 1 | PIN | 4,57 Lei | |
| 115 | 1004764-76 | 1 | LOCK KNOB | 5,21 Lei | |
| 116 | 1004764-75 | 1 | SPRING | 4,57 Lei | |
| 117 | 1004764-34 | 1 | WASHER | 4,57 Lei | |
| 118 | 5170050-74 | 1 | WASHER | 4,57 Lei | |
| 119 | 5170050-75 | 2 | SPACER | 4,57 Lei | |
| 120 | 1004765-42 | 1 | KNOB | 17,02 Lei | |
| 121 | 5170050-76 | 1 | POLE PIECE | 30,87 Lei | |
| 122 | 1004765-43 | 1 | KNOB | 6,23 Lei | |
| 123 | 1004765-44 | 1 | ARM LINK | 13,85 Lei | |
| 124 | 1004765-46 | 1 | PLATE | 5,21 Lei | |
| 125 | 5170050-77 | 1 | SCREW | 4,57 Lei | |
| 126 | 5170050-78 | 1 | MOTOR | 1850,48 Lei | |
| 127 | 5170050-79 | 1 | TABLE SA | 1378,75 Lei | |
| 128 | 5170050-80 | 1 | ARM | 819,98 Lei | |
| 129 | 5170050-81 | 1 | HANDLE | 37,73 Lei | |
| 130 | 5170050-82 | 1 | HANDLE | 41,93 Lei | |
| 131 | 5170050-83 | 1 | CLAMP SA | 96,56 Lei | |
| 132 | 5170050-84 | 1 | GUARD | 120,82 Lei | |
| 133 | 5170050-85 | 1 | BAG | 37,73 Lei | |
| 134 | 5170050-86 | 1 | LABEL | 4,57 Lei | |
| 135 | 5170050-87 | 1 | LABEL | 4,57 Lei | |
| 136 | 1004764-68 | 1 | SCREW | 4,57 Lei | |
| 137 | 5170050-88 | 1 | LABEL | 4,57 Lei | |
| 138 | 5170050-89 | 1 | FLANGE | 17,02 Lei | |
| 139 | 5170050-90 | 1 | BLADE | 169,36 Lei | |
| 140 | 5170050-91 | 1 | FLANGE | 15,12 Lei | |
| 141 | 1004764-50 | 1 | SCREW | 12,71 Lei | |
| 142 | 1004764-61 | 1 | SCREW | 4,57 Lei | |
| 143 | 5170050-92 | 1 | WASHER | 4,57 Lei | |
| 144 | 5170050-93 | 1 | SCREW | 4,57 Lei | |
| 145 | 1004764-66 | 1 | SCREW | 4,57 Lei | |
| 146 | 5170050-94 | 1 | LINKAGE SA | 25,54 Lei | |
| 147 | 1004764-52 | 1 | LOCK NUT | 4,57 Lei | |
| 148 | 5170050-95 | 1 | WASHER | 4,57 Lei | |
| 149 | 1004764-64 | 1 | SCREW | 30,87 Lei | |
| 150 | 5170050-96 | 1 | SPRING | 30,87 Lei | |
| 151 | 1004766-08 | 1 | SLEEVE | 4,57 Lei | |
| 152 | 5170050-97 | 1 | SHAFT | 25,54 Lei | |
| 153 | 5170050-98 | 1 | SCALE | 15,12 Lei | |
| 154 | 1004764-79 | 1 | SCREW | 6,23 Lei | |
| 155 | 1004764-81 | 1 | LOCK PIN | 15,12 Lei | |
| 156 | 1004764-80 | 1 | CIRCLIP | 4,57 Lei | |
| 157 | 1004764-97 | 2 | SCREW | 4,57 Lei | |
| 158 | 1004764-83 | 1 | CLAMP | 6,23 Lei | |
| 159 | 1004764-98 | 1 | CLIP CABLE | 6,23 Lei | |
| 160 | 1004765-04 | 1 | NUT | 5,21 Lei | |
| 161 | 1004765-05 | 2 | WASHER | 4,57 Lei | |
| 162 | 1004765-06 | 1 | WASHER | 4,57 Lei | |
| 163 | 1004764-94 | 1 | WASHER | 4,57 Lei | |
| 164 | 5170050-99 | 1 | ROD | 25,54 Lei | |
| 165 | 1004765-22 | 1 | HANDLE | 15,12 Lei | |
| 166 | 5170051-00 | 1 | SCREW | 4,57 Lei | |
| 167 | 1004765-25 | 1 | COVER | 5,21 Lei | |
| 168 | 5170051-01 | 1 | SCREW | 4,57 Lei | |
| 169 | 1004764-96 | 1 | LOCK HANDLE | 21,85 Lei | |
| 170 | 5170051-02 | 1 | BOLT | 25,54 Lei | |
| 171 | 1004764-52 | 1 | LOCK NUT | 4,57 Lei | |
| 172 | 5170051-03 | 1 | BLADE SUPPORT SA | 21,85 Lei | |
| 173 | 1004764-54 | 1 | SPRING | 7,37 Lei | |
| 174 | 5170051-04 | 1 | NUT | 4,57 Lei | |
| 175 | 5170051-05 | 1 | GUARD | 57,81 Lei | |
| 176 | 1004764-60 | 1 | SCREW | 7,37 Lei | |
| 177 | 1004764-59 | 1 | WASHER | 4,57 Lei | |
| 178 | 1004764-58 | 1 | WHEEL | 6,23 Lei |
