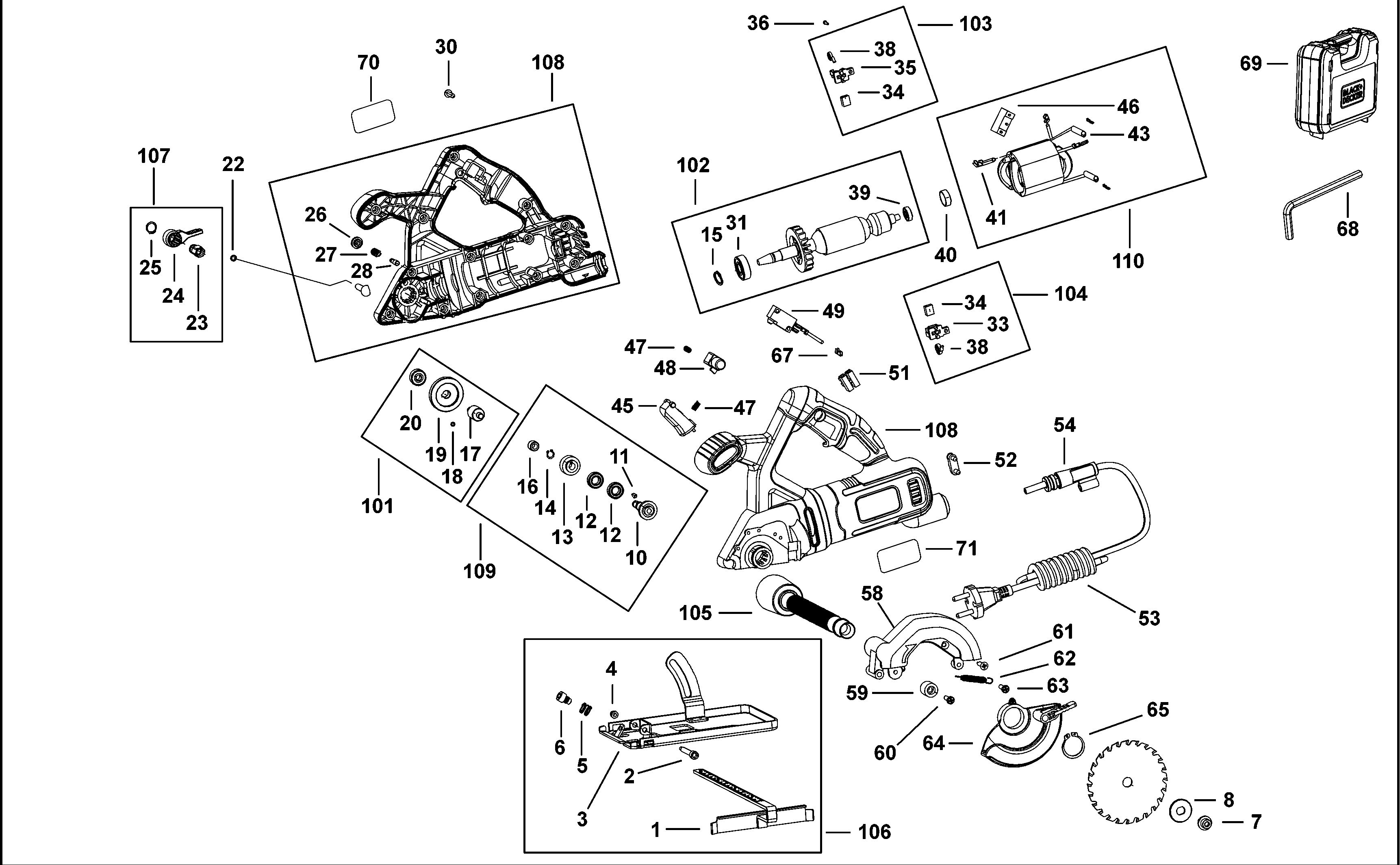

BLACK+DECKER CIRCULAR SAW (Type 1)
SKU Produs: BES510 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004762-80 | 1 | GUIDE | 17,02 Lei | |
| 2 | 1004762-81 | 1 | BOLT | 8,64 Lei | |
| 3 | 1004762-82 | 1 | BASEPLATE | 37,73 Lei | |
| 4 | 1004762-83 | 1 | NUT | 4,57 Lei | |
| 5 | 1004762-84 | 1 | SPRING | 4,57 Lei | |
| 6 | 1004762-85 | 1 | BOLT | 4,57 Lei | |
| 7 | 1004762-86 | 1 | BOLT | 4,57 Lei | |
| 8 | 1004762-87 | 1 | OUTER FLANGE | 5,21 Lei | |
| 10 | 1004762-89 | 1 | SPINDLE | 19,95 Lei | |
| 11 | 1004762-90 | 1 | WOODRUFF KEY | 4,57 Lei | |
| 12 | 1004762-91 | 2 | BEARING | 21,85 Lei | |
| 13 | 1004762-92 | 1 | PINION | 41,93 Lei | |
| 14 | 1004762-93 | 1 | CIRCLIP | 4,57 Lei | |
| 15 | 1004762-94 | 1 | CIRCLIP | 4,57 Lei | |
| 16 | 1004762-95 | 1 | BEARING NEEDLE | 13,85 Lei | |
| 17 | 1004762-96 | 1 | GEARSHAFT | 37,73 Lei | |
| 18 | 1004762-97 | 1 | BALL STEEL | 4,57 Lei | |
| 19 | 1004762-98 | 1 | BEVEL GEAR | 41,93 Lei | |
| 20 | 1004763-00 | 1 | BEARING | 13,85 Lei | |
| 22 | 1004763-02 | 1 | WASHER | 4,57 Lei | |
| 23 | 1004763-03 | 1 | LEVER LOCK | 7,37 Lei | |
| 24 | 1004763-04 | 1 | ADJUSTER DEPTH | 4,57 Lei | |
| 25 | 1004763-05 | 1 | CIRCLIP | 4,57 Lei | |
| 26 | 1004763-06 | 1 | BUTTON | 6,23 Lei | |
| 27 | 1004763-07 | 1 | SPRING | 4,57 Lei | |
| 28 | 1004763-08 | 1 | PIN | 4,57 Lei | |
| 30 | 1004763-10 | 13 | SCREW | 4,57 Lei | |
| 31 | 1004763-11 | 1 | BEARING | 15,12 Lei | |
| 33 | 1004763-13 | 1 | HOLDER RH | 6,23 Lei | |
| 34 | 1004763-14 | 1 | BRUSH PAIR | 15,12 Lei | |
| 35 | 1004763-15 | 1 | HOLDER LH | 6,23 Lei | |
| 36 | 1004763-16 | 2 | SCREW | 4,57 Lei | |
| 38 | 1004763-18 | 2 | SPRING | 4,57 Lei | |
| 39 | 1004763-19 | 1 | BEARING | 15,12 Lei | |
| 40 | 1004763-20 | 1 | SLEEVE BEARING | 4,57 Lei | |
| 41 | 1004763-21 | 1 | TERMINAL | 4,57 Lei | |
| 43 | 1004763-23 | 1 | INDUCTOR | 7,37 Lei | |
| 45 | 1004763-25 | 1 | TRIGGER | 4,57 Lei | |
| 46 | 1004763-26 | 1 | CAPACITOR | 10,29 Lei | |
| 47 | 1004763-27 | 1 | SPRING | 4,57 Lei | |
| 48 | 1004763-28 | 1 | LOCK BUTTON | 4,57 Lei | |
| 49 | 1004763-29 | 1 | SWITCH | 30,87 Lei | |
| 51 | 1004763-31 | 1 | CONNECTOR | 4,57 Lei | |
| 52 | 1004763-32 | 1 | CLAMP | 4,57 Lei | |
| 53 | 1004763-33 | 1 | CORDSET | 37,73 Lei | |
| 54 | 1004763-34 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 58 | 1004763-38 | 1 | GUARD UPPER | 34,05 Lei | |
| 59 | 1004763-39 | 1 | BLOCK | 4,57 Lei | |
| 60 | 1004763-40 | 1 | BOLT | 4,57 Lei | |
| 61 | 1004763-41 | 1 | SCREW | 4,57 Lei | |
| 62 | 1004763-42 | 1 | SPRING | 6,23 Lei | |
| 63 | 1004763-43 | 1 | SCREW | 4,57 Lei | |
| 64 | 1004763-44 | 1 | GUARD LOWER | 21,85 Lei | |
| 65 | 1004763-45 | 1 | CIRCLIP | 4,57 Lei | |
| 67 | 1004763-47 | 1 | BIT | 4,57 Lei | |
| 68 | 1004763-48 | 1 | HEX KEY | 34,05 Lei | |
| 69 | 1004763-63 | 1 | KITBOX | 120,82 Lei | |
| 70 | N650205 | 1 | RATING PLATE | 4,57 Lei | |
| 71 | 1004763-52 | 1 | BRAND LABEL | 4,57 Lei | |
| 101 | 1004763-55 | 1 | GEAR SA | 96,56 Lei | |
| 102 | 1004763-56 | 1 | ARMATURE SA | 145,09 Lei | |
| 103 | 1004763-57 | 1 | BRUSH SA | 19,95 Lei | |
| 104 | 1004763-58 | 1 | BRUSH SA | 19,95 Lei | |
| 105 | 1004763-59 | 1 | PIPE SA | 10,29 Lei | |
| 106 | 1004763-60 | 1 | PLATE SA | 57,81 Lei | |
| 107 | 1004763-61 | 1 | FASTENER | 10,29 Lei | |
| 108 | 1004763-62 | 1 | CLAMSHELL RH | 145,09 Lei | |
| 109 | 1004763-35 | 1 | SPINDLE SA | 200,99 Lei | |
| 110 | 1004763-36 | 1 | FIELD SA | 106,98 Lei |
