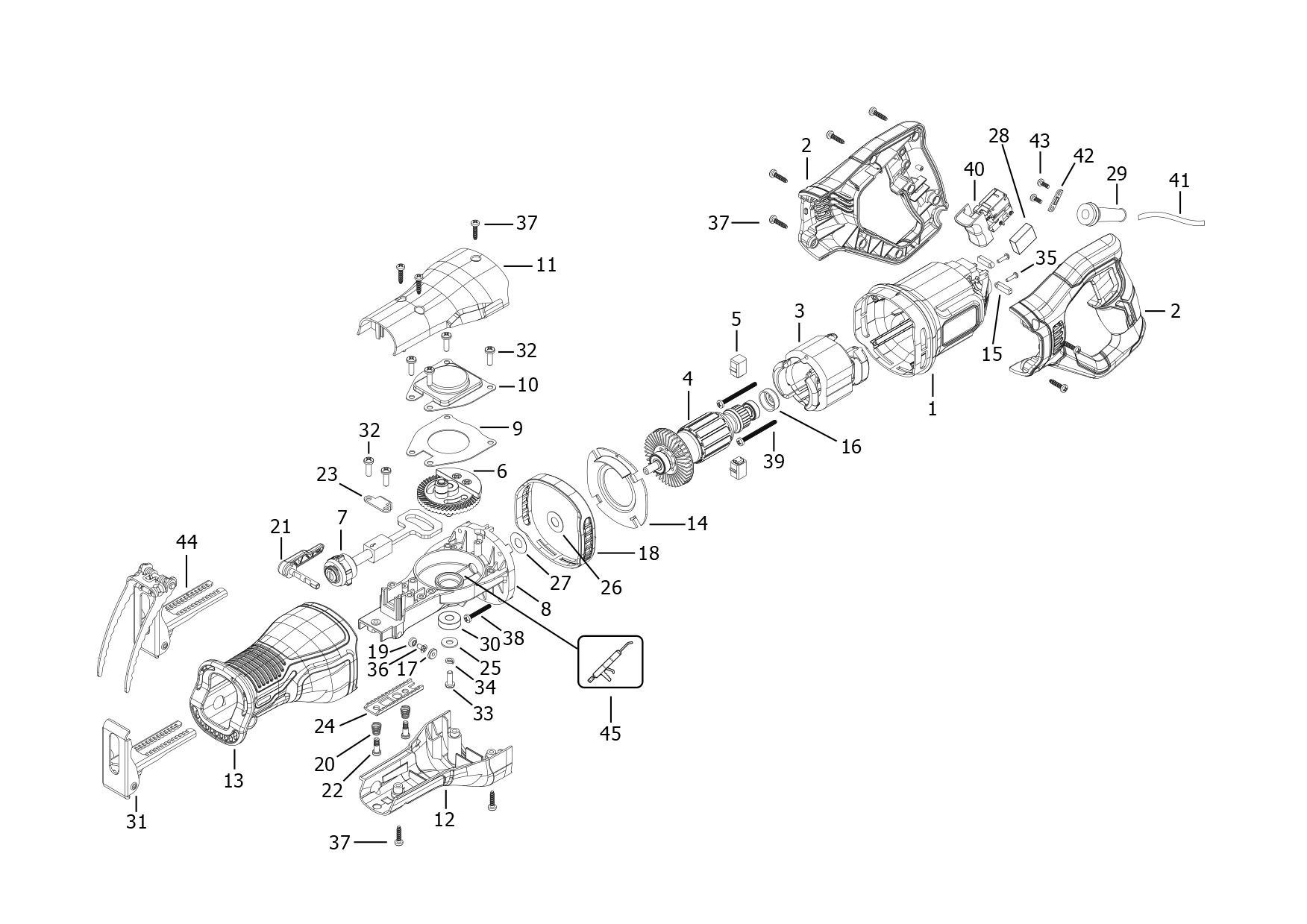

BLACK+DECKER RECIPROCATING SAW (Type 1)
SKU Produs: BES301 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N793013 | 1 | HOUSING MOTOR | 17,02 Lei | |
| 2 | N793014 | 1 | CLAMSHELL PAIR | 30,87 Lei | |
| 3 | N793015 | 1 | FIELD SA | 52,22 Lei | |
| 4 | N793016 | 1 | ARMATURE SA | 96,56 Lei | |
| 5 | N917609 | 1 | BRUSH PAIR SA | 13,85 Lei | |
| 6 | N793018 | 1 | COUNTER BALANCE | 25,54 Lei | |
| 7 | N793019 | 1 | RECIPROCATOR | 30,87 Lei | |
| 8 | N793020 | 1 | GEARCASE | 19,95 Lei | |
| 9 | N793021 | 1 | PLATE | 5,21 Lei | |
| 10 | N793022 | 1 | COVER GEARCASE | 7,37 Lei | |
| 11 | N803460 | 1 | CASE | 10,29 Lei | |
| 12 | N803461 | 1 | CASE | 12,71 Lei | |
| 13 | N803462 | 1 | BOOT | 15,12 Lei | |
| 14 | N803463 | 1 | BAFFLE | 4,57 Lei | |
| 15 | N803464 | 2 | RETAINER | 4,57 Lei | |
| 16 | N803465 | 1 | CAP | 4,57 Lei | |
| 17 | N803466 | 1 | BLOCK | 4,57 Lei | |
| 18 | N803467 | 1 | SCREW | 5,21 Lei | |
| 19 | N809836 | 1 | WASHER | 4,57 Lei | |
| 20 | N812794 | 2 | SPRING | 4,57 Lei | |
| 21 | N812795 | 1 | LEVER SA | 8,64 Lei | |
| 22 | N812797 | 2 | SCREW | 4,57 Lei | |
| 23 | N812798 | 1 | CLAMP | 4,57 Lei | |
| 24 | N812799 | 1 | PLATE | 106,98 Lei | |
| 25 | N812800 | 1 | WASHER | 4,57 Lei | |
| 26 | N812801 | 1 | WASHER | 4,57 Lei | |
| 27 | N812802 | 1 | WASHER | 4,57 Lei | |
| 28 | 90512324 | 1 | CAPACITOR | 5,21 Lei | |
| 29 | 148481-00 | 1 | PROTECTOR | 4,57 Lei | |
| 30 | 605040-06 | 1 | BEARING,BALL | 13,85 Lei | |
| 31 | N816311 | 1 | SHOE SA | 25,54 Lei | |
| 32 | N813132 | 6 | SCREW | 4,57 Lei | |
| 33 | N813133 | 1 | SCREW | 4,57 Lei | |
| 34 | N813134 | 1 | WASHER SPRING | 4,57 Lei | |
| 35 | N813135 | 2 | SCREW | 4,57 Lei | |
| 36 | N813136 | 1 | SCREW | 4,57 Lei | |
| 37 | N854985 | 16 | SCREW | 4,57 Lei | |
| 38 | N854986 | 4 | SCREW | 4,57 Lei | |
| 39 | N854987 | 2 | SCREW | 4,57 Lei | |
| 40 | N820082 | 1 | SWITCH | 41,93 Lei | |
| 41 | N885397 | 1 | CORDSET | 25,54 Lei | |
| 42 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 43 | N854984 | 2 | SCREW | 4,57 Lei | |
| 44 | N820373 | 1 | SHOE SA | 41,93 Lei | |
| 45 | 870889-03 | 1 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 30,87 Lei | |
| 800 | N849486 | 1 | KITBOX | 130,35 Lei | |
| 801 | 612893-00N | 2 | LATCH | 6,23 Lei | |
| 802 | N825468 | 1 | RATING PLATE | 4,57 Lei |
