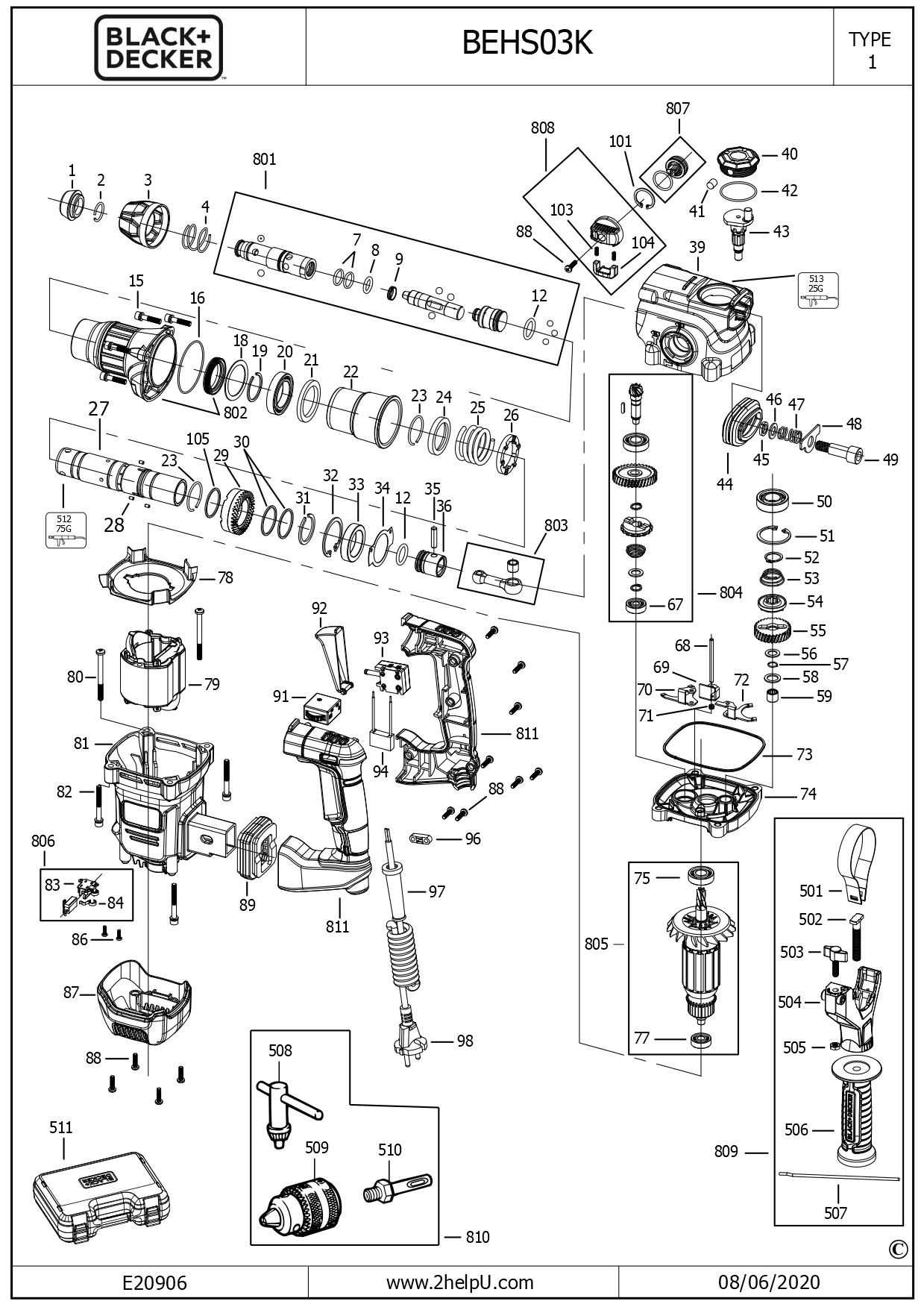

BLACK+DECKER HAMMER DRILL (Type 1)
SKU Produs: BEHS03 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004774-16 | 1 | BOOT | 7,37 Lei | |
| 2 | 5140144-59 | 1 | CIRCLIP | 4,57 Lei | |
| 3 | 1004774-17 | 1 | COLLAR | 21,85 Lei | |
| 4 | 1004774-18 | 1 | SPRING | 6,23 Lei | |
| 5 | 1004774-19 | 5 | SPINDLE SA | 106,98 Lei | |
| 7 | 1004775-46 | 2 | O RING | 4,57 Lei | |
| 8 | 1004775-47 | 1 | O RING | 4,57 Lei | |
| 9 | 1004775-48 | 1 | O RING | 4,57 Lei | |
| 12 | 1004775-49 | 2 | O RING | 7,37 Lei | |
| 15 | 1004774-21 | 1 | SCREW | 4,57 Lei | |
| 16 | 1004774-22 | 1 | O RING | 6,23 Lei | |
| 18 | 1004774-23 | 1 | WASHER | 4,57 Lei | |
| 19 | 1004774-24 | 1 | RING | 4,57 Lei | |
| 20 | 1004774-25 | 1 | BEARING | 25,54 Lei | |
| 21 | 1004774-26 | 1 | RING | 4,57 Lei | |
| 22 | 1004774-27 | 1 | BUSH | 17,02 Lei | |
| 23 | 1004774-28 | 2 | RING | 4,57 Lei | |
| 24 | 1004774-29 | 1 | HOLDER | 10,29 Lei | |
| 25 | 1004774-30 | 1 | SPRING | 6,23 Lei | |
| 26 | 1004774-31 | 1 | CLUTCH | 7,37 Lei | |
| 27 | 1004774-32 | 1 | CYLINDER | 120,82 Lei | |
| 28 | 1004774-33 | 3 | PIN | 4,57 Lei | |
| 29 | 1004774-34 | 1 | Gear | 96,56 Lei | |
| 30 | 1004774-35 | 2 | WASHER | 4,57 Lei | |
| 31 | 1004774-36 | 1 | RING | 4,57 Lei | |
| 32 | 1004774-37 | 1 | CIRCLIP | 4,57 Lei | |
| 33 | 1004774-38 | 1 | BUSH | 8,64 Lei | |
| 34 | 1004774-39 | 1 | BAFFLE | 6,23 Lei | |
| 35 | 5140147-41 | 1 | PIN | 4,57 Lei | |
| 36 | 1004774-40 | 1 | PISTON | 15,12 Lei | |
| 39 | 1004774-42 | 1 | GEARBOX | 120,82 Lei | |
| 40 | 1004774-43 | 1 | COVER | 17,02 Lei | |
| 41 | 1004774-44 | 1 | SEAL | 4,57 Lei | |
| 42 | 5140144-93 | 1 | O RING | 4,57 Lei | |
| 43 | 1004774-45 | 1 | CRANKSHAFT | 30,87 Lei | |
| 44 | 1004774-46 | 1 | DAMPER | 10,29 Lei | |
| 45 | 1004774-47 | 1 | RING | 4,57 Lei | |
| 46 | 1004774-48 | 1 | WASHER | 4,57 Lei | |
| 47 | 1004774-49 | 1 | SPRING | 6,23 Lei | |
| 48 | 1004774-50 | 1 | WASHER | 4,57 Lei | |
| 49 | 1004774-51 | 1 | SCREW | 10,29 Lei | |
| 50 | 1004774-52 | 1 | BEARING | 15,12 Lei | |
| 51 | 5140144-99 | 1 | CIRCLIP | 4,57 Lei | |
| 52 | 5140145-00 | 1 | CIRCLIP | 4,57 Lei | |
| 53 | 1004774-53 | 1 | SPRING | 4,57 Lei | |
| 54 | 1004774-54 | 1 | CLUTCH | 52,22 Lei | |
| 55 | 1004774-55 | 1 | Gear | 30,87 Lei | |
| 56 | 1004774-56 | 1 | WASHER | 4,57 Lei | |
| 57 | 1004774-57 | 1 | RING | 4,57 Lei | |
| 58 | 1004774-58 | 1 | WASHER | 4,57 Lei | |
| 59 | 1004774-59 | 1 | BEARING | 6,23 Lei | |
| 67 | 1004774-61 | 1 | BEARING | 19,95 Lei | |
| 68 | 1004774-62 | 1 | GUIDE | 4,57 Lei | |
| 69 | 1004774-63 | 1 | STOP PLATE | 6,23 Lei | |
| 70 | 1004774-64 | 1 | SELECTOR FORK | 4,57 Lei | |
| 71 | 1004774-65 | 1 | SPRING | 4,57 Lei | |
| 72 | 1004774-66 | 1 | SELECTOR FORK | 4,57 Lei | |
| 73 | 1004774-67 | 1 | SEAL | 6,23 Lei | |
| 74 | 1004774-68 | 1 | COVER | 41,93 Lei | |
| 75 | 1004775-11 | 1 | BEARING | 25,54 Lei | |
| 77 | 5140145-15 | 1 | BEARING | 19,95 Lei | |
| 78 | 1004774-70 | 1 | FAN COVER | 5,21 Lei | |
| 79 | 1004774-71 | 1 | FIELD | 130,35 Lei | |
| 80 | 5140145-16 | 2 | SCREW | 5,21 Lei | |
| 81 | 1004774-72 | 1 | FIELDCASE | 80,04 Lei | |
| 82 | 1004774-73 | 4 | SCREW | 4,57 Lei | |
| 83 | 5140145-20 | 1 | Carbon Brush Holder Pair | 17,02 Lei | |
| 84 | 5140145-23 | 2 | SPRING | 4,57 Lei | |
| 86 | 5140145-22 | 2 | SCREW | 4,57 Lei | |
| 87 | 1004774-75 | 1 | COVER | 30,87 Lei | |
| 88 | 1004774-76 | 13 | SCREW | 4,57 Lei | |
| 89 | 1004774-77 | 1 | DAMPER | 10,29 Lei | |
| 91 | 1004774-80 | 1 | POTENTIOMETER SA | 80,04 Lei | |
| 92 | 1004774-81 | 1 | TRIGGER | 5,21 Lei | |
| 93 | 1004774-82 | 1 | SWITCH | 106,98 Lei | |
| 94 | 1004774-83 | 1 | CAPACITOR | 6,23 Lei | |
| 96 | 1004774-84 | 1 | CORDCLAMP | 4,57 Lei | |
| 97 | 1004774-85 | 1 | CORD PROTECTOR | 6,23 Lei | |
| 98 | 1004774-87 | 1 | CORDSET | 80,04 Lei | |
| 101 | 1004774-90 | 1 | CIRCLIP | 4,57 Lei | |
| 103 | 1004774-91 | 2 | SPRING | 4,57 Lei | |
| 104 | 1004774-92 | 1 | BUTTON | 6,23 Lei | |
| 104 | 1004774-93 | 1 | ADAPTOR | 14,8 Lei | |
| 105 | 1004775-44 | 1 | WASHER | 4,57 Lei | |
| 501 | 1004775-04 | 1 | CLAMP | 10,29 Lei | |
| 502 | 1004775-05 | 1 | BOLT | 6,23 Lei | |
| 503 | 1004775-06 | 1 | LOCKING SCREW | 6,23 Lei | |
| 504 | 1004775-07 | 1 | BRACKET | 7,37 Lei | |
| 505 | 1004775-08 | 1 | NUT M6 | 6,23 Lei | |
| 506 | 1004775-09 | 1 | SIDE HANDLE | 17,02 Lei | |
| 507 | 1004775-10 | 1 | DEPTH ROD | 7,37 Lei | |
| 508 | 1004692-32 | 1 | CHUCK KEY | 6,23 Lei | |
| 509 | 1004692-33 | 1 | CHUCK | 52,22 Lei | |
| 510 | 1004692-34 | 1 | ADAPTOR | 15,12 Lei | |
| 511 | 1004775-01 | 1 | KITBOX | 120,82 Lei | |
| 512 | 1004775-02 | 1 | GREASE | 19,95 Lei | |
| 513 | 1004775-03 | 1 | GREASE | 10,29 Lei | |
| 801 | 1004774-19 | 1 | SPINDLE SA | 106,98 Lei | |
| 802 | 1004774-20 | 1 | HEAD SA | 80,04 Lei | |
| 803 | 1004774-41 | 1 | CON ROD SA | 30,87 Lei | |
| 804 | 1004774-60 | 1 | GEAR SA | 70,39 Lei | |
| 805 | 1004774-69 | 1 | ARMATURE SA | 264,01 Lei | |
| 806 | 1004774-74 | 1 | BRUSH PAIR SA | 25,54 Lei | |
| 807 | 1004774-88 | 1 | LEVER SA | 10,29 Lei | |
| 808 | 1004774-94 | 1 | KNOB SA | 12,71 Lei | |
| 809 | 1004774-95 | 1 | HANDLE SA | 57,81 Lei | |
| 810 | 1004774-97 | 1 | CHUCK SA | 70,39 Lei | |
| 811 | 1004774-78 | 1 | SWITCH HANDLE | 52,22 Lei |
