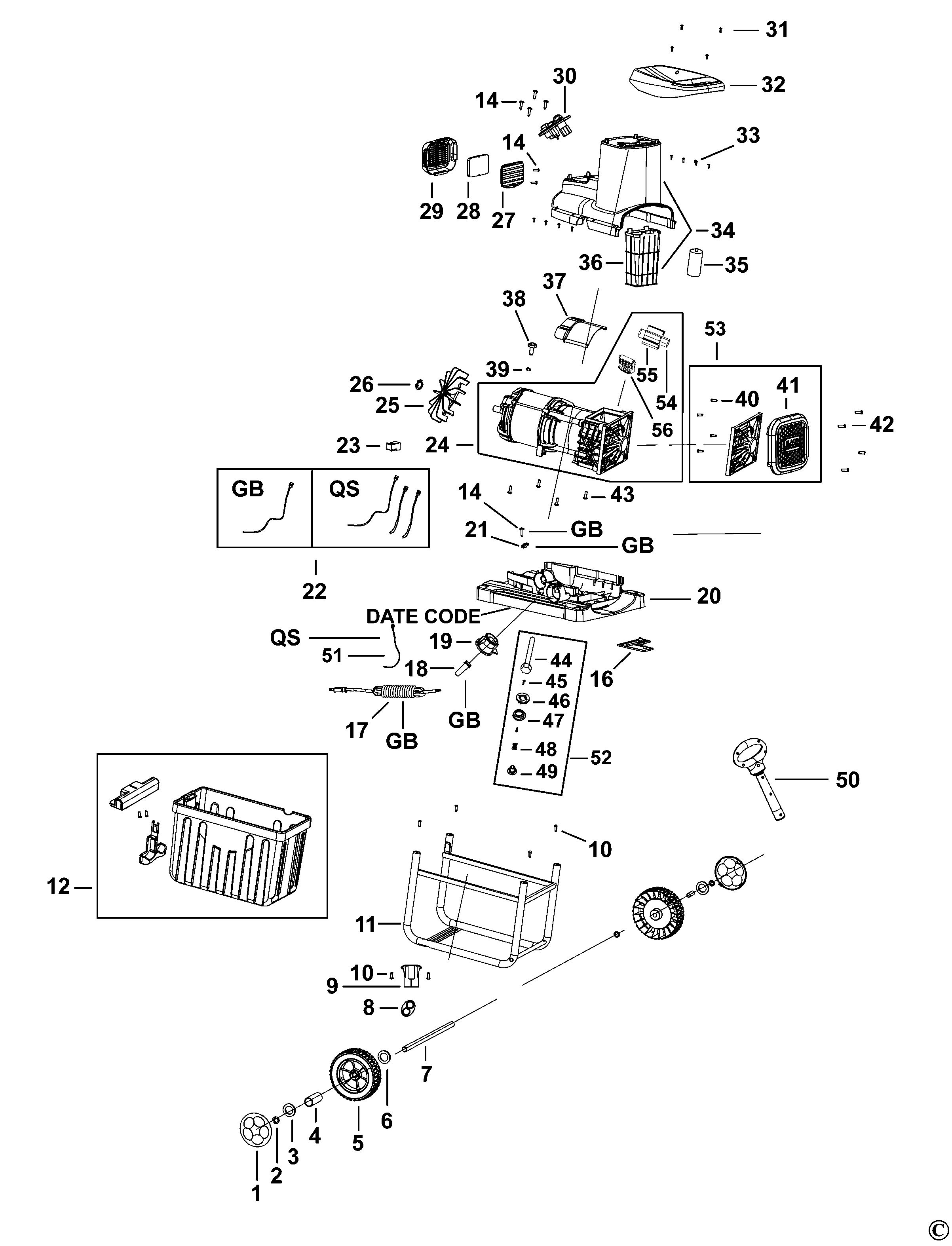

BLACK+DECKER SHREDDER (Type 1)
SKU Produs: BEGAS5800 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004758-78 | 2 | COVER | 6,23 Lei | |
| 2 | 1004758-79 | 2 | NUT | 4,57 Lei | |
| 3 | 1004758-80 | 2 | WASHER | 4,57 Lei | |
| 4 | 1004758-81 | 2 | PIPE | 5,21 Lei | |
| 5 | 1004758-82 | 2 | WHEEL | 25,54 Lei | |
| 6 | 1004758-83 | 2 | WASHER | 4,57 Lei | |
| 7 | 1004758-84 | 1 | SHAFT | 25,54 Lei | |
| 8 | 1004758-85 | 2 | COVER | 4,57 Lei | |
| 9 | 1004758-86 | 2 | FOOT | 7,37 Lei | |
| 10 | 1004758-87 | 8 | SCREW | 4,57 Lei | |
| 11 | 1004758-88 | 1 | FRAME | 433,24 Lei | |
| 12 | 1004759-46 | 1 | COLLECTOR | 120,82 Lei | |
| 14 | 1004758-91 | 16 | SCREW | 4,57 Lei | |
| 16 | 1004758-93 | 1 | COVER | 5,21 Lei | |
| 18 | 1004758-89 | 1 | SOCKET | 34,05 Lei | |
| 19 | 1004758-96 | 1 | COVER | 4,57 Lei | |
| 20 | 1004758-97 | 1 | HOUSING LOWER | 169,36 Lei | |
| 22 | 1004759-13 | 1 | WIRE | 19,95 Lei | |
| 23 | 1004759-01 | 1 | SWITCH SAFETY | 34,05 Lei | |
| 25 | 1004759-04 | 1 | FAN | 17,02 Lei | |
| 26 | 1004759-05 | 1 | CIRCLIP | 4,57 Lei | |
| 27 | 1004759-06 | 1 | COVER | 4,57 Lei | |
| 28 | 1004759-07 | 1 | FILTER | 4,57 Lei | |
| 29 | 1004759-08 | 1 | COVER | 12,71 Lei | |
| 30 | 1004759-09 | 1 | SWITCH SA | 52,22 Lei | |
| 31 | 1004759-10 | 4 | SCREW | 4,57 Lei | |
| 32 | 1004759-11 | 1 | COVER | 41,93 Lei | |
| 33 | 1004759-12 | 8 | SCREW | 4,57 Lei | |
| 34 | 1004759-47 | 1 | HOUSING UPPER | 130,35 Lei | |
| 35 | 1004759-14 | 1 | CAPACITOR | 106,98 Lei | |
| 36 | 1004759-15 | 1 | FUNNEL | 30,87 Lei | |
| 37 | 1004759-16 | 1 | MOTOR COVER | 4,57 Lei | |
| 38 | 1004759-17 | 1 | SCREW | 4,57 Lei | |
| 39 | 1004759-18 | 1 | WASHER | 4,57 Lei | |
| 40 | 1004759-19 | 4 | SCREW | 4,57 Lei | |
| 41 | 1004759-20 | 1 | COVER | 17,02 Lei | |
| 42 | 1004759-21 | 4 | SCREW | 5,21 Lei | |
| 43 | 1004759-22 | 4 | SCREW | 5,21 Lei | |
| 44 | 1004759-23 | 1 | BOLT | 15,12 Lei | |
| 45 | 1004759-24 | 1 | SCREW | 4,57 Lei | |
| 46 | 1004759-25 | 1 | FLANGE | 4,57 Lei | |
| 47 | 1004759-26 | 1 | COVER | 5,21 Lei | |
| 48 | 1004759-27 | 1 | SPRING | 4,57 Lei | |
| 49 | 1004759-28 | 1 | ADJUSTER | 6,23 Lei | |
| 50 | 1004759-29 | 1 | BAR | 19,95 Lei | |
| 51 | 1004759-03 | 1 | LEAD EARTH | 5,21 Lei | |
| 52 | 1004759-45 | 1 | ADJUSTER SA | 15,12 Lei | |
| 53 | 1004760-02 | 1 | COVER | 130,35 Lei | |
| 54 | 1004760-03 | 1 | SHAFT | 96,56 Lei | |
| 55 | 1004760-04 | 1 | BLADE | 213,19 Lei | |
| 56 | 1004760-05 | 1 | ADJUSTER PLATE | 41,93 Lei |
