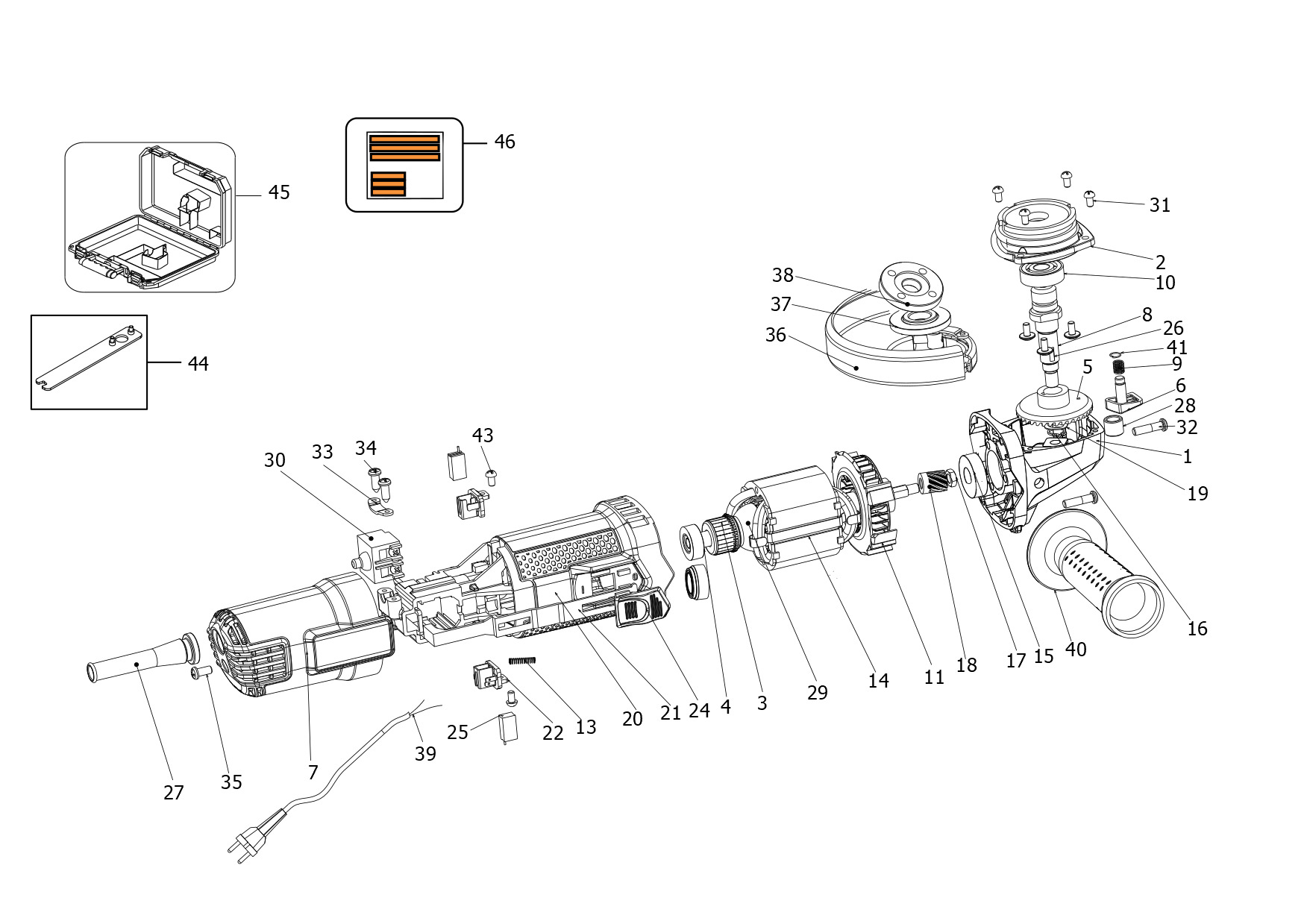

BLACK+DECKER ANGLE GRINDER (Type 2)
SKU Produs: BEG110 /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | N520520 | 1 | ARMATURE AND FAN | 57,81 Lei | |
| 4 | 90609688 | 1 | BEARING,BALL | 8,64 Lei | |
| 5 | N505684 | 1 | GEAR Output | 15,12 Lei | |
| 6 | N528685 | 1 | LOCK PIN | 5,21 Lei | |
| 9 | N522581 | 1 | SPRING | 4,57 Lei | |
| 10 | N529734 | 1 | BEARING BALL | 10,29 Lei | |
| 11 | N516758 | 1 | BAFFLE FAN | 5,21 Lei | |
| 12 | N541114 | 1 | SLEEVE | 4,57 Lei | |
| 13 | 90606067 | 1 | SPRING | 4,57 Lei | |
| 14 | N512974 | 1 | FIELD SA | 57,81 Lei | |
| 15 | 90532404 | 1 | BALL BEARING 608-2RS | 7,37 Lei | |
| 16 | N529735 | 1 | RING | 4,57 Lei | |
| 17 | N528683 | 1 | NUT | 4,57 Lei | |
| 18 | N505694 | 1 | PINION | 6,23 Lei | |
| 19 | N529724 | 1 | WASHER | 4,57 Lei | |
| 21 | 90604790 | 1 | LINK | 4,57 Lei | |
| 22 | N532429 | 2 | HOLDER | 4,57 Lei | |
| 24 | N559053 | 1 | BUTTON RELEASE | 4,57 Lei | |
| 26 | N532793 | 1 | KEY | 4,57 Lei | |
| 27 | 90604794 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 28 | N529722 | 1 | BEARING | 4,57 Lei | |
| 29 | N521253 | 1 | ARMATURE SA | 57,81 Lei | |
| 30 | N744415 | 1 | SWITCH | 41,93 Lei | |
| 32 | N529725 | 4 | SCREW | 4,57 Lei | |
| 33 | N529726 | 1 | CLAMP | 4,57 Lei | |
| 34 | N529727 | 1 | SCREW | 4,57 Lei | |
| 37 | 90604847 | 1 | Connection for grinding wheel | 7,37 Lei | |
| 38 | N547712 | 1 | OUTER FLANGE | 6,23 Lei | |
| 39 | N529515 | 1 | CORDSET (EURO) | 19,95 Lei | |
| 40 | 90604851 | 1 | HANDLE | 10,29 Lei | |
| 41 | N529723 | 1 | CLIP | 4,57 Lei | |
| 43 | N529730 | 2 | SCREW | 4,57 Lei | |
| 44 | 90604852 | 1 | WRENCH SPECIAL | 7,37 Lei | |
| 47 | N563709 | 1 | CAPACITOR | 5,21 Lei |
