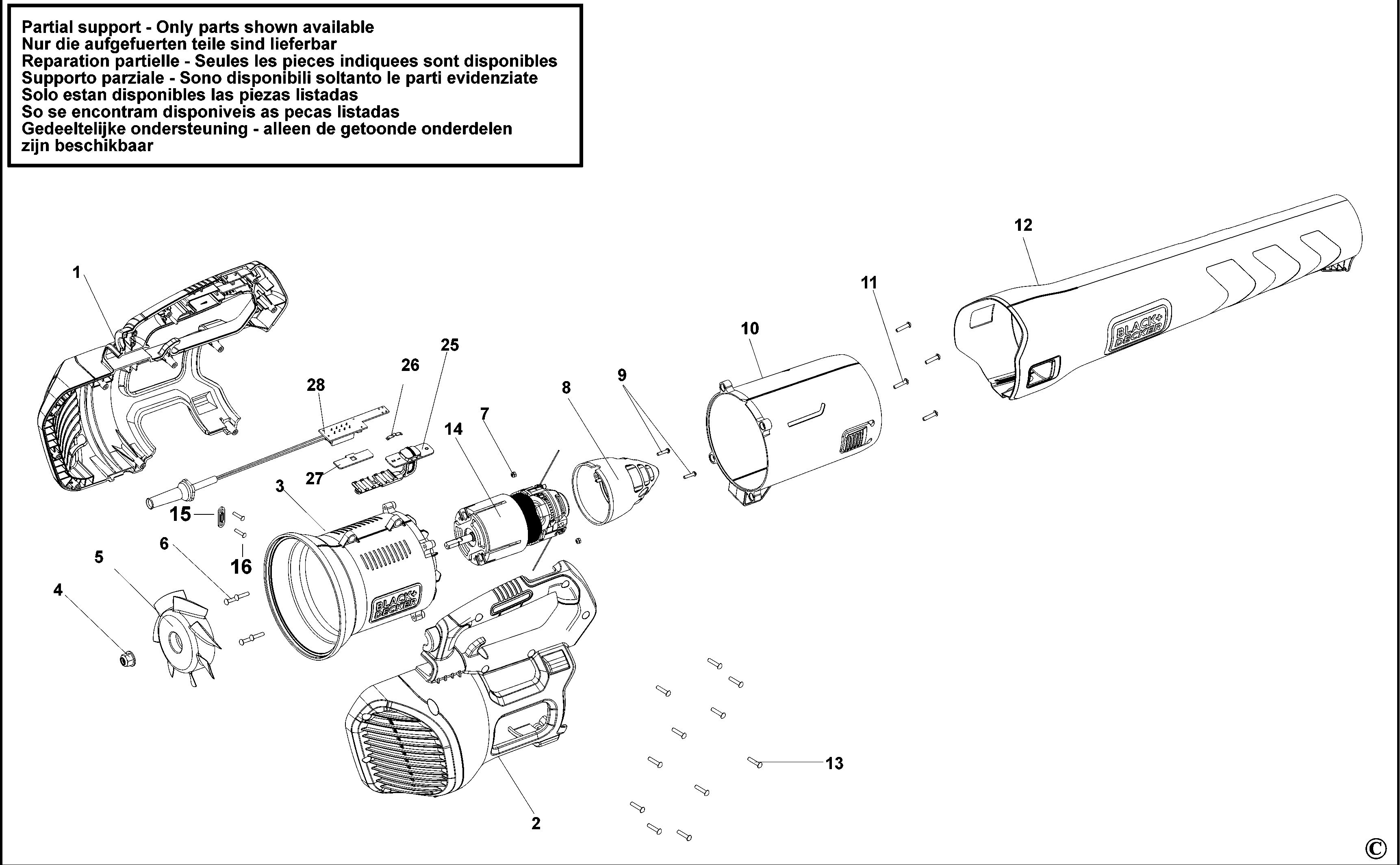

BLACK+DECKER BLOWER (Type 1)
SKU Produs: BEBL185 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N596704 | 1 | HOUSING | 34,05 Lei | |
| 2 | N596705 | 1 | COVER | 34,05 Lei | |
| 3 | N547770 | 1 | DUCT | 25,54 Lei | |
| 4 | N526931 | 1 | NUT | 4,57 Lei | |
| 5 | N536304 | 1 | FAN | 19,95 Lei | |
| 6 | 90611830 | 4 | SCREW | 4,57 Lei | |
| 7 | 330021-11 | 2 | NUT STOP ELASTIC M3 X 0.5 | 4,57 Lei | |
| 8 | N539611 | 1 | CONE | 7,37 Lei | |
| 9 | N574476 | 1 | BOLT | 4,57 Lei | |
| 10 | N539307 | 1 | COVER | 52,22 Lei | |
| 11 | 330019-12 | 4 | SCREW | 4,57 Lei | |
| 12 | N539305 | 1 | TUBE | 25,54 Lei | |
| 13 | 90611830 | 11 | SCREW | 4,57 Lei | |
| 14 | N579730 | 1 | MOTOR SA | 276,84 Lei | |
| 15 | 329301-00 | 1 | CLAMP, CORD CORNER | 4,57 Lei | |
| 16 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 25 | N597474 | 1 | BUTTON | 4,57 Lei | |
| 26 | N014681 | 1 | LEAF SPRING | 4,57 Lei | |
| 27 | N606712 | 1 | FELT | 4,57 Lei | |
| 28 | N577974 | 1 | CORDSET (EURO) | 57,81 Lei | |
| 30 | N612476 | 1 | RATING LABEL | 5,21 Lei |
