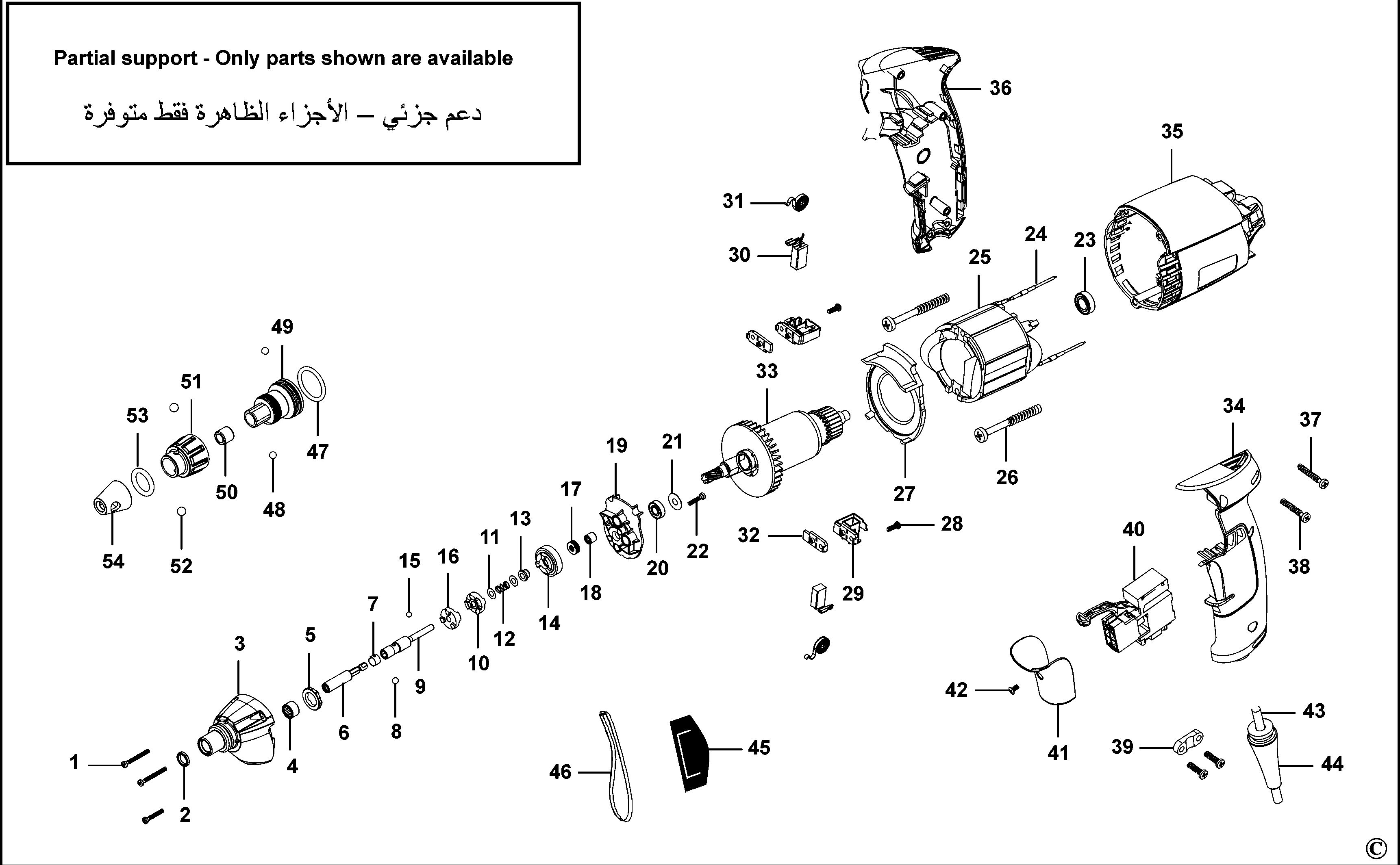

BLACK+DECKER SCREWDRIVER (Type 1)
SKU Produs: BDSG500 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 5140136-22 | 1 | SCREW | 4,57 Lei | |
| 2 | 5140136-23 | 1 | RING | 8,64 Lei | |
| 3 | 5140136-24 | 1 | HOUSING GEAR | 13,85 Lei | |
| 4 | 5140136-25 | 1 | BEARING NEEDLE | 8,64 Lei | |
| 5 | 5140136-26 | 1 | CATCH | 5,21 Lei | |
| 6 | 5140136-27 | 1 | HOLDER BIT | 7,37 Lei | |
| 7 | 5140136-28 | 1 | RING | 4,57 Lei | |
| 8 | 5140136-29 | 1 | BALL | 4,57 Lei | |
| 9 | 5140136-30 | 1 | SPINDLE | 41,93 Lei | |
| 10 | 5140136-31 | 1 | CLUTCH | 10,29 Lei | |
| 11 | 5140136-32 | 1 | SPRING | 4,57 Lei | |
| 12 | 5140136-33 | 1 | WASHER | 4,57 Lei | |
| 13 | 5140136-34 | 1 | BEARING SLIDE | 7,37 Lei | |
| 14 | 5140136-35 | 1 | Gear | 25,54 Lei | |
| 15 | 5140136-36 | 1 | BALL | 4,57 Lei | |
| 16 | 5140136-37 | 1 | CLUTCH | 15,12 Lei | |
| 17 | 5140136-38 | 1 | BEARING THRUST | 25,54 Lei | |
| 18 | 5140136-39 | 1 | BEARING NEEDLE | 8,64 Lei | |
| 19 | 5140136-40 | 1 | SEAT | 17,02 Lei | |
| 20 | 5140136-41 | 1 | BEARING,BALL | 15,12 Lei | |
| 21 | 5140136-42 | 1 | WASHER | 4,57 Lei | |
| 22 | 5140136-43 | 1 | SCREW | 4,57 Lei | |
| 23 | 5140136-46 | 1 | BEARING | 13,85 Lei | |
| 24 | 5140136-47 | 1 | CHOKE | 13 Lei | |
| 26 | 5140136-49 | 1 | SCREW | 4,57 Lei | |
| 27 | 5140136-50 | 1 | BAFFLE | 4,57 Lei | |
| 28 | 5140136-51 | 1 | SCREW | 4,57 Lei | |
| 29 | 5140136-52 | 1 | BRUSH HOLDER | 10,29 Lei | |
| 30 | 5140136-53 | 2 | BRUSH | 17,02 Lei | |
| 31 | 5140136-54 | 1 | BRUSH SPRING | 4,57 Lei | |
| 32 | 5140136-55 | 1 | SUPPORT | 4,57 Lei | |
| 34 | 5140136-57 | 1 | HANDLE LH | 36,8 Lei | |
| 35 | 5140136-58 | 1 | HOUSING MOTOR | 15,12 Lei | |
| 36 | 5140136-59 | 1 | HANDLE RH | 40,9 Lei | |
| 37 | 5140136-60 | 1 | SCREW | 4,57 Lei | |
| 38 | 5140136-61 | 1 | SCREW | 4,7 Lei | |
| 39 | 5140136-62 | 1 | CORD CLAMP | 4,57 Lei | |
| 40 | 5140136-63 | 1 | SWITCH | 57,81 Lei | |
| 41 | 5140136-64 | 1 | KNOB | 4,57 Lei | |
| 42 | 5140136-65 | 1 | SCREW | 4,57 Lei | |
| 44 | 5140136-67 | 1 | CORD PROTECTOR | 4,57 Lei | |
| 47 | 5140136-68 | 1 | O RING | 4,57 Lei | |
| 48 | 5140136-69 | 1 | BALL | 4,57 Lei | |
| 49 | 5140136-70 | 1 | BASE | 7,2 Lei | |
| 50 | 5140136-71 | 1 | BUSH | 7,5 Lei | |
| 51 | 5140136-72 | 1 | COVER | 7,37 Lei | |
| 52 | 5140136-73 | 1 | BALL | 4,57 Lei | |
| 53 | 5140136-74 | 1 | O RING | 4,57 Lei | |
| 54 | 5140136-75 | 1 | NOZZLE | 15,12 Lei |
