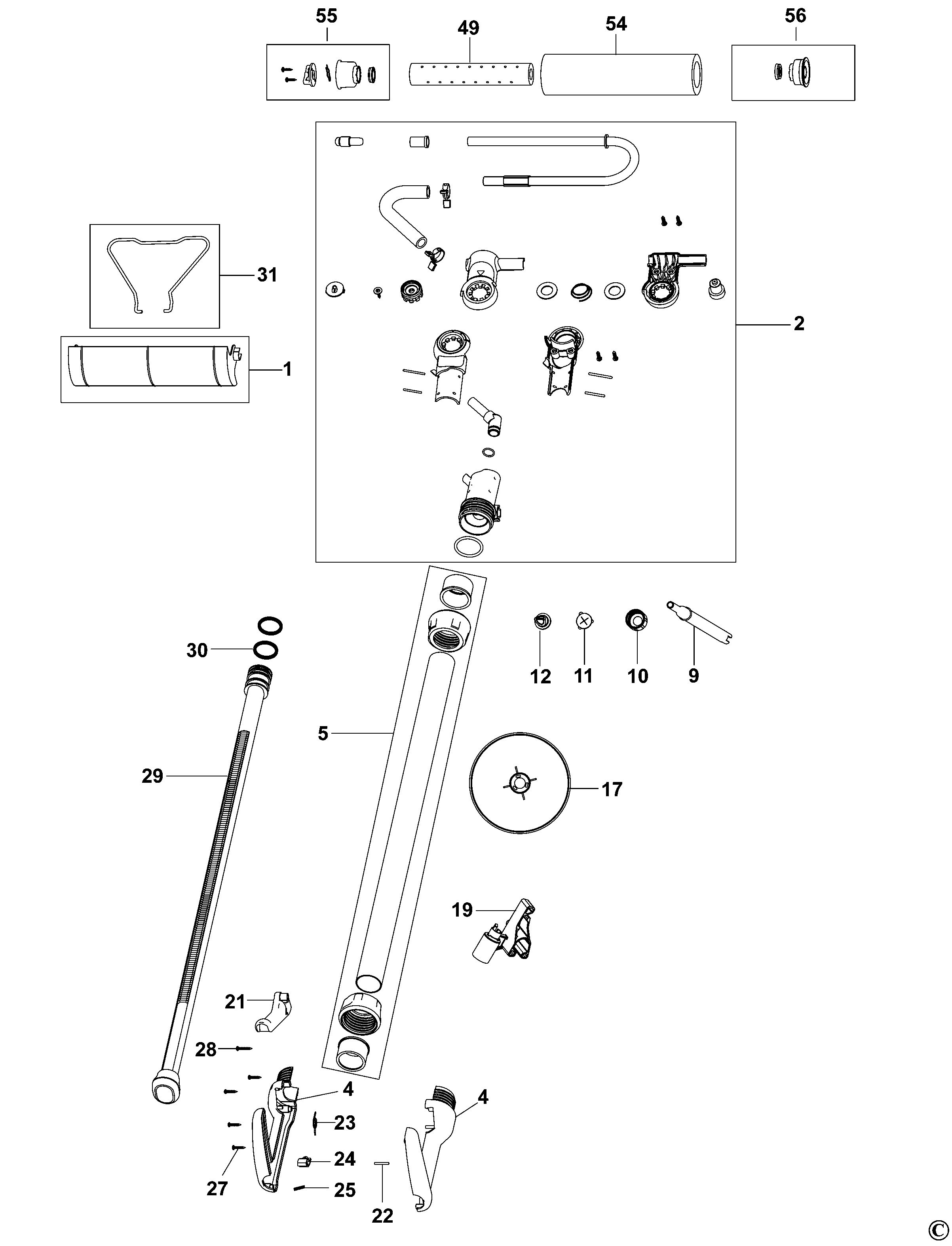

BLACK+DECKER SPEEDY ROLLER (Type 1)
SKU Produs: BDPR400 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004573-00 | 1 | SHIELD | 13,85 Lei | |
| 2 | 1004573-01 | 1 | ROLLER HEAD SA | 96,56 Lei | |
| 4 | 1004573-02 | 1 | HANDLE SA | 34,05 Lei | |
| 5 | 1004573-03 | 1 | CYLINDER SA | 52,22 Lei | |
| 9 | 1004573-04 | 1 | TUBE | 13,85 Lei | |
| 10 | 1004573-05 | 1 | VALVE FLAP | 4,57 Lei | |
| 11 | 1004573-06 | 1 | WIPER | 4,57 Lei | |
| 12 | 1004573-07 | 1 | VALVE | 13,85 Lei | |
| 17 | 1004573-08 | 1 | LID | 21,85 Lei | |
| 19 | 1004573-09 | 1 | CLIP | 21,85 Lei | |
| 21 | 1004573-10 | 1 | TRIGGER | 13,85 Lei | |
| 22 | 1004573-11 | 1 | PIN | 4,57 Lei | |
| 23 | 1004573-12 | 1 | SPRING | 4,57 Lei | |
| 24 | 1004573-13 | 1 | PLASTIC INSERT | 4,57 Lei | |
| 25 | 1004573-14 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 27 | 1004573-15 | 4 | SCREW | 4,57 Lei | |
| 28 | 1004573-16 | 1 | SCREW | 4,57 Lei | |
| 30 | 1004573-18 | 2 | SEAL | 21,85 Lei | |
| 31 | 1004573-19 | 1 | STAND | 21,85 Lei | |
| 49 | 1004573-20 | 1 | TUBE | 5,21 Lei | |
| 54 | 1004573-21 | 1 | ROLLER | 34,05 Lei | |
| 54 | 1004573-22 | 1 | ROLLER | 41,93 Lei | |
| 55 | 1004733-53 | 1 | COVER | 17,02 Lei | |
| 56 | 1004733-54 | 1 | CAP | 17,02 Lei |
