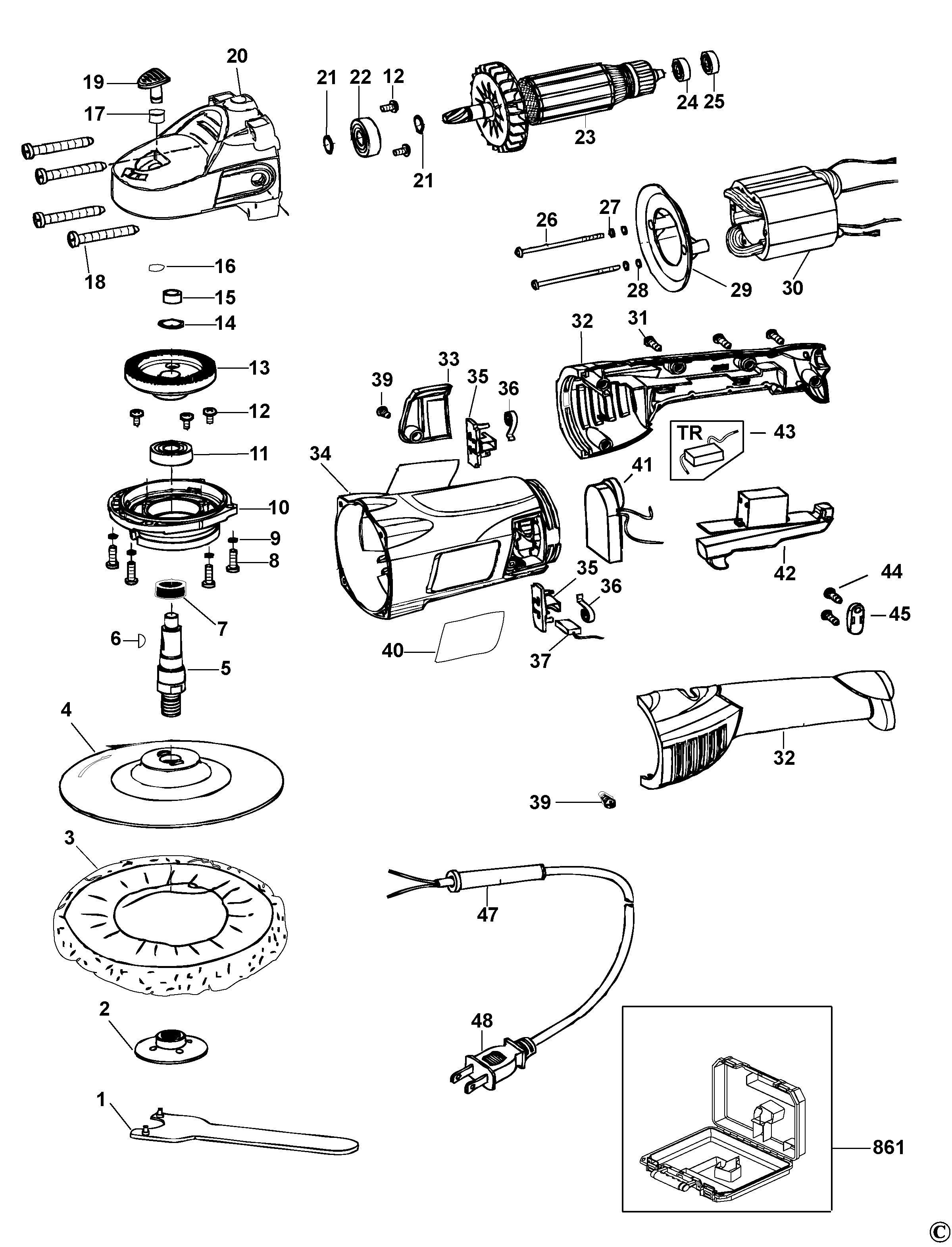

BLACK+DECKER POLISHER (Type 1)
SKU Produs: BDGP1518 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 5140090-55 | 1 | WRENCH 4 MM | 13,85 Lei | |
| 2 | 5140090-56 | 1 | OUTER FLANGE | 17,02 Lei | |
| 3 | 5140090-57 | 1 | BONNET | 52,22 Lei | |
| 4 | 5140090-58 | 1 | PAD | 41,93 Lei | |
| 5 | 5140090-59 | 1 | SPINDLE | 25,54 Lei | |
| 6 | 5140090-60 | 1 | WOODRUFF KEY | 4,57 Lei | |
| 7 | 5140090-61 | 1 | SEAL | 6,23 Lei | |
| 8 | 5140090-62 | 4 | SCREW | 4,57 Lei | |
| 9 | 5140090-63 | 4 | WASHER | 4,57 Lei | |
| 10 | 5140090-64 | 1 | HOUSING GEAR | 25,54 Lei | |
| 11 | 5140090-65 | 1 | BEARING | 30,87 Lei | |
| 12 | 5140090-66 | 5 | SCREW.SPECIAL | 4,57 Lei | |
| 13 | 5140090-67 | 1 | Gear | 41,93 Lei | |
| 14 | 5140090-68 | 1 | RING | 4,57 Lei | |
| 15 | 5140090-69 | 1 | SLEEVE BEARING | 10,29 Lei | |
| 16 | 5140090-70 | 1 | RING | 4,57 Lei | |
| 17 | 5140090-71 | 1 | SPRING | 4,57 Lei | |
| 18 | 5140090-72 | 4 | SCREW | 4,57 Lei | |
| 19 | 5140090-73 | 1 | LOCK PIN | 4,57 Lei | |
| 20 | 5140090-74 | 1 | HOUSING GEAR SA | 88,55 Lei | |
| 21 | 5140090-75 | 2 | RING | 4,57 Lei | |
| 22 | 5140090-76 | 1 | BEARING | 21,85 Lei | |
| 24 | 5140090-79 | 1 | BEARING | 15,12 Lei | |
| 25 | 5140090-80 | 1 | SLEEVE BEARING | 4,57 Lei | |
| 26 | 5140090-81 | 2 | SCREW | 4,57 Lei | |
| 27 | 5140090-82 | 2 | WASHER | 4,57 Lei | |
| 28 | 5140090-83 | 2 | WASHER | 4,57 Lei | |
| 29 | 5140090-84 | 1 | BAFFLE FAN | 6,23 Lei | |
| 30 | 5140090-85 | 1 | FIELD | 169,36 Lei | |
| 31 | 5140090-87 | 4 | SCREW | 4,57 Lei | |
| 35 | 5140090-91 | 1 | BRUSH HOLDER | 15,12 Lei | |
| 36 | 5140090-92 | 2 | BRUSH SPRING | 7,37 Lei | |
| 37 | 5140090-93 | 2 | BRUSH 220V | 25,54 Lei | |
| 39 | 5140090-95 | 2 | SCREW | 4,57 Lei | |
| 41 | 5140090-54 | 1 | SWITCH VARIABLE | 57,81 Lei | |
| 42 | 5140091-00 | 1 | SWITCH | 34,05 Lei | |
| 44 | 5140091-02 | 2 | SCREW | 4,57 Lei | |
| 45 | 5140091-03 | 1 | CORD CLAMP | 4,57 Lei | |
| 47 | 5140091-04 | 1 | CORD PROTECTOR | 6,23 Lei |
