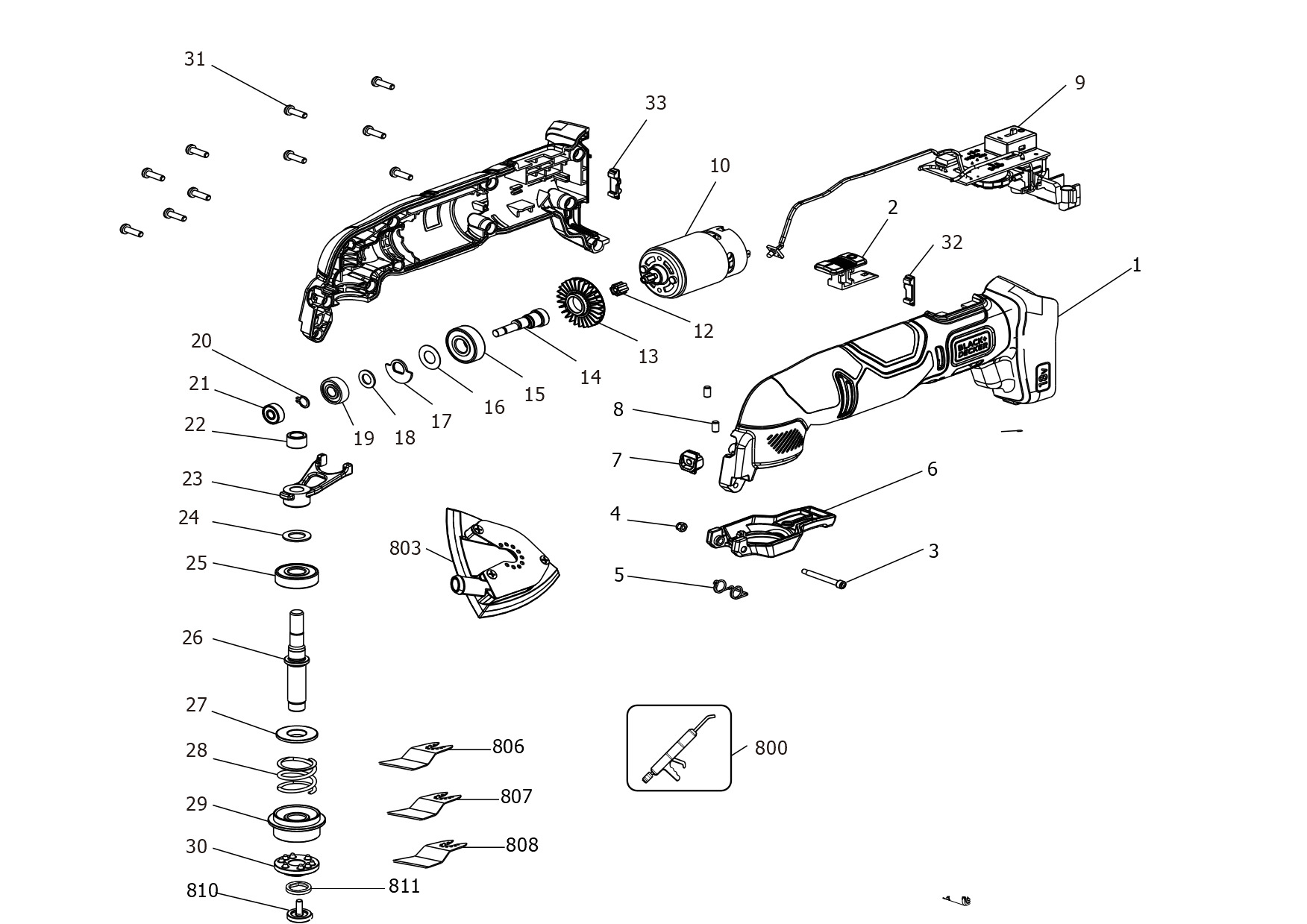

BLACK+DECKER OSCILLATING TOOL (Type 1)
SKU Produs: BDCOS18N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA039631 | 1 | HOUSING SA | 120,82 Lei | |
| 2 | NA067790 | 1 | TRIGGER | 4,57 Lei | |
| 3 | 90581542 | 1 | SCREW | 4,57 Lei | |
| 4 | 90581543 | 1 | NUT | 4,57 Lei | |
| 5 | 90580672 | 1 | SPRING TORSION | 4,57 Lei | |
| 6 | N885171 | 1 | LEVEL | 10,29 Lei | |
| 7 | 90593191 | 1 | COVER | 4,57 Lei | |
| 8 | 90596629 | 2 | PLUG | 4,57 Lei | |
| 9 | NA067787 | 1 | PCB SA | 225,26 Lei | |
| 10 | NA066284 | 1 | MOTOR SA | 145,09 Lei | |
| 12 | 90592739 | 1 | PINION | 4,57 Lei | |
| 13 | 90592738 | 1 | FAN | 4,57 Lei | |
| 14 | 90592736 | 1 | Drive Shaft | 25,54 Lei | |
| 15 | 90581550 | 1 | BEARING | 10,29 Lei | |
| 16 | 90594208 | 1 | WASHER | 4,57 Lei | |
| 17 | 90581541 | 1 | PLATE | 4,57 Lei | |
| 18 | 90581562 | 1 | WASHER | 4,57 Lei | |
| 19 | 90586419 | 1 | BEARING | 17,02 Lei | |
| 20 | 90581539 | 1 | CLIP | 4,57 Lei | |
| 21 | 90592737 | 1 | BEARING | 13,85 Lei | |
| 22 | 624474-06 | 1 | BEARING,NEEDLE | 7,37 Lei | |
| 23 | 90580652-01 | 1 | YOKE | 37,73 Lei | |
| 24 | 90617957 | 1 | WASHER | 4,57 Lei | |
| 25 | 90581548 | 1 | BEARING,BALL | 13,85 Lei | |
| 26 | 90580651 | 1 | SPINDLE | 21,85 Lei | |
| 27 | N535230 | 1 | SEAT | 5,21 Lei | |
| 28 | 90580654 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 29 | 90580655 | 1 | CLAMP | 19,95 Lei | |
| 30 | 90580656 | 1 | WASHER CLAMP | 21,85 Lei | |
| 31 | 370748 | 10 | SCREW | 4,57 Lei | |
| 800 | 870889-03 | 1 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 30,87 Lei | |
| 803 | 90583530 | 1 | PLATEN | 41,93 Lei | |
| 806 | 90585829 | 1 | BLADE - RIGID SCRAPER | 17,02 Lei | |
| 807 | NA066692 | 1 | BLADE | 19,95 Lei | |
| 808 | NA066693 | 1 | BLADE | 25,54 Lei | |
| 810 | 90584484 | 1 | OUTER FLANGE | 21,85 Lei | |
| 811 | N440293 | 1 | FLANGE | 4,57 Lei |
