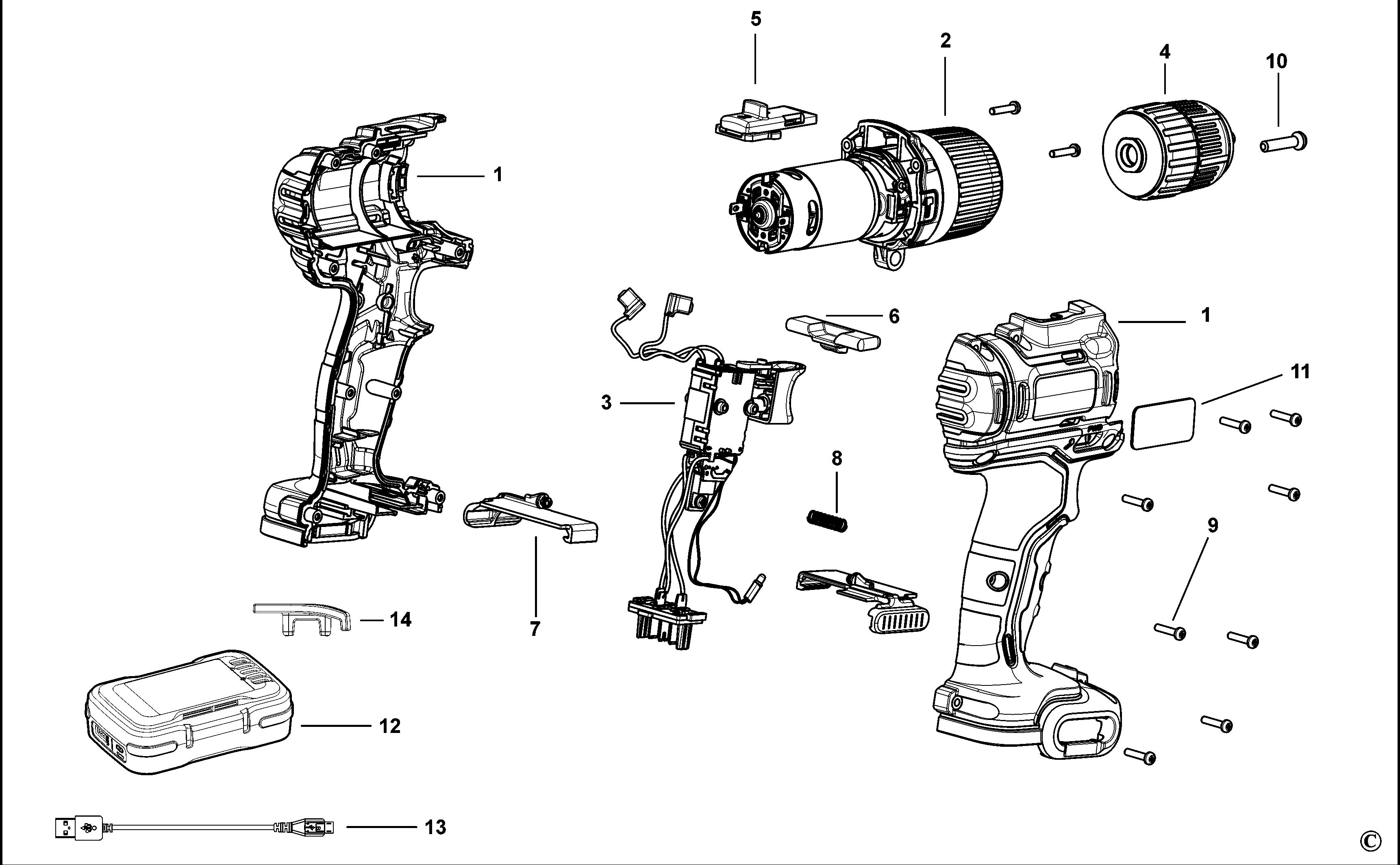

BLACK+DECKER HAMMER DRILL (Type H1)
SKU Produs: BDCHD12S1 /Type: H1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N505947 | 1 | CLAMSHELL PAIR | 37,73 Lei | |
| 2 | N498751 | 1 | GEARBOX SA | 195,02 Lei | |
| 3 | N503080 | 1 | SWITCH SA | 120,82 Lei | |
| 4 | N500307 | 1 | CHUCK KEYLESS | 34,05 Lei | |
| 5 | N513025 | 1 | ACTUATOR | 16,6 Lei | |
| 5 | N924463 | 1 | ACTUATOR | 25,54 Lei | |
| 6 | N498372 | 1 | ACTUATOR FWD/REV | 4,57 Lei | |
| 7 | N514382 | 2 | LATCH | 4,57 Lei | |
| 8 | N492431 | 1 | SPRING | 4,57 Lei | |
| 9 | 5101046-00 | 10 | SCREW | 4,57 Lei | |
| 10 | 149518-01 | 1 | SCREW | 4,57 Lei | |
| 11 | N517623 | 1 | RATING PLATE | 4,57 Lei | |
| 12 | NA025124 | 1 | BATTERY 12V - 1.5AH - 18WH | 349,13 Lei | |
| 13 | N505949 | 1 | USB CABLE | 19,95 Lei | |
| 14 | N492449 | 1 | SAFETY CAP | 4,57 Lei |
