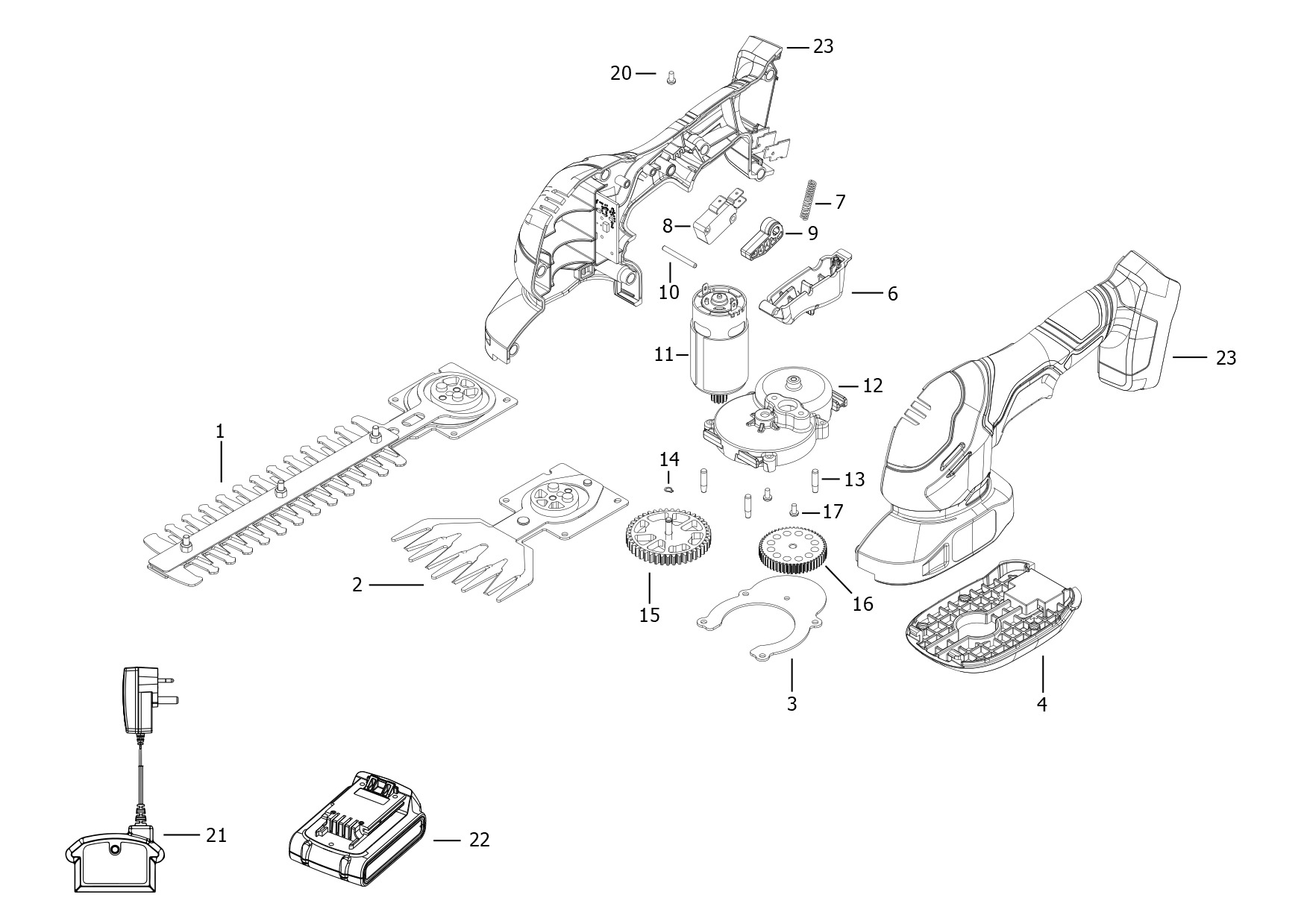

BLACK+DECKER SHRUB TRIMMER (Type H1)
SKU Produs: BCSS18 /Type: H1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N867322 | 1 | BLADE SA | 145,09 Lei | |
| 2 | N918412 | 1 | BLADE SA | 80,04 Lei | |
| 3 | N809990 | 1 | COVER GEARCASE | 13,85 Lei | |
| 4 | N837032 | 1 | COVER | 12,71 Lei | |
| 6 | N854015 | 1 | TRIGGER | 10,29 Lei | |
| 7 | N829448 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 8 | N843498 | 1 | SWITCH SA | 157,92 Lei | |
| 9 | N814026 | 1 | BUTTON LOCK-OFF | 4,57 Lei | |
| 10 | N838937 | 1 | PIVOT | 4,57 Lei | |
| 11 | N866747 | 1 | MOTOR AND PINION | 96,56 Lei | |
| 12 | N850155 | 1 | GEAR CASE SA | 17,02 Lei | |
| 13 | N853693 | 4 | PIN | 4,57 Lei | |
| 15 | N879798 | 1 | GEAR SA | 25,54 Lei | |
| 16 | N806878 | 1 | Gear | 21,85 Lei | |
| 17 | 90566914 | 2 | SCREW | 4,57 Lei | |
| 18 | 330016-26 | 1 | WASHER | 4,57 Lei | |
| 20 | 330019-00 | 7 | SCREW, PLASTIC THREAD FORM M3 * 16 T10 | 4,57 Lei |
