BLACK+DECKER HAMMER DRILL (Type 1)
SKU Produs: BCD003N /Type: 1

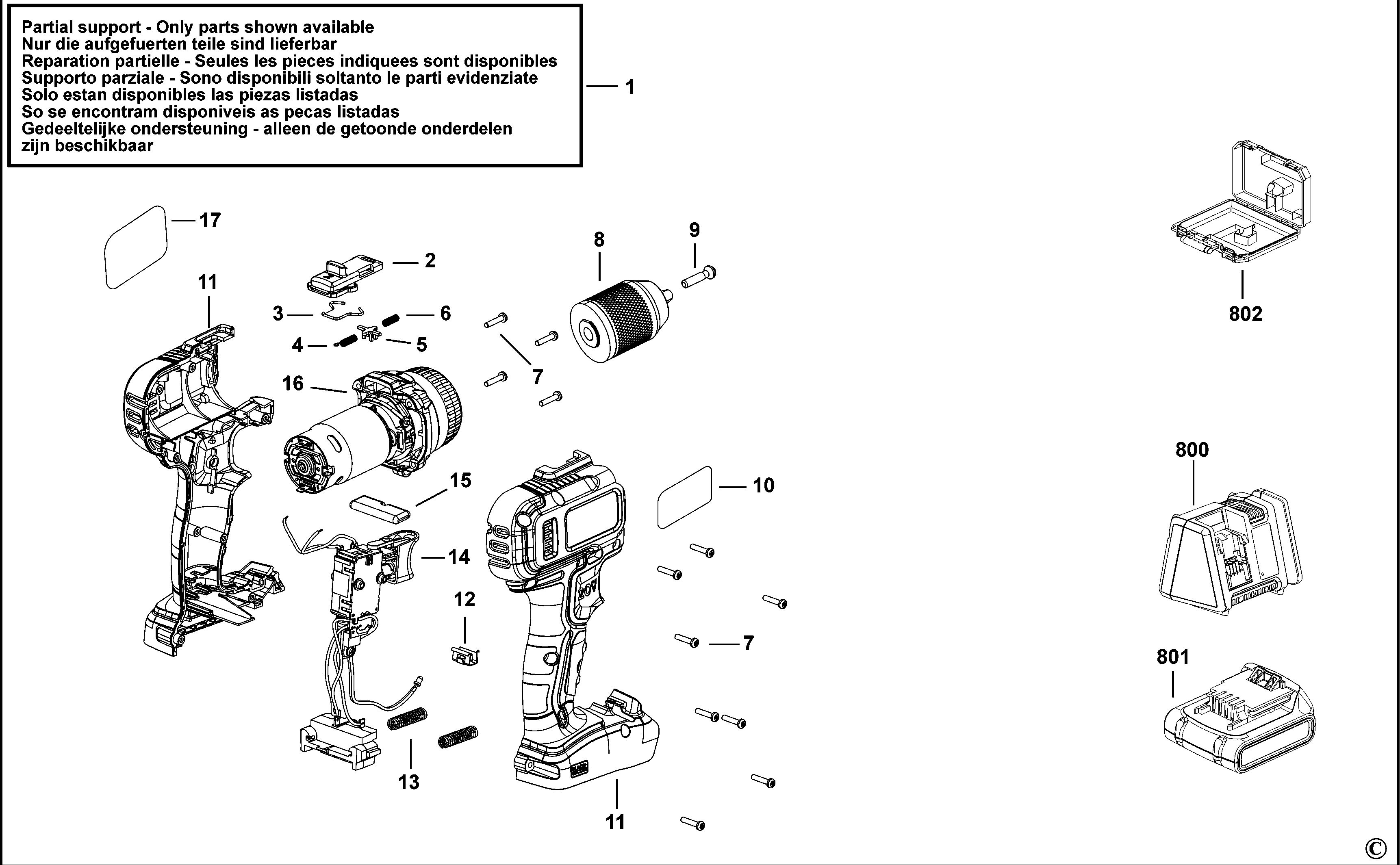

| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | N744005 | 1 | SLIDE | 3,78 Lei | |
| 3 | 90556568 | 1 | LEAF SPRING | 4,57 Lei | |
| 4 | 90625101 | 1 | SPRING | 3,78 Lei | |
| 5 | 90625102 | 1 | HOLDER | 3,78 Lei | |
| 6 | 90626849 | 1 | SPRING | 3,78 Lei | |
| 7 | 5101046-00 | 12 | SCREW | 4,57 Lei | |
| 8 | N500265 | 1 | CHUCK | 30,87 Lei | |
| 9 | 149518-01 | 1 | SCREW | 4,57 Lei | |
| 11 | N574211 | 1 | HOUSING PAIR | 34,05 Lei | |
| 12 | 148354-03 | 1 | CLIP, BIT HOLDER | 4,57 Lei | |
| 13 | 5100035-03 | 2 | SPRING | 4,57 Lei | |
| 14 | N745042 | 1 | SWITCH SA | 79,8 Lei | |
| 15 | N569223 | 1 | ACTUATOR FWD/REV | 4,57 Lei | |
| 16 | N746571 | 1 | MOTOR AND GEARCASE | 181,55 Lei | |
| 17 | N566174 | 1 | BRAND LABEL | 4,57 Lei |
